The amorphous and nanocrystalline soft magnetic material welding machine is a product processing equipment independently developed and produced by our company in 2019 to meet industry demands.
Main Features: Small size, low power consumption, good stability, adjustable output working current, capable of multi-station welding. Applicable to: specialized spot welding tool for making magnetic cores and iron cores from nanocrystalline alloy strips. It can also be used for flat welding of other metal strips (thin materials) with a thickness of 8μm–50μm.
Main Technical Specifications:
Input Voltage: 90-220V/AC 50/60Hz
Output Voltage: 0–5V/AC
Output Current: 0–20A
Capacity: 100W
Working Mode: Spot contact/instantaneous, working temperature below 70℃, relative humidity below 85%, working environment free of flammable and explosive gases
Principle Block Diagram: (omitted)
Casing: 200×150×110 mm
Overall Dimensions (for reference only, subject to change without notice)
Product Features: Mainly designed for welding amorphous and nanocrystalline soft magnetic materials, the product is made with solid materials. The welding transformer uses nanocrystalline magnetic rings, and key components adopt high-power devices, resulting in low welding noise and heat generation.
Product Characteristics:
- High compatibility with welding material thickness (8-50um)
- Adjustable welding current from 0-20A (can be customized according to customer requirements)

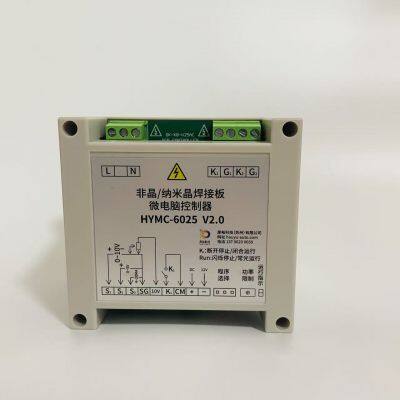

The company independently developed the controller HYMC-6025 V2.0, which is compatible with most mainstream equipment models on the market.
The product can be adjusted using a potentiometer or through analog inputs 4-20MA, 0-10V, and potentiometer control.
The company independently developed the welding mainboard HYWP-6025 V3.0, which can be adjusted using a potentiometer.
