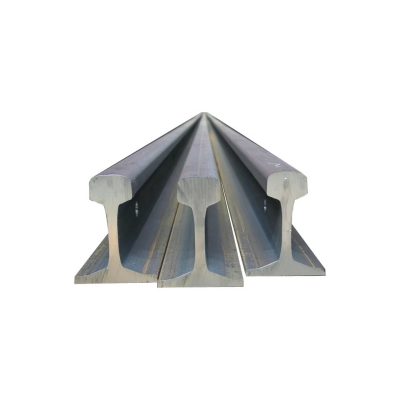

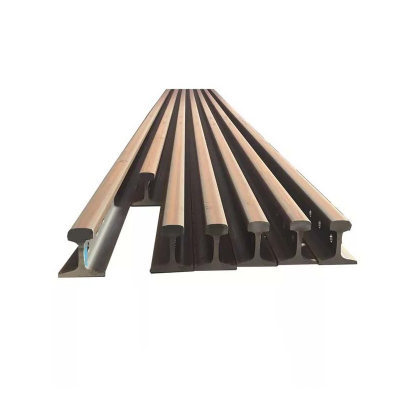

Help CenterCost Effective Steel Railway Rail for Roadbed Construction Slope Protection and Railway Renovation
Product Spotlights
Related Products
-
High Performance Steel Railway Rail Suitable for High Speed Train and Heavy Cargo TransportationUS$ 450 - 500MOQ: 10 Tons -
Full Sets Steel Railway Rail Including Rail Sleepers Fasteners and Accessories for One Stop PurchaseUS$ 450 - 500MOQ: 10 Tons
-
Top Quality Steel Railway Rail With Stable Supply for Long Term Cooperation With Global ClientsUS$ 450 - 500MOQ: 10 Tons
-
Railway Rail UIC54 Fishplate,Rail Connector ProducerUS$ 450 - 500MOQ: 10 Tons
-
New QU120 Crane Steel Rail-U71MN Material ISO9001 Certified for Gantry Crane Retrofit/UpgradeUS$ 450 - 500MOQ: 10 Tons
R350HT U71MnG U75VG 11 33 60 kg/m Steel Railway Rail. Based on their application, modern steel rails can be divided into three categories:
1. Light rails for mining railways, available in eight types: 8 kg/m, 9 kg/m, 12 kg/m, 15 kg/m, 18 kg/m, 22 kg/m, 24 kg/m, and 30 kg/m.
2. Heavy rails for passenger and freight railways, mainly available in five types: 38 kg/m, 43 kg/m, 50 kg/m, 60 kg/m, and 75 kg/m. There are also turnout rails for changing tracks, available in 50AT and 60AT versions.
3. Crane rails for cranes, currently available in four specifications: QU70, QU80, QU100, and QU120.
Steel rails can be categorized into three types based on the materials used: high-quality carbon rails, alloy rails, and fully heat-treated rails.SS、IHHS U71Mn、U75V、U71MnG、U75VG、U76CrRE、U20Mn、U71Mn-HL、U75V-HL、U74、PD2、PD3、BNbRE、U71Cu、U70MnSi、U71MnSiCu、55Q、Q235B、Q345B、50Mn、60Si2Mn，A50, A55, A65, A75, A100.
1. High-quality carbon rails primarily utilize carbon and manganese to enhance strength and toughness, with sulfur and phosphorus content controlled below 0.030%. Major grades include U74 and U71MN.
2. Alloy rails are based on carbon rails, with the addition of appropriate alloying elements such as V, Ti, CCr, and Mo to improve strength and toughness. In my country, alloy rails include RE-Nb, RE-Cr, and V-Ti rails, with major grades including U76RENB, U75V, and U76CrRE.
3. Fully heat-treated rails use the above two types of steel rails as their base, employing a heat treatment process involving heating and controlled cooling to improve their internal microstructure, refine grains, and form a fine pearlite structure, thus achieving high strength and high toughness.
Based on their mechanical properties, rails can be divided into three categories: the first category is ordinary rails, which are rails with a tensile strength of not less than 100 MPa; the second category is high-strength rails, which are rails with a tensile strength of not less than 900 MPa; and the third category is wear-resistant rails, which are rails with a tensile strength greater than 980 MPa.
| Size | A | B | b | tw | A(cm2) | （㎏/m) | y1(㎝) | y2(㎝) | Ix(cm4) | W1=Ix/y1(cm3) | W2=Ix/y2(cm3) | Iy(cm4) | Wy(cm3) | L(m) |
| 5kg/m | 50 | 44 | 22 | 4.5 | 6.41 | 5.03 | 2.22 | 2.78 | 25.2 | 11.4 | 9.1 | 5.35 | 2.43 | 5～10 |
| 8kg/m | 65 | 54 | 25 | 7 | 10.76 | 8.42 | 2.89 | 3.61 | 59.3 | 20.6 | 16.4 | 9.62 | 3.56 | 5～10 |
| 11kg/m | 80.5 | 66 | 32 | 7 | 14.31 | 11.2 | 3.96 | 4.09 | 125 | 31.7 | 30.5 | 15.1 | 4.58 | 6～10 |
| 15kg/m | 91 | 76 | 37 | 7 | 18.8 | 14.72 | 4.35 | 4.75 | 222 | 51 | 46.6 | 30.2 | 7.94 | 6～12 |
| 18kg/m | 90 | 80 | 40 | 10 | 23.07 | 18.06 | 4.29 | 4.71 | 240 | 56.1 | 51 | 41.1 | 10.3 | 7～12 |
| 24kg/m | 107 | 92 | 51 | 10.9 | 31.24 | 24.95 | 5.31 | 5.39 | 486 | 91.6 | 90.1 | 80.5 | 17.49 | 9～12 |
| 33kg/m | 120 | 110 | 60 | 12.5 | 42.5 | 33.29 | 5.76 | 6.24 | 821.9 | 142.6 | 131.8 | 165.1 | 30 | 12.5 |
| 38kg/m | 134 | 114 | 68 | 13 | 49.5 | 38.73 | 6.67 | 6.73 | 1204.4 | 180.6 | 178.9 | 209.3 | 36.7 | 12.5;25 |
| 43kg/m | 140 | 114 | 70 | 14.5 | 57 | 44.65 | 6.9 | 7.1 | 1489 | 217.3 | 208.3 | 260 | 45 | 12.5;25 |
| 50kg/m | 152 | 132 | 70 | 15.5 | 65.8 | 51.51 | 7.1 | 8.1 | 2037 | 287.2 | 251.3 | 377 | 57.1 | 12.5;25 |
| QU70 | 120 | 120 | 70 | 28 | 67.3 | 52.8 | 5.93 | 6.07 | 1082 | 182.5 | 178.1 | 327.2 | 54.53 | 9.0;9.5 |
| QU80 | 130 | 130 | 80 | 32 | 81.13 | 63.69 | 6.43 | 6.57 | 1547.4 | 240.7 | 235.5 | 482.4 | 74.21 | 10;10.5 |
| QU100 | 150 | 150 | 100 | 38 | 113.32 | 88.96 | 7.6 | 7.4 | 2864.7 | 376.9 | 387.1 | 941 | 125.45 | 11;11.5 |
| QU120 | 170 | 170 | 120 | 44 | 150.44 | 118.1 | 8.43 | 8.57 | 4923.8 | 584.1 | 574.5 | 1694.8 | 199.39 | 12;12.5 |
