Help CenterTire Wire Pulling Machine Scrap Tire Wire Remover Debeader Machine
Product Spotlights
Related Products
-
Tire Debeader for Pulling Tyre Wire Tire Baed Steel Wire Extracting MachineUS$ 9800 - 18500MOQ: 1 Set -
Tire Steel Wire Extractor Tire Bead Steel RemoverUS$ 9800 - 18500MOQ: 1 Set
-
Waste Tire Steel Removing Machine Tire Steel Wire RemoverUS$ 9800 - 18500MOQ: 1 Set
-
Scrap Tire Steel Wire Removal Machine Waste Tire Steel Wire DebeaderUS$ 9800 - 18500MOQ: 1 Set
-
Truck Tire Shredding Recycling Machines Waste Tire Recycling MachineUS$ 65000 - 88000MOQ: 1 Set

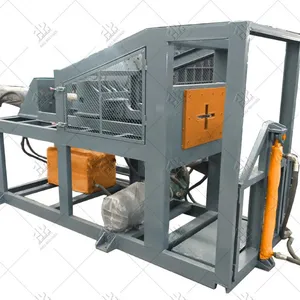

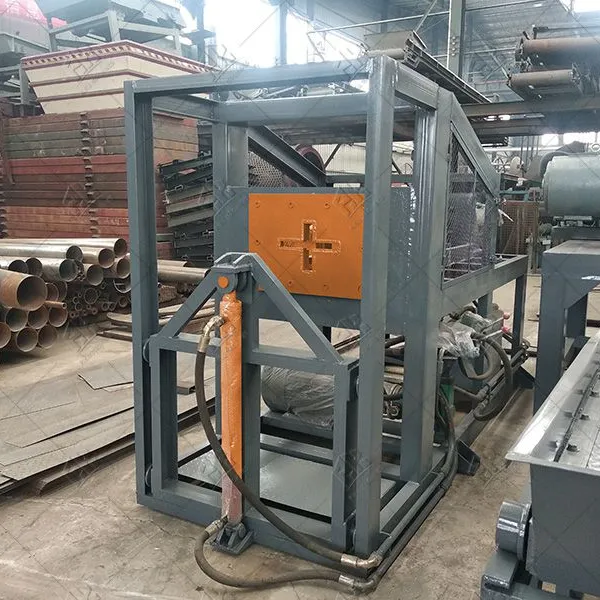

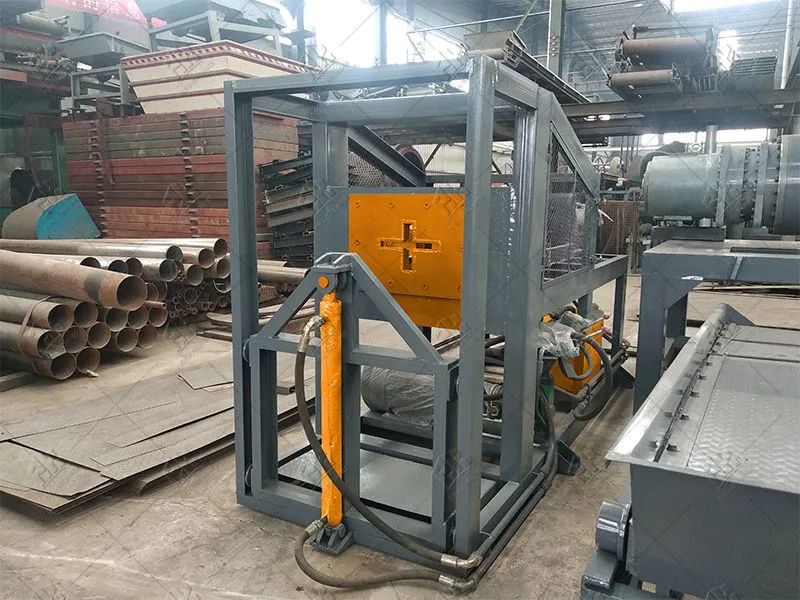

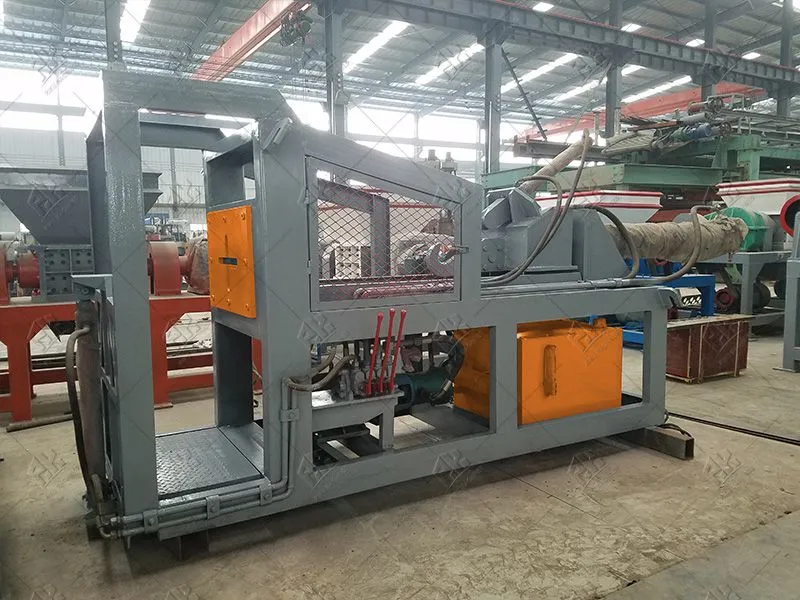

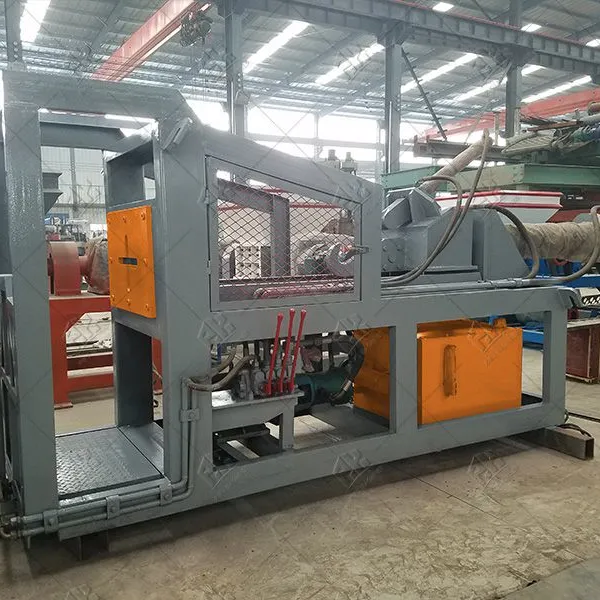

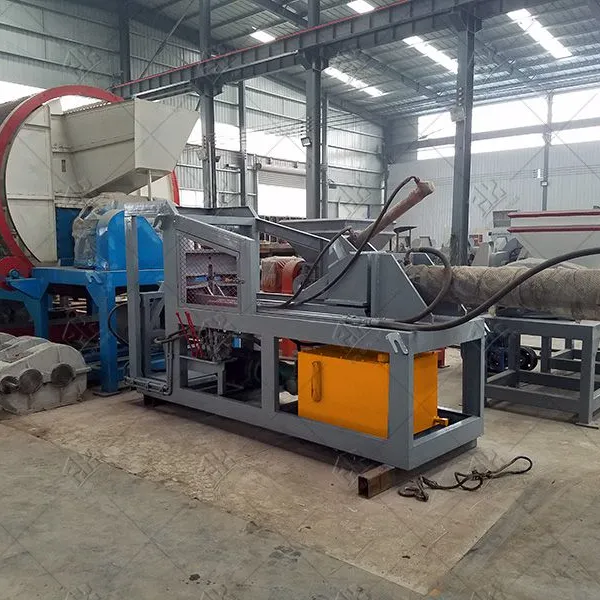

A Tire Wire Drawing Machine, also known as a Tire Bead Wire Extractor or Tire Steel Wire Separator, is a specialized piece of equipment used in the tire recycling industry. Its primary function is to automatically and efficiently separate the high-tensile steel wires embedded within the bead and belt areas of scrap tires.
Key Functions:
Bead Ring Processing: It cuts and pulls out the steel bead rings, which are the rigid, circular wires that seal the tire against the wheel rim.
Steel Belt Separation: For steel-belted radial tires, it slices the tire carcass and extracts the mesh of steel belts from the rubber compound.
Technical parameters
Model RK-1200 Capacity 60~80pcs/hour Type of Tires ≤1200mm Power 11Kw Pull 13Ton Working pressure 15Mpa Weight 1400Kg Dimension 3700x750x1400mm
Standard Working Process:
Feeding: A pre-processed scrap tire (usually sidewall-removed) is loaded onto the machine.
Cutting/Slitting: Specialized cutting tools slit the tire bead or carcass to expose the steel wires.
Gripping & Pulling: Hydraulic or mechanical clamps grip the exposed steel wire.
Drawing/Extraction: The machine powerfully and steadily pulls the entire steel wire mesh or bead ring out in one continuous piece.
Discharge: The extracted steel coils are collected for recycling, while the de-wired rubber (crumb rubber) proceeds to the next granulation stage.
Applications & Importance:
This machine is a critical component in a modern tire recycling plant. It enables:
Material Separation: Produces clean, high-value steel scrap for the steel industry.
Rubber Purification: Improves the quality of the crumb rubber by removing metal contaminants, making it suitable for higher-value applications like artificial turf, playground surfaces, and rubber-modified asphalt.
Resource Recovery & Environmental Protection: Maximizes the recovery of valuable materials from end-of-life tires, supporting the circular economy and reducing landfill waste.
