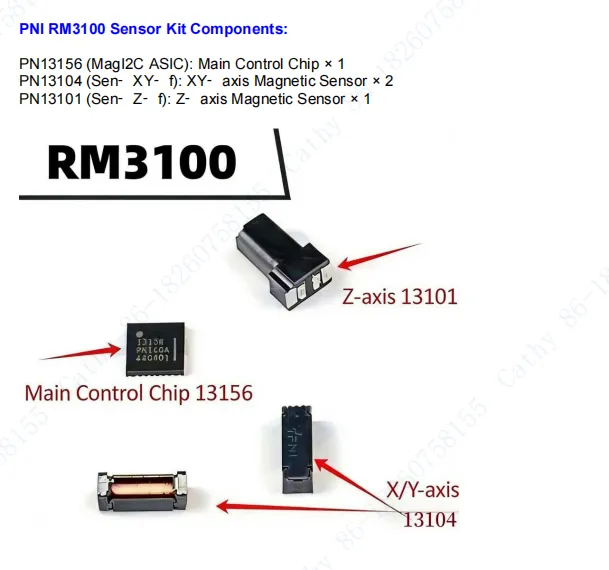

Help CenterRM3100 Four Piece Set PNI131561310113104 Geomagnetic Sensor Three-axis Magnetic Field Electronic Compass
Product Spotlights
Related Products
-
Original RM3100 4 Piece Geomagnetic Sensor Kit Including 1pc 13156 ASIC 1pc 13101 and 2pcs 13104 Coils for UAV Drone CompassUS$ 10 - 12MOQ: 1000 Units -
Original RM3100 4 Piece Geomagnetic Sensor Kit Including 1pc 13156 ASIC 1pc 13101 and 2pcs 13104 Coils for UAV Drone CompassUS$ 10 - 12MOQ: 1000 Units
-
New Original Sensors RM3100 13156 + 13104 + 13101 Assembly Support Semiconductors BOM ListUS$ 10 - 12MOQ: 1000 Units
-
High-Precision RM3100 Military-grade Magnetometer Sensor Magnetic Field Module Digital Electronic Compass For MCUUS$ 30 - 35MOQ: 1000 Units
-
RM3100 Military-grade Magnetometer Sensor Magnetic Field Sensor Geomagnetic Field DetectionUS$ 30 - 35MOQ: 1000 Units
The accuracy of navigation and positioning data is closely related to the precision of magnetic field measurements. The RM3100 magnetic sensor adopts magnetic sensing technology, with a measured resolution 23 times higher than traditional Hall sensors, a noise reduction of 33 times, and better data output stability.
The magnetic field detection sensitivity of RM3100 at 1Hz frequency can reach 2.7 nT, with a noise base of 4 pT/√ Hz (1Hz), and a linear response range covering 100000 nT. The sensor has undergone multiple environmental tests such as thermal shock, mechanical shock, radiation, and temperature cycling, and its performance is stable and reliable.
RM3100 provides excellent signal-to-noise ratio performance, low drift characteristics, and can achieve high-precision magnetic field measurement, suitable for various application scenarios such as underwater, ground, air, and space. This sensor has the characteristics of high resolution, low power consumption, lightweight, small size, and wide dynamic range.
This product has been applied to over ten million devices.
The RM3100 sensor has long-term stability and temperature stability, and supports I2C and SPI interfaces.
