Product descriptions from the supplier

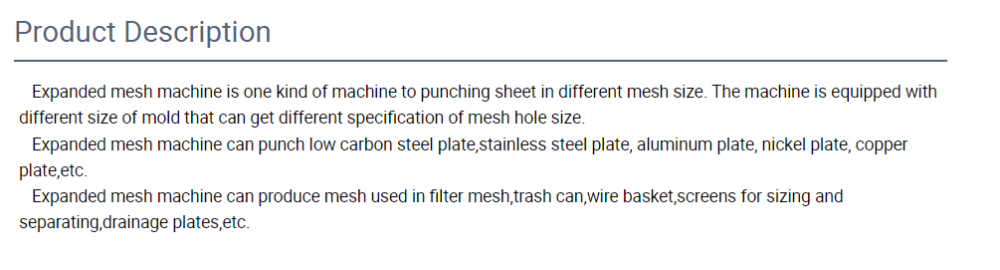

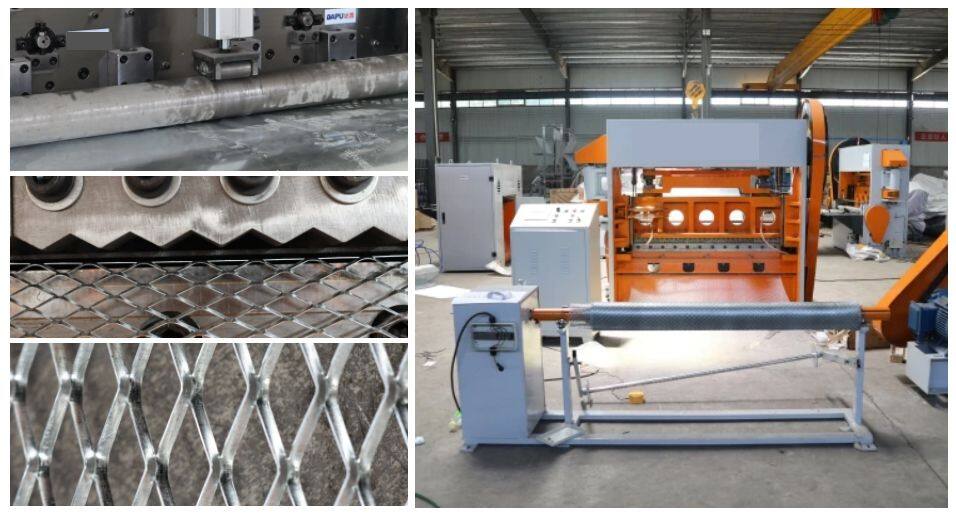

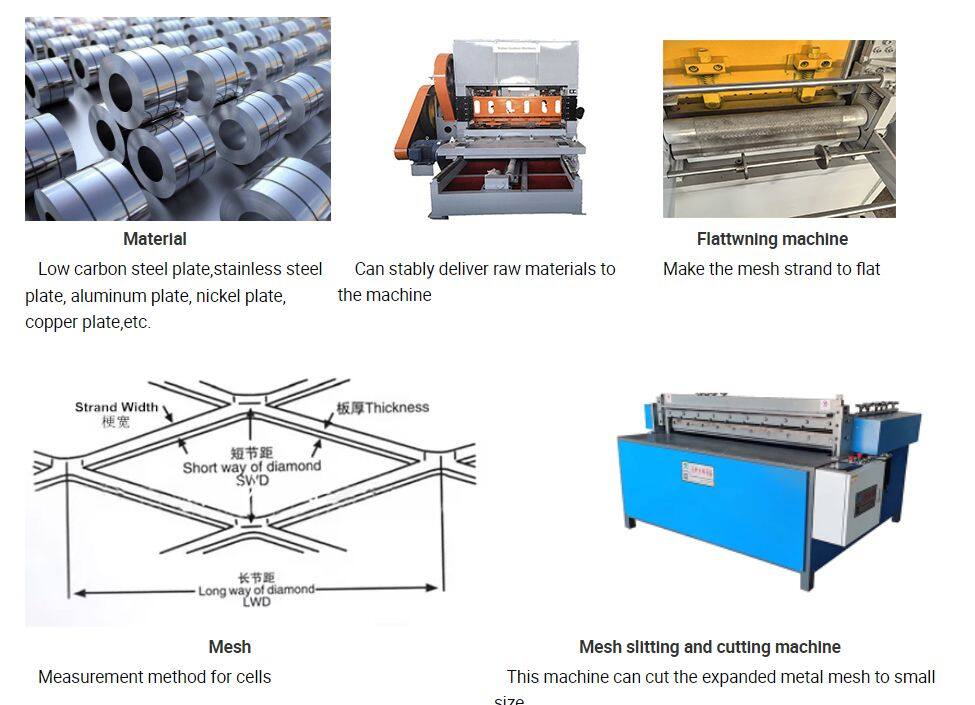

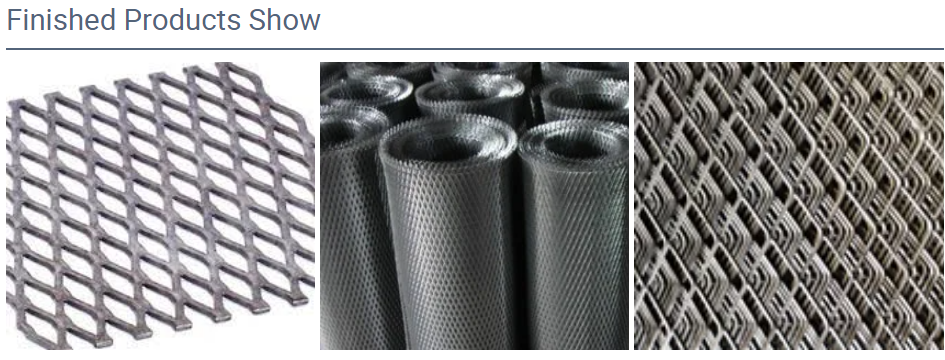

Expanded Metal mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanding machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.
Our machine advantages:
1. Steel metal cover for rotating wheels to ensure safety operation.
2. Alloy cutter mold can be made of Cr12#1 or YG-8 hardened tool steel, life up to one year.
3. Cast steel base and unit, shock-resistance and working smooth
4. Central lubrication system to decrease machine wearing out and make maintenance easily.
5. Pneumatic clutch brake + step motor. Pneumatic clutch brake to stop the machine, more fast
6. Electric and pneumatic system PLC +Text screen control, easy to operate, one worker is ok
Product Name |
PLLW-600 |
Eccentricity Of Shaft |
12 mm |
|
Width |
≤600 mm |
Motor Power |
2.2 kW |
|
Thickness Of The Sheets |
0.3–1 mm |
Power Supply |
380/50 V/Hz |
|
Speed |
200 pcs/min |
M/C Weight |
700 kg |
|
Max.Transverse Stroke |
≤20 mm |
M/C Size (L × W × H) |
1090 × 710 × 1450 mm |
|
Max.Vertical Stroke |
≤10 mm |
FAQ
1. who are we?
We are based in Hebei, China, start from 2009,sell to Africa(30.00%),Southeast Asia(25.00%),Eastern Asia(15.00%),Eastern Europe(15.00%),Mid East(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Welded Wire Mesh Machine,fiberglass mesh machine,Wire Mesh Machine,Chain Link Fence Machine,Welded Wire Mesh Machine
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union;
Language Spoken:English,Chinese,Spanish,French,Russian
