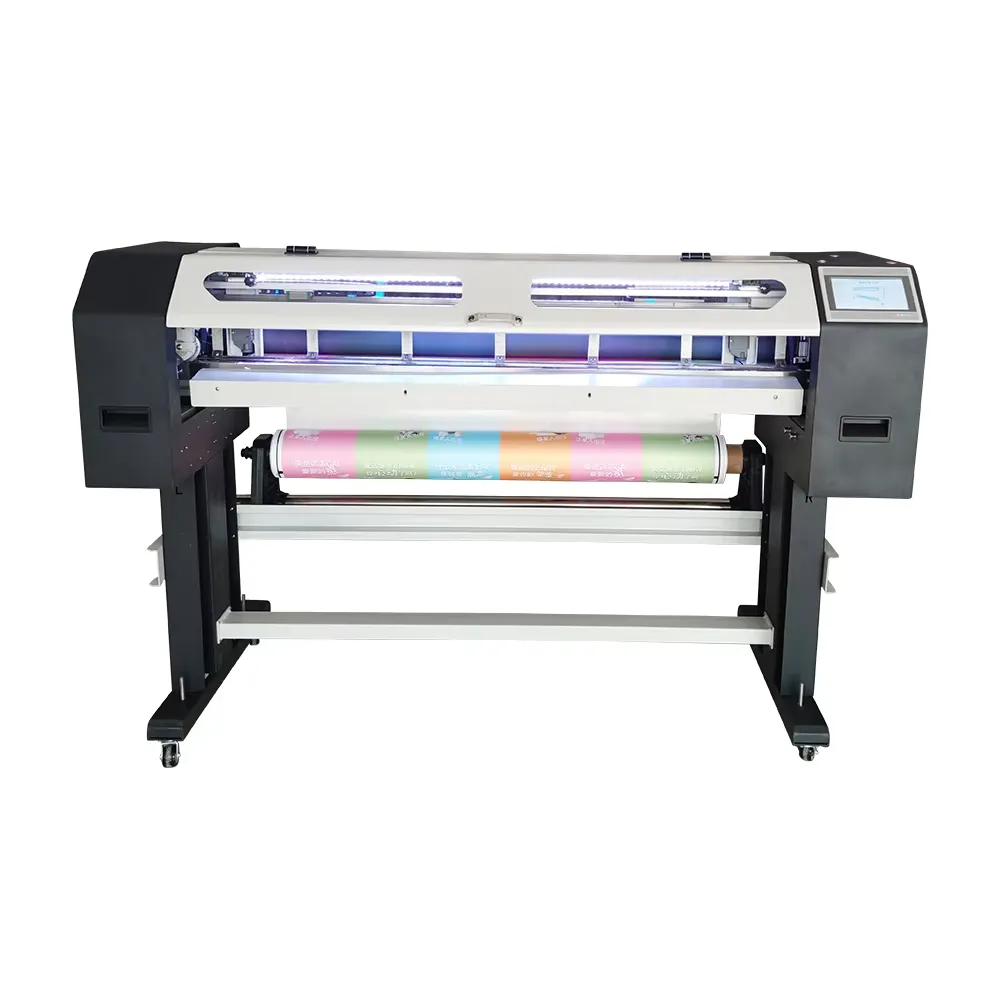

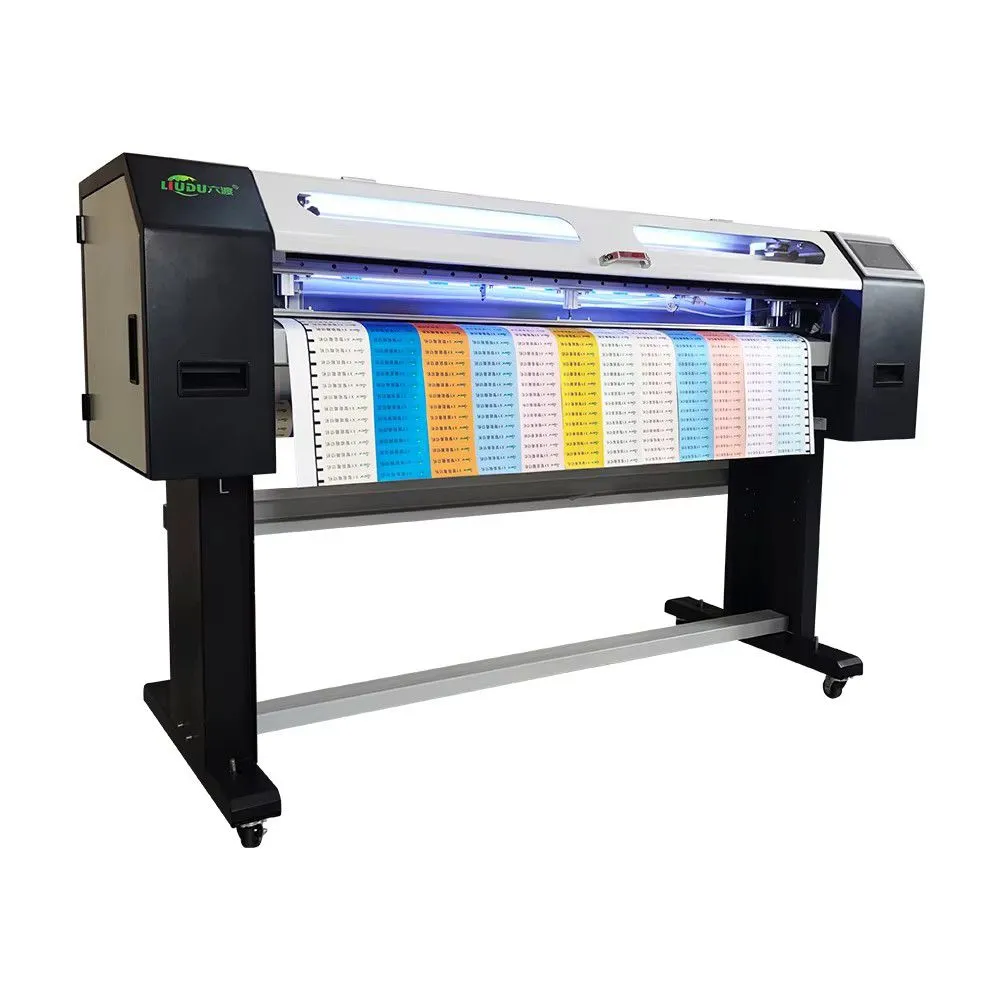

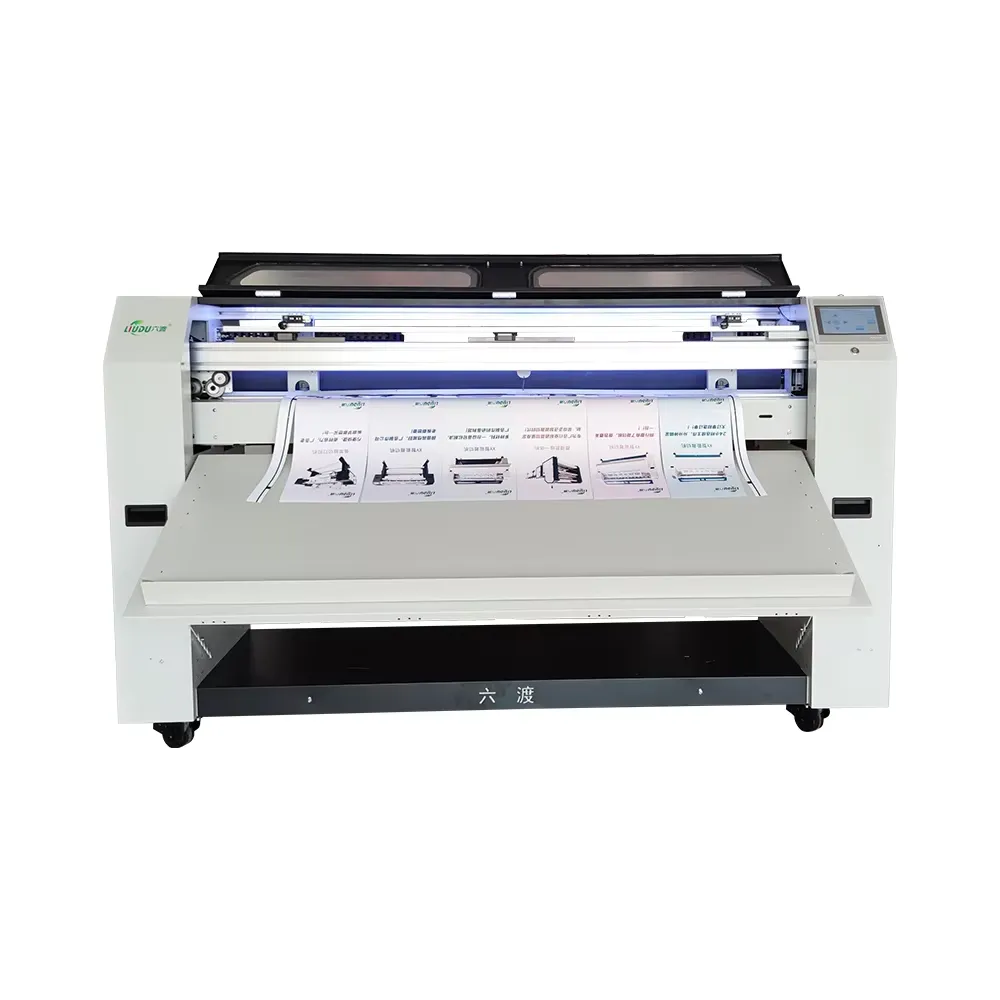

The product is an automatic XY cutting machine, which is used to cut the flexible media rolls into sheets with a maximum thickness of 1.5mm., It can read the cutting marks on the printed media, and immediately cut both vertically and horizontally. With the automatic deviation correction system, fully automatic cutting is realized.

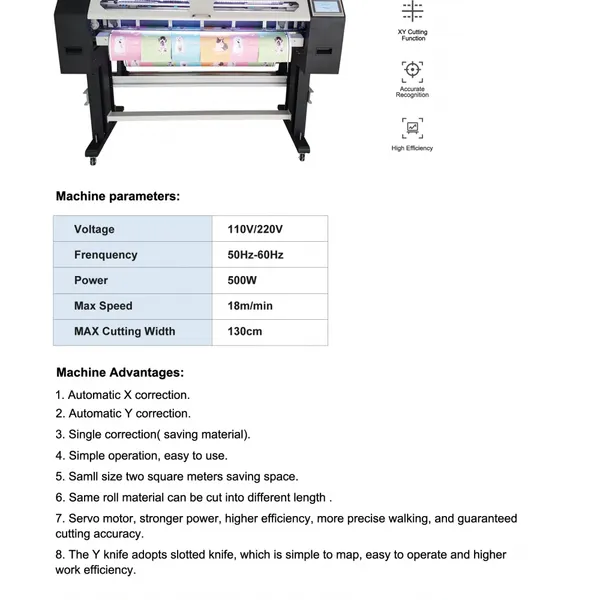

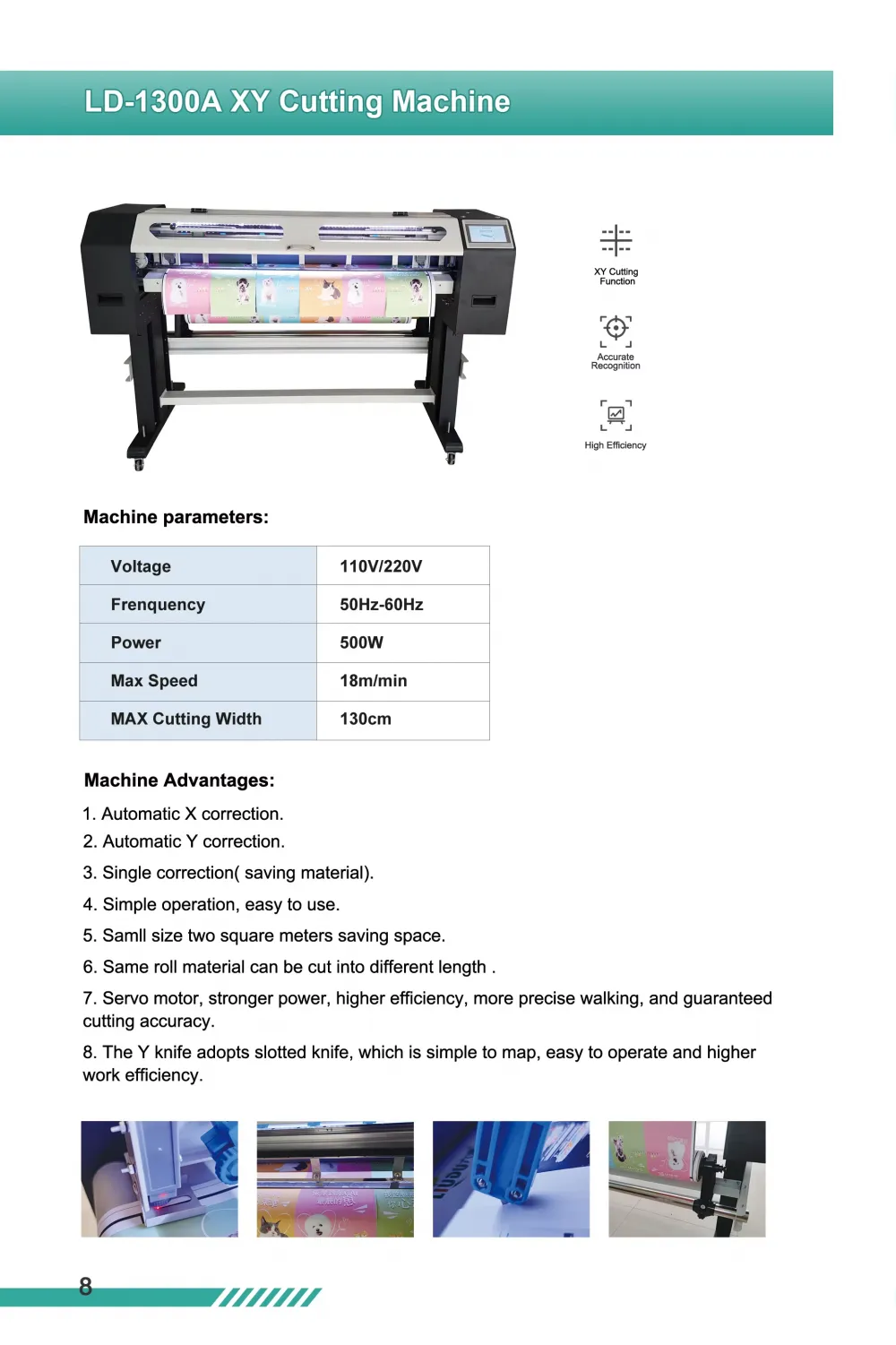

Model Number |
LD-1300A |
Model Number |
LD-XY1600A |

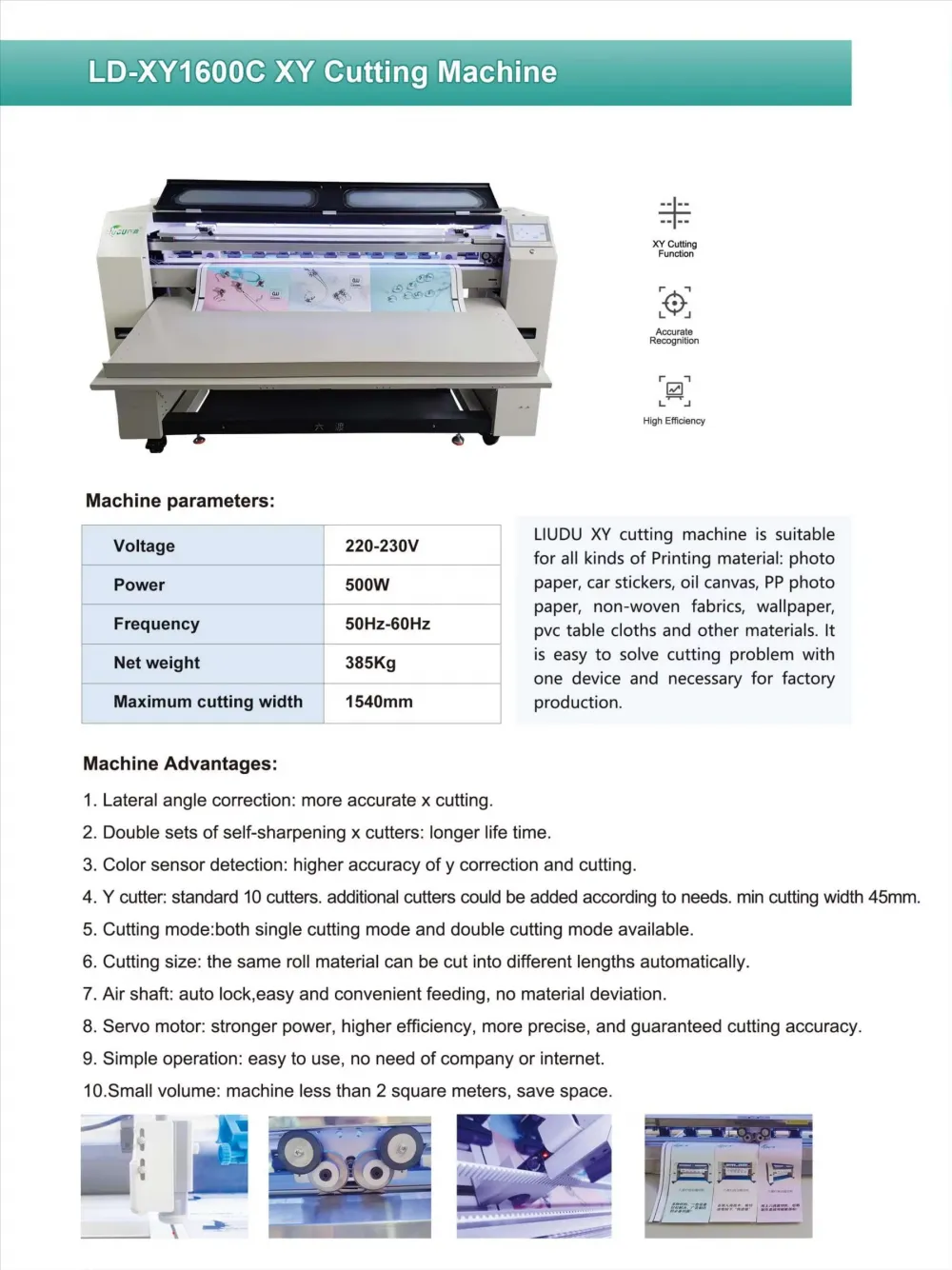

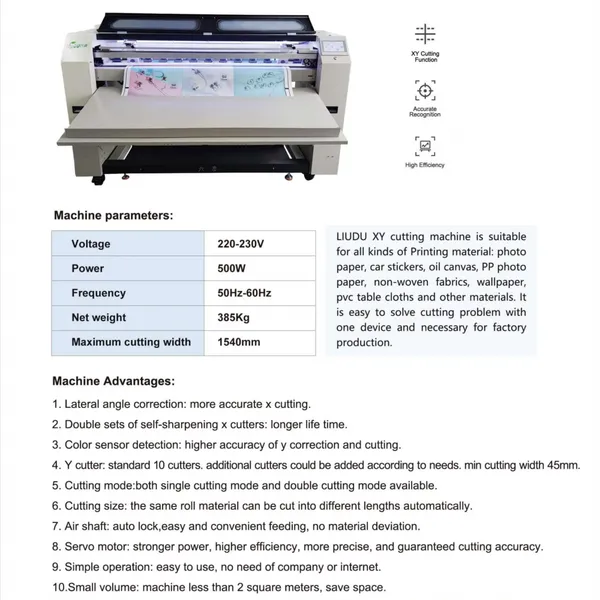

Model Number |
LD-XY1600C |
Power |
500W |
Voltage |
220V-230V |
Max cutting width |
160cm |
Max conveying speed |
18-25m/min |
Frequency |
50Hz-60Hz |
Minimum air pressure |
0.8MPa |
Accuracy |
0.1mm |
Dimension |
2230*930*1450mm |
Weight |
385kg |
Product Details
1. Automatic X correction.
2. Automatic Y correction.
3. Single correction( saving material).
4. Simple operation, easy to use.
5. Small size two square meters saving space.
6. Same roll material can be cut into different length.
7. Servo motor,stronger power,higher efficiency,more precise walking. and guaranteed cutting accuracy.
8. The Y knife adopts slotted knife, which is simple to map, easy to operate and higher work efficiency.
Material
Most flexible media up to a maximum thickness of 1.5~2mm including poly carbonate, photo paper, wall paper, vinyl, PVC, film, laminated or encapsulated prints and much more.
Application area
Widely used in advertising signs, posters, public decoration, wallpaper, packaging and printing etc.
Product display
