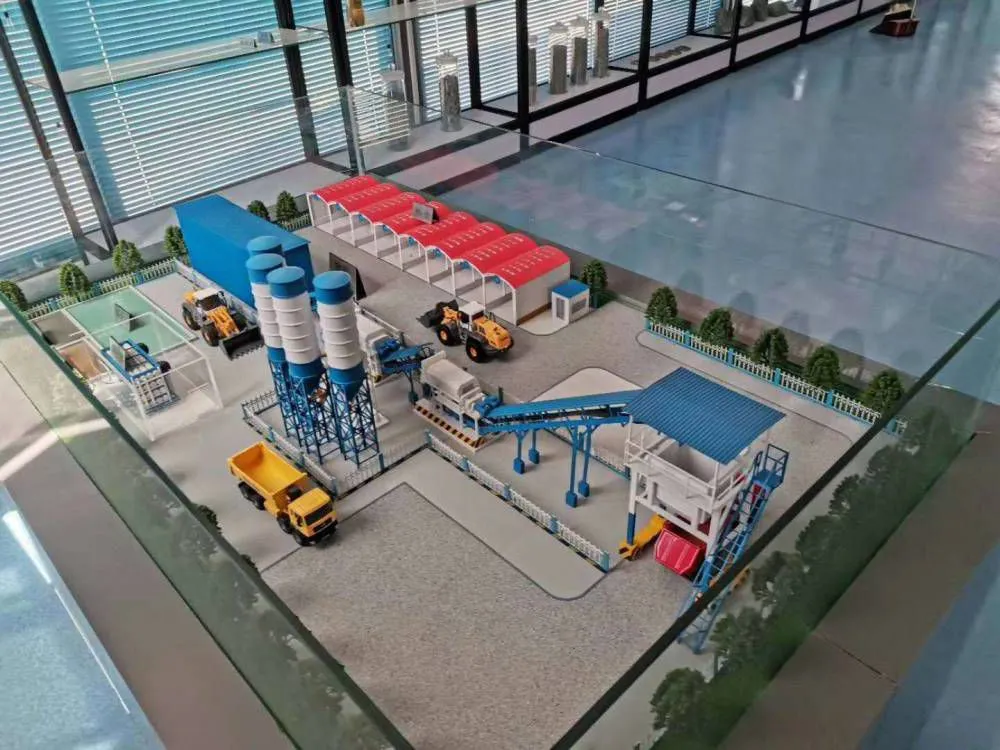

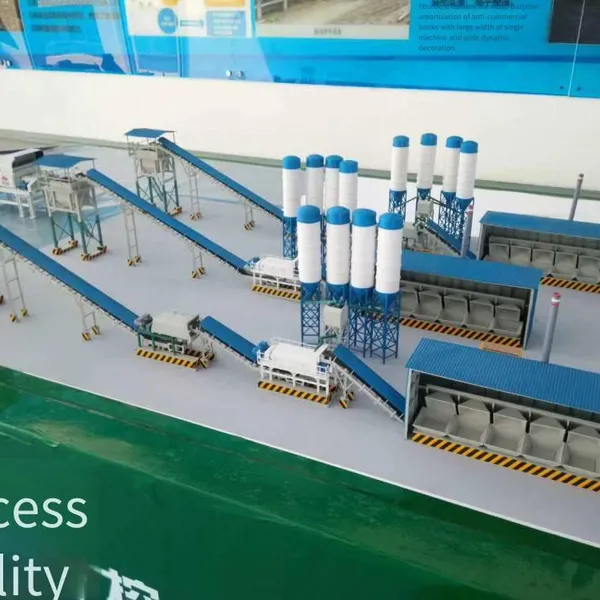

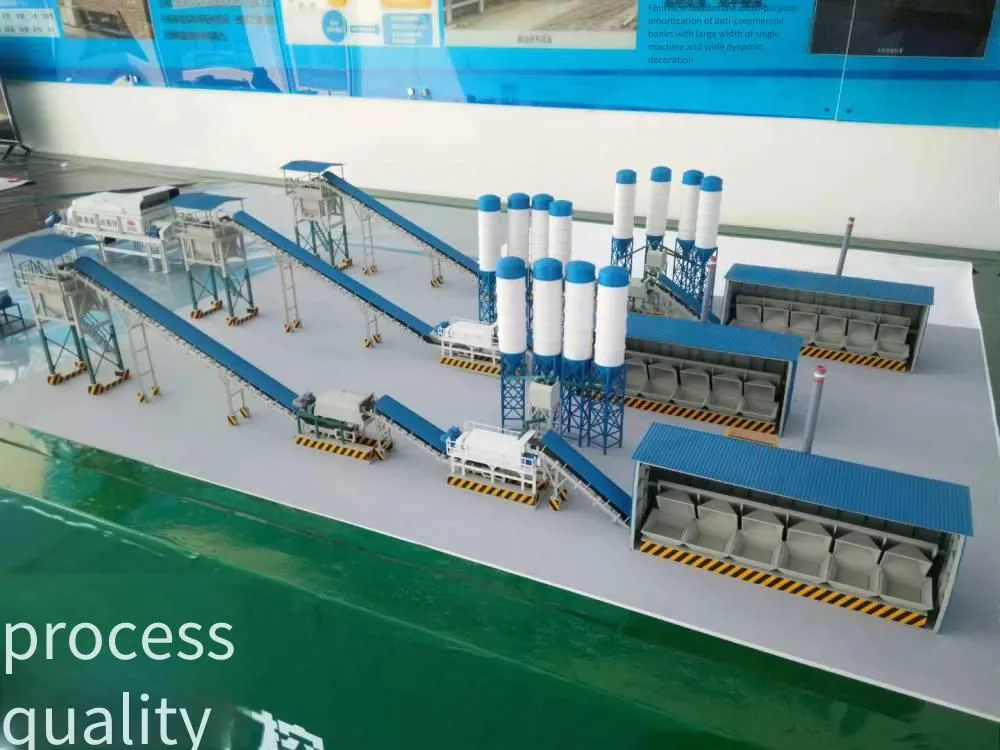

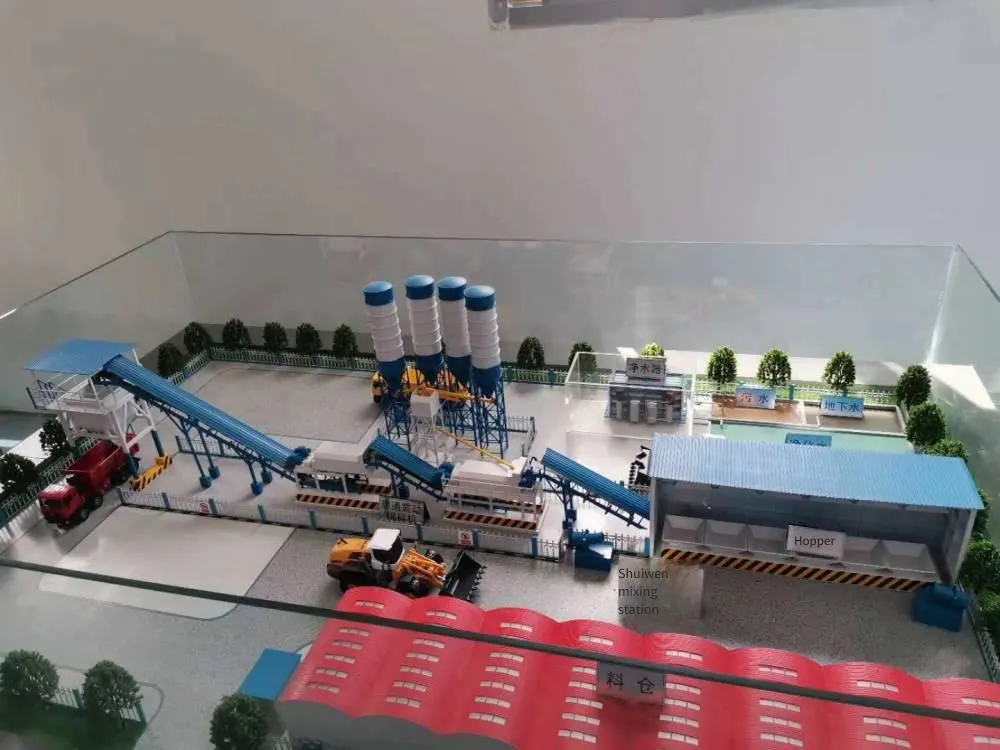

The mixing station sand table model is an equal - scale miniature reproduction of the actual production scenario of the mixing station. With accurate restoration and realistic details as the core, it is widely used in scenarios such as construction planning display of the mixing station, technical training, corporate promotion, and teaching demonstrations. The overall shape conforms to the actual layout of the mixing station, taking into account both practicality and aesthetics, and can intuitively present the complete production process of the mixing station and the collaborative operation logic of each system.
The whole model is made of environmentally friendly ABS engineering plastics, acrylic, metal components and other materials. It has a delicate texture and strong durability. It can be customized according to the actual scale of the mixing station at a scale of 1:50 to 1:100 to ensure the accurate correspondence of the size ratio of each equipment and area. The model layout strictly follows the functional zoning of the actual mixing station, mainly covering six core areas: raw material storage area, batching area, mixing area, discharging area, control system area, and auxiliary facilities area. The connection between each area is natural, perfectly restoring the actual production route.

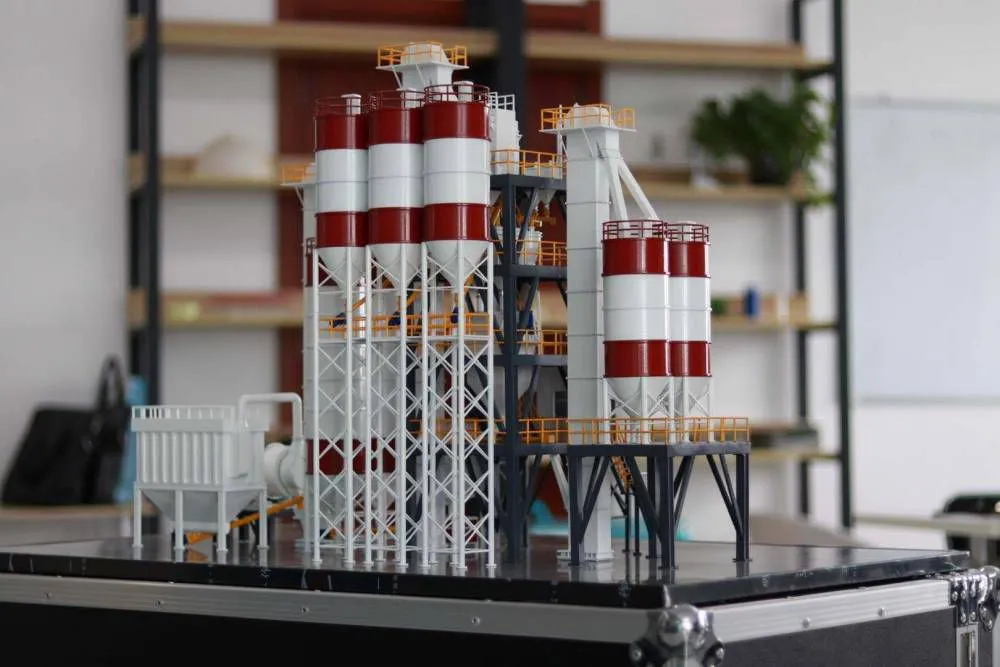

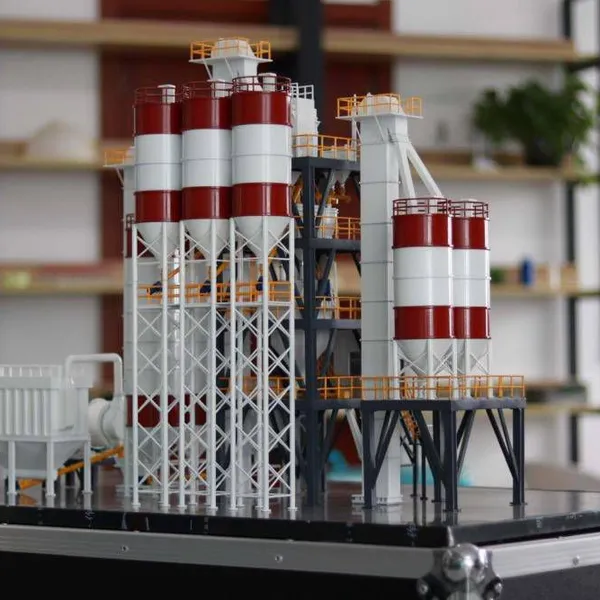

The raw material storage area reproduces core facilities such as cement silos, fly ash silos, and sand and gravel yards. The cement silos and fly ash silos are made of transparent acrylic materials, through which the internal simulated raw materials can be clearly seen. The top of the silos is equipped with details such as feed inlets and dust collectors, and the bottom is equipped with screw conveyors, which are precisely connected to the batching area. The sand and gravel yard is divided into different areas according to different aggregate types, and is equipped with a micro - conveyor belt to restore the raw material transportation process. The batching area is equipped with an accurate batching machine. The model can simulate the batching and weighing process. The conveying pipes between the batching machine, the raw material silos, and the mixing main machine are clearly visible, with detailed depictions in place.
The mixing area is the core part of the model, reproducing the twin - shaft mixing main machine. The shell of the main machine can be made of metal, with equipment logos printed on the surface. Inside, there are simulated mixing blades. Some high - end models can rotate at a low speed to intuitively display the mixing process. Next to the mixing main machine, there are auxiliary equipment such as admixture storage tanks and water pumps, with clear pipeline connections, restoring the processes of admixture addition and water supply. The discharging area is equipped with a discharging hopper, a concrete delivery pump, and conveying pipes, which can simulate the complete process of concrete discharging and transportation. Some models can be equipped with micro - concrete transport tank trucks to enhance the integrity of the scene.
The control system area reproduces the central control room of the mixing station. Inside, there are simulated consoles and display screens, which can simulate the operating status of the equipment through lights and indicators, intuitively presenting the automated control process of the mixing station. The auxiliary facilities area includes transformers, distribution boxes, fire - fighting facilities, roads, etc. The roads can simulate the passage of tank trucks, and details such as fire - fighting facilities and drainage ditches are all available, comprehensively restoring the overall environment of the mixing station.

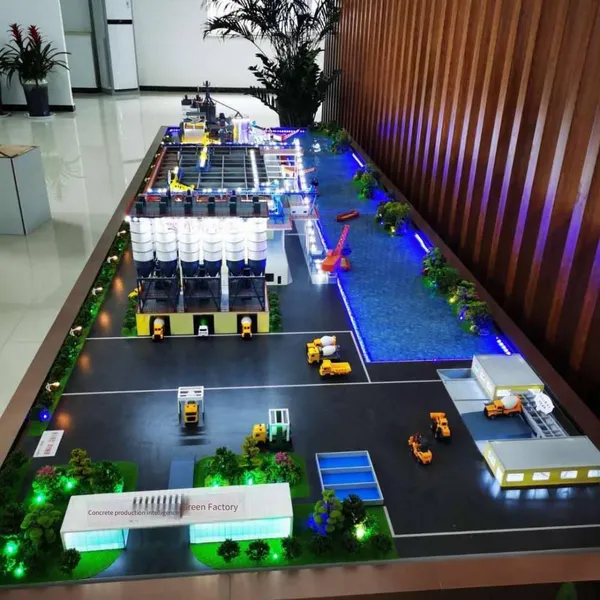

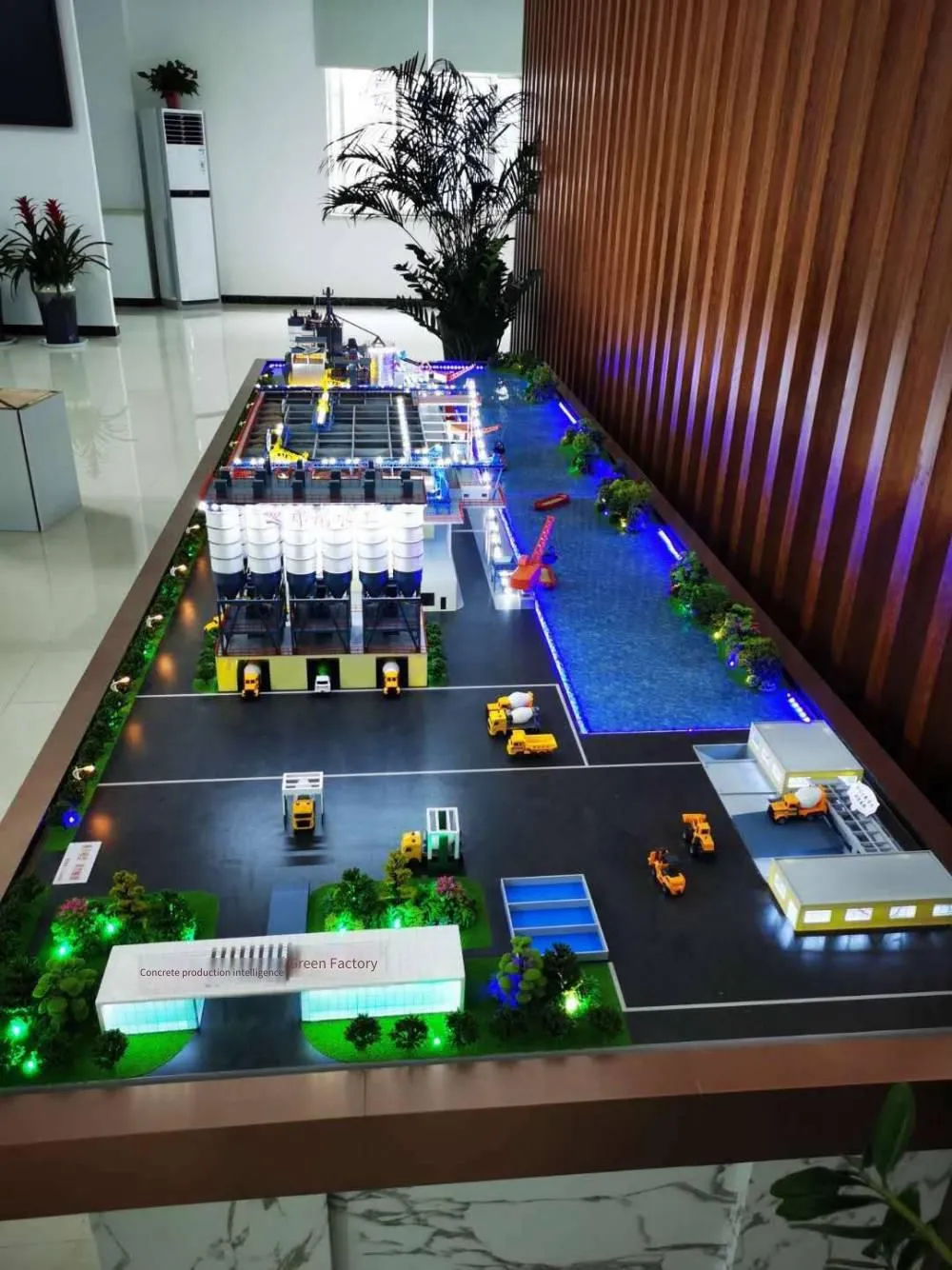

The whole model uses a simulation painting process, and the colors are consistent with the actual equipment and facilities of the mixing station. Clear logos and parameters are printed on the equipment surface to enhance the sense of reality. At the same time, it is equipped with a lighting system, and the lights in each area can be lit through an external power supply to clearly distinguish the operating status of the equipment and the functional zoning. In addition, the model can be equipped with an intelligent control system according to requirements to realize functions such as simulated operation of equipment and process demonstration. It can be used not only to display the overall layout and production process of the mixing station, but also for technical training to help relevant personnel quickly familiarize themselves with equipment operation and process connection. It is also an important carrier for enterprises to display their strength and conduct cooperation negotiations.
