Mini Size Led Driver 10w 12w IP20 Slim LED Driver Switching Led Power Supply

Product Spotlights

plastic led driver, slim led driver

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Certification:

CE, ROHS

Warranty:

2 Years

Output Power:

51 - 100W

Xiamen Ledmelight Technology Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

7 days

Certification CE, ROHS

Warranty 2 Years

Output Power 51 - 100W

Output Type Single

Input Voltage 110-220V

Connection Mode Parallel Switching Power Supply

Brand Other, LEDMELIGHT

Modulation System Other, 100-240vac

Voltage Regulating Mode Frequency Modulation Type

Power Supplying System Other

Energy Transmission Other

Starting Mode Other

Output voltage 24vdc

Output current 4.17A

Transport Package 1pcs

Trademark LEDMELIGHT

Origin CHINA

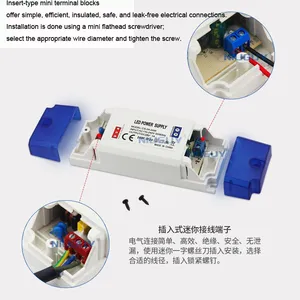

Mini size led driver 10w 12w IP20 slim LED driver switching led power supply

All specification we can supply is as below,

Model	Input	Output	current	Power-Max	IP rate	Material	Product size
CS-12-12W	100-240V~50/60Hz 0.5A max	12VDC	1.0A	12W-max Load 80%	IP20	ABS	893923mm
CS-12-15W	100-240V~50/60Hz 0.5A max	12VDC	1.25A	15W-max Load 80%	IP20	ABS	893923mm
CS-12-24W	100-240V~50/60Hz 0.5A max	12VDC	2.0A	24W-max Load 80%	IP20	ABS	1154529mm
CS-12-36W	100-240V~50/60Hz 0.8A max	12VDC	3.0A	36W-max Load 80%	IP20	ABS	1404529mm
CS-12-60W	100-240V~50/60Hz 1.0A max	12VDC	5.0A	60W-max Load 80%	IP20	ABS	1654530mm
CS-12-80W	100-240V~50/60Hz 1.2A max	12VDC	6.67A	80W-max Load 80%	IP20	ABS	1654530mm
CS-12-100W	100-240V~50/60Hz 1.4A max	12VDC	8.33A	100-max Load 80%	IP20	ABS	1654530mm
CS-24-12W	100-240V~50/60Hz 0.5A max	24VDC	0.5A	12W-max Load 81%	IP20	ABS	893923mm
CS-24-15W	100-240V~50/60Hz 0.5A max	24VDC	0.62A	15W-max Load 81%	IP20	ABS	893923mm
CS-24-24W	100-240V~50/60Hz 0.5A max	24VDC	1.0A	24W-max Load 80%	IP20	ABS	1154529mm
CS-24-36W	100-240V~50/60Hz 0.8A max	24VDC	1.5A	36W-max Load 81%	IP20	ABS	1404529mm
CS-24-60W	100-240V~50/60Hz 1.0A max	24VDC	2.5A	60W-max Load 81%	IP20	ABS	1654530mm
CS-24-80W	100-240V~50/60Hz 1.2A max	24VDC	3.33A	80W-max Load 81%	IP20	ABS	1654530mm
CS-24-100W	100-240V~50/60Hz 1.4A max	24VDC	4.16A	100-max Load 81%	IP20	ABS	1654530mm
