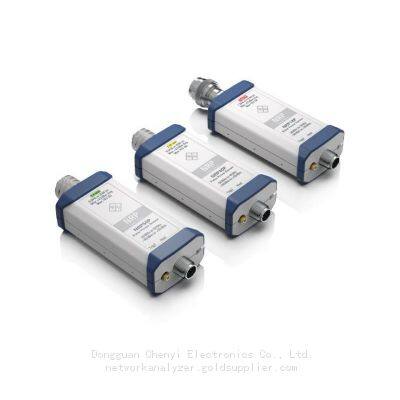

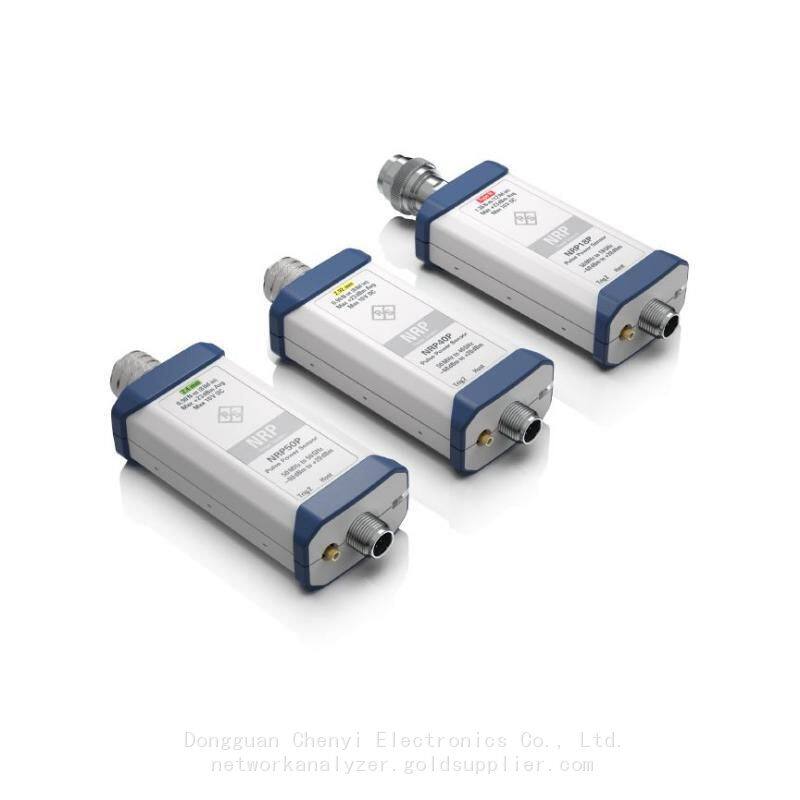

rohde schwarz NRP50P Pulse power sensor，50 MHz to 50 GHz

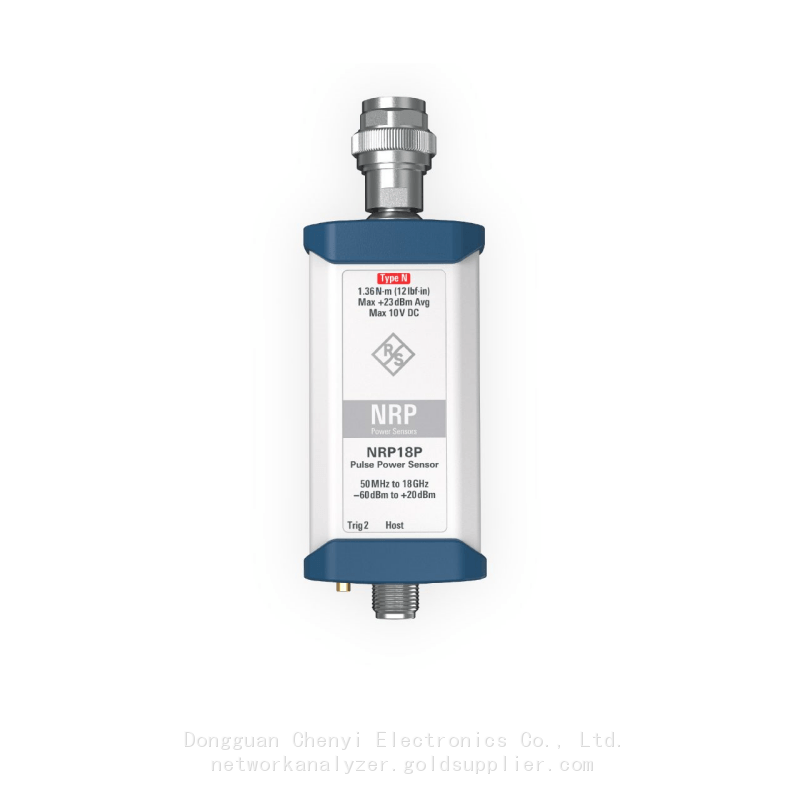

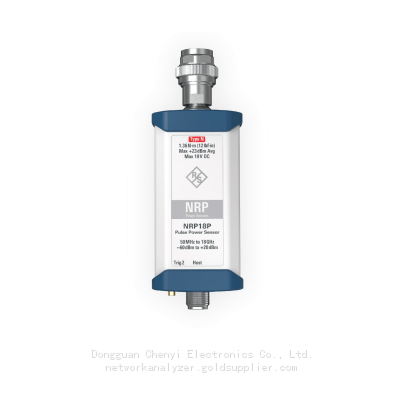

Pulse power sensor NRP18P ： 50 MHz to 18 GHz

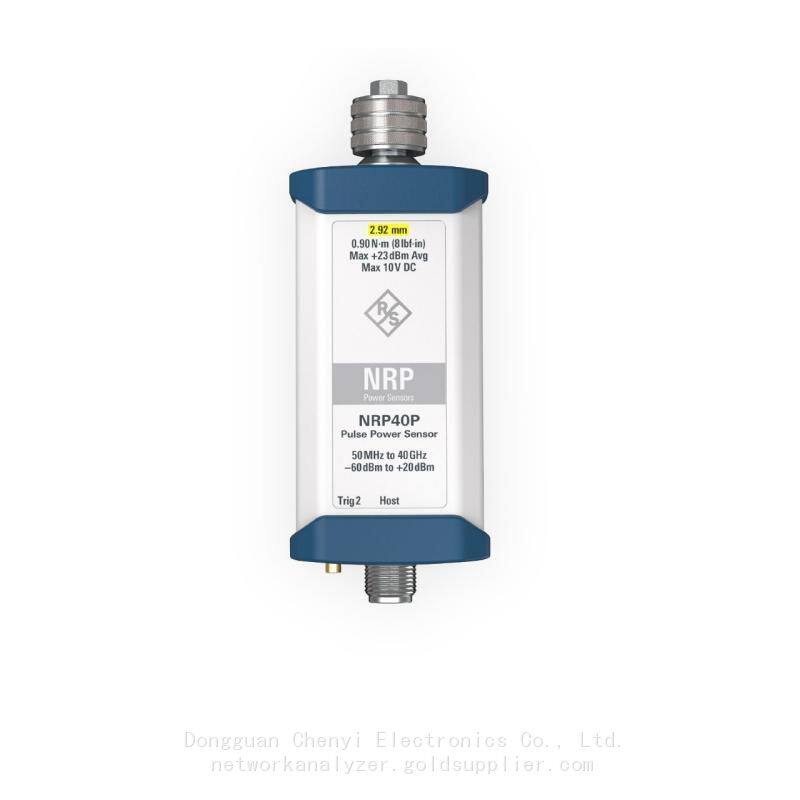

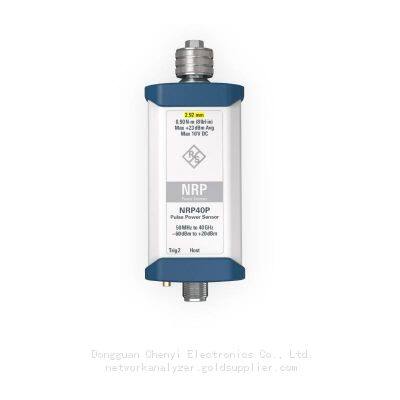

Pulse power sensor NRP40P ： 50 MHz to 40 GHz

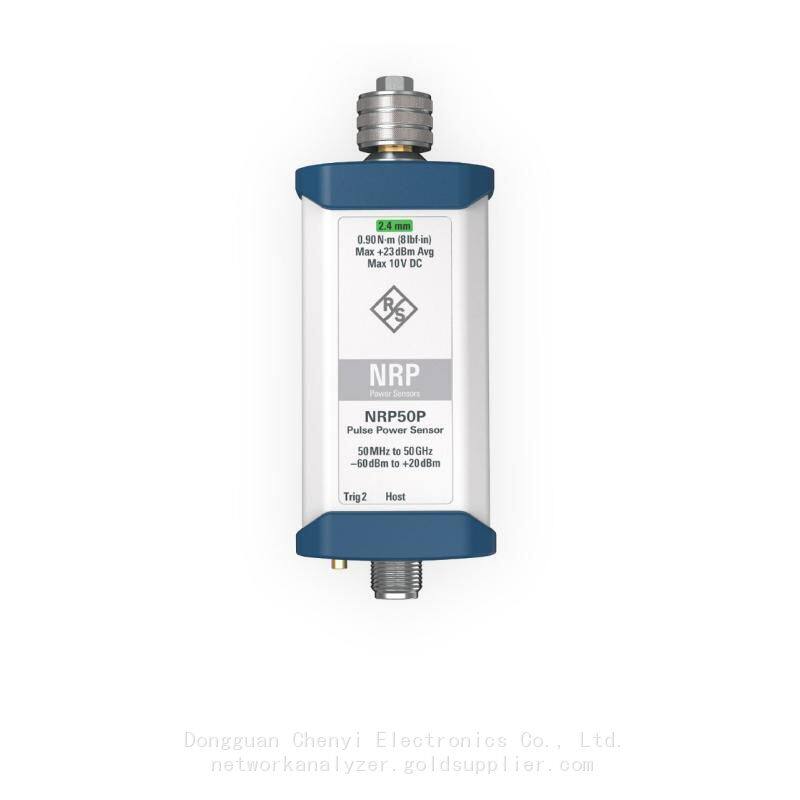

Pulse power sensor NRP50P ： 50 MHz to 50 GHz
Key facts
▶Outstanding dynamic range and accuracy
▶High resolution mode
▶Highest measurement speed
▶Automatic pulse analysis
▶Statistical analysis
Ideal power sensor for radar applications
The R&S®NRPxxP pulse power sensors are ideal for radar applications. Pulse characteristics and output power have to be measured in the development process or during installation and maintenance. Similar measurements are required in the production of radar systems and radar components. A maximum video bandwidth of 30 MHz and a rise/fall time of
Features & benefits
High resolution mode
Time resolution of up to 100 ps
Some applications require the display of strongly magnified signal sections such as the rising edge of apulse. The trace mode has a resolution of 12.5 ns and requires high sample density to improve thegraphical display. quivalent time sampling with repetitive signals enables a time resolution of up to 100Ds.
Automatic pulse analysis
Ideal with R&S°NRX
Automatic pulse analysis helps measure important pulse parameters, eliminating the need for complexmeasurements with markers. Changes in the pulse shape are immediately taken into account in themeasurement results
▶Time parameters: rise/fall time, start/stop time, pulse width, duty cycle, pulse period, pulse-off time
▶Level parameters. pulse top, pulse base, peak, average, minimum, overshoot (positive and negative)
Ideal for radar applications
Analyze pulsed and modulated signals
The R&SeNRPxxP pulse power sensors are perfect for analyzing pulsed and/or modulated signals. Thehigh sampling rate of 80 Msample/s allows the power envelope of radar pulses to be reconstructed witha time resolution of 12.5 ns. The automatic pulse analysis function can measure 15 important pulseparameters automatically to simplify and speed up testing.
Statistical analysis
Statistical analysis of the amplitude distribution
The R&SeNRPxxP pulse power sensors permit statistical analysis of the amplitude distribution of noiselike signals to determine key parameters such as peak envelope power, average power and peak-to.average power ratio. A measurement of the CCDF CDF or PDF using one million samples can beperformed by the R&SeNRPxxP pulse power sensors in less than 25 ms at full video bandwidth.
Trigger sender mode
with base unit or R&SeNRP-Z5:

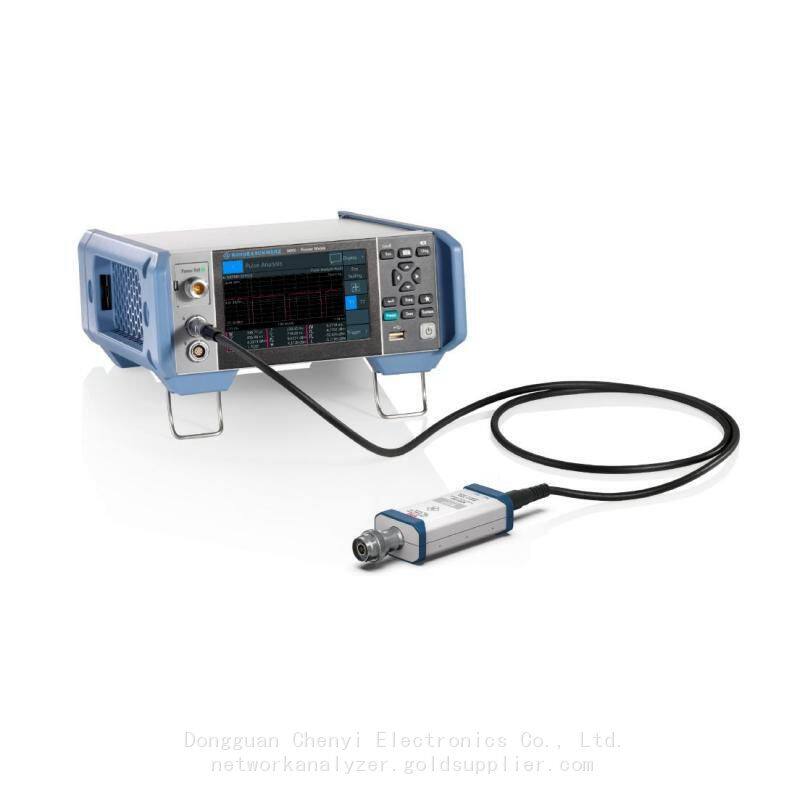

Combined with the R&S@NRX base unit or the R&SNRP-Z5 sensor hub, an R&SeNRPxxP pulse powersensor can be used as a trigger source. in trigger sender mode, a trigger signal is derived from themeasured sianal inside the power sensor and forwarded to the base unit or sensor hub for further useAll other connected sensors can be externally triggered using this trigger signal.
