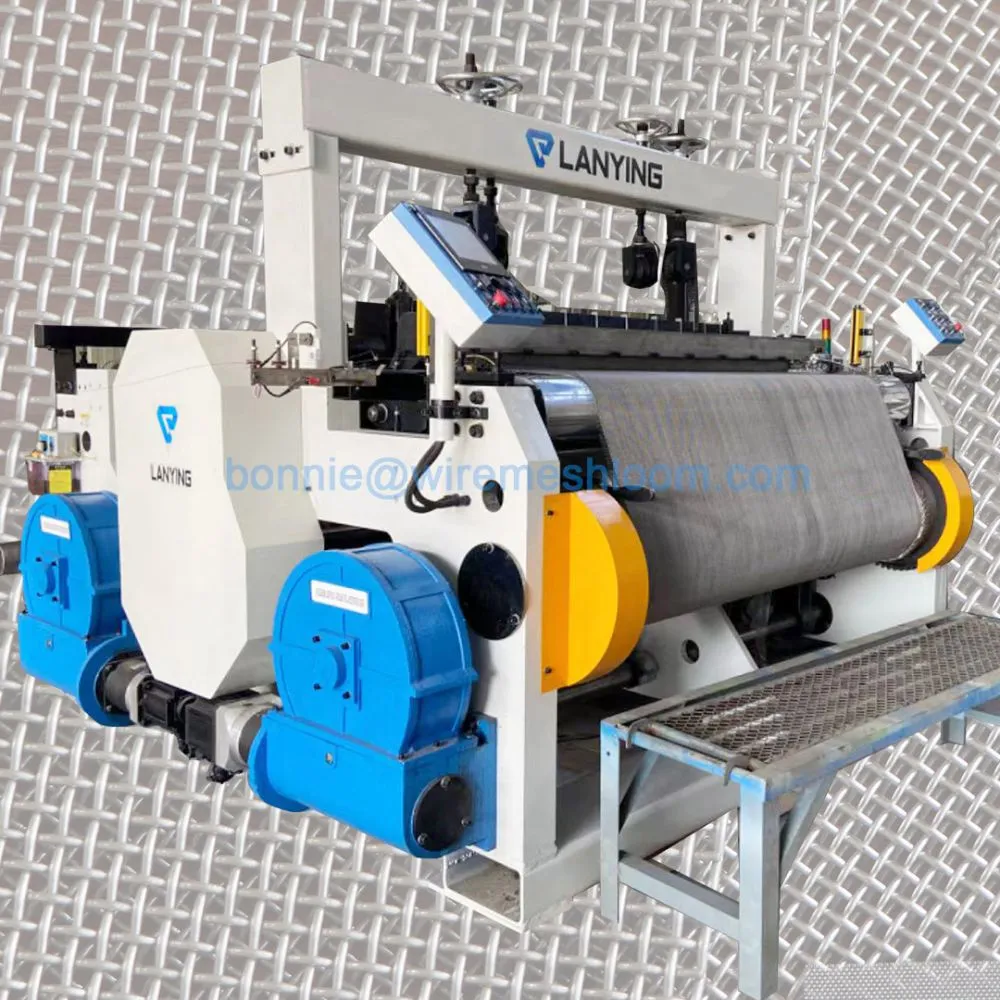

SG180 Series Weaving Machine
SG180 Series CNC metal wire mesh weaving machine is suitable for super heavy wire mesh weaving, there are single beat-up and double beat-up type. It can weave wire materials such as stainless steel, iron, bronze, aluminum, alloy, nickel, polyester,etc.
Product Series |
SG100 Series |
SG130 Series |
SG160 Series |
SG180 Series |
|
Standard weaving width (Special width on request)
|
1300mm 1600mm 2000mm |
1300mm 1600mm 2000mm 2500mm 3000mm |
1300mm 1600mm 2000mm 2500mm 3000mm |
1300mm 1600mm 2000mm 2500mm 3000mm 4000mm |
Wire diameter range |
0.016-0.3mm |
0.06-0.45mm |
0.1-0.7mm |
0.2-2.1mm |
Plain weave square hole (mesh/inch) |
40-400 |
20-260 |
10-100 |
6-60 |
Twill weave (mesh/inch) |
≤600 |
≤400 |
≤350 |
≤260 |
Wire material |
Stainless steel, iron, copper, aluminum, platinum, nickel, polyester |
Stainless steel, iron, copper, aluminum, |
Stainless steel, iron, copper, aluminum, |
Stainless steel, iron,copper, aluminum, |
Speed |
100 rpm |
100 rpm |
50-70 rpm |
35-50 rpm |
Wire diameter |
0.2-2.1mm |
|||||
Weaving density |
Plain weave square hole 6-60 or 2-40mesh/inch; twilled weave up to 260mesh/inch | |||||
Nominal width (special width on request) |
1.3m |
1.6m |
2m |
2.5m | 3m | 4m |
Speed(the actual speed depends on the weaving specs and width) |
46-55RPM |
46-55RPM |
40-50RPM |
32-35RPM | 30-35RPM | 25-30RPM |
Total power |
13KW |
13.5KW |
16KW |
17KW | 17.5KW | 18KW |
Size (L*W*H) mm |
3500X3860X2160 |
3500X4160X2160 |
3500X4560X2160 |
3500X5600X2160 | 3500X5560X2160 | 3500X5560X2160 |
Weight |
10000KG |
13000KG |
14000KG |
18000KG | 19000KG | 21000KG |
