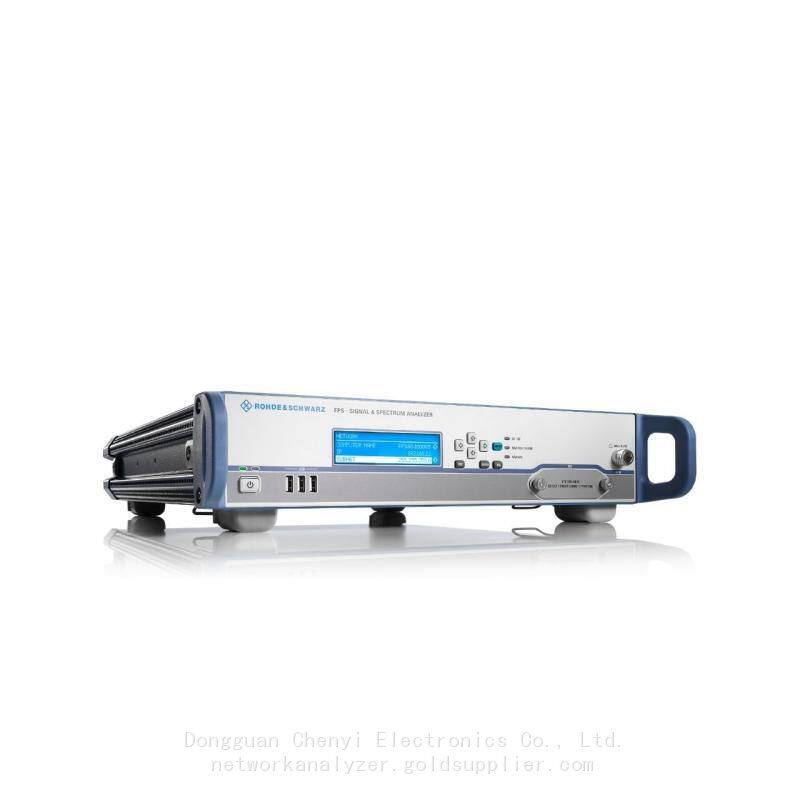

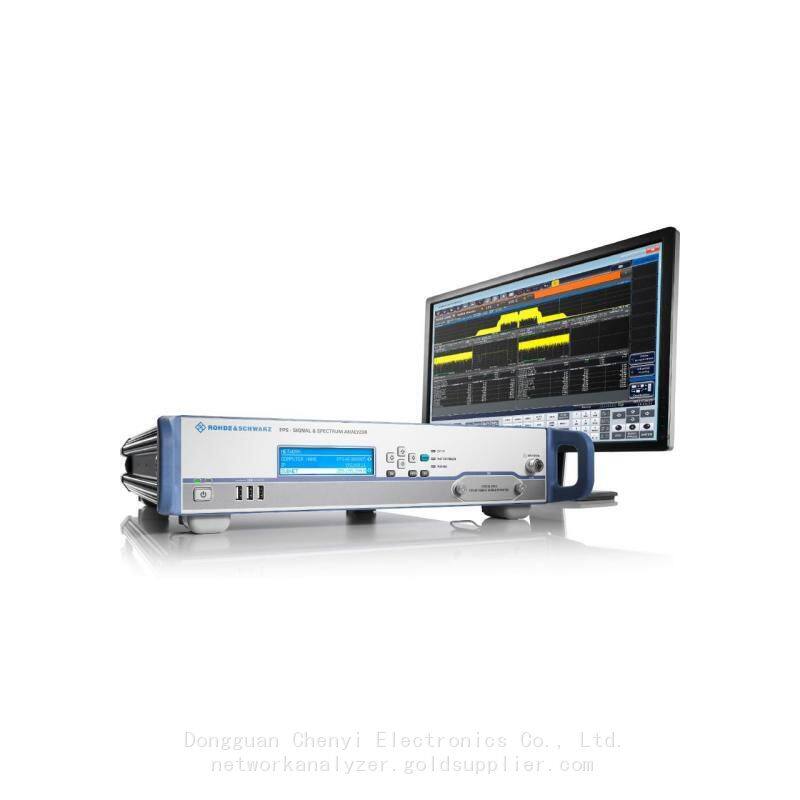

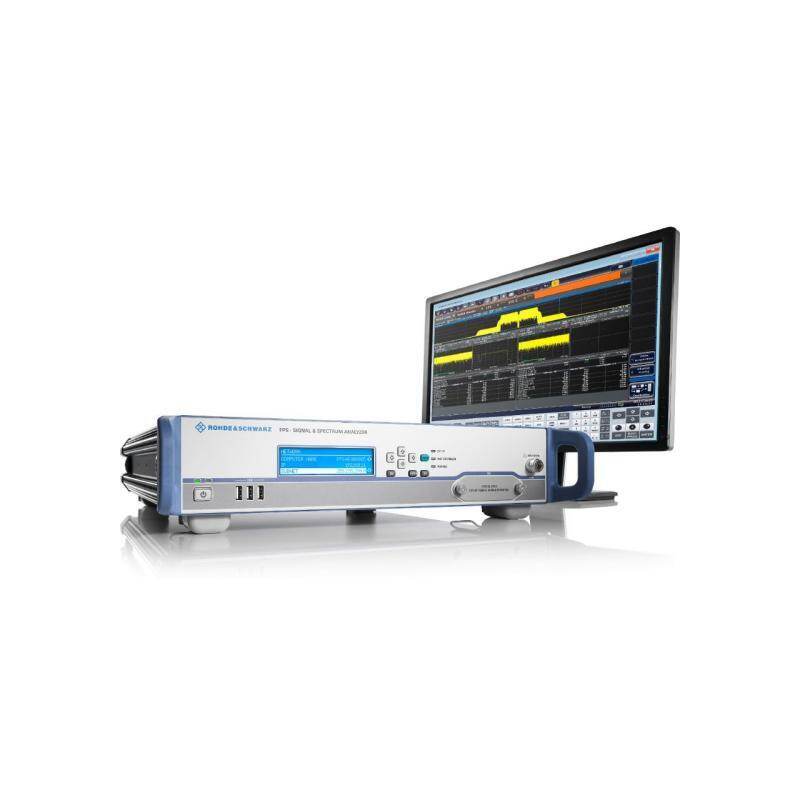

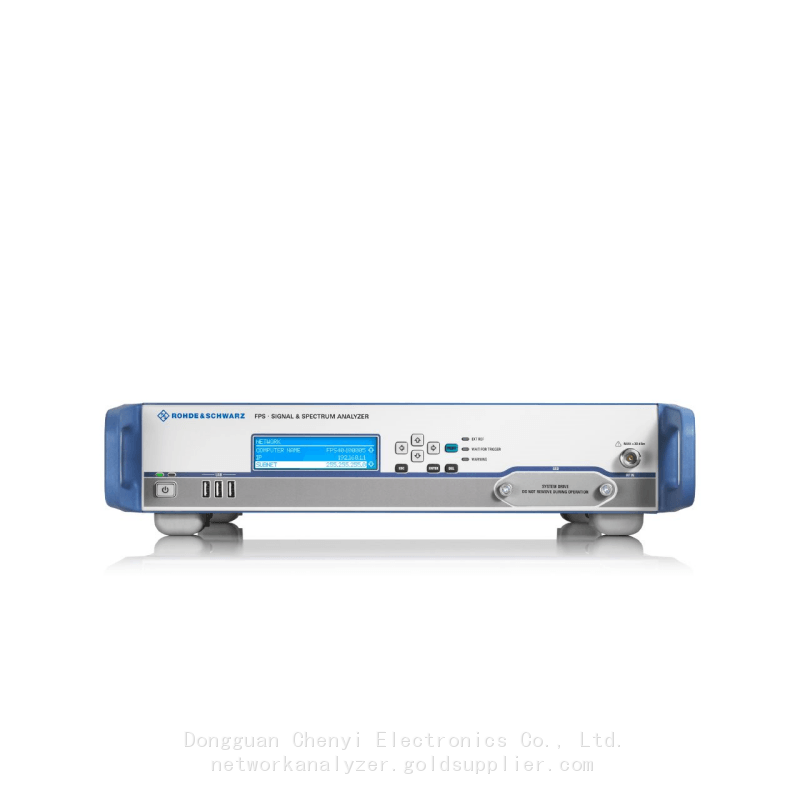

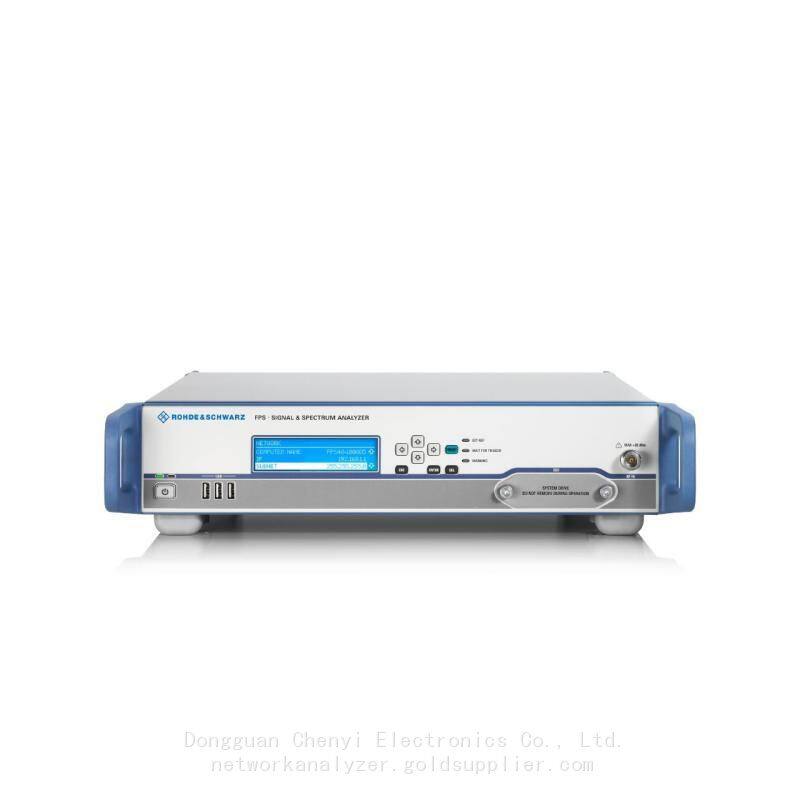

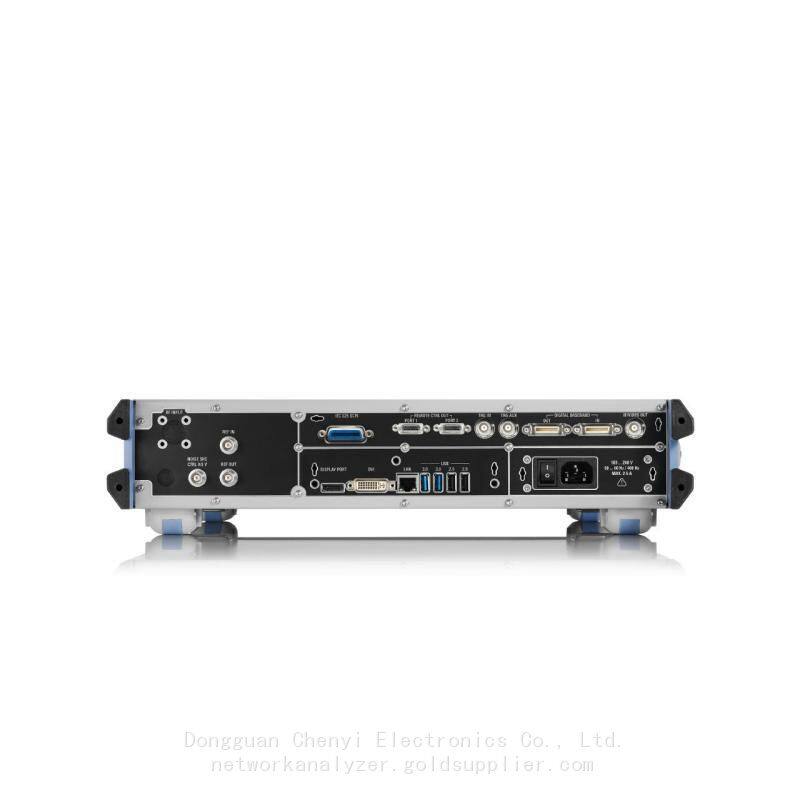

rohde schwarz RS FPS13 Signal and spectrum analyzer，10 Hz to 13.6 GHz
Compact and fast for automated tests
Signal and Spectrum Analyzer FPS4: 10 Hz to 4 GHz
Signal and Spectrum Analyzer FPS7: 10 Hz to 7 GHz
Signal and Spectrum Analyzer FPS13: 10 Hz to 13.6 GHz
Signal and Spectrum Analyzer FPS30: 10 Hz to 30 GHz
Signal and Spectrum Analyzer FPS40: 10 Hz to 40 GHz
Key facts
Frequency range up to 4/7/13.6/30/40 GHz
Up to 160 MHz signal analysis bandwidth
0.4 dB level measurement uncertainty up to 7 GHz
Measurement applications for GSM/EDGE (including EDGE Evolution), WCDMA/HSPA+, LTE, 5G, WLAN, vector signal analysis
Get a QuoteConfigure your product
Key Features
▶ Minimal configuration to optimize production time
▶ Frequency range: 10 Hz ~ 4 / 7 / 13.6 / 30 / 40 GHz
▶ Analysis bandwidth up to 160 MHz
▶ Level measurement uncertainty: 0.4 dB (f
▶ TOI / SHI: +18 dBm / +80 dBm (typical values, 3.6 GHz)
▶ Supports the latest standards such as 5G, LTE, WLAN
▶ Space-saving: 461 mm (W) × 107 mm (H) × 551 mm (D)
The R&S®FPS is an exceptionally fast and compact signal and spectrum analyzer for performance oriented users.
Only 2 HU of rack space are required In production and monitoring systems – a reduction of 50 % compared to standard instruments.
Available models
Models ：R&S®FPS4 Order number 1319.2008.04
Frequency range ：10 Hz - 4 GHz
Phase noise ：
DANL @ 1 GHz：
Max. analysis bandwidth：160 MHz
Instrument type：Signal and spectrum analyzer
Models ：R&S®FPS7 Order number 1319.2008.07
Frequency range ：10 Hz - 7 GHz
DANL @ 1 GHz：
Max. analysis bandwidth：160 MHz
Instrument type：Signal and spectrum analyzer
Models ：R&S®FPS13 Order number 1319.2008.13
Frequency range ：10 Hz - 13.6 GHz
DANL @ 1 GHz：
Max. analysis bandwidth：160 MHz
Instrument type：Signal and spectrum analyzer
Models ：R&S®FPS30 Order number 1319.2008.30
Frequency range ：10 Hz - 30 GHz
DANL @ 1 GHz：
Max. analysis bandwidth：160 MHz
Instrument type：Signal and spectrum analyzer
Models ：R&S®FPS40 Order number 1319.2008.40
Frequency range ：10 Hz - 40 GHz
DANL @ 1 GHz：
Max. analysis bandwidth：160 MHz
Instrument type：Signal and spectrum analyzer
