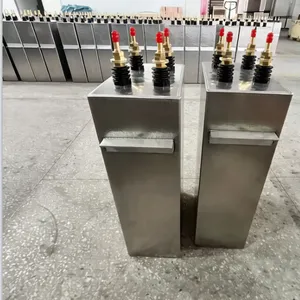

Medium Frequency Capacitor for Melt /heating Furnace
Product Spotlights
High performance - Water Cooled Capacitor
US$ 120 - 800
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Polystyrene-film-capacitors
Application:
General Purpose, Power
Usage:
High Frequency Coupling, Filter
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
Good Quality -Water Cooled CapacitorUS$ 120 - 800MOQ: 10 Pieces -
Induction Heating Furnace CapacitorUS$ 120 - 800MOQ: 10 Pieces
-
MF CapacitorUS$ 120 - 800MOQ: 10 Pieces
-
AC Capacitor for Induction HeatingUS$ 120 - 800MOQ: 10 Pieces
-
Medium Frequency Capacitor for Metallurgy IndustryUS$ 120 - 800MOQ: 10 Pieces
Type
Polystyrene-film-capacitors
Application
General Purpose, Power
Usage
High Frequency Coupling, Filter
Structure
Fixed Capacitor
Electrolyte
Electric Heating
Manufacturing Material
Polypropylene
Filter
Aluminum Electrolytic Capacitor
Packaging Type
Surface Mount
Capacitance
50-100uf
Transport Package
Wooden Case
The capacitor is suitable for controlled or adjustable AC voltage system , and specifically dedicated to improve power factor and circuit property in applications such as induction heating, melting,agitating, casting thermal treatment etc.
Operational Requirement
| Place installed | indoors |
| Altitude | less than 1000m |
| Ambient Temperature | -20℃ ~+50℃ |
| Capacitance Tolerance | -5%~+10% |
| Max voltage | rated voltage ×1.05 |
| Max current | rate current ×1.15 |
| Dielectric Material | Polypropylene film |
| Insulation oil | PEPE or M/DBT (Non-PCB) |
| Cooling mode | water cooled or Air cooled |
| Water Pressure Required | about 0.25~0.35Mpa (max. 1Mpa) |
| inlet water temperature | No more than 35℃ |
| outlet water temperature | No more than 45℃ |
| Pressure switch | Normally closed (NC) type OFF 0.08Mpa ON 0.05Mpa |
| Body material | Aluminium alloy sheet -thickness 3mm |
| Installation Mode | Normally Vertically installed |
| Max. tighten Torque | 20N.m |
| Implementation Standard | IEC60110-1:1998 |
