Excavator Mounted Hydraulic Grapple Bucket for Efficient Material Handling
Logo: XZFT Attachments, or customized
Painting color: customized acceptable
OEM/ODM： Aaccetable
Leading time: 10-15 days after payment, according to order quantity
HS code: 84314100
Origin: China
XZFT Attachments excavator grapple bucket:
Product description:

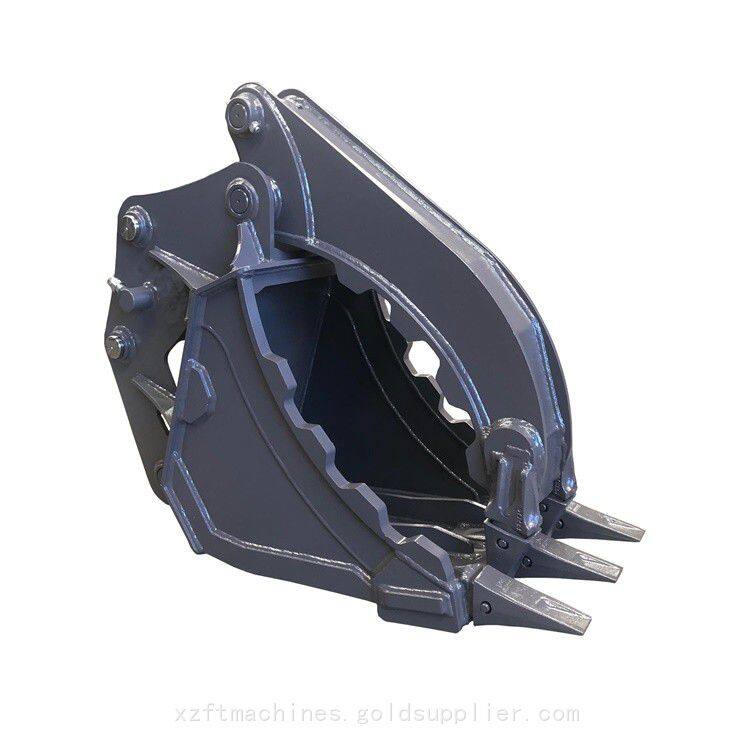

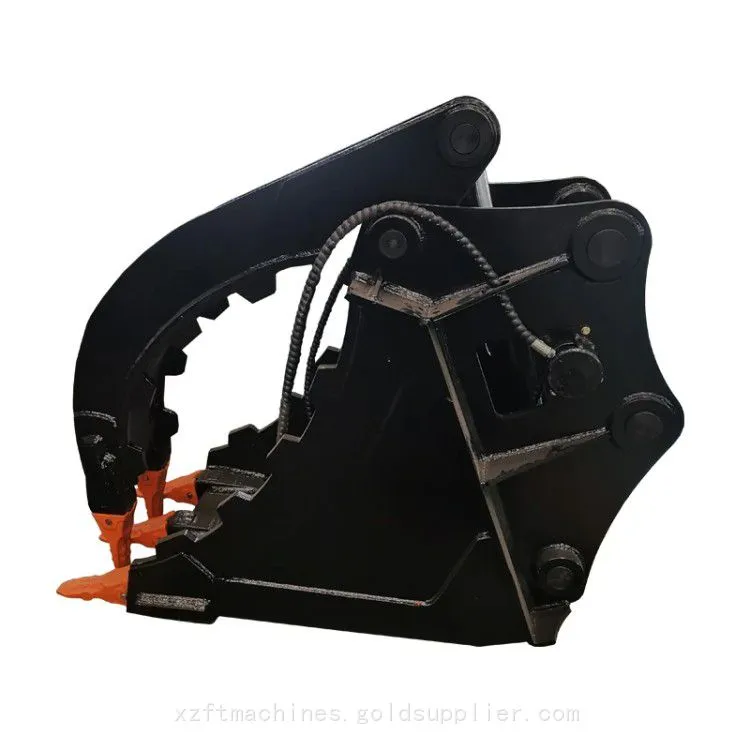

This high-performance Hydraulic Grapple Bucket is engineered for heavy-duty applications, specifically tailored for excavation, clamping, and loading/unloading operations of various small and medium-sized materials in gravel yards and construction sites.
Integrating the dual functions of a digging bucket and a material grapple, it eliminates the need for frequent attachment replacement, significantly enhancing operational efficiency. Constructed with premium Q355B manganese steel and paired with top-tier imported components, this grapple bucket delivers unmatched durability and stability in harsh working environments, making it the ideal attachment for mini to medium excavators.
Advantages:
Superior Material Strength & Corrosion Resistance: Crafted from Q355B manganese steel plate, the grapple bucket boasts exceptional structural strength and excellent corrosion resistance, capable of withstanding impact and wear from gravel, stones and other abrasive materials.
High-Precision Imported Rotary System (Rotary Model): Rotary-type grapple buckets are equipped with Swiss-imported rotary motors, ensuring smooth, precise and reliable 360° rotation for flexible material handling at any angle.
Durable Hydraulic Cylinder Assembly: Hydraulic cylinders adopt honed tubes and imported HALLITE oil seals—the industry-leading sealing solution. This configuration guarantees short working cycles, minimal hydraulic leakage, and an extended service life of the hydraulic system.
Dual-Function Efficiency: Combines excavation and clamping functions in one unit, perfectly suited for gravel yard operations and small-to-medium material handling, reducing equipment downtime and operational costs.
Product Parameters:
| Item/Model | Unit | XZFT20 | XZFT40 | XZFT40R |
XZFT80 | XZFT80R | XZFT150 | XZFT150R | XZFT200 | XZFT200R | XZFT300 | XZFT300R |
| Excavator | ton | 2-3 | 3-5 | 3-5 | 6-9 | 6-9 | 12-18 | 12-18 | 20-30 | 20-30 | 30-40 | 30-40 |
| Weight | kg | 167 | 350 | 470 | 580 | 690 | 820 | 950 | 1400 | 1770 | 1630 | 1930 |
| HeigthA | mm | 880 | 1150 | 1300 | 1300 | 1630 | 1750 | 2100 | 2000 | 2410 | 2250 | 2940 |
| WidthB | mm | 330 | 430 | 430 | 600 | 600 | 690 | 690 | 850 | 850 | 980 | 980 |
| OpeningC | mm | 820 | 1180 | 1180 | 1380 | 1380 | 1550 | 1550 | 2200 | 2200 | 2670 | 2670 |
|
Working Pressure |
bar | 130 | 140 | 180 | 150 | 180 | 220 | 250 | 250 | 280 | 280 | 280 |
|
Working Flow |
lpm | 40 | 50 | 60 | 80 | 100 | 160 | 160 | 220 | 220 | 220 | 220 |
| Tooth Width | mm | 290 | 350 | 350 | 485 | 485 | 560 | 560 | 710 | 710 | 855 | 855 |
|
Swing Diameter |
mm | - | - | 360 | - | 360 | - | 593 | - | 752 | - | 752 |
Applications:
Excavation, clamping, and loading of gravel, sand, stone, and ore materials.
Loading, unloading, transporting, and stacking of various small-to-medium irregular materials, such as scrap steel, timber, pipes, construction waste, branches, and straw.
Grabbing and cleaning of mixed waste and stones in river dredging and slope finishing operations.
Precise handling and stacking of soil, stones, and seedlings in municipal engineering and landscaping projects.
