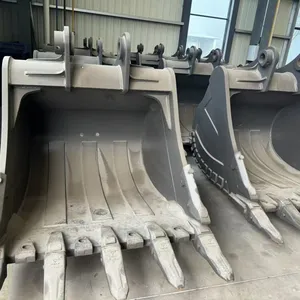

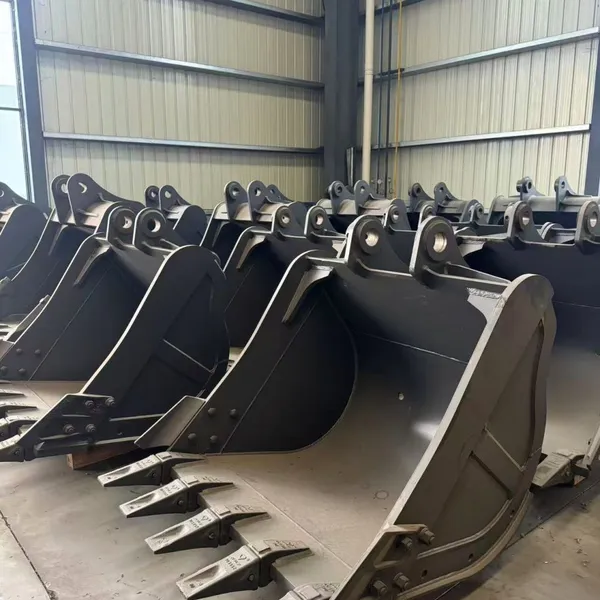

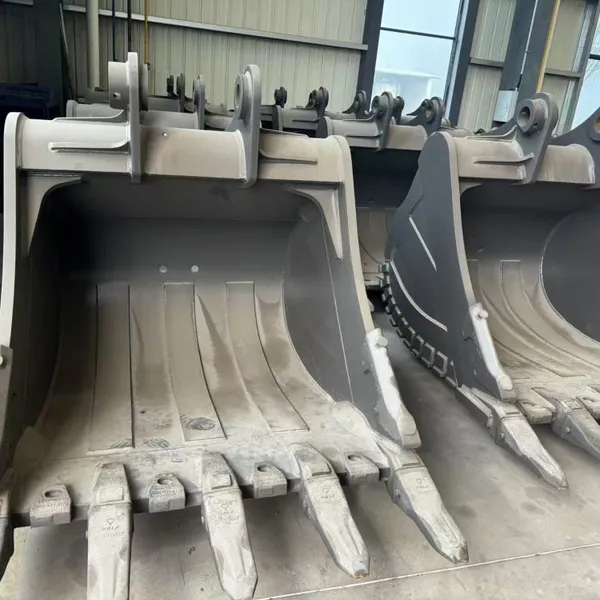

Help CenterHeavy Duty Excavator Bucket With Hardox 450 Steel Construction
Product Spotlights
Related Products
-
Excavator Bucket for Mining Operations - 36-Inch Width, 0.5 Cubic Yard CapacityNegotiableMOQ: 50 Sets -
Excavator Bucket With Bolt-On Cutting Edge - 400BHN Hardness for LongevityNegotiableMOQ: 50 Sets
-
Excavator Bucket Compliant With ISO 9001 Standards - Mill Test Report AvailableNegotiableMOQ: 50 Sets
-
Excavator Bucket for Demolition Work - Reinforced Structure With 1-Inch Side PlatesNegotiableMOQ: 50 Sets
-
Excavator Bucket for Landscaping - Lightweight Design With 0.2 Cubic Yard CapacityNegotiableMOQ: 50 Sets
Changsha Mingyi Machinery Equipment Co., Ltd., based in China's industrial hub of Hunan, engineers robust excavation solutions for extreme conditions. Our Hardox 450 Excavator Bucket is precision-built for operators demanding maximum productivity in abrasive environments. Combining superior material science with heavy-duty construction, this attachment significantly reduces downtime while increasing load retention efficiency.
Engineered specifically for:
- High-impact rock excavation
- Continuous mining operations
- Demolition debris handling
- Quarry overburden removal
Core Engineering Advantages:
- Hardox 450 Armor: 450 HBW hardness steel provides 3× better abrasion resistance than standard buckets, with maintained impact toughness at temperatures down to -40°C.
- Optimized Geometry: Curved profile design enhances material roll-in while minimizing spillage during high-reach operations.
- Double-Layer Reinforcement: Critical stress zones feature 25mm additional plating at hinge points and heel plate.
- Modular Wear System: Bolt-on ADI (Austempered Ductile Iron) teeth and side cutters enable rapid replacement without welding.
Technical Specifications:
| Parameter | Value Range | Notes |
| Bucket Width | 900-1800 mm | Varies by excavator class |
| Side Plate Thickness | 16-40 mm | Tapered reinforcement |
| Pin Bore Diameter | 70-120 mm | ISO 14583 compatible |
| Weight Efficiency | 15-25% lighter | vs. equivalent AR400 buckets |
Operational Benefits:
- Extended Service Intervals: Field tests show 30-40% longer lifespan in granite quarry applications versus standard buckets
- Fuel Savings: Reduced empty weight allows higher payloads per cycle, decreasing fuel consumption per ton
- Reduced Maintenance Cost: Modular wear components cut replacement time by 65% vs. welded designs
With over 12 years of OEM manufacturing expertise in Changsha, Mingyi Machinery delivers direct-from-factory durability without distributor markups. Our vertically integrated production facility utilizes plasma cutting and stress-relieving heat treatment to ensure structural integrity. Each bucket undergoes magnetic particle inspection before shipment. Contact our engineering team for custom CAD drawings specific to your Komatsu, CAT, or Volvo equipment – complete solutions delivered within 30 days with volume discounts available.
FAQ:
Q1: How does Hardox 450 compare to AR400 steel?
A: Hardox 450 offers superior hardness (450 HBW vs. 400 HBW) with better impact resistance, especially in sub-zero conditions.
Q2: Are adapter systems included?
A: Buckets are manufactured to match your specific excavator's pin configuration. Adapter plates available upon request.
Q3: What warranty is provided?
A: 12-month structural warranty against manufacturing defects. Wear components have 6-month coverage.
Q4: Can I request extra reinforcement?
A: Yes. We offer XT (Extra Thick) packages with 30% additional plating in high-abrasion zones.
Q5: How are buckets shipped?
A: Standard sea freight in 20/40ft containers with anti-corrosion coating. Air freight available for urgent orders.
Q6: Do you provide bucket teeth?
A: Yes. We supply compatible ESCO®-style teeth and shrouds as a bundled package.
Q7: Can I get buckets for 50+ ton excavators?
A: Custom designs up to 6m³ capacity available. Submit your machine model for engineering review.
Q8: How do I verify compatibility?
A: Provide excavator model + required pin center measurements. Our technical team will confirm specifications within 24hrs.
