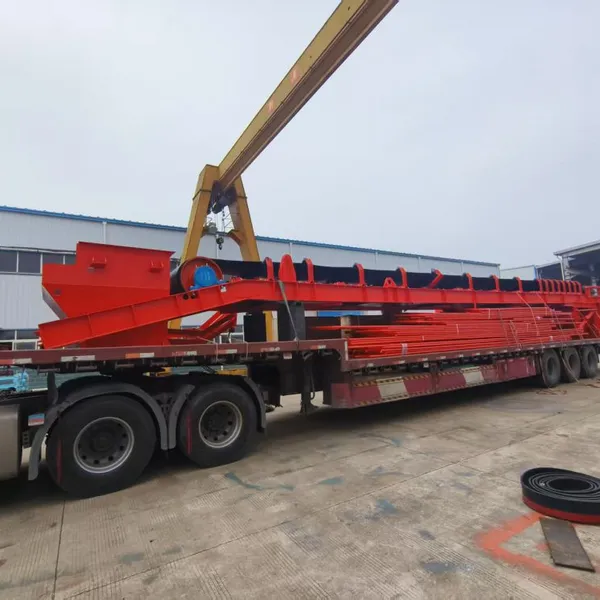

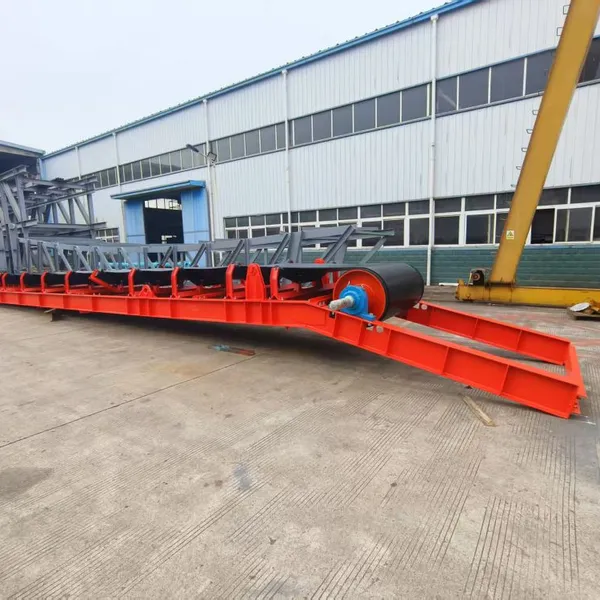

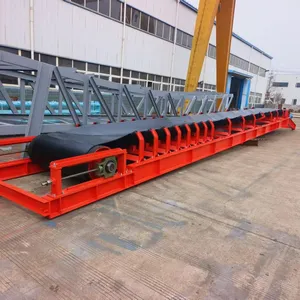

Help CenterBelt Conveyor DT Type Stationary System B800 Fully Fabricated For Mining & Cement Projects
Product Spotlights
Related Products
-
DTL Type Mining Strong Stationary Belt ConveyorUS$ 1000MOQ: 100 Units -
Friction Increase Heart Roller GroupUS$ 1000MOQ: 100 Units
-
Friction Cut Heart Roller GroupUS$ 1000MOQ: 100 Units
-
Rollers Buffer Rollers Mining Cement Industry Belt Conveyor Wearing Parts Impact IdlerUS$ 100MOQ: 10 Units
-
Pulleys Drums Mining Cement Industry Belt Conveyor Wearing PartsUS$ 10000MOQ: 100 Units
This system can be widely used in electric power, coal, mining, metallurgy, building material, port, chemical industry, light industry, tobacco, environmental protection, food and many other industries. Used to transport loose density for 500-2500 kg/m° various disperses the shape, block material or into items. Decorate a form according to the user scene and technological requirements for design for horizontal or inclined form, also can realize single drive or more unit joint and the pepole's transport system and transport system automation control effect. Conveying material temperature should be at 65 °C the following, working environment for - 25 °C ~ + 40 °C; Have special requirements to working environment should take the necessary protective measures.
This series of conveyor in TD75 conveyor on the basis of the difference between optimization design for: the head frame to triangle enhanced; Driving mode from the original single drive increase into the head drive, central drive and multipoint drive; From the original ZQ series reducer increasing into ZSY, DCY and so on the many kinds of series reducer, decorate a form flexible, and increases the GINJ series check apparatus and YWZ series brake, to ensure safety operation; All roller dots aluminothermic welding structure, expansion sleeve connection, drum shaft using quenched and tempered, heat treatment process. tightening by the original way the tension add head up tight, the tension, the heavy hammer rise tight and vertical taut, duct tape on the basis of raw cotton canvas increase nylon, polyester canvas and wire rope core varieties, in order to get used to transport different size of materials.
This machine can fully satisfy level, tilt, shipping, shipping and process requirement, also can use convex segment, concave segment and linear combination of delivery form, at the same time delivery material size size key depends on the type of bandwidth, tape speed, groove Angle and dip Angle, the user can type selection according to the requirements and technical specifications to choose.
