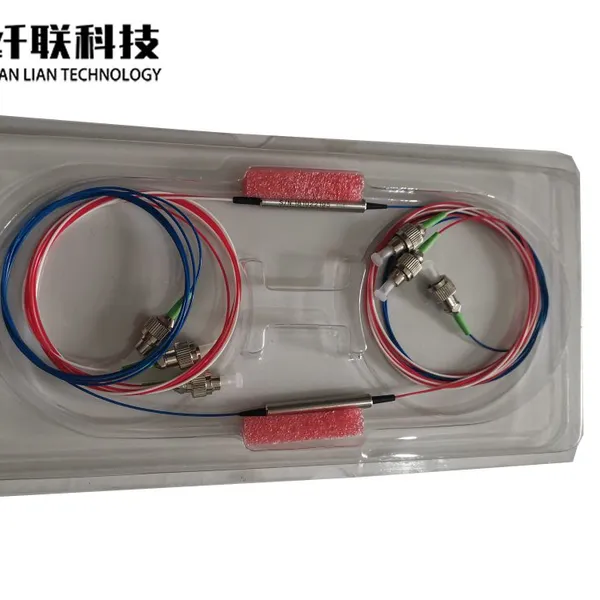

FCIR 1625nm 1630nm 1650nm 3 Port Polarization Insensitive Optical Circulator

Product Spotlights

High isolation & High Return Loss
Low insertion loss & PDL
Optical Path Epoxy Free

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Other

Certification:

ROHS

Wiring Devices:

Other

Sichuan Xianlink Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

30 days

Type Other

Certification ROHS

Wiring Devices Other

Condition New

Transport Package box

Polarization Insensitive Optical Circulator
Features:
High isolation&High Return Loss Low insertion loss &PDL Optical Path Epoxy Free
Application:
EDFA DWDM and OTDR DWDM and OADM networks Bi-directional transmission system
Specifications:
Parameter	Value
Operating wavelength (nm)	1625,1630(±20)	1650(±15)	S+C+L(1460~1620)
Typ.Peak Isolation	50	50	50
Isolation (λc,23℃ all SOP)(dB)	≥40	≥40	≥40
Isolation (23℃,Over all λ,SOP)(dB)	≥35	≥35	≥30
Insertion Loss (λc, 0~70℃ all SOP)(dB)	Grade P	≤1.0	≤1.0	≤1.1
Grade A	≤1.1	≤1.1	≤1.2
PDL(dB)	≤0.20
Return loss(dB)	≥50
PMD(ps)	≤0.1
Directivity	≥50
Power handling(mW)	≤500
Fiber Type	SMF-28e
Operating temperature(℃)	0～+70
Storage temperature(℃)	-40～+85
Package Dimensions (mm)	For bare fiber or 900um loose tube	φ5.5×L50(P1)
For 3mm or 2mm cable	L90W20H9.5(P2)
*Above specifications are for devices without the connectors.
*For devices with connectors,IL will be 0.3dB higher,RL will be 5dB lower
