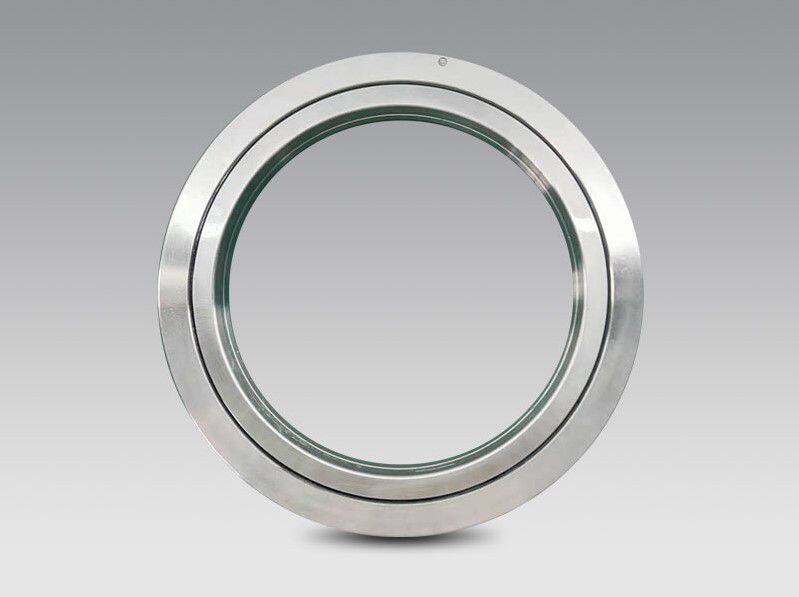

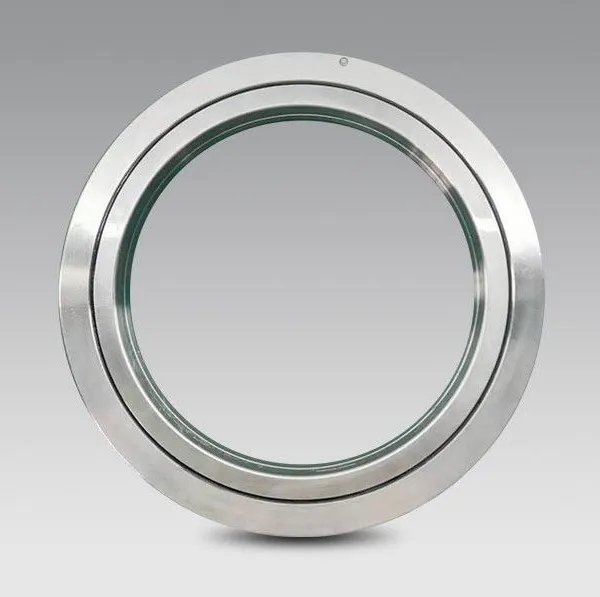

Thin-Walled Crossed Roller Bearings ORBH 4010A
Product Spotlights
since it has an integrated inner/outer ring structure, its performance is minimally affected by the mounting procedure, which can ensure the stable rotation accuracy and torque
Having excellent rotational accuracy
High rotational speed capability
Simple yet effective and smooth
Having excellent rotational accuracy
High rotational speed capability
Simple yet effective and smooth
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Bearing Steel
Feature:
High Speed, Other, Thin-Walled
Style:
Other, one-piece of inner and outer ring, thin section
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
Thin-Walled Crossed Roller Bearings ORBH 4510ANegotiableMOQ: 5 Pieces -
Thin-Walled Crossed Roller Bearings ORBH 5013ANegotiableMOQ: 5 Pieces
-
Thin-Walled Crossed Roller Bearings ORBH 6013 ANegotiableMOQ: 5 Pieces
-
Thin-Walled Crossed Roller Bearings ORBH 208ANegotiableMOQ: 5 Pieces
-
Thin-Walled Crossed Roller Bearings ORBH 258ANegotiableMOQ: 5 Pieces
Material
Bearing Steel
Feature
High Speed, Other, Thin-Walled
Style
Other, one-piece of inner and outer ring, thin section
Rows Number
Single
Load Direction
Other, Radial + Axial + Moment
Customisation
available
Accuracy class
P5/P4/P2
Transport Package
Wooden Case

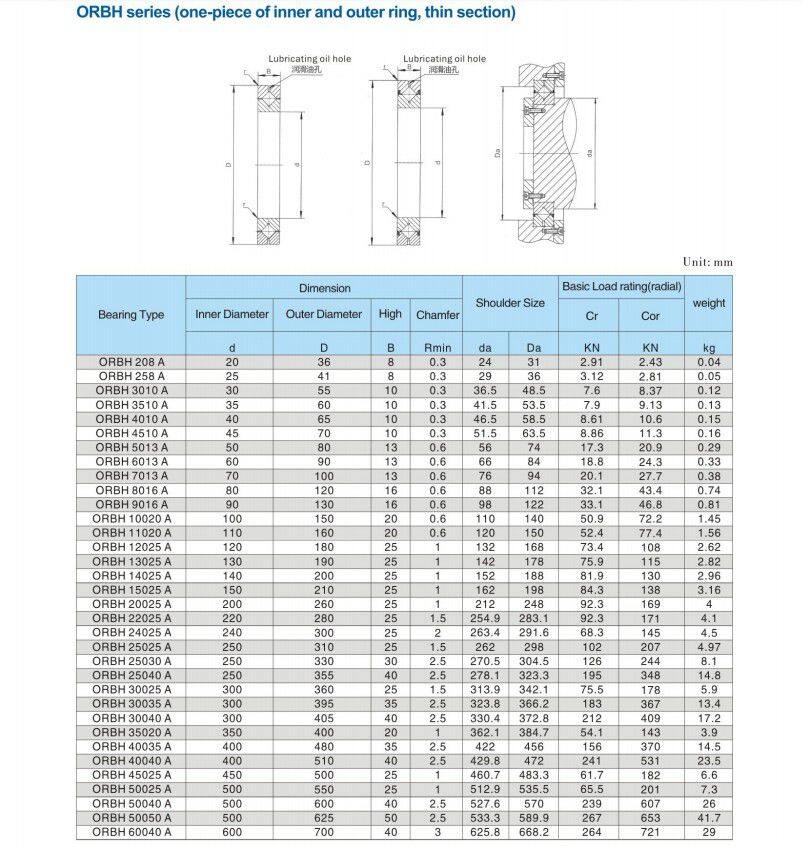

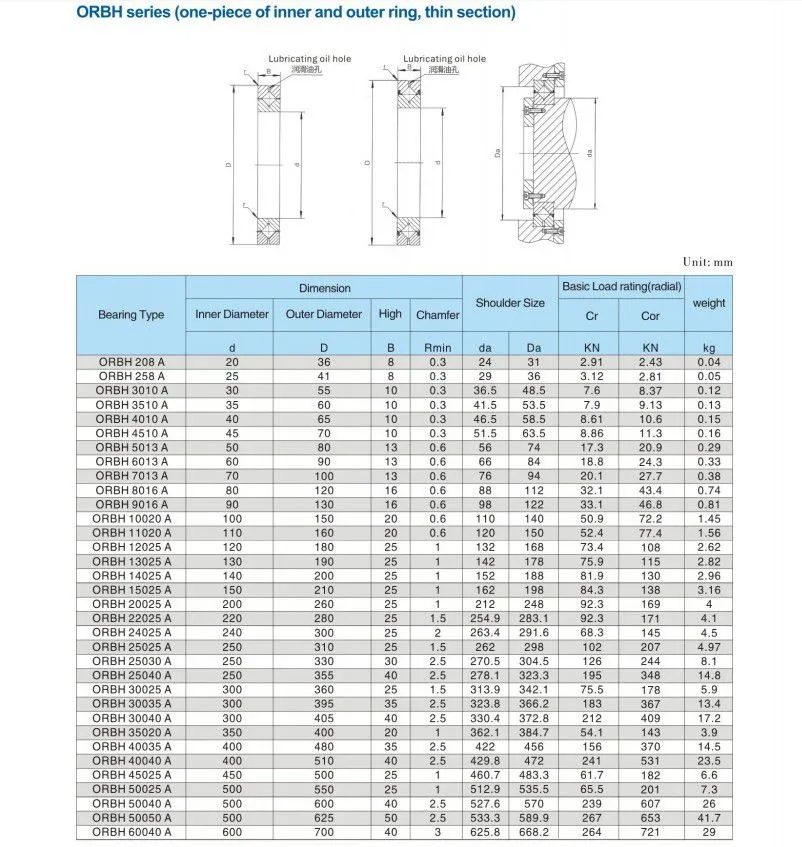

Specification
d: 40mm D:65mm Weight: 0.15kg
Trademark
ONA
Origin
Luoyang,China
ORBH series(integrated inner /outer ring type). With extremely thin outer and inner rings structure, it doesn' thave the mounting holes.So for the installation, the presser flange or housing are necessary. In addition, since it has an integrated inner/outer ring structure, its performance is minimally affected by the mounting procedure, which can ensure the stable rotation accuracy and torque. It can be used for both inner-ring rotation and outer-ring rotation.
In addition, we have many other models that have not been listed.If you need any information, please contact us.
