16ton Punch Machine With Mold for Flip off Seal Caps

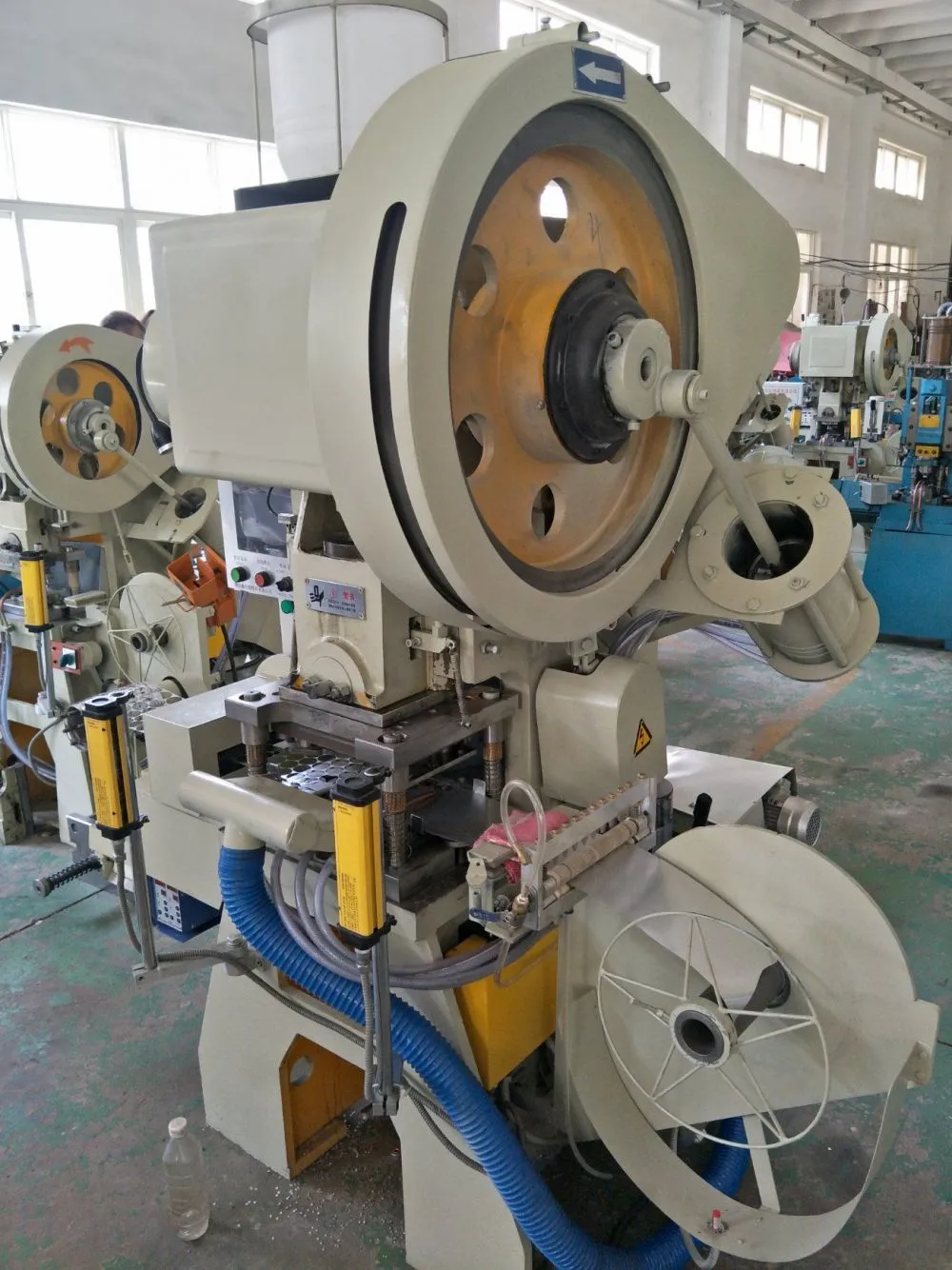

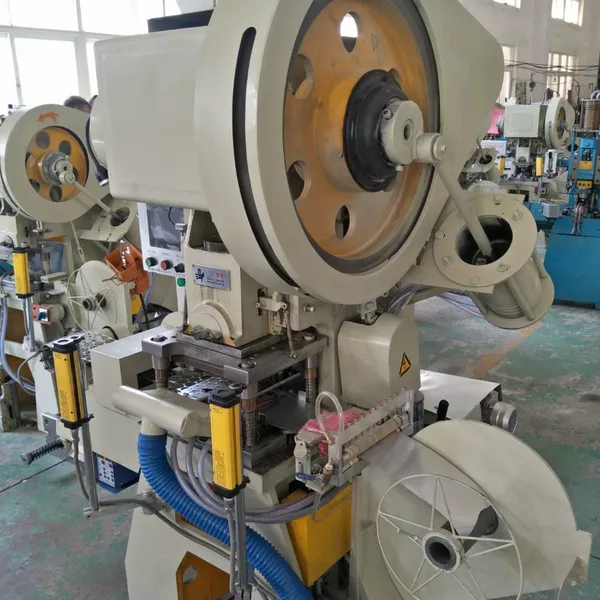

16ton Punch Machine With Mold for Flip off Seal Caps photo-1

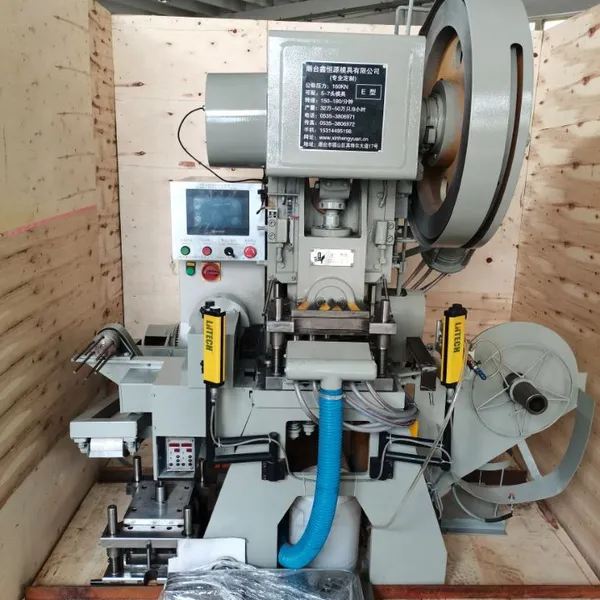

16ton Punch Machine With Mold for Flip off Seal Caps photo-2

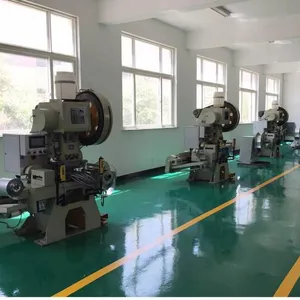

16ton Punch Machine With Mold for Flip off Seal Caps photo-3

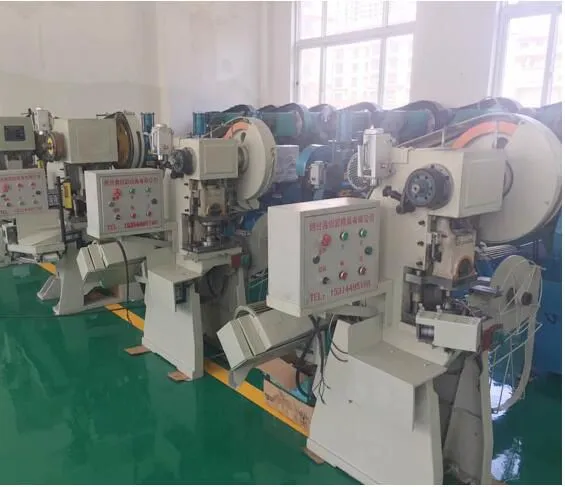

16ton Punch Machine With Mold for Flip off Seal Caps photo-4

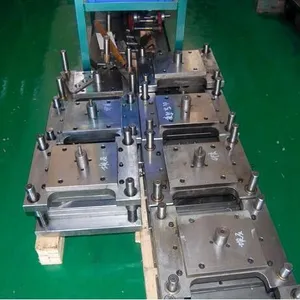

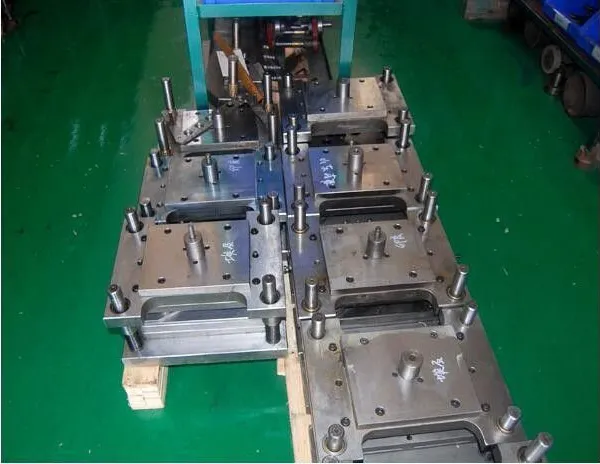

16ton Punch Machine With Mold for Flip off Seal Caps photo-5

Product Spotlights

16ton punch machine , 35ton punch machine ,8ton punch machine
US$ 20000 - 35000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
High-Speed Punching Machine
Certification:
CE, ISO 9001
Warranty:
12months
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
45 days
Type High-Speed Punching Machine
Certification CE, ISO 9001
Warranty 12months
Automatic Grade Automatic
Power Source Electric
After-sales Service yes
Condition New
Controlling Mode CNC
Precision High Precision
Punch Shape Open Punch
Slider Movement Triple Action
Slider Drive Mechanism Link Press
Transport Package wooden stronger box
Specification 16ton 35ton 8ton
Trademark xinhengyuan
Origin shandong

35 ton Pneumatic precision punch machine equip with 12 cavities aluminum mold.

1) capacity is 100,000pcs/hr for 13mm or 20mm flip off aluminum seal.

2) Available cavities mold:13mm 12 cavities,20mm 12 cavities,32mm 4 cavities

3) Mold adopts special trimming way, slove aluminum debris problem;

4) Upper mold has gas circuit,guarantee center hole waste dealing;

5) Mold working parts material is Cr12Mv,Hardness is HRC60—63;

 6) Has function of Hydraulic overload protection

7) Aluminum coil diameter is 800mm,auto material charge and oil aluminum coil;

8) Including mold protection system, if any cap stuck,machine will stop automatically.

9)Punch machine dimension: 1280X850X2220mm

 10)Punch machine+mold+auxiliary machinery dimension: 3600X1800X2220;

11)Working table size: 600X300mm;

 12)Punch machine power:3.7KW;

 13)Auxiliary machinery power:1.5KW;

14)Voltage:380/220V;

15)Punch machine weight:3100kg;

16)Auxiliary machinery weight:250kg COST



 Components of the Machine

a. 16 tons power press, 380V (compatible with 440V);

b. Mould with 5 cavities for 20mm cap, made as per customer's cap drawing and samples;

 c. Machine control system;

d. Uncoiler and servo motor powered material feeder;

e. Aluminum coil lubrication system; use industry white oil

f. Air generator and cap blowing system;

 g. Ring separator and conveyor belt;

h. Recoiler of waste material i. Mould protection system;

j. Hand protection system;

1.2 Capacity: 40000-44000 caps per hour (frequency: 135-150 times/min)

1.3 Aluminium coil width: 151mm

1.4 Spare parts: 50% parts of the 5 cavities.

 1.5 Tools: Standard tools for repair and maintenance of the machine & mould.
