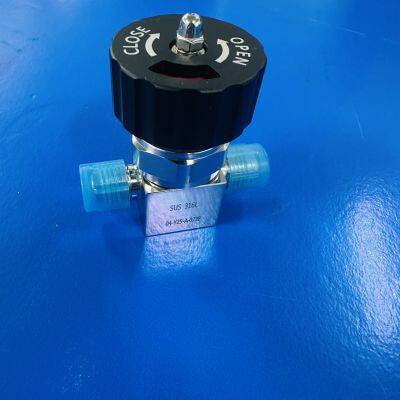

Help CenterHigh Purity Ss 316L Low Pressure NPT Fitting Diaphragm Valve for Semiconductor
Product Spotlights
Related Products
-
Brass/Bronze/Stainless Steel Mini Gas Float & Diaphragm Valve for Industrial UseNegotiableMOQ: 1000 Pieces -
Industrial Stainless Steel Flange/Thread Ball/Butterfly/Diaphragm Control ValveNegotiableMOQ: 1000 Pieces
-
Male Thread VCR Connector Left Input, Right Output Laboratory Pneumatic Diaphragm ValveNegotiableMOQ: 1000 Pieces
-
Forged Stainless Steel Three-Way Welded Diaphragm Valve for Sanitary ApplicationsNegotiableMOQ: 1000 Pieces
-
Sanitary Stainless Steel Ball/Butterfly/Diaphragm Valve With Pneumatic ActuatorNegotiableMOQ: 1000 Pieces
As a trusted manufacturer based in Shanghai, China, Shanghai Quanbao Electronic Materials Technology Co., Ltd. specializes in delivering precision components for the semiconductor sector. Our High Purity SS 316L Low Pressure NPT Fitting Diaphragm Valve is engineered to meet the stringent demands of cleanroom environments, ensuring exceptional purity and reliability. This valve minimizes contamination risks, enhancing process efficiency in low-pressure applications. With our commitment to quality, we provide solutions that support advanced semiconductor manufacturing, backed by years of expertise in electronic materials technology.
This diaphragm valve boasts numerous features that set it apart in the industry. Key characteristics include:
- Superior Material Construction: Made from SS 316L stainless steel, it offers excellent corrosion resistance and durability, even in aggressive chemical environments common in semiconductor processes.
- High Purity Design: The electropolished surface and diaphragm mechanism prevent particle generation, ensuring ultra-clean fluid handling that meets industry standards for contamination control.
- Optimized for Low Pressure: Specifically rated for low-pressure systems, it provides precise flow control without leaks, ideal for delicate semiconductor fabrication steps like etching or cleaning.
- Easy Installation and Maintenance: Featuring NPT threaded fittings, it allows for quick, secure connections, while the diaphragm design enables simple replacement to reduce downtime and maintenance costs.
Technical specifications highlight the valve's performance and versatility. Below is a summary of key parameters:
| Parameter | Value | Description |
| Material | SS 316L | Stainless steel for high corrosion resistance |
| Pressure Range | Up to 150 psi | Suitable for low-pressure applications |
| Connection Size | 1/4" to 2" NPT | Standard sizes, customizable options |
| Temperature Tolerance | -20°C to 150°C | Wide operating range for various processes |
| Diaphragm Type | PTFE or EPDM | Options for chemical compatibility |
Advantages for customers include reduced contamination in semiconductor production lines, leading to higher yield rates and lower rejection costs. The valve's robust build ensures long service life, while the NPT fittings simplify integration into existing systems. For instance, in wafer cleaning, it maintains fluid integrity without introducing impurities, directly benefiting efficiency and product quality. Additionally, the diaphragm design isolates the fluid from the valve body, preventing cross-contamination and enabling easy sterilization.
Shanghai Quanbao, with its strategic location in Shanghai, leverages local manufacturing expertise to offer reliable, high-performance components tailored for the global semiconductor market. Our valve is backed by rigorous quality control processes, ensuring consistent delivery of products that meet exacting standards. Trust in our solution for enhanced operational reliability—contact us today to discuss your specific requirements or request a sample. Experience the difference with a partner dedicated to innovation in electronic materials.
Frequently Asked Questions (FAQ)
-
Q: What makes this valve suitable for semiconductor use?
A: Its high purity SS 316L construction and diaphragm mechanism minimize particle generation, ensuring clean fluid handling critical for sensitive processes like lithography. -
Q: Can it handle corrosive chemicals in semiconductor applications?
A: Yes, the SS 316L material provides excellent resistance to acids and solvents commonly used, with diaphragm options like PTFE for enhanced compatibility. -
Q: What is the maximum pressure this valve can withstand?
A: Designed for low-pressure systems, it typically operates up to 150 psi, but exact ratings depend on size and configuration; consult for specifics. -
Q: Are custom sizes or materials available?
A: Absolutely, we offer customizable options including different sizes, diaphragm materials, and finishes to match unique application needs. -
Q: How easy is maintenance for this diaphragm valve?
A: Very straightforward—the diaphragm can be replaced without disassembling the entire valve, reducing downtime and labor costs in semiconductor facilities. -
Q: What is the lead time for orders?
A: Standard models are often in stock for quick shipment, while custom orders may vary; contact us for current availability and timelines. -
Q: Does it come with any certifications?
A: Certifications are optional and can be provided upon request based on customer requirements and regional standards. -
Q: Is this valve compatible with automated systems?
A: Yes, it can be configured for manual or automatic operation, integrating seamlessly with semiconductor control systems for precise flow management.
