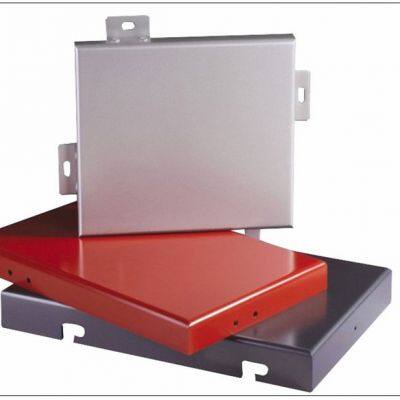

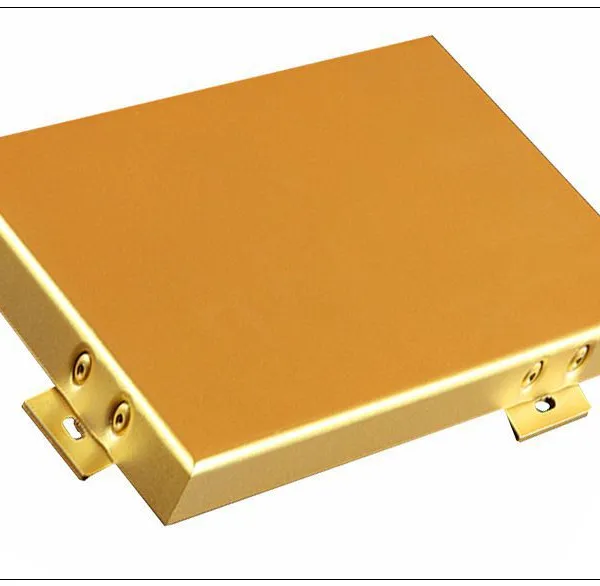

Help CenterDirectly Supplied by Guangzhou Manufacturers, 2.0mm Fluorocarbon Aluminum Veneer With European Continental Hollow Carvings, Double-curved Wood-grained Aluminum Alloy Window Grilles
Related Products
-
Oulu Decorative Perforated Aluminum Ceiling Panels for Offices, Customizable in Zhongshan, Guangdong, Made of Aluminum AlloyNegotiableMOQ: 0 Square Meter -
Oulu Exterior Wall Aluminum Square Tubes for Decoration of Ceiling and Suspended Ceiling, U-shaped Wood Grain Aluminum Grilles, White Aluminum Square Tubes, Customized in Zhongshan, GuangdongNegotiableMOQ: 0 Square Meter
-
Micro - Perforated Aluminum Ceiling Panels, Aluminum Alloy Ceiling Materials, 600*600 Aluminum Ceilings for Mall Ceiling, Customizable in Zhongshan, GuangdongNegotiableMOQ: 0
-
Oulu Aluminum Ceiling Panels for Integrated Ceilings, Aluminum Ceiling for Engineering Installation With Concealed FrameworkUS$ 15.38MOQ: 1 Piece
-
Oulu Aluminum Ceiling Tiles 600*600 Perforated and Soundproof, Suitable for Office Buildings, Concealed Grid for Machine RoomsUS$ 15.38MOQ: 1 Piece
Guangzhou Jiana Building Materials Co., Ltd. is headquartered in Panyu District, Guangzhou. It is one of the most powerful manufacturers of metal ceilings, suspended ceilings, and curtain walls in the Chinese mainland. The company mainly produces and sells aluminum honeycomb panels, aluminum corrugated panels, aluminum single panels, aluminum square tubes, aluminum gusset plates, aluminum grilles, and aluminum hanging sheets. The company has a 23 - year - old R & D team for aluminum single panels, a 300 - person installation team, a 30,000 - square - meter factory building, and 26.8 million worth of fully automated German production equipment. It mainly has a fully automated production workshop for honeycomb panels, a fully automated production workshop for corrugated panels, a curtain wall panel processing workshop, a special - shaped panel processing workshop, a fully automated spraying workshop, a large - scale warehouse, and a comprehensive office building, etc. It features high production efficiency, low cost, and good quality. Standard panels can be delivered one day after placing an order, and customized panels can be delivered in 3 - 7 days. All products are sold directly by the manufacturer, saving customers 55% of the cost of middlemen's price difference. The manufacturer has its own logistics team, providing free delivery across the country, free on - site measurement, and free design. Call now and get free samples. The company can undertake one - stop services from on - site measurement to product customization, design, production, and installation. 24 - hour service hotline: 18620062003

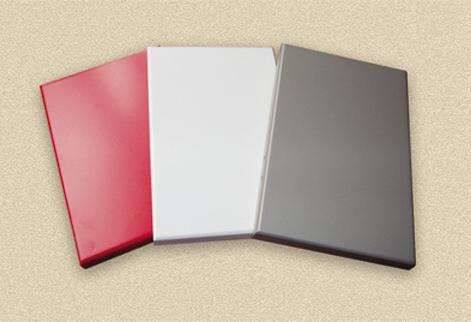

Aluminum single panel is a new type of ceiling, interior wall, and exterior wall decoration material. It uses high - quality aluminum alloy sheets as the base material, is formed through technologies such as CNC bending, and is coated with decorative paint on the surface.
The base material of aluminum single panel uses single - layer aluminum alloy sheets dedicated to curtain walls, such as 1100H24, 1060H24, 3003H24, 5005H24.

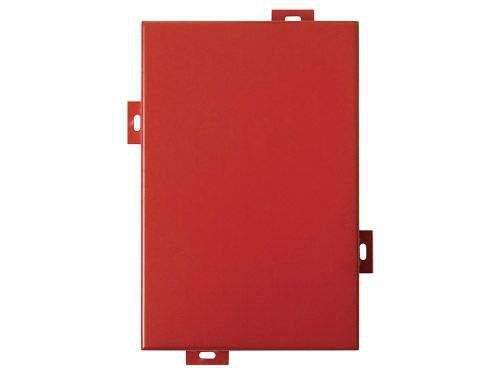

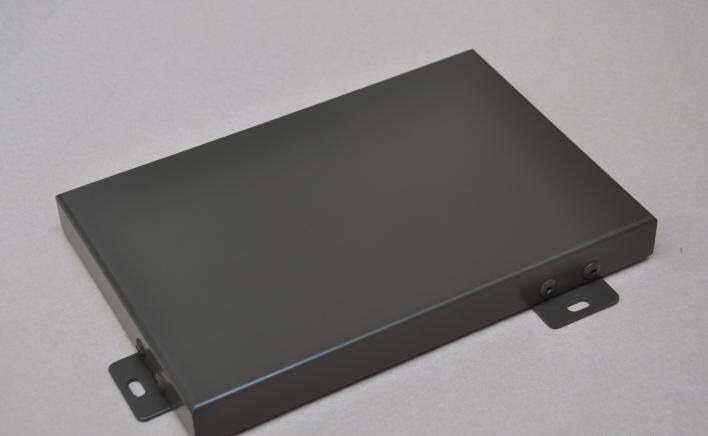

The fluorocarbon aluminum single panel is mainly composed of components such as the panel, stiffeners, and corner codes. The size of the formed workpiece can be 1300mmX2400mm (L X W)
The paint uses well - known brand paints such as PPG from the United States, Valspar from the United States, AKzoNobel from the Netherlands, and KCC from South Korea. The coating is divided into two - coat - one - bake and three - coat - two - bake, and its coating performance meets the
AAMA2605 - 98 standard of AAMA (American Architectural Manufacturers Association) and ASCA (American Architectural Coaters Association).
Regular thickness: 2.0mm, 2.5mm, 3.0mm.
Common specifications: 600*600mm, 600*1200mm
Characteristics of aluminum single panel:
1. Light in weight, good in rigidity, and high in strength. A 3.0mm - thick aluminum plate weighs 8Kg per square meter, and its tensile strength is 100 - 280n/mm²
2. Good weather resistance and corrosion resistance. Using Dvdf fluorocarbon paint with kynar - 500 and hylur500 as the base material can ensure no color fading for 25 years.

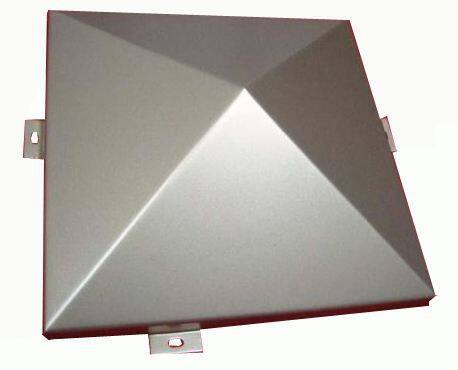

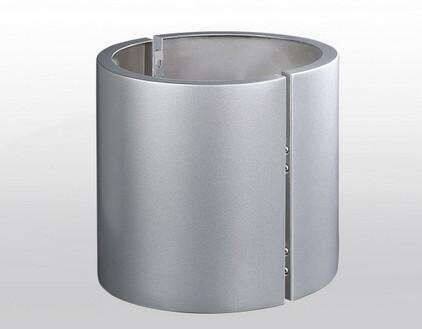

3. Good processability. With the process of processing first and then painting, the aluminum plate can be processed into various complex geometric shapes such as planes, arcs, and spheres.
4. Uniform coating and diverse colors. The advanced electrostatic spraying technology ensures uniform adhesion between the paint and the aluminum plate, with a wide variety of colors and a large selection space.
5. Resistant to staining and easy to clean and maintain. The non - adhesive property of the fluorine coating film makes it difficult for contaminants to adhere to the surface, and it has good self - cleaning performance.
6. Convenient and fast installation and construction. The aluminum plates are formed in the factory, and no cutting is required at the construction site. They can be fixed on the framework.
7. Recyclable and environmentally friendly. Aluminum plates can be 100% recycled. Different from decorative materials such as glass, stone, ceramic and aluminum - plastic panels, they have a high recycling residual value.
Application occasions of aluminum single panels: 1. Building exterior walls, beams and columns, balconies; 2. Airport/railway station terminals; 3. Conference halls, opera houses; 4. Sports stadiums; 5. Reception lobbies, etc.
Note: The above parameters are the commonly used specifications and dimensions of aluminum single panels. Changsheng can customize and produce aluminum single panels according to the on - site needs of users in terms of length, width and thickness. The production period of aluminum single panels is generally 7 - 10 days.
