epoxy powder coating
The purpose of formulating this powder coating is to achieve a high gloss smooth coating with excellent adhesion, bending and chemical resistance. The main disadvantage is that it is easy to yellow at high temperatures or after exposure to sunlight. In addition, this coating will quickly pulverize when exposed to outdoor exposure. However, the integrity of the film under outdoor exposure is very good. The curing of epoxy powder coatings is additive curing and does not release volatiles during drying.
Main Material |
Epoxy resin,barium sulfate,titanium dioxide |
Surface Type |

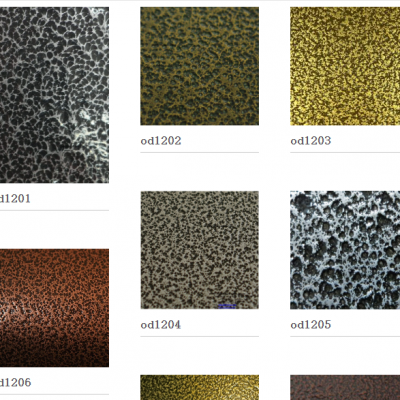

Gloss,matte,wrinkle,sand grain,antique, Hammer,crocodile skin, wood effect,candy,chrome, transparent,semitransparent,metallic,and special pattern |
Powder Properties |
Specific gravity : 1.3 - 1.75 (depend on colors) |
Average particle size : 35 - 45um |
|
Coating Properties |
Film thickness(ISO 2178) :60 - 90 μm |
Coverage:15 square based on 60μm |
|
Pencil hardness: ASTM D3363,>HB |
|
Adhesion :GB/T 9286-1998,0 grade |
|
Bending test:GB/T 6742 ,= |
|
Cupping test:GB/T 9753,>=7mm |
|
Direct and reverse impact (ASTM D2794) : > 50kg.cm |
|
|
Salt spray Resistance ( ASTM B117, 200hrs)(Maximum undercutting ,1 mm ): No blistering or loss of adhesion |
|
Heat and moisture test GB/T 1740,>=500 hours,no change |
|
Application Schedule |
Applied by : Electrostatic spraying devices |
Curing schedule :15 minutes at 180 ℃ |
|
Advantage |
Good adhesion,extremly hardness strong coating film, |
Accurate colors, good leveling |
|
Shelf Life |
12 months |
If you have some products to be powder coated, why not ship them to us so we can powder coat for you?
We will use our own brand of powder with high quality standard and a lot of color options are available. It is one-stop service.
During the whole process, we will ensure the items are well packed.
After powder coating, we can help you ship finished products to China and Oversea.
What's our powder coating service?
Surface Preparation Area: This is where metal items are cleaned and prepped to ensure proper adhesion of the powder coating. Processes might include sandblasting, chemical cleaning, and rinsing to remove rust, grease, and other contaminants.
Application Booth: In this controlled environment, the powder coating is applied to the metal surfaces. This area is equipped with electrostatic spray guns that charge the powder particles, making them adhere to the grounded metal parts. The booth is usually designed with ventilation systems to manage airborne powder and ensure a clean working environment.
Curing Oven: After application, the coated items are moved to a curing oven where the powder is baked at high temperatures. This process melts and fuses the powder into a smooth, durable finish. The oven is typically a large, temperature-controlled chamber that ensures even heating and consistent curing.
Cooling Area: Once the curing process is complete, the items are moved to a cooling area where they are allowed to cool down to room temperature. This cooling phase is crucial for solidifying the coating and preventing any warping or damage.
Quality Control: In this section, finished products are inspected for any defects or inconsistencies in the coating. This might include visual inspections, thickness measurements, and adhesion tests to ensure that the coating meets the required standards.
Storage and Handling: Finished products are carefully handled and stored to avoid damage before they are shipped out. This area may include racking systems or storage bins designed to protect the coated items.
Recycling and Waste Management: Powder coating plants often have systems in place for recycling excess powder and managing waste materials. This helps minimize environmental impact and reduce operational costs.
Powder Coating Machines & Lines
Powder Coating Spary Service
Epoxy Polyester Powder Coating
Polyester Powder Coating
Polyuthane Powder Coating
Epoxy Powder Coating
Candy Finish Powder Coating
Anti-gassing Powder Coating
Anti-bacterial Powder Coating
Anti-static Powder Coating
High Temperature Resiatant Powder Coating
Low Temperature Cure Powder Coatings
Fusion Bonded Epoxy Powder
Heat Transfer Printing Powder Coating
Thermoplastic Powder Coating
Ral colors powder coating
Pantone colors powder coating
Wrinkle finish powder coating
Antique finish powder coating
Sand finish powder coating
Neon colors powder coating
Translucent colors powder coating
Sort by chemistry:
●Epoxy polyester powder coating
●Pure polyester powder coating
●Polyester tgic free powder coating
●Pure epoxy powder coating
Sort by charateristic:
Antigassing powder coating
Antistatic powder coating
· Antibacterial powder coating
High temperature resistant powder
Heat transfer printing powder coating
Sort by colors:
●RAL colors
●Pantone colors
●Wrinkle finish
●Antique finish
●Crackle finish
●Sand finish
●Translucent colors
According to the RAL or PANTONE color code, any colors you can choose from us.
Inner Packing for metallic powder coating powders: double PE bags, fasten with plastic strip.
Outer Packing for metallic powder coating powders: high quality carton (the letters and patterns on the cartons can be customized.).
Net Weight per Carton: 20kg or 25kg.
| 20kg/ctn | 25kg/ctn | |
| no pallet | 20GP max loading:19000kg | 20GP max loading: 17500kg |
