Basic Info.
Model NO.
WL-200
Automation
Automatic
Certification
ISO, CE
Screw
Multi-Screw
Knife Type
Flat Knife Crusher
Recycling Product
ACSR Cable
Power
11-32kw
Capacity
0.8-4 Tons /H
Function
Aluminum Steel Wire Separator
Operators
1/Shift
Outcomes
Under 30 mm
Type
Free Dust
Discharge
Belt Conveyor
Transport Package
Wooden Box
Trademark
WALLE INDUSTRY
Origin
China
Production Capacity
22sets/Month
Product Description
Product Description

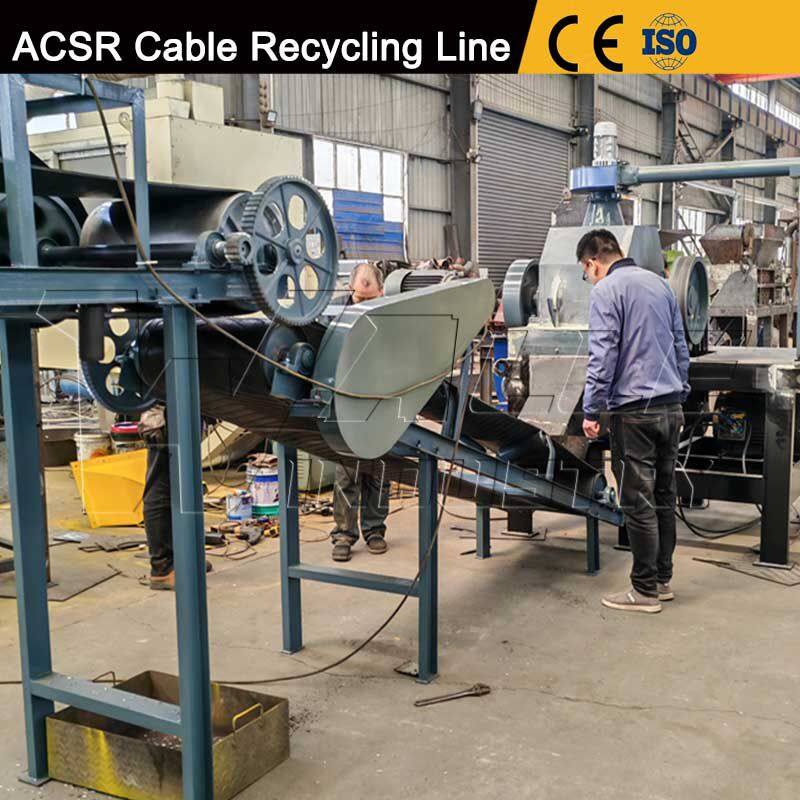

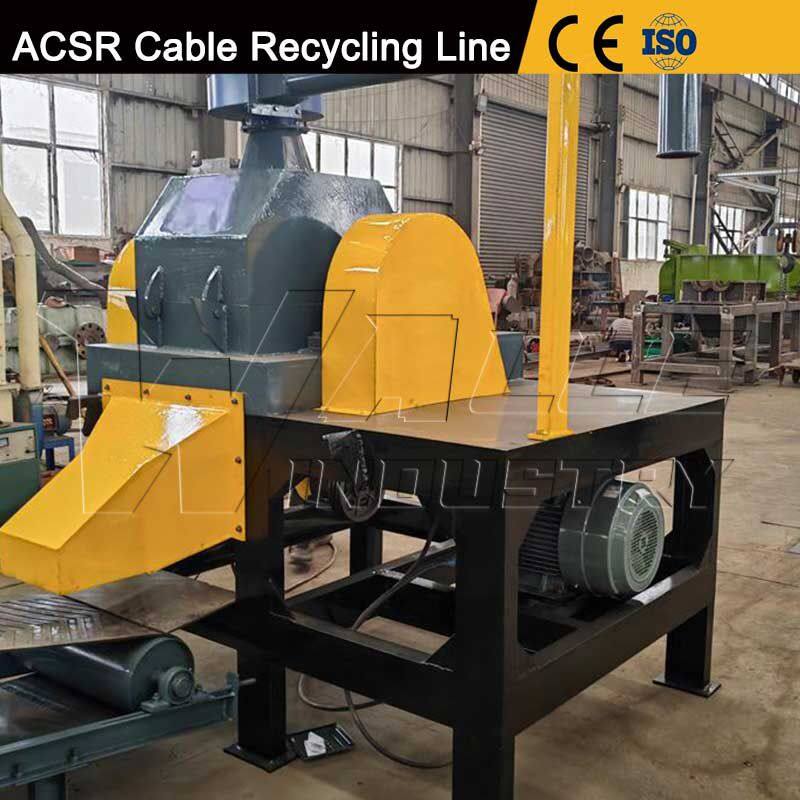

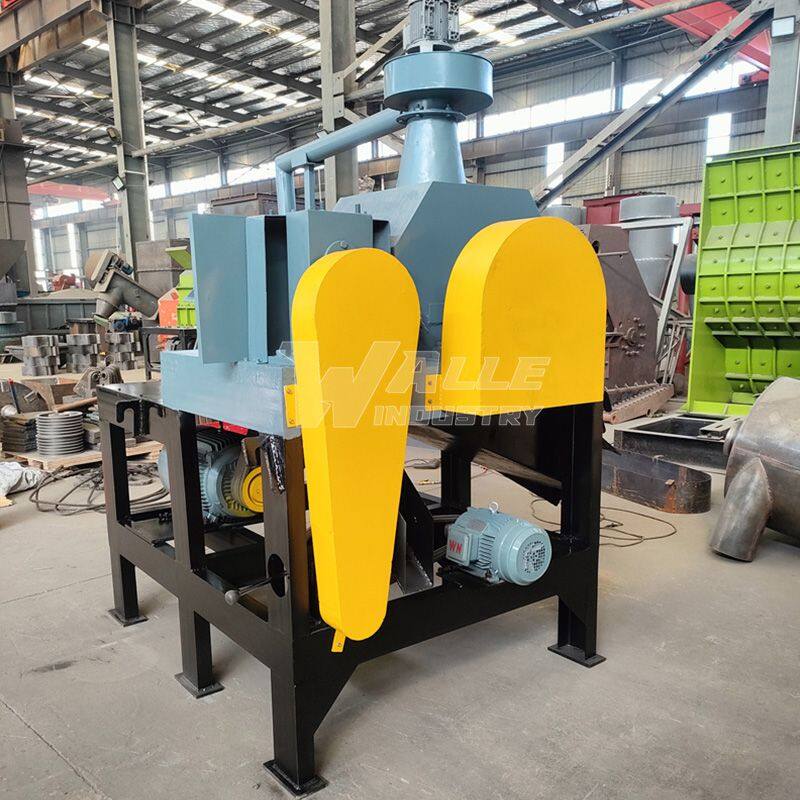

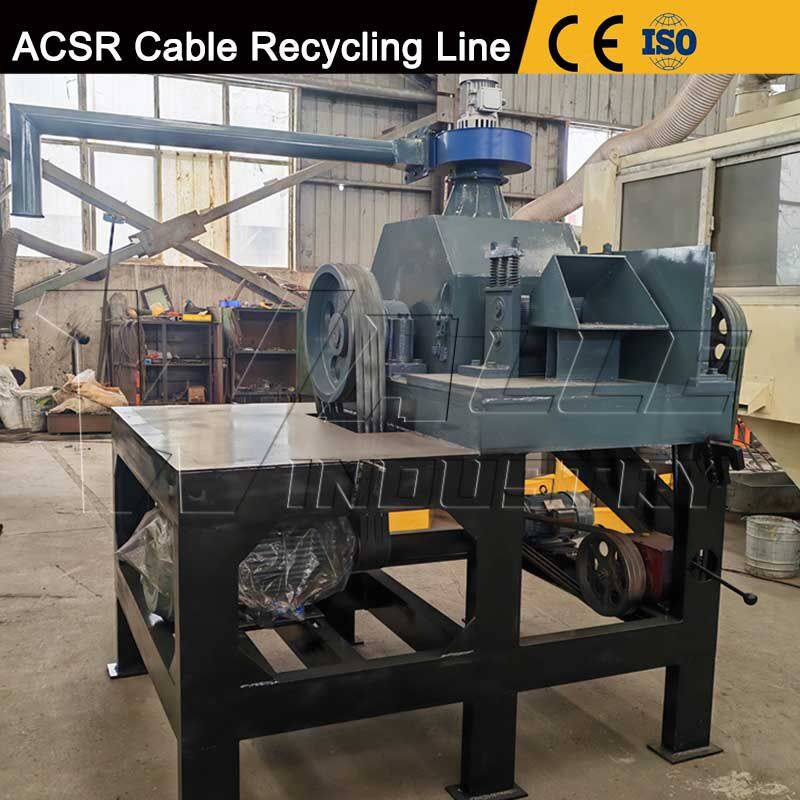

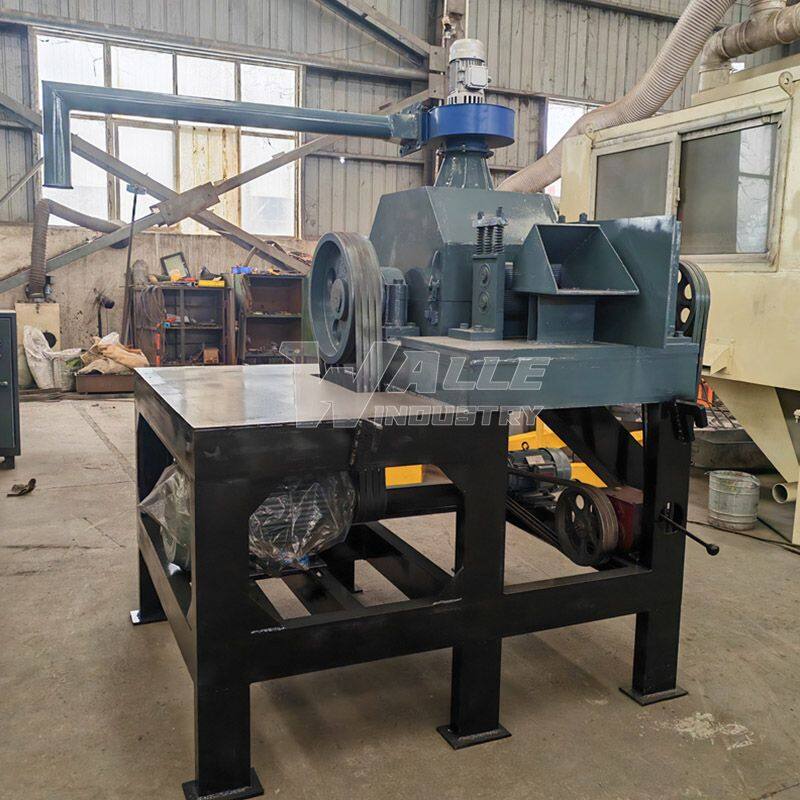

Aluminum Stranded Wire Cutting Machine
The Aluminum Stranded Wire Cutting Machine is a specialized industrial equipment designed for precise and efficient cutting of aluminum stranded wires or cables into specified lengths. The dust catcher will keep the environment friendly, meanwhile, the magnetic separator will sort the Al from steel chips. after cutting the final products could under 30 mm.
The operating principle of the equipment is relatively complex; as the cutting tools rotate at high speeds, they demonstrate exceptional shearing and impact capabilities, enabling highly precise processing of copper-clad steel strands. The motor provides a steady supply of power, ensuring that the cutting tools maintain continuous high-speed rotation to efficiently complete the strand-cutting task. Once the strands enter the shredding zone, they are instantly and rapidly severed by the cutting tools. Throughout the entire shredding operation, the material undergoes continuous size reduction, ultimately exiting through the discharge port in the form of appropriately sized granules, thereby laying a solid foundation for subsequent processing stages.
Key Features and Advantages
Anti-Tangling Design: The cutter structure has been optimized specifically for flexible materials, effectively resolving the common problem of rotor entanglement often encountered in traditional shredders.
Superior Shredding Performance: The shredded output consists of segmented particles with clean, flat cut surfaces; particle sizes typically range from 3 to 10 centimeters and are fully adjustable.
High Versatility: Capable of processing not only steel strands but also a wide variety of other materials, including various types of iron wire, scrap cables, steel wire ropes, and steel cables.
Intelligent Control: Many units are equipped with a PLC automatic control system featuring an automatic reverse function for overload protection; this system automatically reverses the rotor when encountering particularly difficult-to-shred materials, thereby safeguarding the equipment.
Key Features:
High Precision Cutting
Equipped with motor-driven systems and programmable logic controllers (PLCs) to ensure accurate length control .
Suitable for cutting multi-strand aluminum wires with diameters ranging from 10mm to 50mm.
Automated Operation
Integrated touch-screen HMI (Human-Machine Interface) for easy parameter setting and real-time monitoring.
Automatic feeding, measuring, and cutting processes minimize manual intervention.
Durable Construction
Heavy-duty steel frame with hardened alloy blades for long-lasting performance.
Anti-vibration design ensures stability during high-speed operations.
Safety & Efficiency
Emergency stop function and protective guards comply with CE safety standards.
Capable of processing up to 200 cuts per minite, significantly improving production efficiency.
Applications:

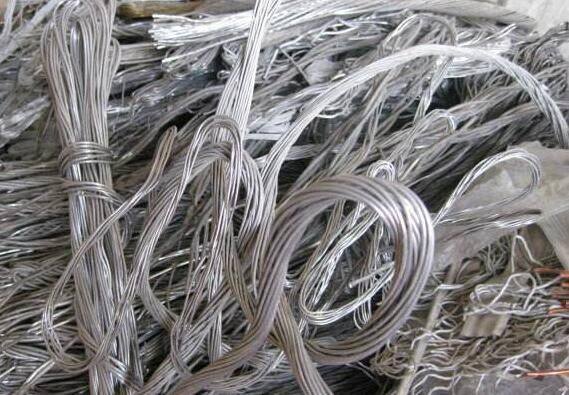

Preparation of scrap aluminum conductors for power lines, transformers, and substations.
Custom-length cutting for recycling overhead transmission lines or grounding systems.
Technical Specifications:
Power Supply: 380V/50Hz (3-phase)
Cutting Length Range: 0.5m - 20m
Motor Power: 11kW
Blade Material: Tungsten Carbide
Weight: Approx. 1200kg
Advantages:
Reduces material waste through optimized cutting algorithms.
Low maintenance requirements with self-lubricating components.
Compatible with various scrap stranded wire configurations (e.g., ACSR, AAC, AAAC,AACSR).
Application
Product Parameters
| Model | Power | Fan Power | Capacity | Arrange |
| WGJX-100 | 11KW | 0.55KW | 0.8-1.5T/H | ≤15Mm |
| WGJX-200 | 18.5KW | 0.75KW | 1.8-2.5T/H | ≤30Mm |
| WGJX-300 | 30KW | 1.1KW | 2.5-4T/H | ≤30Mm |
