Home > Industrial Equipment & Components > Compressor > Compressor Unit > 15kW Belt-Driven Frequency Inverter Screw Compressor With Air-Cooled System

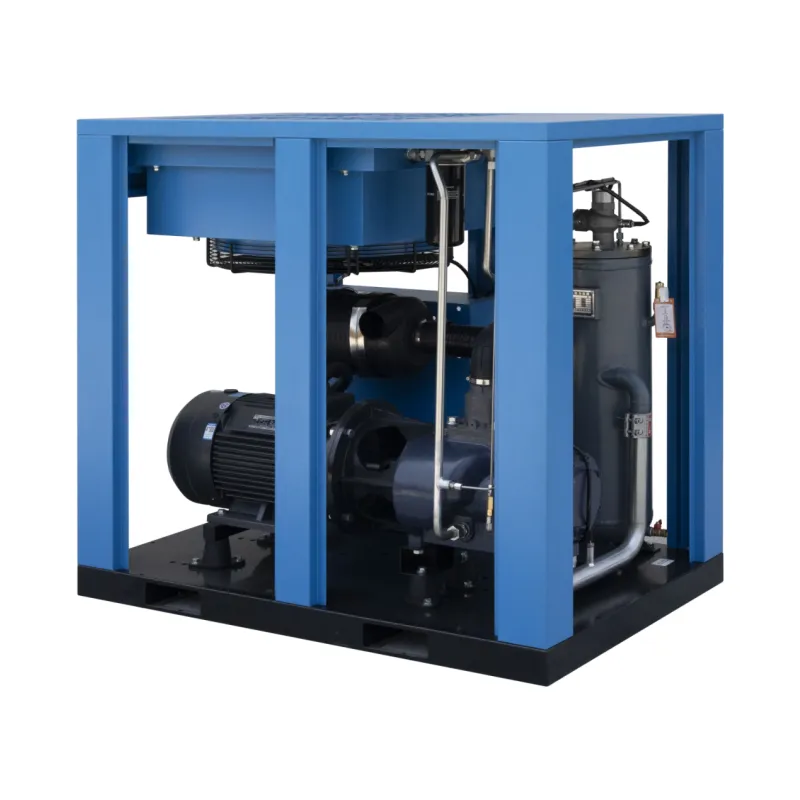

15kW Belt-Driven Frequency Inverter Screw Compressor With Air-Cooled System
Product Spotlights
Energy-saving 15kW screw compressor with intelligent frequency inverter reduces operational costs. Belt-driven transmission ensures low maintenance and extended component life. Air-cooled system eliminates water dependency. Suitable for manufacturing, automotive, and construction applications. Features digital control, thermal protection, and compact design. Global certifications support worldwide deployment.
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Other, Industrial Air Compression
Power Rating:
15 kW
Drive Type:
Belt-Driven
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiangsu, China
Delivery Detail:
7 days
Related Products
-
7.5kW/10HP Durable Rotary Screw Air Compressor for Industrial OperationsNegotiableMOQ: 1 Set -
Dry Oil-Free 90kW Energy Saving Screw Compressor for Eco-Friendly IndustryNegotiableMOQ: 1 Set
-
90kW Two-Stage Industrial Screw Air Compressor for Heavy-Duty ApplicationsNegotiableMOQ: 1 Set
-
OEM High-Efficiency Centrifugal Screw Air Compressor 15-90kW AC PowerNegotiableMOQ: 1 Set
-
7.5kW 10HP Direct Driven Rotary Screw Air Compressor With Air Cooling SystemNegotiableMOQ: 1 Set
Application
Other, Industrial Air Compression
Power Rating
15 kW
Drive Type
Belt-Driven
Control System
Frequency Inverter
Cooling Method
Air-Cooled System
Motor Type
Electric Motor
Phase
3-Phase
Pressure Range
7-12 bar (typical)
Noise Level
Optimized acoustic design
As a specialized compressor manufacturer since 2013, Jiangsu Saidesi Compressor leverages its 1,000-3,000 sqm production facility and technical expertise to deliver the 15kW Belt-Driven Frequency Inverter Screw Compressor. This industrial-grade solution combines energy efficiency with robust performance, engineered for operations requiring reliable compressed air in demanding environments.
Core Technical Advantages:
- Intelligent Frequency Control: The inverter technology dynamically adjusts motor speed to match air demand, reducing energy consumption by 20-35% compared to fixed-speed models
- Enhanced Durability: Precision-engineered screw elements with belt-drive transmission minimize metal-to-metal contact, extending service life beyond 40,000 operating hours
- Thermal Management: Advanced air-cooling system maintains optimal operating temperatures (5-40°C ambient) without water consumption
- Vibration Control: Anti-vibration mounts and acoustically treated enclosures achieve noise levels below 68 dB(A)
Technical Specifications:
| Parameter | Value |
| Free Air Delivery | 2.1 - 2.5 m³/min |
| Working Pressure | 7-12 bar (customizable) |
| Tank Capacity | Optional 200-500L |
| Power Supply | 380V/50Hz/3Phase |
| Protection Rating | IP55 |
Operational Benefits:
- Automatic shutdown during low pressure/overload conditions
- Digital controller with 7-day programmable timer
- Remote monitoring via RS485 interface
- Oil-water separator pre-installed
Backed by 11+ years of manufacturing excellence and serving clients across 6 continents from our Jiangsu facility, this compressor undergoes 18 quality checkpoints before shipment. Our global logistics network ensures timely delivery via Qingdao/Shanghai/Tianjin ports. With 85% of components sourced in-house, we maintain strict control over production tolerances while offering OEM customization options. Contact our engineering team today for specific configuration requirements or performance validation data.
FAQ:
-
Q: What maintenance intervals are required?
A: Recommended every 2,000 hours for air filter and oil inspection -
Q: Can it operate in high-temperature environments?
A: Yes, the dual-fan cooling system supports continuous operation at 40°C ambient -
Q: Is the frequency inverter compatible with generator power?
A: Requires stable power supply; voltage stabilizer recommended -
Q: What oil type should be used?
A: ISO VG 46 synthetic compressor oil (included in initial shipment) -
Q: Are mounting feet included?
A: Yes, vibration-dampening feet come standard -
Q: What's the lead time for customized units?
A: Typically 15-25 days after design confirmation -
Q: Does it include an air dryer?
A: Refrigerated dryer available as optional accessory -
Q: What documentation is provided?
A: CE documentation, electrical diagrams, and multilingual manuals included
