As a specialized manufacturer established in 2017, Wuxi Weiman Gaodeng Special Steel Co., Ltd. produces precision nickel alloy crosses engineered for critical chemical applications. Our 1,000-3,000 sqm manufacturing facility employs advanced technology to create pipe crosses that withstand extreme corrosive environments while maintaining structural integrity. With annual exports valued at US$5-10 million to global markets including North America, Europe and Asia, we've mastered the art of delivering reliable fluid handling solutions for demanding industries.
Core Technical Specifications:
- Material Excellence: Manufactured from premium nickel-chromium alloys including N08810 (Incoloy 800H), N08825 (Incoloy 825), and N08926 (Super Austenitic)
- Precision Engineering: Tight tolerance control with concentricity within ±0.1mm ensures leak-proof connections
- Corrosion Defense: Exceptional resistance to sulfuric acid, phosphoric acid, chlorides and other aggressive chemicals
- Thermal Stability: Maintains mechanical properties from -196°C to 1000°C operating temperatures
| Alloy Grade | Key Composition | Optimal Application |
|---|---|---|
| N08810 | 32Ni-21Cr-46Fe | High-temperature chemical reactors |
| N08825 | 42Ni-21Cr-30Fe-3Mo-2Cu | Sulfuric acid handling systems |
| N08926 | 25Ni-20Cr-6.5Mo-0.2N | Seawater-cooled heat exchangers |

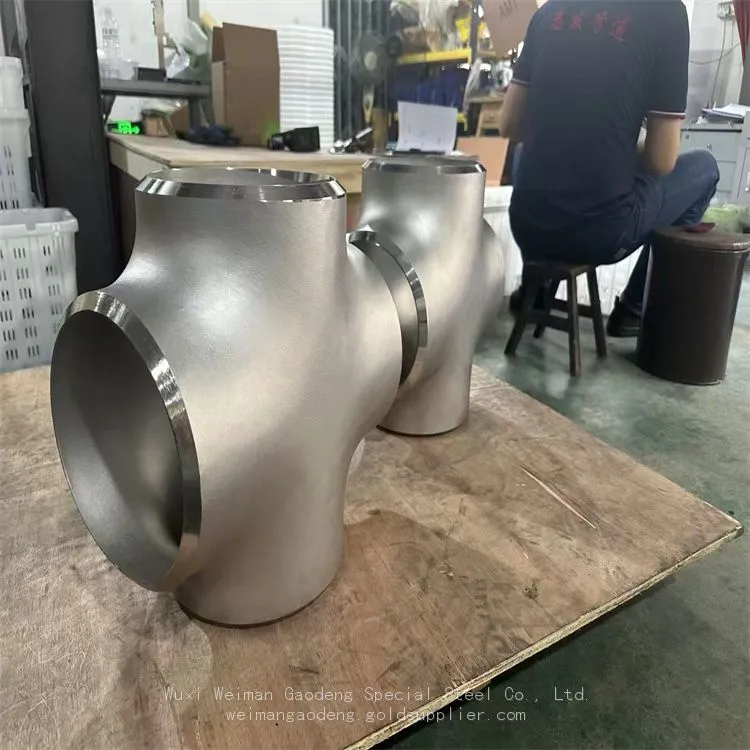

The cross configuration features radial stress distribution that minimizes weak points at junctions. Each fitting undergoes:
- Ultrasonic thickness verification
- Dye penetrant inspection for surface defects
- Hydrostatic testing at 1.5x working pressure
- Final dimensional validation with laser scanners
With 101-200 skilled technicians ensuring quality control, our pipe crosses deliver 30-40% longer service life than standard fittings in chemical transfer systems. The precision-machined connection points prevent fluid turbulence and particulate buildup in sensitive processes like pharmaceutical manufacturing or petrochemical refining.
Operational Advantages:
- Eliminates galvanic corrosion in mixed-metal systems
- Reduces maintenance downtime by 60% compared to stainless steel
- Compatible with CIP/SIP cleaning protocols
- Available with NDE documentation packages
Backed by our US$5-10 million export capacity and shipments through Shanghai, Ningbo, and Lianyungang ports, we provide consistent supply to chemical plants across 15 global markets. Our nickel alloy crosses have demonstrated zero failure rates in 3-year field evaluations across Southeast Asian chemical parks. Contact our engineering team to discuss custom solutions for your specific concentration, temperature, and pressure requirements.
Frequently Asked Questions:
Q: What distinguishes N08926 from other nickel alloys?
A: N08926 contains 6.5% molybdenum and nitrogen stabilization, offering superior resistance to pitting corrosion in chloride-rich environments like seawater cooling systems.
Q: Can these crosses handle hydrofluoric acid applications?
A: N08825 is recommended for low-concentration HF service due to its protective passive film, but material selection depends on temperature and acid concentration.
Q: What welding methods are compatible?
A: We recommend GTAW/TIG welding with matching filler metals. Pre-weld heat treatment protocols are available upon request.
Q: Do you provide custom wall thickness options?
A: Yes, we manufacture crosses from SCH 10S to SCH 160S thickness, with X-ray testing available for critical applications.
Q: What documentation accompanies shipments?
A: Standard deliveries include material test certificates, hydro test reports, and compliance statements. Additional NDT reports are optional.
Q: How do you prevent intergranular corrosion?
A: Our solution annealing process at 1100°C followed by rapid quenching stabilizes the microstructure against carbide precipitation.
Q: What's the maximum size availability?
A: We produce crosses from 1/2" to 24" NB, with larger diameters available through special order.
Q: Are these suitable for oxygen service?
A: With proper degreasing and passivation, our alloys meet ASTM G93 requirements for high-purity oxygen systems.
