Automotive Shredder Residue (ASR) Recycling Plant ASR Sorting Recycling Equipment

Automotive Shredder Residue (ASR) Recycling Plant ASR Sorting Recycling Equipment thumbnail-1
Automotive Shredder Residue (ASR) Recycling Plant ASR Sorting Recycling Equipment thumbnail-2
Automotive Shredder Residue (ASR) Recycling Plant ASR Sorting Recycling Equipment thumbnail-3
Automotive Shredder Residue (ASR) Recycling Plant ASR Sorting Recycling Equipment thumbnail-4
Automotive Shredder Residue (ASR) Recycling Plant ASR Sorting Recycling Equipment thumbnail-5
Automotive Shredder Residue (ASR) Recycling Plant ASR Sorting Recycling Equipment photo-1
Automotive Shredder Residue (ASR) Recycling Plant ASR Sorting Recycling Equipment photo-2
Automotive Shredder Residue (ASR) Recycling Plant ASR Sorting Recycling Equipment photo-3
Automotive Shredder Residue (ASR) Recycling Plant ASR Sorting Recycling Equipment photo-4
Automotive Shredder Residue (ASR) Recycling Plant ASR Sorting Recycling Equipment photo-5

Product Spotlights

high torque, blade is made of H13. planetary type of reducer, detachable cutter. the hydraulic cylinder feeding is opitional .auto greasing device.
US$ 18800 - 27900 MOQ: 1 Set
Key Specifications
Get Latest Price
Material:
Alloy Steel
Certification:
CE, ISO
Drive:
Electric
Contact Supplier Request Quote Chat Now
Henan Riku Machinery Equipment Co., Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port,China
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Alloy Steel
Certification CE, ISO
Drive Electric
Usage Industrial, Metal
power 45kw*2PCS
reducer #12
blade Qty 24 PCS
Thickness 50 mm
blade materail H13 DC53
Capacity 2-3 Tons hourly
Transport Package wood box
Trademark Riku machines
Origin China

Two Shaft scrapped  scooter shredder Motorcycle shredder

2ggdVPLuSulVlImFvWkXqRAGmIw

 ASR (Automotive Shredder Residue) Recycling Machine is a specialized system designed to process the complex residue that remains after end-of-life vehicles (ELVs) are shredded and undergo initial magnetic separation. ASR accounts for 15%-25% of the shredded vehicle mass and consists of plastics, rubber, fibers, wood, paper, tar, residual metals, glass, and dirt.. HJN7byzoD9-x8uQdXM9IOBAB8vA

Processing steps:

  • Fine Shredding (Optional): Further reduces the size of the ASR material.

  • Metal Sorting: Recovers valuable metals using electromagnetic and eddy current separation technologies.

  • Material Separation: Separates combustibles like textiles, plastics, and rubber using air classifiers, vibrating screens, and other sorting equipment.

  • Final Treatment: The remaining inert materials (e.g., glass, sand, dirt) are disposed of in landfills.

Characters

  • Modular Design: Can be seamlessly integrated with existing shredding and post-shredding lines without major infrastructure changes.

  • High Recovery Rate: Achieves up to 96-98% for non-ferrous metals, with a comprehensive recovery rate exceeding 90%.

  • Automated Control: PLC-based automation with multi-point HD camera monitoring for the entire process.

  • Energy Efficient & Eco-friendly: Power consumption is typically 60% of comparable systems. Equipped with integrated dust control.

  • Processing Capacity: Compatible with shredders ranging from 1000-8000 HP, with throughput capacity of 5-50 tons/hour.

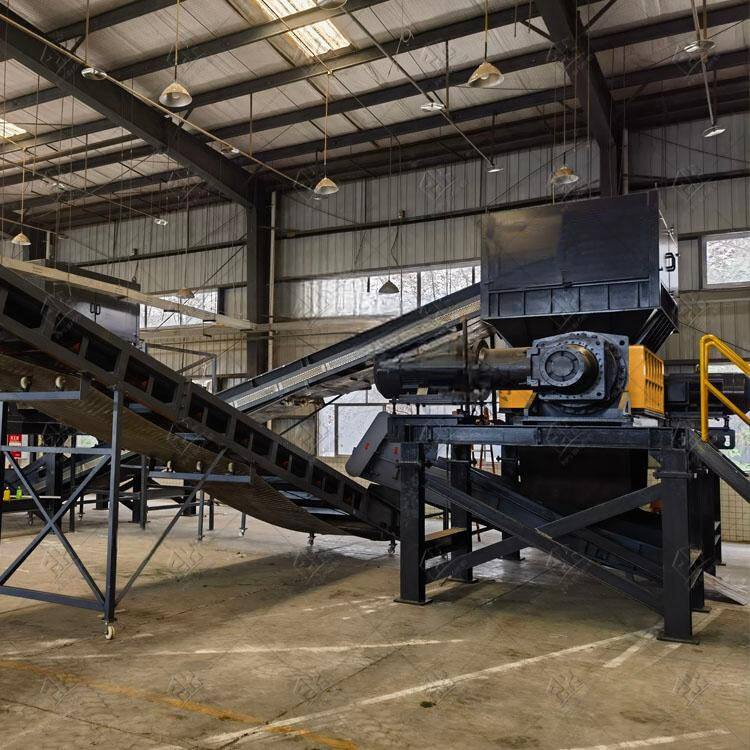

A complete ASR treatment system. It effectively transforms shredder residue into high-quality Solid Recovered Fuel (SRF). The system achieves a precise 30mm output size through a four-stage shredder, with a capacity of 8 tons/hour, complemented by magnetic and eddy current separators for efficient metal recovery.


Technical parameters

Type power  Cutter Qty PCS reducer chamber mm feeding port overall size mm weight T capacity (T/h)
RK-800 15kw*2 30 400 600*388 1000*766 1820*800*1930 2.1 0.5-0.8
RK-1000 22kw*2 20 500 640*588 1170*990 3260*1300*2370 3.5 1-1.5
RK-1200 37kw*2 30 355 1200*788 1600*1200 4700*2000*2700 8 2.5-3
RK-1500 55kw*2 30 400 1500*1188 1900*1450 5000*2200*2900 18 8-10.
RK-1800 75KW*2 36 400 1800*1188 2300*1450 5300*2150*3000 20 12-15.
RK-2000 90kw*2 24 450 2000*1188 2300*1500 5400*2150*3000 25 20-25.
RK-2200 110kw*2 28 240 2200*1578 3100*2500 6200*2700*3500 33 26-30
RK-2400 132kw*2 24 240 2400*1678 3200*2600 7300*2800*3800 38 30-35.
RK-2800 185kw*2 28 260 2800*2000 3700*3000 7800*2800*3800 45 35-40

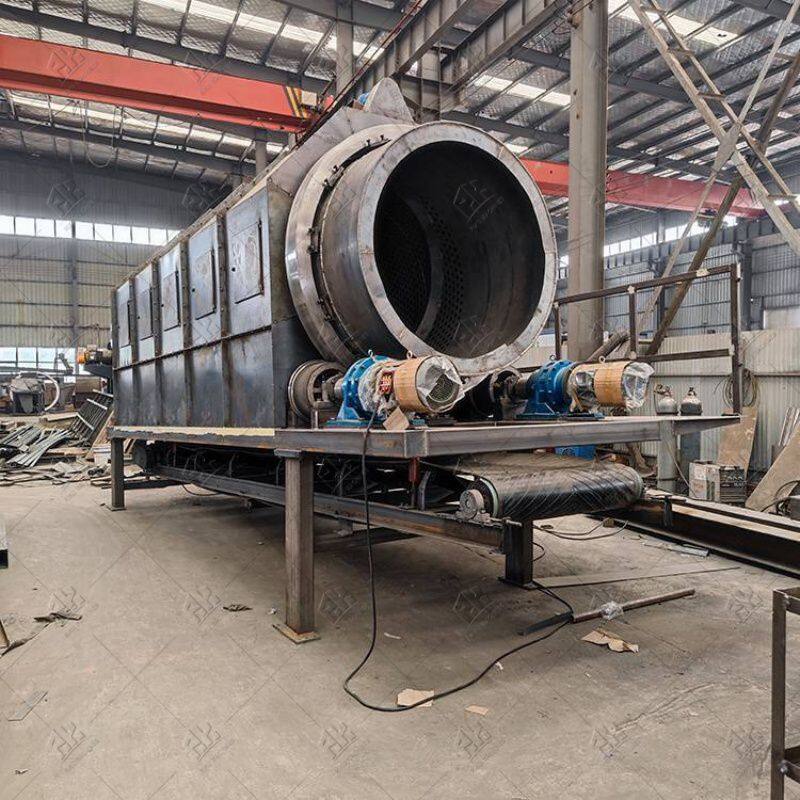

ASR Screening machines

This machine fucntion is to sort the soil and stone from the metal industrial, and sieving the different size of the raw materials to the recycling and separating device by the automatic machines

主图-07

Eddy current separator machine

ECS 5

To sort the non-ferrous metals from the wastage.

2020122915183016710

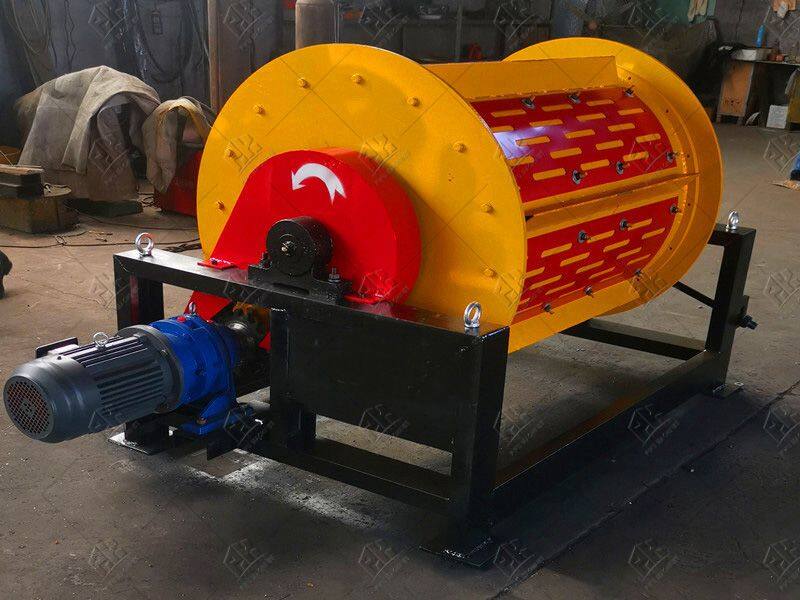

The permanent magnetic separator to remove the rest ferrous steel from the wastage with high efficiency.

E66TyJKfxStpnTEjFRxj8BACWgI

Introductionf09224430ee43f16f44eefb48f9b3183
