HONZHAN HZ-UV3200 Large Format UV Printer 3.2meter

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Automatic Grade:

Automatic

Transport Package:

Wooden create package

Shandong Honzhan Decoration Engineering Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO, CHINA

Delivery Detail:

Delivery time depends on order quantity.

Automatic Grade Automatic

Transport Package Wooden create package

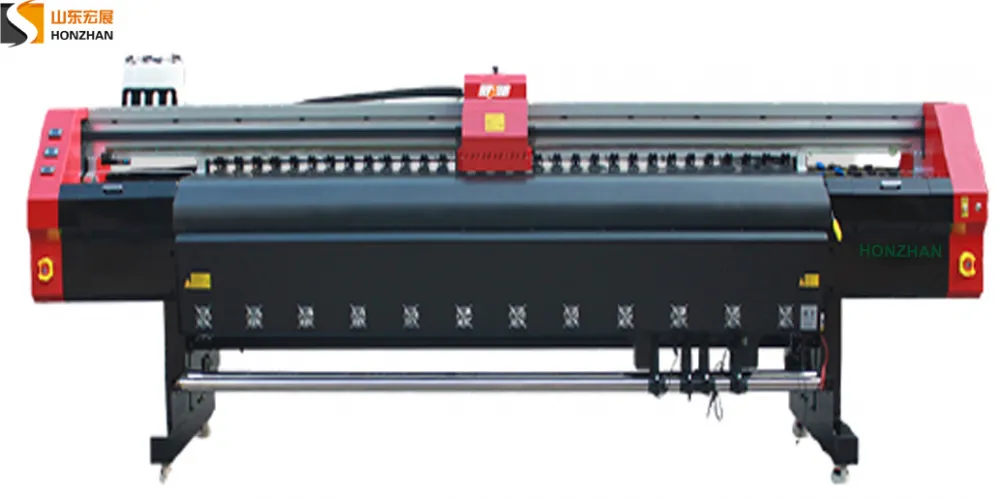

HONZHAN HZ-UV3200 large format UV printer 3.2meter

1. Product Features:

1). The carriage frame equipped with printheads uses 400W AC servo motor for stepping servo printing.

Leadshine servo motor output to ensure printer work at stable power. High precision and fast speed.

2). Our printer use four Epson XP600 printheads, also can choose Epson I3200 printheads

3). our UV printer ink color channels can be CMYK or CMYK+White, or CMYK+White+Varnish

4). Arched long beam design, precision milling platform design, stable structure, high precision and stable operation.

5). Printer operation is simple and convenient, can directly use the network port for transmission, fast and efficient

2. Specification:

Model	HZ-UV3200
Max print size	Width: 3200mm, length is no limited, roll to roll printing
Printhead	4pcs Epson XP600 printheads, optional Epson I3200 printheads
Printing speed	6 PASS, 16 square meters/hour 8 PASS, 12 square meters/hour
Printing materials	advertising banner, vinyl, PP, light box cloth, LED light film,car sticker, transparent film,wall cloth, etc.
Ink	UV ink
Ink Color	C M Y K or CMYK+White or CMYK+White+Varnish
Ink supply system	3L alarm ink bottles+secondary ink supply cartridges, 5L alarm ink waste ink bottle
UV Led system	Water-cooled LED UV lamps curing
RIP Software	Maintop 6.1, Photoprint, UltraPrint
Feeding System	Double-roller cloth feeding system, double-motor feeding and unwinding system
Materials adsorption system	Stepless adjustable suction
Nozzle cleaning	Automatic micro-cleaning, with anti-blocking flash spray function, moisturizing function
Data transfer interface	Network cable interface
machine power	220V, 50HZ, optional 110V,60HZ
Machine size	508510001510mm
Machine weight	About 650kg
