Home > Industrial Equipment & Components > Valve > Ball Valve > DIN Standard PN16 Ductile Iron Cast Iron Full Bore 2 Piece Flanged Ball Valve

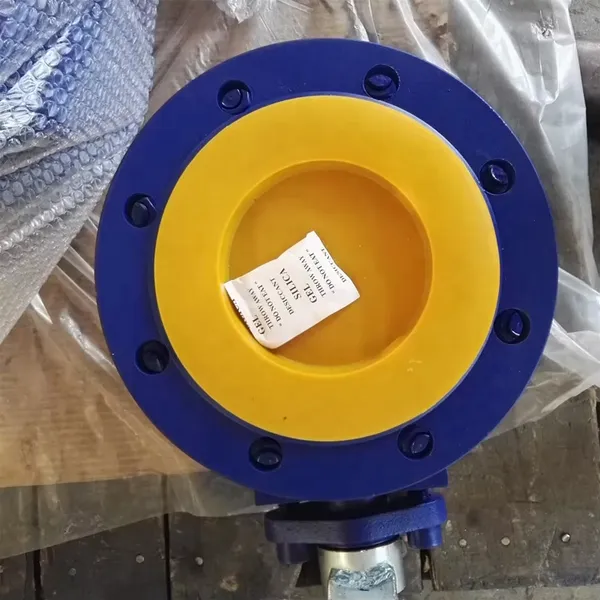

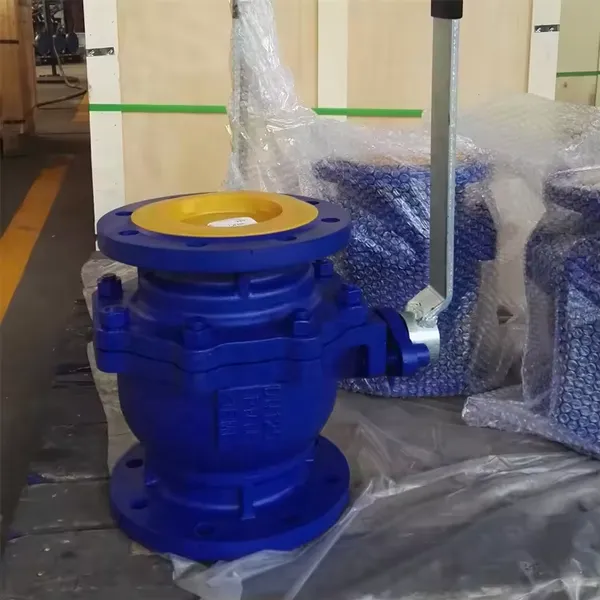

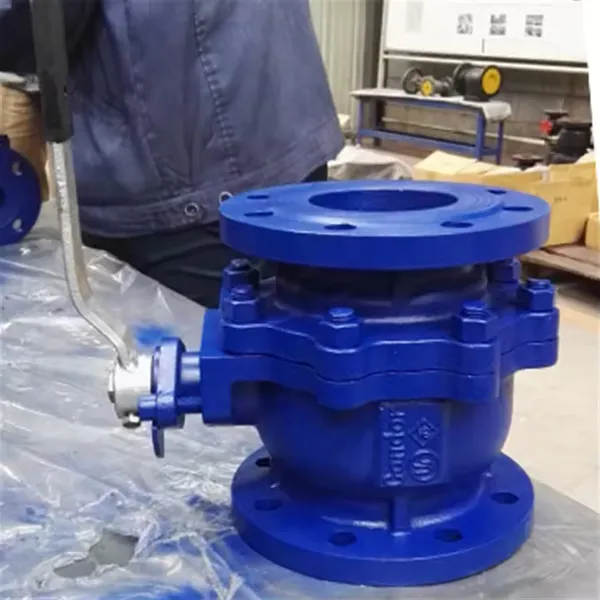

DIN Standard PN16 Ductile Iron Cast Iron Full Bore 2 Piece Flanged Ball Valve
US$ 308.22
1 - 9 Set
US$ 239.73
≥10 Set
Key Specifications
Get Latest Price
application:
General
Ball Material:
Carbon Steel
Connection Type:
Flanged, Thread, Flange
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ANSI Full Size Stainless Steel SS 304/316 CF8M Ball Valve Handle 1000 WOG NPT Threaded 3 Way Ball ValveUS$ 171.24 - 273.98MOQ: 1 Set -
ANSI Full Bore 150LB 304 Stainless Steel 2 PC Flange Electric Pneumatic High Pressure Ball Valve FactoryUS$ 191.10 - 191.79MOQ: 1 Unit
-
ANSI SS 304/316 Stainless Steel Flange Ball Valve Two-Piece 2 Way Electric/Pneumatic Actuator Ball ValvesUS$ 547.95 - 821.92MOQ: 1 Unit
-
ANSI Class 150 300LB 10 Inch Investment Casting Flange Stainless Steel Ball Valve Fire Safe Wcb/CF8/CF8m Ball ValveUS$ 342.47 - 2054.79MOQ: 1 Unit
-
DIN 3357 Cast Iron GG25 GGG40 Ball Valve Ductile Iron Carbon Steel PN16 DN65 DN100 Double Flange Ball ValveUS$ 205.48 - 410.96MOQ: 1 Piece
application
General
Ball Material
Carbon Steel
Connection Type
Flanged, Thread, Flange
media
Water
Port Size
DN15-DN250
structure
Ball
model number
Q41F
brand name
CHX
place of origin
Hebei, China
Connection Size
4 in
customized support
OEM, ODM
power
Manual
Sealing Material
Epdm, NBR
temperature of media
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
warranty
1 year
Body material
GG25/GGG50
Bonnet
GG25/GGG50
Seat material
PTFE
Stem
2Cr13/SS304/SS316/Carbon Steel
Color
Blue, Red,Grey, Black
Suitable
Water,Steam,Oil
Drive Way
Worm Gear, Pneumatic, Manual, Hydraulic, Electric
Certificate
ISO9001,ISO14001
Keyword
Ball Valve
Company Profile
Chengxin Valve Co.,Ltd. is a great factory specializing in manufacturing and selling valves and castings. It is located in Weizhuang industrial zone, which covers an area of more than 7000 square meters and a staff of over 400 people including various types of engineering, technical staff and senior management of more than 60 pesons. The annual out put is over 20000 tons.
Both national and international standard products are produced.The national standard has 12 series, more than 3000 specifications. The products covers gate valve, globe valve, check valve, ball valve, butterfly valve, strainer, balancing vlave, etc. The international standard include DIN, Russian standard, BS, ANSI, JIS. Many prodcuts have been exported to many countries such as Ireland, Peru, Russia, Pakistan, Korea, Vietnam, Indonesia and so on.
A complete quality control system is set for each working procedure from raw material to finish products. Totally 28 tests are run through to ensure stable quality. Currently the modern physical and chemical laboratories has been built. The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
Specification
Main material of parts |
||
Body |
Cast iron/Ductile iron/GG25/GGG50 |
|
Disc |
Cast iron/Ductile iron/GG25/GGG50 |
|
Bonnet |
GG25/GGG50 |
|
Seat |
PTFE |
|
Steam |
2Cr13/SS304/SS316/Carbon Steel |
|
Pressure range |
PN16 |
|
Design Standard |
DIN 3357 EN12516 |
|
Face to Face |
DIN3202/EN558-1 |
|
Flange Standard |
DIN2533/EN1092-2 |
|
Testing Standard |
EN12226/ISO 5208 |
|
Product Description
Production Processes
Certifications
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
Packing & Delivery
Meet the customer's requirements of a variety of packaging methods, non fumigation packaging boxes, pallets, cartons, containers in a variety of ways.
Related Products
FAQ
1. Is your company a distributor or a manufacturer?
A: Yes,We are a professional Valve manufacturer in China.
2. How about your products?
A : All our activities are accredited to ISO 9001:2008, both in products and services, at the same time, mature production
technology ensuring the quality satisfy international request.
3.what is the Packaging & Delivery?
A:We used high quality export carton or standard export woodern case
4.what is the time about the delivery?
A: repared to deliver within 5-15days, if in stock.
Depends on order quantity, when out of stock, 25-30days
Transportation:By sea, air or land
5. Can you provide the sample for free?
A: Yes, we can provide the sample for free, but you need bear the delivery cost.
6. Can you produce according to customers' own technical drawings?
A: Yes, we always can fully meet customers' special requirement.
A: Yes,We are a professional Valve manufacturer in China.
2. How about your products?
A : All our activities are accredited to ISO 9001:2008, both in products and services, at the same time, mature production
technology ensuring the quality satisfy international request.
3.what is the Packaging & Delivery?
A:We used high quality export carton or standard export woodern case
4.what is the time about the delivery?
A: repared to deliver within 5-15days, if in stock.
Depends on order quantity, when out of stock, 25-30days
Transportation:By sea, air or land
5. Can you provide the sample for free?
A: Yes, we can provide the sample for free, but you need bear the delivery cost.
6. Can you produce according to customers' own technical drawings?
A: Yes, we always can fully meet customers' special requirement.
