1. Product Name

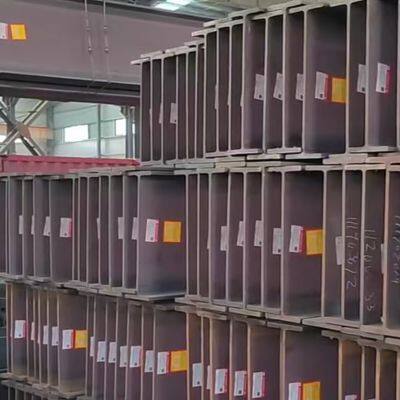

H-Beam (Hot Rolled H-Beam / Welded H-Beam)
2. Product Introduction
H-beam is an economical and high-efficiency profile with an H-shaped cross-section. It features optimized section area distribution, reasonable strength-to-weight ratio, strong bending resistance, easy construction, steel saving, and light structural weight.
It is widely used in steel structures, industrial buildings, bridges, supports, machinery, and other fields.
3. Execution Standard
- GB/T 11263 (Chinese Standard)
- EN 10034, EN 10025 (European Standard)
- ASTM A6/A6M (American Standard)
- Other international standards can be provided as per customer requirements.
4. Material Grade
- Carbon structural steel: Q235B, Q235C, A36, S235JR, etc.
- High-strength low-alloy steel: Q355B, Q355D, S355JR, A572 Grade 50, etc.
5. Product Classification
1. By Production Process
- Hot Rolled H-Beam
- Welded H-Beam
2. By Flange Width
- Wide Flange H-Beam (HW)
- Medium Flange H-Beam (HM)
- Narrow Flange H-Beam (HN)
6. Specification & Model
- Common series: HW, HM, HN, HT, etc.
- Specification expression: H (Height) × B (Flange Width) × t₁ (Web Thickness) × t₂ (Flange Thickness)
- Non-standard sizes can be customized according to drawings or orders.
7. Dimension & Appearance
- Uniform section size, good straightness.
- Smooth surface, free of obvious cracks, scars, folds, heavy skin, and other defects.
- Standard length: 6m, 9m, 12m; customized length available.
8. Surface Treatment
- Black surface (as rolled)
- Sandblasting, derusting, painting, galvanizing (as per customer request)
9. Mechanical Properties
- Tensile strength, yield strength, and elongation meet GB, EN, ASTM standards.
- Good performance in bending resistance, compression resistance, shear resistance, and seismic resistance.
10. Application Fields
- Steel structures for industrial plants, workshops, warehouses
- High-rise buildings, commercial buildings, residential buildings
- Bridges, supports, trestles, tower structures
- Machinery manufacturing, equipment base, vehicle frame
- Steel structure platform, columns, beams, support members
11. Packing & Transportation
- Packing: Bundled with steel strips, nude packing or pallet packing
- Transportation: Suitable for sea transportation, land transportation; container or bulk cargo shipment available
- Meet export packaging requirements
12. Delivery Condition
- Hot rolled condition, welded finished product
- Delivery by theoretical weight or actual weight
