Xingxing Chamfering Machine
Number: 810603001 Model: XX-7208D

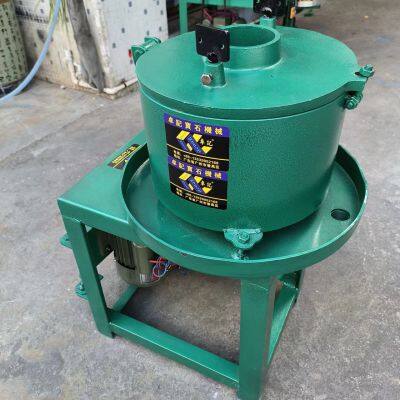

The Xingxing Chamfering Machine is mainly used for chamfering and edge finishing of rough gemstone materials. The equipment operates by rotating a grinding wheel disc inside a cylinder, causing the rough materials to tumble and grind themselves within the cylinder, thereby achieving efficient chamfering. This model offers wide applicability and is one of the commonly used machines in the gemstone processing industry.

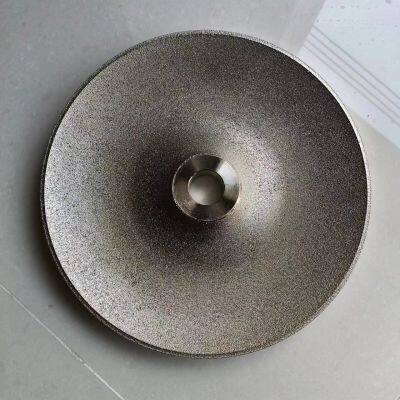

The main components of the equipment include the cylinder, drive shaft, bearings, and the grinding wheel disc. The grinding wheel disc is mounted on a driven shaft and is rotated by the drive shaft. One end of the drive shaft is connected to an electric motor via a small-diameter belt pulley and belt to transmit power and drive the grinding wheel disc. A central support shaft is provided to secure the grinding wheel disc, ensuring its stable rotation. The interior of the cylinder is circular and lined with a PU rubber plate approximately 9–10 mm thick to reduce wall wear and lower operational noise.
Main Technical Parameters:
Input Voltage: AC 220V / 380V
Output Power: 1100 W
Spindle Speed: 852 r/min
Dimensions: 63 * 45 * 75 cm
Sequence of Gemstone Bead Production Process: Material Selection - Slicing - Stripping - Dicing into Cubes - Chamfering/Edge Removal - Rough Shaping - Fine Grinding - Drilling - Polishing - Waxing
Round Bead Production Line (Sequence of Bead Processing Equipment Series): Cutting Machine - Chamfering Machine - Medium Plate Bead Grinding Machine (Dual-Drive Bead Grinding Machine) - Round Bead Forming Machine - Drilling Machine - Polishing Machine - Bead Stringing Machine.Business Scope
Automated cutting and slabbing equipment for gemstones & matching cutting blades
· Automated CNC processing equipment & tools for colored gemstones
· Automated CNC processing equipment & tools for gemstone beads and spheres
· Processing equipment & tools for jade and jadeite bangles
· Processing equipment & tools for fancy-shaped and irregular gemstones
· Equipment & tools for gemstone optimization treatments (e.g., waxing, filling/gluing)
· Tumble polishing equipment & matching abrasive materials
· Equipment & tools for gemstone drilling and perforation
About Us
Since its establishment in 2003, Guangzhou Xiongxing Gem Machinery Co., Ltd. has consistently focused on the research, development, manufacturing, and sales of machinery for the gem and jade industry. The company has introduced advanced production equipment and processes from both domestic and international sources. After more than 20 years of continuous accumulation and innovation, we have now established a comprehensive R&D, production, sales, and after-sales service system.
We consistently adhere to a core principle of product quality, striving for excellence, which has earned us wide recognition within the industry. Our products are not only sold throughout China but are also exported to the Middle East, Europe, America, Southeast Asia, and other countries and regions. We have become a core supplier for several major gemstone processing bases, trusted and praised by customers both domestically and internationally.
We warmly welcome friends from all walks of life to visit us for discussions and business negotiations.
