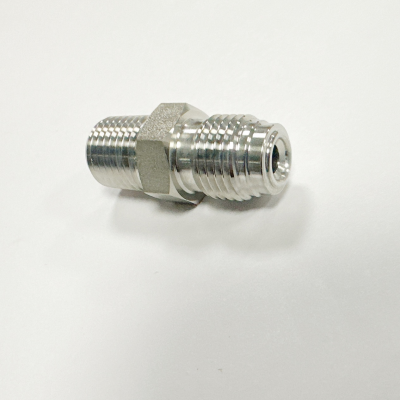

Help CenterSS304 Stainless Steel VCR Female/Male PT/NPT Adaptor for KF16/KF25/KF40/KF50 Vacuum Fittings NW25/NW40
Product Spotlights
Related Products
-
High Precision Stainless Steel VCR Fitting 316L for High-Purity Gas SystemsNegotiableMOQ: 100 Pieces -
Stainless Steel 316 316L VAR Ultra-High Purity Swagelok Type VCR FittingsNegotiableMOQ: 100 Pieces
-
316L Tube Fitting High Pressure VCR Connector Welded Tube FittingsNegotiableMOQ: 100 Pieces
-
VCR Fitting Stainless Steel Pipe EP Electrolytic Grade Micro-welded Pipe FittingsNegotiableMOQ: 100 Pieces
-
1/4 Inch VCR Gasket Retainer Face Seal Fitting Stainless Steel 316L Long Rod VCR Welded PartsNegotiableMOQ: 100 Pieces
As Shanghai Quanbao Electronic Materials Technology Co., Ltd., a trusted supplier based in Shanghai, China, we specialize in high-performance vacuum components for industrial applications. Our SS304 Stainless Steel VCR Adaptor is designed to deliver reliable, leak-proof connections in demanding environments, ensuring long-term durability and efficiency. With our commitment to quality and innovation from our Shanghai facility, this adaptor provides exceptional value for professionals in semiconductor, pharmaceutical, and laboratory sectors. It seamlessly bridges various vacuum fittings, reducing downtime and enhancing system integrity.
Key Features and Benefits:
- Superior Material Construction: Made from SS304 stainless steel, this adaptor offers excellent corrosion resistance and high strength, ideal for high-purity vacuum applications where contamination must be minimized.
- Versatile Compatibility: Engineered to adapt between KF (Klein Flange) and NW (Narrow Waist) series fittings, including KF16, KF25, KF40, KF50, NW25, and NW40 sizes. This flexibility allows for easy integration into existing vacuum systems without costly modifications.
- Dual Connection Options: Features both VCR (Metal Gasket Face Seal) and PT/NPT (Pipe Thread) connections in female/male configurations, enabling secure, leak-free seals for diverse industrial setups. VCR connections provide metal-to-metal sealing for ultra-high vacuum, while PT/NPT supports standard threaded applications.
- Enhanced Performance: The polished finish reduces friction during installation, and the precision machining ensures tight tolerances for optimal vacuum integrity. This translates to reduced maintenance costs and improved operational efficiency for end-users.
Technical Specifications: Below is a summary of key parameters for quick reference:
| Fitting Size | Connection Types | Material Grade |
|---|---|---|
| KF16 | VCR Female/Male, PT/NPT | SS304 Stainless Steel |
| KF25 | VCR Female/Male, PT/NPT | SS304 Stainless Steel |
| KF40 | VCR Female/Male, PT/NPT | SS304 Stainless Steel |
| KF50 | VCR Female/Male, PT/NPT | SS304 Stainless Steel |
| NW25 | VCR Female/Male, PT/NPT | SS304 Stainless Steel |
| NW40 | VCR Female/Male, PT/NPT | SS304 Stainless Steel |
Additional details include a lightweight design for easy handling, with typical weights ranging from 50-200g depending on size. The adaptor operates effectively in temperature ranges from -20°C to 200°C, making it suitable for various industrial processes. Its robust build minimizes vibration issues, and the standardized threading ensures quick installation, saving time during assembly or repairs. For custom configurations, such as specific thread types or sizes, options are available upon request to meet unique project needs.
Leveraging our expertise at Shanghai Quanbao Electronic Materials Technology Co., Ltd., we have refined this product through rigorous testing in Shanghai-based facilities to guarantee reliability and performance. Our focus on customer support and timely delivery from China ensures you receive a dependable solution for your vacuum system challenges. Invest in this adaptor to enhance your operational efficiency—contact us today for quotes or customizations, and experience the Quanbao advantage in quality and service.
Frequently Asked Questions (FAQ):
-
Q: What does VCR stand for in vacuum fittings?
A: VCR stands for Vacuum Coupling Rectangular, a type of metal gasket face seal fitting that ensures a hermetic seal for high-vacuum applications, commonly used in industries like aerospace and manufacturing. -
Q: Are these adaptors compatible with both KF and NW series fittings?
A: Yes, this adaptor is specifically designed to work with KF16, KF25, KF40, KF50, NW25, and NW40 sizes, providing versatile connectivity for different vacuum system standards. -
Q: Why is SS304 stainless steel used for this adaptor?
A: SS304 stainless steel offers superior corrosion resistance, durability, and cleanliness, making it ideal for vacuum environments where material integrity is critical to prevent leaks and contamination. -
Q: Can I use this adaptor for high-pressure applications?
A: It is optimized for vacuum systems, not high-pressure scenarios. For pressures beyond standard vacuum ranges, consult us for suitability assessments or alternative options. -
Q: How do I install this VCR adaptor correctly?
A: Installation involves aligning the fittings and tightening with appropriate tools to achieve a metal-to-metal seal; always use compatible gaskets and follow industry guidelines for leak testing to ensure optimal performance. -
Q: Is customization available for non-standard sizes or connections?
A: Yes, as a manufacturer in Shanghai, we offer customization services upon request, including unique sizes, threading types, or material grades to match specific requirements. -
Q: What industries commonly use this type of adaptor?
A: It's widely applied in semiconductor fabrication, pharmaceutical cleanrooms, laboratory research, and industrial vacuum processing, where reliable connections are essential for system efficiency. -
Q: What is the typical lead time for orders?
A: Standard orders ship within 2-4 weeks; for expedited or bulk quantities, contact us directly to discuss faster turnaround options based on availability.
