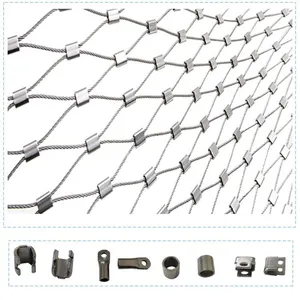

Help CenterFlexible Stainless Steel Wire Rope Mesh, Woven Zoo Aviary Netting, Stainless Steel Cable Sheath, Elegant Stainless Steel Rope Netting
Product Spotlights
Related Products
-
Flexible Stainless Steel Wire Rope Mesh, Woven Zoo Aviary Netting, Stainless Steel Cable Sheath, Elegant Stainless Steel Rope NettingUS$ 7 - 100MOQ: 1 Square Meter -
SS304 & 316 High Strength Stainless Steel Wire Rope Mesh for GoodsUS$ 7 - 100MOQ: 1 Square Meter
-
SS304 & 316 High Strength Stainless Steel Wire Rope Mesh for GoodsUS$ 7 - 100MOQ: 1 Square Meter
-
SS304 & 316 High Strength Stainless Steel Wire Rope Mesh for GoodsUS$ 7 - 100MOQ: 1 Square Meter
-
Hot-selling Stainless Steel Woven Wire Rope Netting for Aviaries, Zoo Enclosures, Slope Protection, Cable Netting, and Birdcage NettingUS$ 7 - 100MOQ: 1 Square Meter
Product descriptions from the supplier
Extremely High Strength and Safety: Made of braided ropes twisted from multiple strands of stainless steel wire, it has an extremely high breaking force and can withstand huge impact loads, ensuring safety and reliability.
Flexibility and Adaptability: Compared with rigid metal nets, rope nets have excellent flexibility, can adapt to various complex curved surfaces and terrains, and are easy to be cut and installed on site.
Transparent Visual Effect: The mesh structure ensures excellent light transmission and visual transparency, without causing a sense of space oppression, while maintaining the physical separation of the areas.
Maintenance-free and Long Lifespan: It requires almost no maintenance. Unlike steel products which need frequent painting for rust prevention, the overall cost of use is low.
flexible x-tend cable 304 316 stainless steel rope mesh
Flexible stainless steel rope mesh is the charateristic leading product of jingshen Mesh which has been manufacturing the product since 1990.We have the CE and ROHS certificates.
Stainless steel rope mesh ,also called SS cable mesh, made form high quality stainless steel wire rope, with the features ofextremely anti-corrosion and esistant to UV rays, has a long lifespan in the harsh environments.
Product Name |
Stainless steel wire rope mesh(stainless steel cable mesh) |
Certifacates |
CE and ROHS Certificates |
Material |
AISI 304 or AISI 316 |
Wire Diameter |
1mm-5mm, the common diameter:1.5mm,2.0mm,3.0mm |
Wire Structure |
7*7 or 7*19 |
Opening Hole Size |
From10*10mm to 300*300mm,the common size:40*70mm 50*90mm 60*104mm 80*140mm. |
Woven Type |
Ferruled type and Knotted type |
-
Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
Main Featuers:
1.The mesh is clipped to the cable.
2.The hole size and diameter can be modified.
3.It can be made to customer orders and statically tested – especially suitable for facades.
4.High strength,strong toughness,free-angles curving and fold,easy for transportation and installment.
5.Anti-corrosive,resist the rust,can be repeated use.
6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8.Without toxic material,safety,environmental protection.
Technology
The type of stainless steel rope mesh
1. Knotted mesh is a kind of plain weave,each warp wire rope crosses alternately above and below each weft wire rope.Warp and weft wire ropes generally have the same diameter.
2.Ferruled mesh is of the same physical properties with the knotted mesh,the only difference is in the combination style,the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
FAQ
Q:How to make a inquiry of metal mesh curtains?
A:You need to provide material, aperture diameter, wire diameter, coil length & mesh panel width and the quantity to ask an offer, you can also indicate if you have any special requirement. We'll provide formal quotatiom list after your inquiry received.
Q:Could you provide mesh curtains sample ? How long does the sample need to be prepared?
A:Yes, we can provide sample.Sample production time is 5~7 days.
Q:Can you tell me how to install the mesh curtains?
A:Yes, we can provide installation instructions and videos.
Q:Can you provide customized services?
A:Yes,we can. We can produce according to your needs, and can recommend you a cost-effective product for you.
Q:What is your MOQ ?
A:There is no minimum order quantity, we will do the best to support you.
