Home > Industrial Equipment & Components > Valve > Ball Valve > HH47H Tilting-Disc Non Return Check Valve Ductile Iron Cast Iron DN500 DN700 Flange Sewage Check Valve for Water Pump

HH47H Tilting-Disc Non Return Check Valve Ductile Iron Cast Iron DN500 DN700 Flange Sewage Check Valve for Water Pump

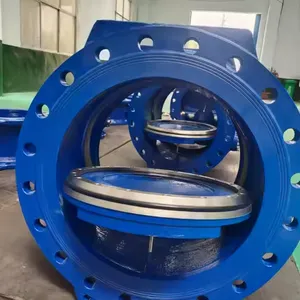

HH47H Tilting-Disc Non Return Check Valve Ductile Iron Cast Iron DN500 DN700 Flange Sewage Check Valve for Water Pump thumbnail-3

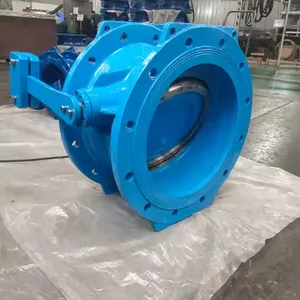

HH47H Tilting-Disc Non Return Check Valve Ductile Iron Cast Iron DN500 DN700 Flange Sewage Check Valve for Water Pump thumbnail-4

HH47H Tilting-Disc Non Return Check Valve Ductile Iron Cast Iron DN500 DN700 Flange Sewage Check Valve for Water Pump thumbnail-5

HH47H Tilting-Disc Non Return Check Valve Ductile Iron Cast Iron DN500 DN700 Flange Sewage Check Valve for Water Pump thumbnail-6

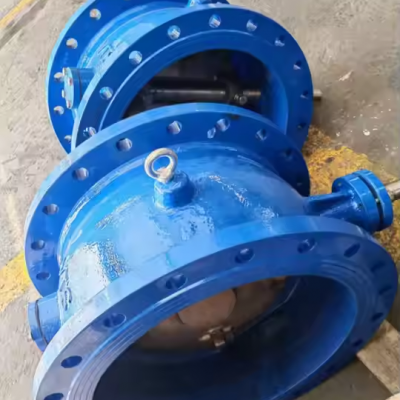

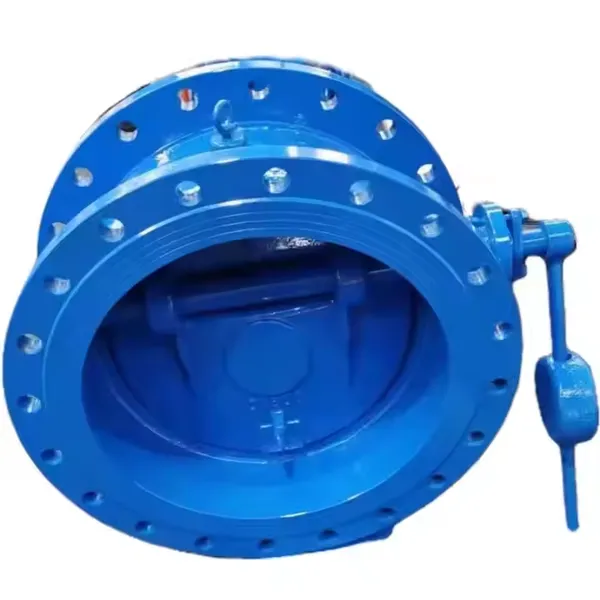

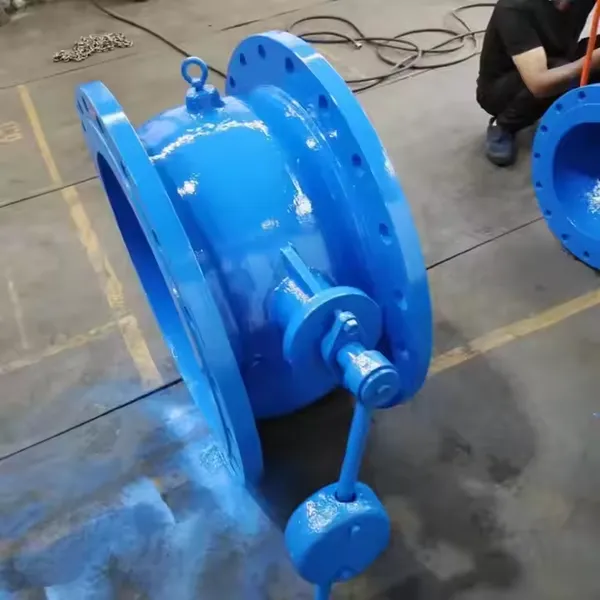

HH47H Tilting-Disc Non Return Check Valve Ductile Iron Cast Iron DN500 DN700 Flange Sewage Check Valve for Water Pump photo-1

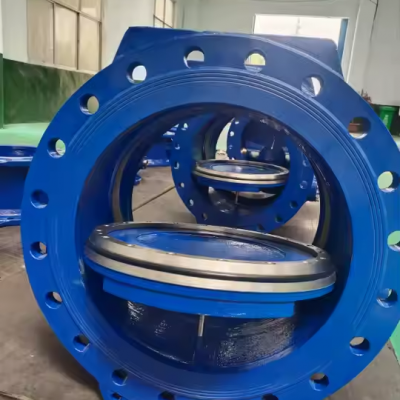

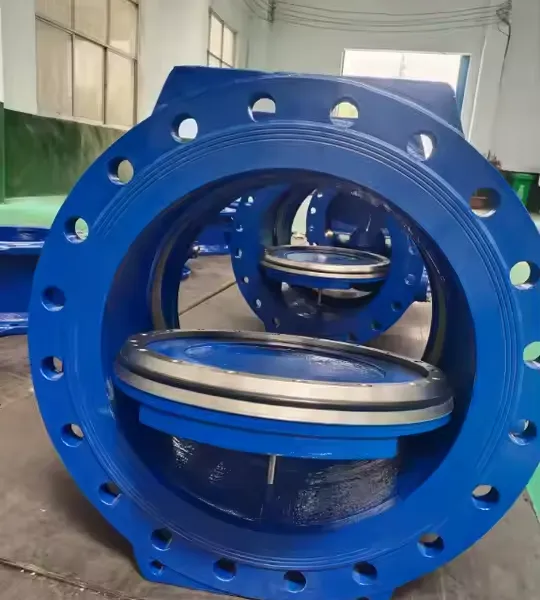

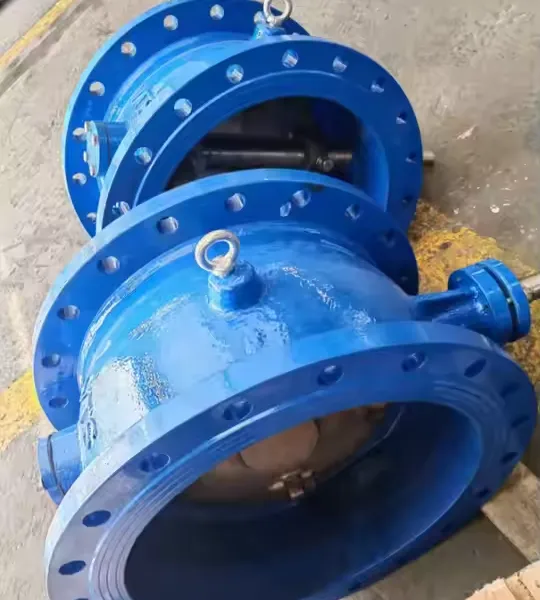

HH47H Tilting-Disc Non Return Check Valve Ductile Iron Cast Iron DN500 DN700 Flange Sewage Check Valve for Water Pump photo-2

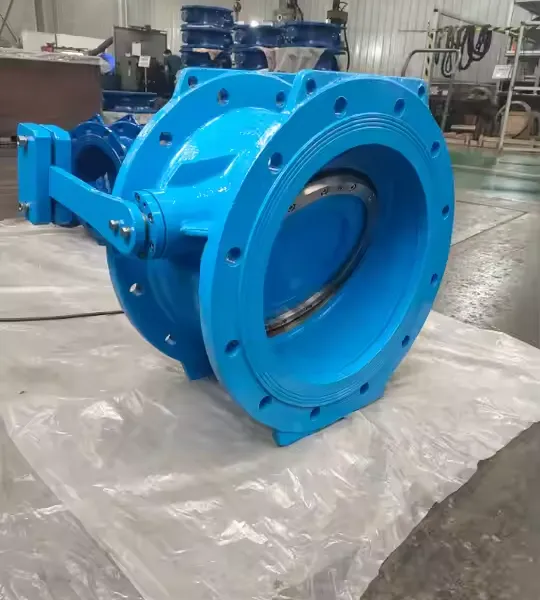

HH47H Tilting-Disc Non Return Check Valve Ductile Iron Cast Iron DN500 DN700 Flange Sewage Check Valve for Water Pump photo-3

HH47H Tilting-Disc Non Return Check Valve Ductile Iron Cast Iron DN500 DN700 Flange Sewage Check Valve for Water Pump photo-4

HH47H Tilting-Disc Non Return Check Valve Ductile Iron Cast Iron DN500 DN700 Flange Sewage Check Valve for Water Pump photo-5

HH47H Tilting-Disc Non Return Check Valve Ductile Iron Cast Iron DN500 DN700 Flange Sewage Check Valve for Water Pump photo-6

US$ 206.76 1 - 29 Piece

US$ 199.87 ≥30 Piece

Key Specifications

Get Latest Price

application:

General

media:

Water,Oil,Gas, Water

Port Size:

DN50-DN800

Contact Supplier Request Quote Chat Now

Chengxin Valve Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

application General

media Water,Oil,Gas, Water

Port Size DN50-DN800

Sealing Material Epdm, PTFE, Steel

structure Check

temperature of media Normal Temperature, Low Temperature, Medium Temperature

model number HH47H-16Q

brand name CHX

place of origin Hebei, China

customized support OEM, ODM

power Manual

warranty 1 years

Warranty 1 year

Certificate ISO

Connection Type Flange

Body material Ductile Iron GGG50

Ratainer Ring Q235

Disc Ductile Iron GGG50+NBR

Shaft SS410

Keyword Check Valves

Product Description

Part & Materials
Part	Material
Body	Ductile Iron GGG50
Ratainer Ring	Q235
Disc	Ductile Iron GGG50+NBR
Counter Weight	Cast Iron GG25
Shaft	SS410
Hydraulic Damper	-
Needlle Valve	Brass
Shaft Bearing	Brass
Shaft Bearing	Brass
Bolts	Stainless Steel
Plate	Carbon Steel
Technical Data
Description	Specification
Nominal Dia	DN200-DN1200
Nominal Pressure	PN10&PN16
Face to Face Standard	EN558&ISO5752 Series-14
Flange Standard Conformity	EN1092-2
Expoxy Coating	Epoxy powder coating with minimum thickness of 250 microns inside and outside.
Working Temperature(Max)	80℃

Specification

Company Profile

_{Chengxin Valve Co.,Ltd.}is a great factory specializing in manufacturing and selling valves and castings.It is located in Weizhuang industrial zone,which covers an area of more than 7000 square meters and a staff of over 400 people including various types of engineering,technical staff and senior management of more than 60 persons.The annual out put is over 20000 tons.
Both national and international standard products are produced.The national standard has 12 series,more than 3000
specifications.The products covers gate valve,globe valve,check valve,ball valve,butterfly valve,strainer,balancing valve,etc.The international standard include DIN,Russian standard,BS,ANSI,JIS.Many products have been exported to many countries such as Ireland,Peru,Russia,Pakistan,Korea,Vietnam,Indonesia and so on.
A complete quality control system is set for each working procedure from raw material to finish products.Totally 28 tests are run through to ensure stable quality.Currently the modern physical and chemical laboratories has been built.The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system,EAC and WRAS certificates.

Packing & Delivery

Meet the customer's requirements of a variety of packaging methods, non fumigation packaging boxes, pallets, cartons, containers in a variety of ways.

FAQ

1.Q: Are you a manufacturer or trading company ?
A:We are a professional valve manufacturer located in Hebei, China, with over 20 years of experience in manufacturing and development.
2. Q: What's Execution Standard of products?
A:ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
3. Q: Is there any stock in your factory? And How long is your delivery time?
A: We stock valves with normal sizes. Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
4. Q: Can you provide the relevant documentation and certificate?
A: Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test
reports according to the customers need.
5. Q:Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
6.Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
7.Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. If you have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share.
