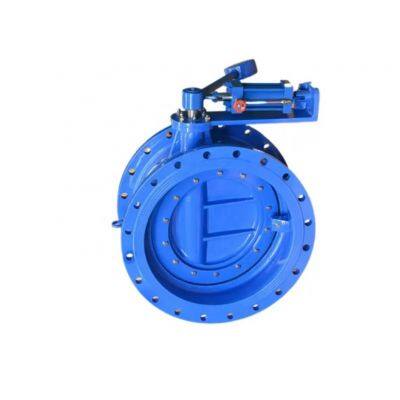

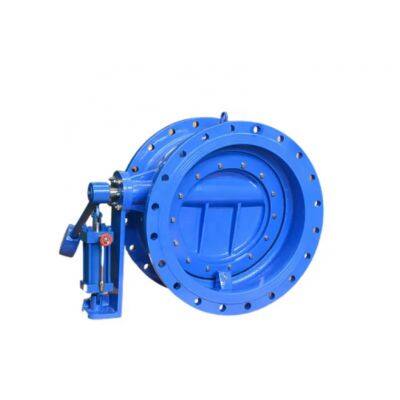

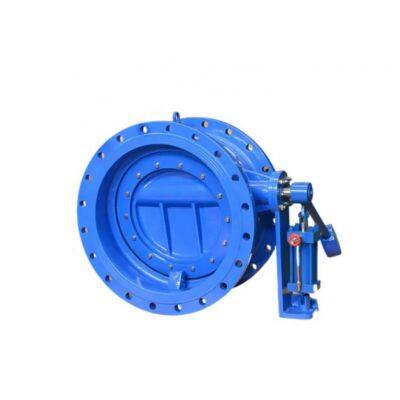

Customization Ductile Iron GGG50 PN16 Tilting Disc Wafer Check Valve Dispose of Sewage
US$ 2061.87
1 - 99 Piece
US$ 1374.58
≥100 Piece
Key Specifications
Get Latest Price
Media:
Water
application:
General
media:
Water
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DN600 PN16 Cast Steel Ductile Iron QT450 Large Tilt Disc Flange Butterfly Wafer Type Check ValveUS$ 1924.42 - 2199.33MOQ: 1 Piece -
DN100 PN16 Ductile Iron QT450 GGG50 Pneumatic Slow Closing Silencer Hydraulic Control Check ValveUS$ 233.68 - 522.35MOQ: 1 Unit
-
DIN GGG50 Check Valve Pn16 Thread Ball Check Valve DN50 -300 PN10/16 Water Check ValveUS$ 1030.94 - 1374.58MOQ: 1 Piece
-
BS Standard 5153 CastI Iron PN16 NRS Non-return Valve Flange Swing Check ValveUS$ 687.29MOQ: 1 Set
-
DIN Ball Check Valve HQ41X-16 Ductile Iron QT450 GGG50 Material Flange Thread Ball Type Check ValveUS$ 309.29 - 522.35MOQ: 1 Unit
Media
Water
application
General
media
Water
Port Size
DN200-DN1200
structure
Check
temperature of media
Low Temperature, High Temperature, Medium Temperature, Normal Temperature
model number
HH47H-10Q
brand name
CHX
place of origin
Hebei, China
customized support
OEM, ODM
power
Manual
warranty
1 year
Body material
Ductile Iron GGG50
Ratainer Ring
Q235
Disc
Ductile Iron GGG50+NBR
Counter Weight
Cast Iron GG25
Shaft
SS410
MOQ
1PC
Certificate
ISO, WRAS, EAC, CE
Keyword
Check Valves
Specification
Part & Materials |
||||
No |
Part |
Material |
||
1 |
Body |
Ductile Iron GGG50 |
||
2 |
Ratainer Ring |
Q235 |
||
3 |
Disc |
Ductile Iron GGG50+NBR |
||
4 |
Counter Weight |
Cast Iron GG25 |
||
5 |
Shaft |
SS410 |
||
6 |
Hydraulic Damper |
- |
||
7 |
Needlle Valve |
Brass |
||
8 |
Shaft Bearing |
Brass |
||
9 |
Shaft Bearing |
Brass |
||
10 |
Bolts |
Stainless Steel |
||
11 |
Plate |
Carbon Steel |
||
Product Description
Technical Data |
||||
No |
Description |
Specification |
||
1 |
Nominal Dia |
DN200-DN1200 |
||
2 |
Nominal Pressure |
PN10&PN16 |
||
4 |
Face to Face Standard |
EN558&ISO5752 Series-14 |
||
5 |
Flange Standard Conformity |
EN1092-2 |
||
6 |
Expoxy Coating |
Epoxy powder coating with minimum thickness of 250 microns inside and outside. |
||
7 |
Working Temperature(Max) |
80℃ |
||
Company Profile
Chengxin Valve Co.,Ltd. is a great factory specializing in manufacturing and selling valves and castings.It is located in Weizhuang industrial zone,which covers an area of more than 7000 square meters and a staff of over 400 people including various types of engineering,technical staff and senior management of more than 60 pesons.The annual out put is over 20000 tons.
Both national and international standard products are produced.The national standard has 12 series,more than 3000
specifications.The products covers gate valve, globe valve, check valve, ball valve, butterfly valve, strainer, balancing vlave, etc.The international standard include DIN, Russian standard, BS, ANSI, JIS.Many prodcuts have been exported to many countries such as Ireland,Peru,Russia,Pakistan,Korea,Vietnam,Indonesia and so on.
A complete quality control system is set for each working procedure from raw material to finish products.Totally 28 tests are run through to ensure stable quality.Currently the modern physical and chemical laboratories has been built.The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
Both national and international standard products are produced.The national standard has 12 series,more than 3000
specifications.The products covers gate valve, globe valve, check valve, ball valve, butterfly valve, strainer, balancing vlave, etc.The international standard include DIN, Russian standard, BS, ANSI, JIS.Many prodcuts have been exported to many countries such as Ireland,Peru,Russia,Pakistan,Korea,Vietnam,Indonesia and so on.
A complete quality control system is set for each working procedure from raw material to finish products.Totally 28 tests are run through to ensure stable quality.Currently the modern physical and chemical laboratories has been built.The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
Production Processes
Certifications
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
Packing & Delivery
Meet the customer's requirements of a variety of packaging methods, non fumigation packaging boxes, pallets, cartons, containers in a variety of ways.
