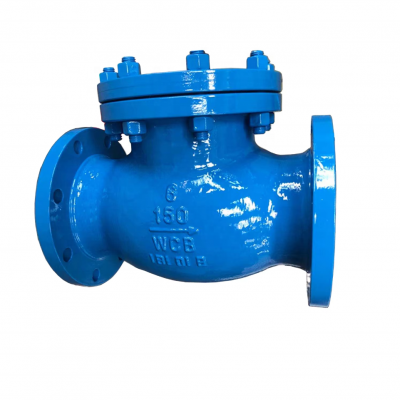

API Cast Steel WCB 304 Stainless Steel ASME 2"-12" WCB CF8/CF8M Industrial Flanged Swing Check Valve
US$ 549.84
1 - 4 Piece
US$ 446.74
5 - 9 Piece
US$ 274.92
≥10 Piece
Key Specifications
Get Latest Price
Type:
Check Valve
application:
General
media:
Water
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ANSI 3''/4''/6''/8'' 150lb WCB Cast Steel Check Valve API SS304/316 Stainless Steel Flange Swing Check ValveUS$ 343.65 - 536.09MOQ: 1 Piece -
ANSI ASME B16.34 AP16D Cast Steel WCB 150lb/300lb/600lb Stainless Steel SS 304 316 Flange Swing Check ValveUS$ 343.65 - 859.12MOQ: 1 Piece
-
API WCB PN16 2in/4in/6in 150lb/300lb ANSI Cast Steel Stainless Steel Lift Swing Flange Check ValveUS$ 618.57 - 680.42MOQ: 1 Piece
-
ANSI 150LB 300LB WCB Cast Steel Swing Check Valve Factory SS 304 316 Stainless Steel Flange Swing Check ValveUS$ 1030.94 - 1443.31MOQ: 1 Piece
-
BS DN150 PN16 WCB GGG50/GG25 Swing Check Valve Cast Iron/Steel Ductile Iron Flange Swing Check ValveUS$ 343.65 - 680.42MOQ: 1 Piece
application
General
media
Water
Port Size
2in-12in(5.08cm-30.48cm)
Sealing Material
PTFE, Epdm, Steel , Rubber
structure
Check
temperature of media
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
model number
H44H
brand name
CHX
place of origin
Hebei, China
customized support
OEM, ODM
power
Manual
warranty
1 year
Pressure
JIS10-20K, ANSI Class 150-900, Pn1.0-32.0MPa
Body material
Wcb/Stainless Steel/SS304/SS316
Connection type
Flange,Thread
Color
Blue, Red, Green, Black, Silver, Grey
Medium
Water Oil Gas
Drive Way
Worm Gear, Pneumatic, Manual, Hydraulic, Electric
Usage
Industrial Usage
MOQ
1 Pc
Certification
ISO,EAC,WRAS,CE
Specification
ANSI API6d ASME Class 150LB 300LB 600LB Wcb Check Valve main material of parts |
||
Body,Bonnet |
ASTM A216 WCB |
|
Stem |
2Cr13/SS304/SS316/Carbon Steel |
|
Wedge Ring |
13Cr13,Stellite |
|
Disc |
ASTM A216 WCB |
|
Seat |
13Cr13,Stellite |
|
Bonnet Gasket |
Graphite |
|
ANSI API6d ASME Class 150LB 300LB 600LB Wcb Check Valve Standard |
||
Design Standard |
API6D,BS1868 |
|
Face to Face |
ASME B16.10 |
|
Flange Standard |
ASME B16.5 |
|
Testing Standard |
API 598 |
|
Products Description
Company Profile
Chengxin Valve Co., Ltd., located in weijiazhuang Industrial Park, Longyao County, Hebei Province, is a professional company for manufacturing and selling valves and castings. The company was founded in 1993 and established as Chengxin Valve Co., Ltd. In 2005. After its establishment, due to the accurate market positioning, excellent quality and standardized internal management, the company has become a modern enterprise with considerable scale, and has a high reputation in the valve and casting industry in China.
The company always adheres to the concept of integrity management and always adheres to the road of development strategy. Up to now, the company covers an area of more than 70000 square meters, with more than 400 employees, including more than 30 engineering and technical personnel and senior management personnel, with an annual output of nearly 11000 tons of various valves.
The company has passed the ISO 9001: 2008, 14001: 2004 quality and environmental management system certification, and obtained the special equipment manufacturing license of the people's Republic of China. It is a member of China general machinery valve Association and has the right of import and export.
The company always adheres to the concept of integrity management and always adheres to the road of development strategy. Up to now, the company covers an area of more than 70000 square meters, with more than 400 employees, including more than 30 engineering and technical personnel and senior management personnel, with an annual output of nearly 11000 tons of various valves.
The company has passed the ISO 9001: 2008, 14001: 2004 quality and environmental management system certification, and obtained the special equipment manufacturing license of the people's Republic of China. It is a member of China general machinery valve Association and has the right of import and export.
Production Process
Certifications
Packing&Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Related Product
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional valve factory Located In Hebei, China.
Q: What's Execution Standard of products?
A: ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
Q: How long is your delivery time?
A: Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, Welcome sample order to test and check the quality of products. The sample amount is less than $100, the product cost is free, and the customer needs to pay the express delivery fee. If the sample amount is higher than $100, and the sample cost and express delivery fee need to be negotiated by both parties.
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
Q: Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
Q: Can you provide the relevant documentation and certificate?
A:Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test reports according to the customers need.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF etc.
Q:How to deal with after sales ?
A: warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. We will provide process guidance services, replacement parts, on-site guidance and maintenance services. (both parties shall negotiate the relevant expenses)
Q: Why choose us?
A: 1. 20 years of manufacturing and developing experience;
2. A Strong R & D team;
3. Service experience for thousands of customers at home and abroad;
4. Export to 30 countries including Southeast Asia, East Asia, Eastern Europe and Central Asia;
5. Five casting production lines with stable casting quality, high production efficiency and fast delivery time
Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. You have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share
A: We are a professional valve factory Located In Hebei, China.
Q: What's Execution Standard of products?
A: ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
Q: How long is your delivery time?
A: Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, Welcome sample order to test and check the quality of products. The sample amount is less than $100, the product cost is free, and the customer needs to pay the express delivery fee. If the sample amount is higher than $100, and the sample cost and express delivery fee need to be negotiated by both parties.
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
Q: Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
Q: Can you provide the relevant documentation and certificate?
A:Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test reports according to the customers need.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF etc.
Q:How to deal with after sales ?
A: warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. We will provide process guidance services, replacement parts, on-site guidance and maintenance services. (both parties shall negotiate the relevant expenses)
Q: Why choose us?
A: 1. 20 years of manufacturing and developing experience;
2. A Strong R & D team;
3. Service experience for thousands of customers at home and abroad;
4. Export to 30 countries including Southeast Asia, East Asia, Eastern Europe and Central Asia;
5. Five casting production lines with stable casting quality, high production efficiency and fast delivery time
Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. You have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share
