Description

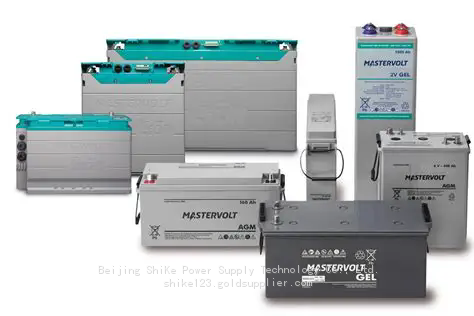

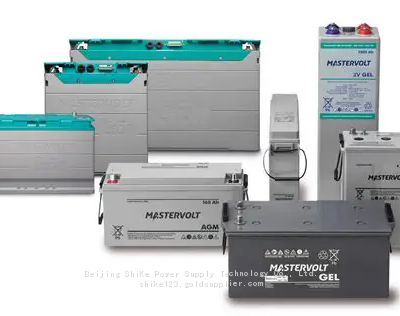

Mastervolt Batteries – AGM series
In AGM batteries, the electrolyte (mixture of water and sulphuric acid) is mostly absorbed in glass fibre. The battery is completely maintenance-free and there is no gas generation with normal use. It does not requiring any ventilation, therefore these batteries can be installed anywhere.
Their construction gives a very fast dis/charge at very high currents, therefore these batteries are great for systems that needs high currents (for instance when starting an engine) in a short period of time. The poles on the battery can be unscrewed and the battery can be combined with standard battery terminals.
Great starter function.
Perfect upgrade for wet lead acid batteries and great for Deep Cycle discharge.
Same initial power delivery in an AGM 12/90 Ah as in a 180 Ah wet lead-acid battery.
Glass-fibre technology has low internal resistance.
Use of thicker plates prolong lifespan.
Also for medium cyclical use.
Two-year warranty.
Specifications
| AGM 12/55 | AGM 12/70 | AGM 12/90 | AGM 12/130 | AGM 12/160 | AGM 12/225 | AGM 12/270 | |
| Nominal battery voltage | 12 V | ||||||
| Nominal battery capacity C20 (battery capacity at a discharge time of 20 hours, till 10.5 V per battery) | 55 Ah | 70 Ah | 90 Ah | 130 Ah | 160 Ah | 225 Ah | 270 Ah |
| Max. charge current | 15.3 A | 19.5 A | 25.5 A | 36 A | 45 A | 63 A | 76.5 A |
| Battery terminals | M6 | M8 | |||||
| Max. outer dimensions (incl. terminals/grip handles), lxwxh | 257 x 132 x 200 mm | 348 x 167 x 178 mm | 330 x 173 x 220 mm | 408 x 176 x 228 mm | 485 x 170 x 242 mm | 522 x 240 x 224 mm | 522 x 268 x 226 mm |
| Weight | 17 kg | 21 kg | 28 kg | 37.6 kg | 42.3 kg | 63.5 kg | 73 kg |
| CCA to DIN | 250 A | 290 A | 360 A | 590 A | 550 A | 680 A | 750 A |
| CCA to SAE | 400 A | 460 A | 570 A | 940 A | 870 A | 1080 A | 1200 A |
Product Details for: Mastervolt Batteries – AGM series
Energig Part Numbers: L03.62001300, L03.62001600, L03.62002250, L03.62002700, L03.62000550, L03.62000700, L03.62000900, L03.61002600, L03.61004000
Manufacturer Part Numbers: 62001300, 62001600, 62002250, 62002700, 62000550, 62000700, 62000900, 61002600, 61004000
UPC code: 852968002189, 852968002196, 852968002202, 852968002219, 852968002158, 852968002165, 852968002172, 852968002394, 852968002417
HS Customs code: Depending on variant
Country of origin: CN
Buy in bulks of: Depending on Variant
Approx. shipping weight: Depending on variant.
Length (package): Depending on variant.
Width (package): Depending on variant.
Height (package): Depending on variant.
Please find more details on Mastervolt’s Product pages. There will the latest information always be available.
Mastervolt AGM Battery 12/130Ah, 12v
Mastervolt AGM Battery 12/160Ah, 12v
Mastervolt AGM Battery 12/225Ah, 12v
Mastervolt AGM Battery 12/270Ah, 12v
Mastervolt AGM Battery 12/55Ah, 12v
Mastervolt AGM Battery 12/70Ah, 12v
Mastervolt AGM Battery 12/90Ah, 12v
Mastervolt AGM Battery 6/260Ah, 6V
Mastervolt AGM Battery 6/400Ah, 6V
