OEM Heavy Industrial Adjustable Warehouse Storage Rack Metal Drive in Pallet Racks

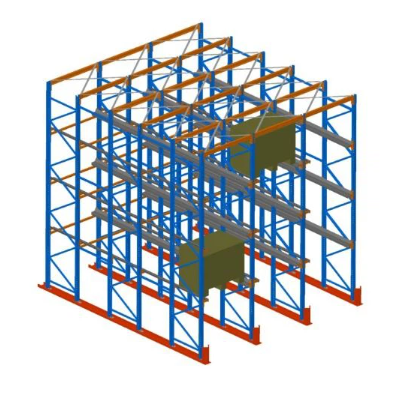

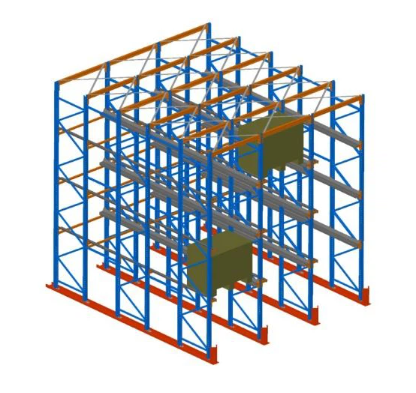

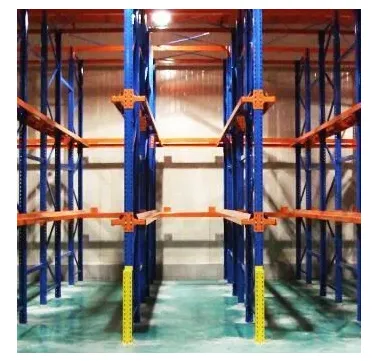

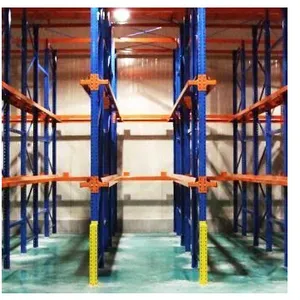

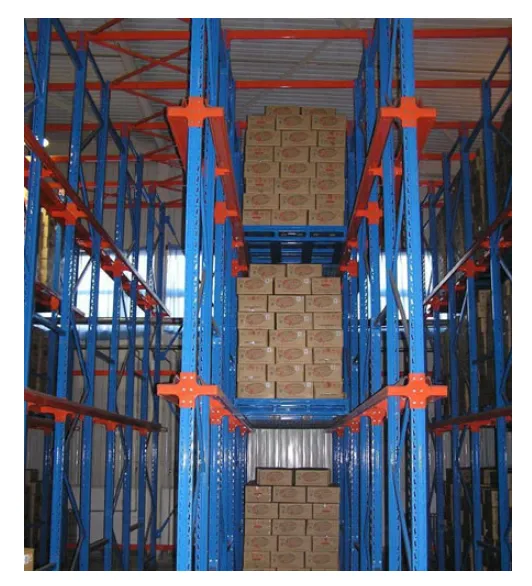

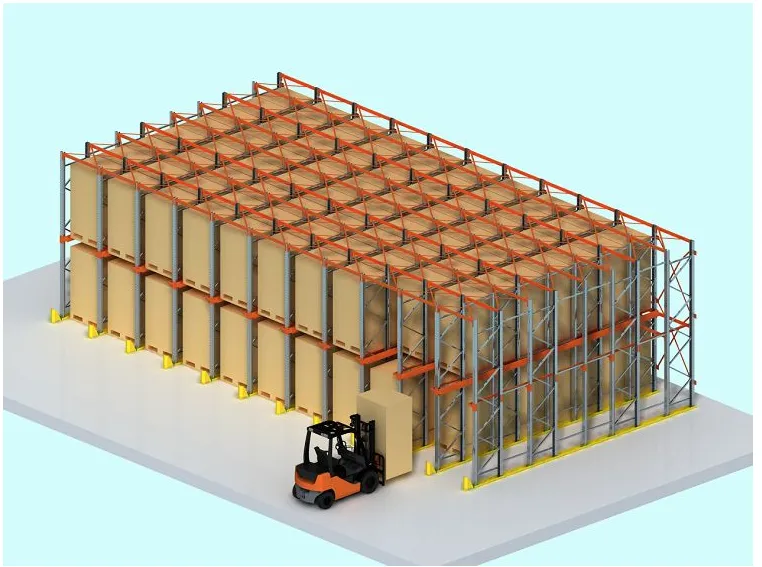

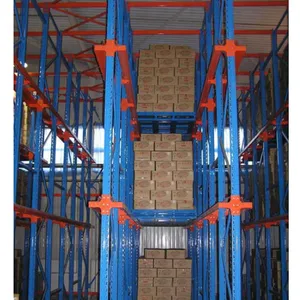

Drive In Rack System is an assembled racking which forklift truck drives into the racking to store goods in pallet units. It is a kind of racking with high storage density, and its space efficiency utilization rate can reach 90%, the site area utilization rate can reach more than 60%, suitable for the storage of large quantities of goods with few varieties. This system can be used in beverage, dairy products, tobacco, cryogenic storage, standard specifications of home appliances, chemical and clothing industries.
Features :
Drive In Rack System has narrow aisle, which can effectively improve space utilization. It is suitable for the storage of goods that flow to the same customers together in large quantities, small varieties or operation channels. It adopts first-in-last-out storage mode, which can effectively improve the turnover rate and help fulfill the modern warehousing needs of low cost, low loss and high efficiency.
The structure

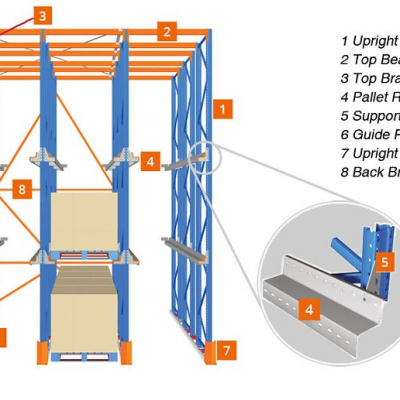

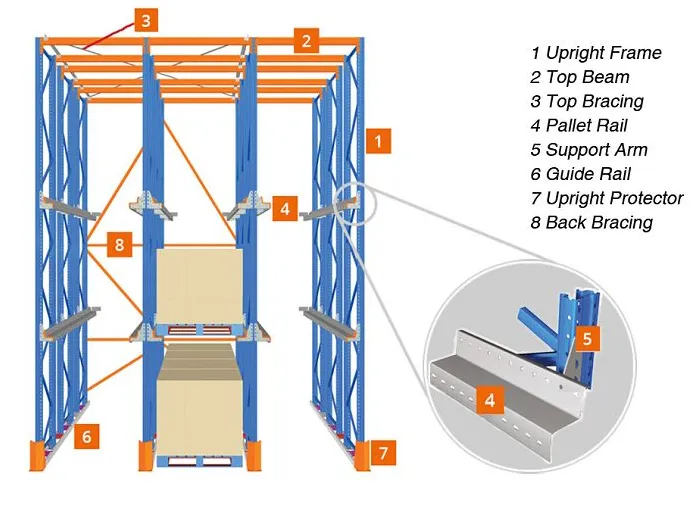

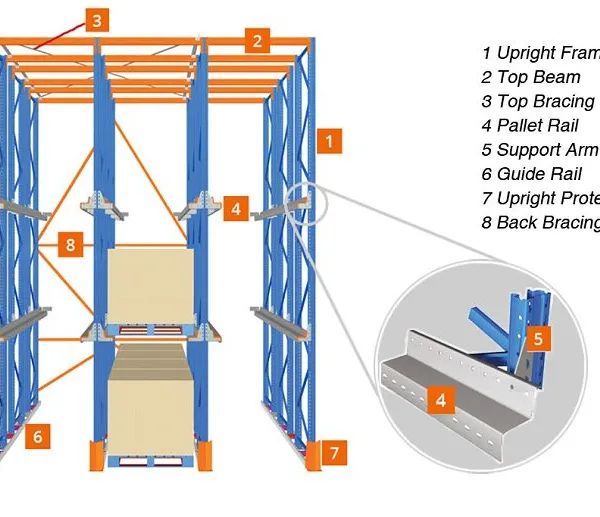

The vertical orientation of the drive in racking only relies on the top beam and bracing to connect the system as a whole. The depth direction of the racking is mainly through the combination of the support and pallet rail for placing the pallet goods, so as to connect the frame into a whole. It is mainly assembled by frame, guide rail, support, pallet rail, top beam & top bracing, back beam & back bracing and protector, etc.Operation matters
Drive in rack system can be divided into one direction and two direction arrangement according to the direction of picking the goods.

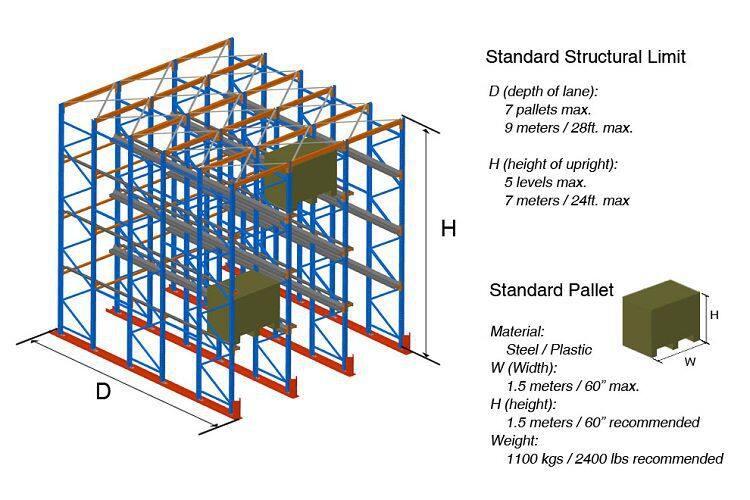

One direction (by the wall area) is best controlled within 6 pallet depths. The overall depth of the racking area is best controlled within 12 pallet depths to improve the efficiency and reliability of the forklift access.

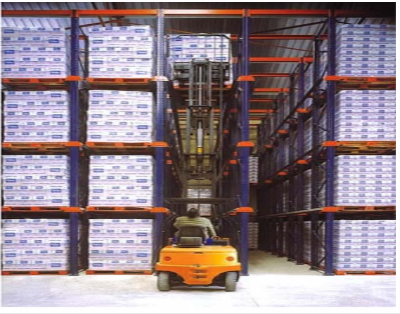

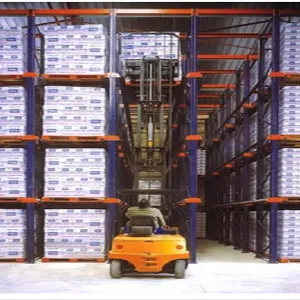

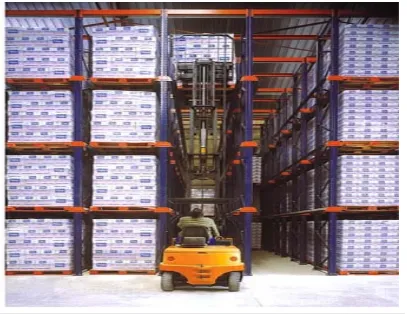

Forklift truck is a continuous “high lift” operation mode. Forklift truck is easy to shake and bump into the rack, so the stability consideration is essential. The stability of this kind of storage system is weak, the rack is not too high, it should be controlled within 10 meters, and in order to strengthen the stability of the whole racking system, except for the size and selection of the system, the pull and solid device must be added. Single cargo should not be too large and too heavy. Usually the weight is controlled within 1500KG, and the span of pallets should not exceed 1.5 meters. Forklift trucks are often used as forklift trucks or counterbalanced battery forklifts.
Tags: high density storage drive in rack, China high density storage drive in rack manufacture,high density storage drive in rack factory, high density storage drive in rack exporter, high density storage drive in rack supplier
we can manufacture according to your requirement. so welcome your enquiry.
