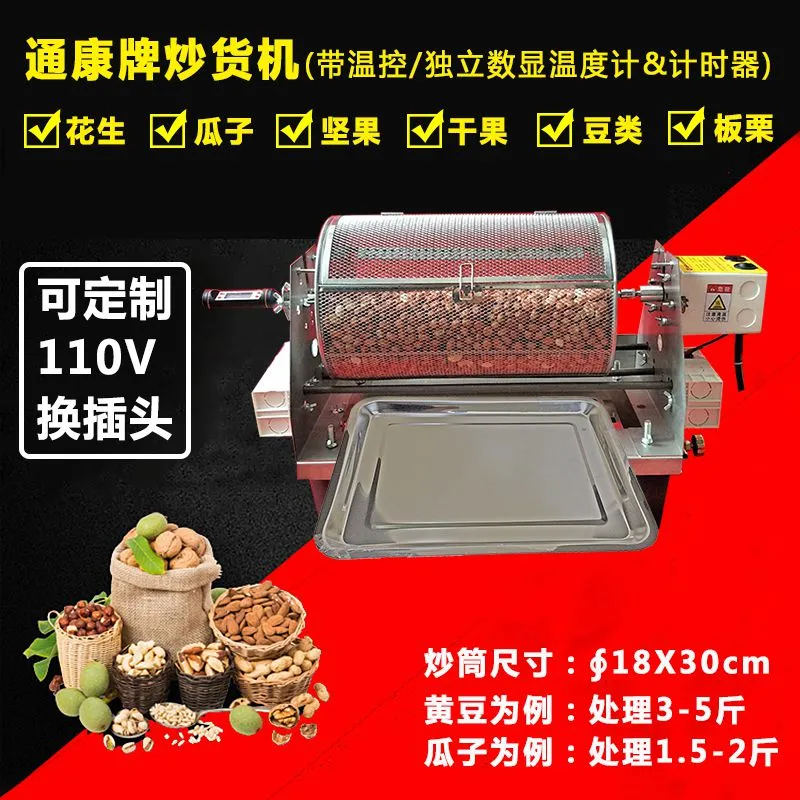

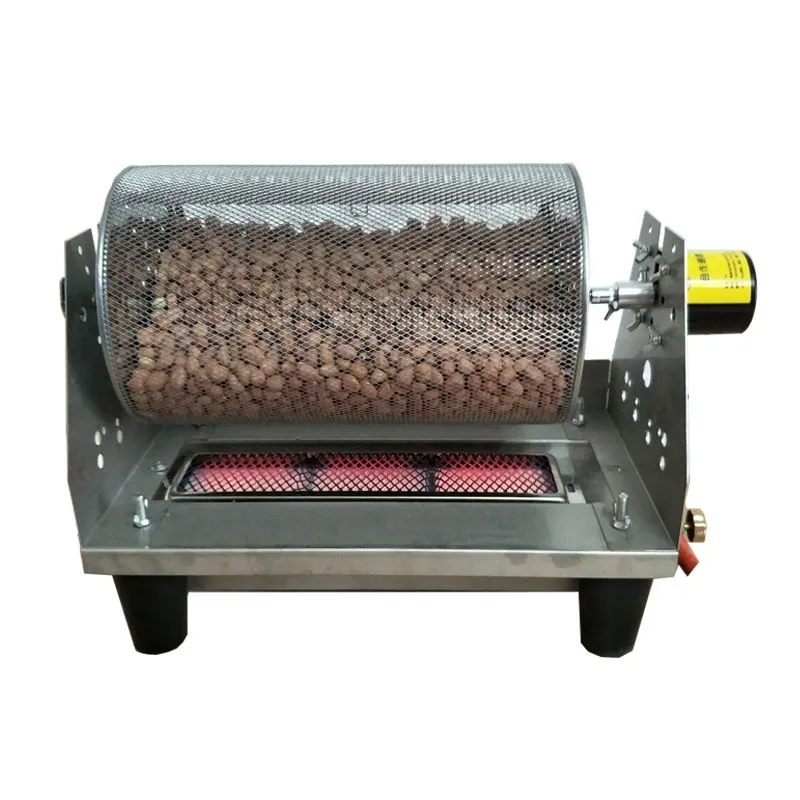

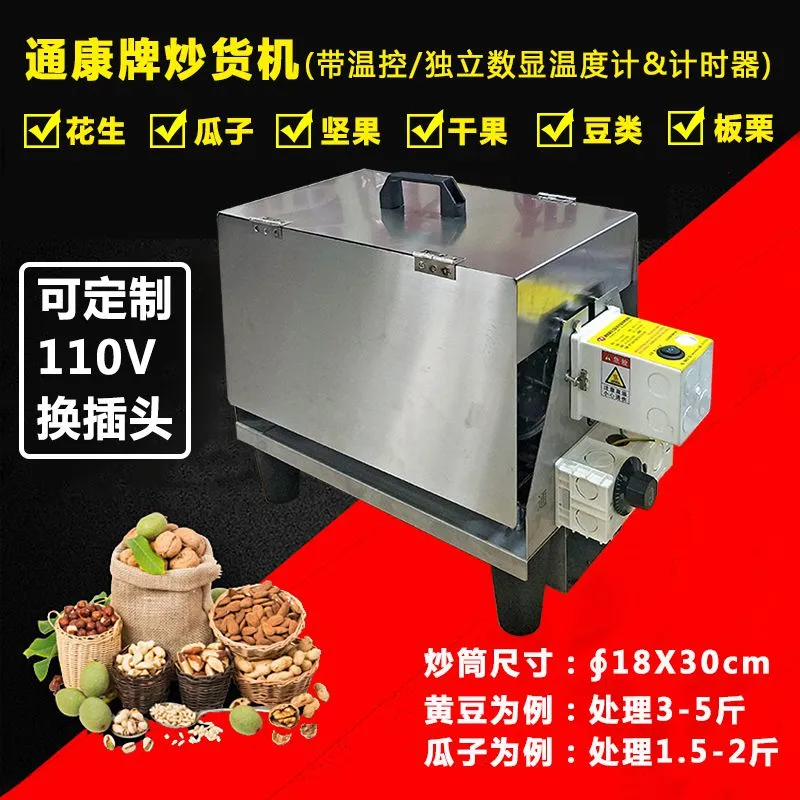

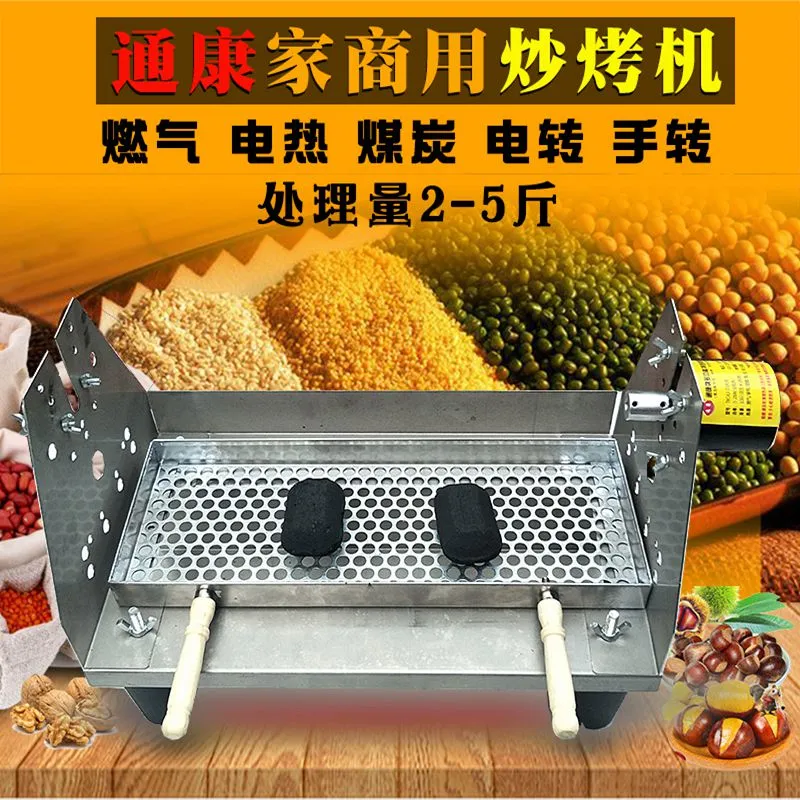

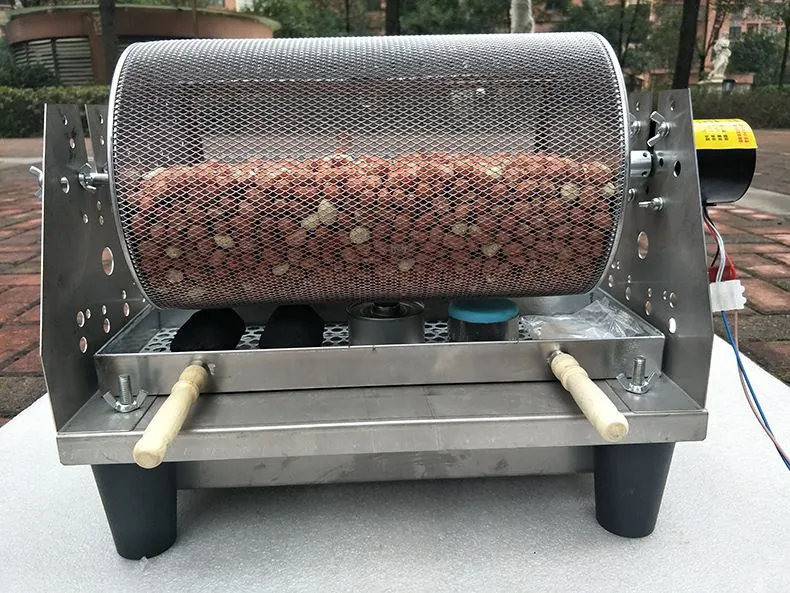

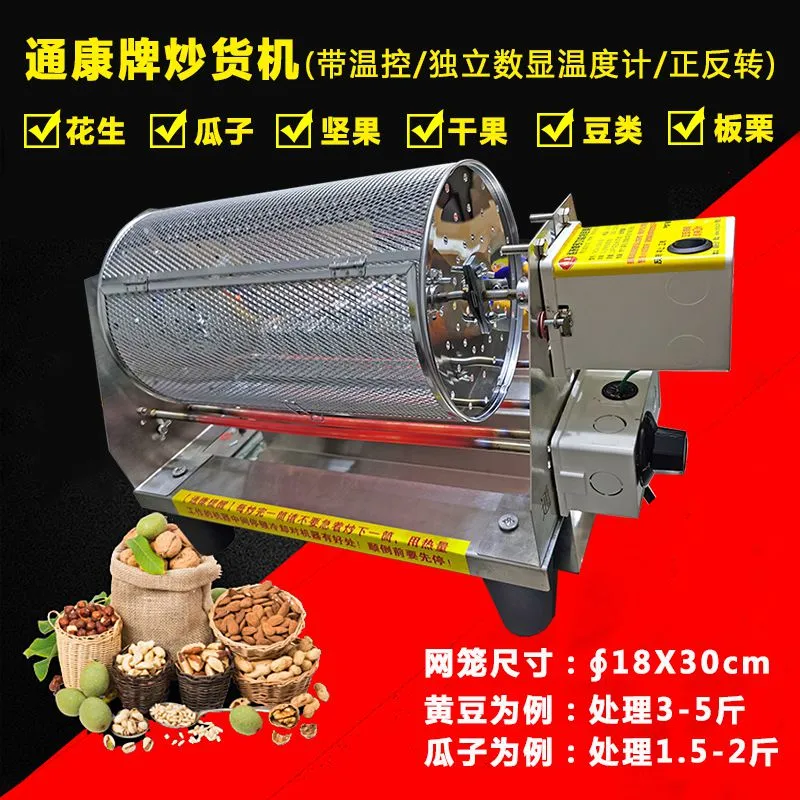

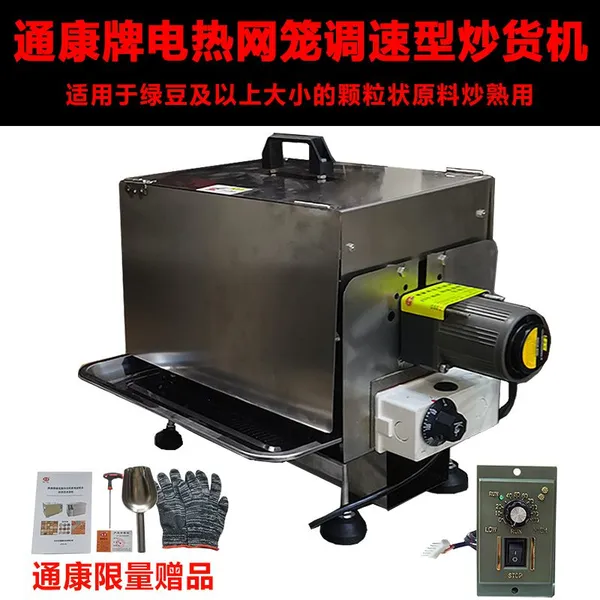

Machine overview The machine is made up of frame, motor or hand-shaking, transmission device and working parts. It can be used with different heat source for food, medicine, grains, roasted, fried, dry operation. Made of all stainless steel, compact structure, simple and practical, suitable for families, restaurants, snack food stores, grain stores and other fried fried goods, also suitable for the industry, agriculture, medical and health industry dry experimental operations. Common Fried products are chestnuts, peanuts, seeds, coffee beans, sesame and other grains, fruits.

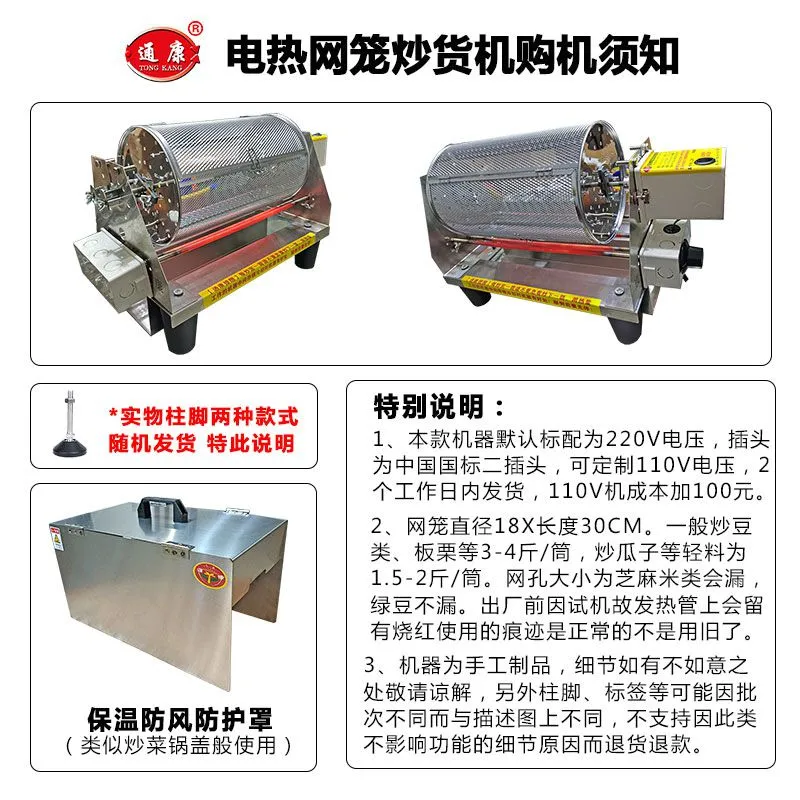

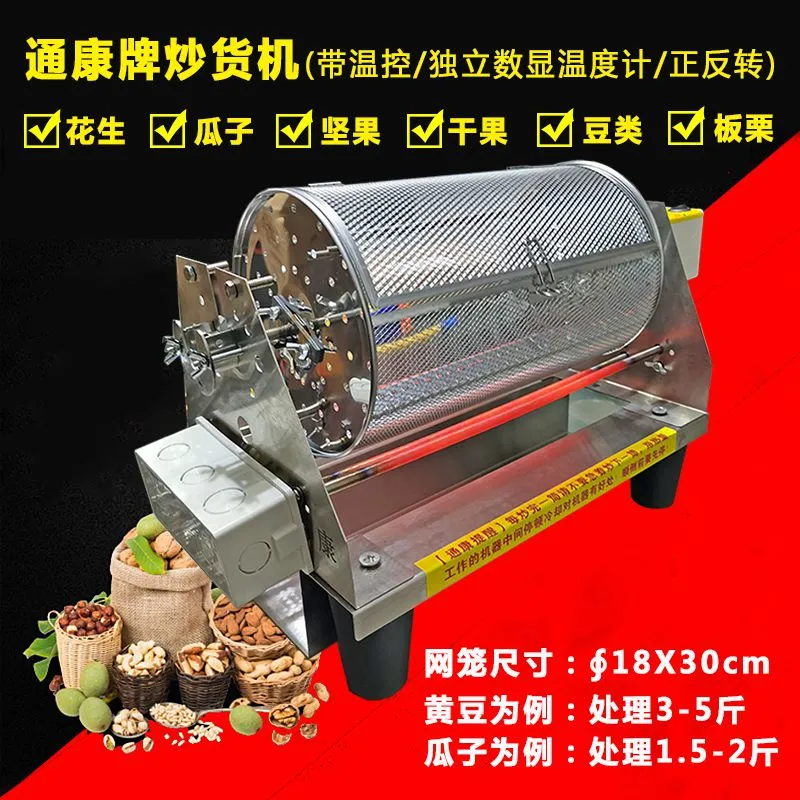

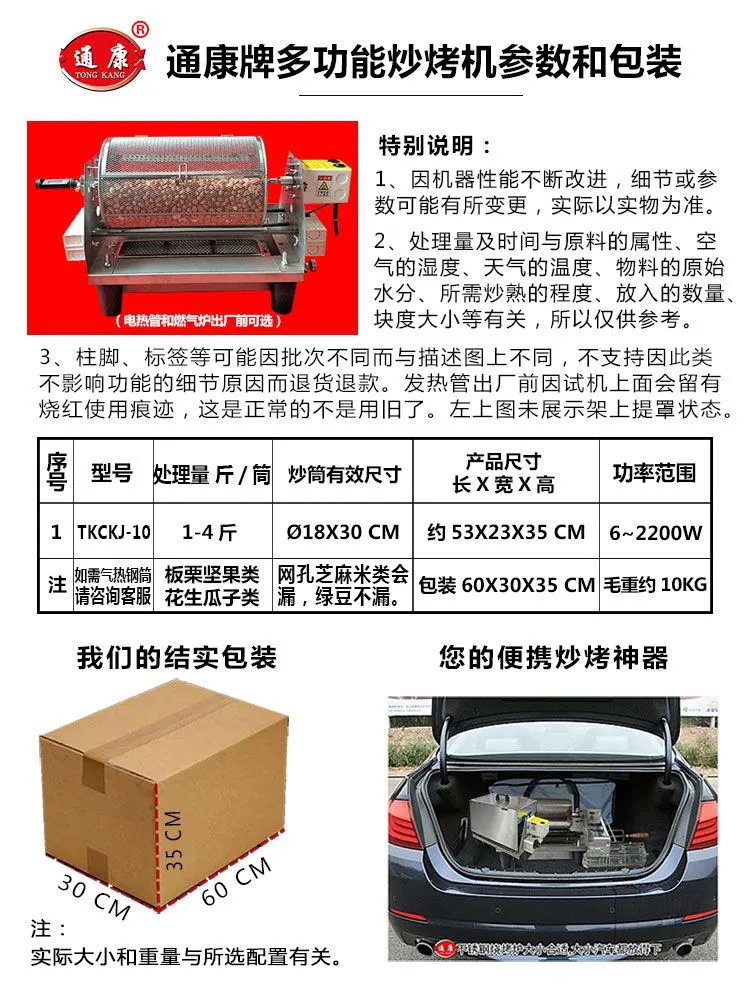

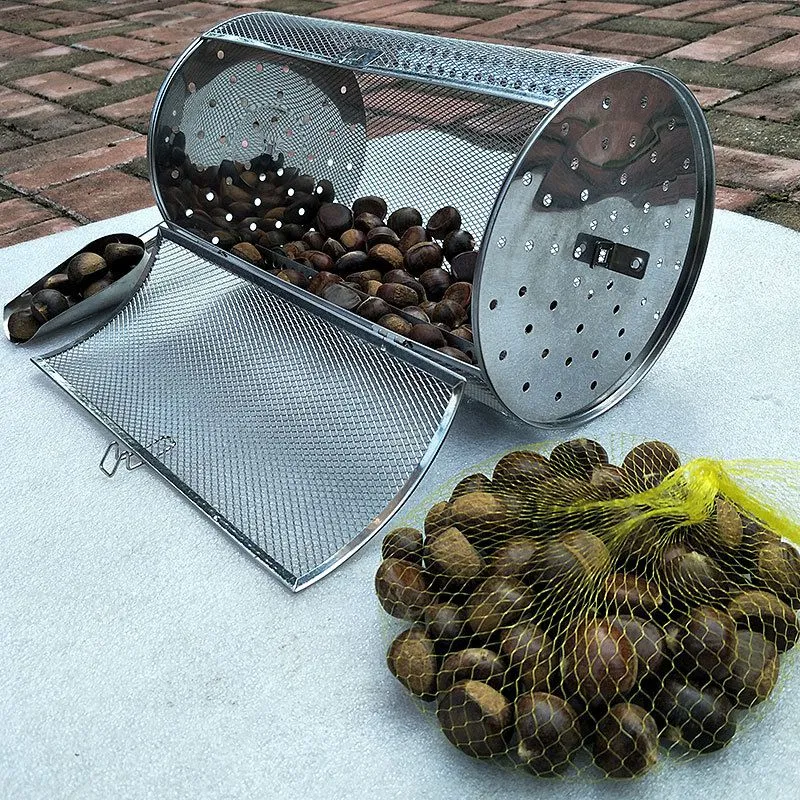

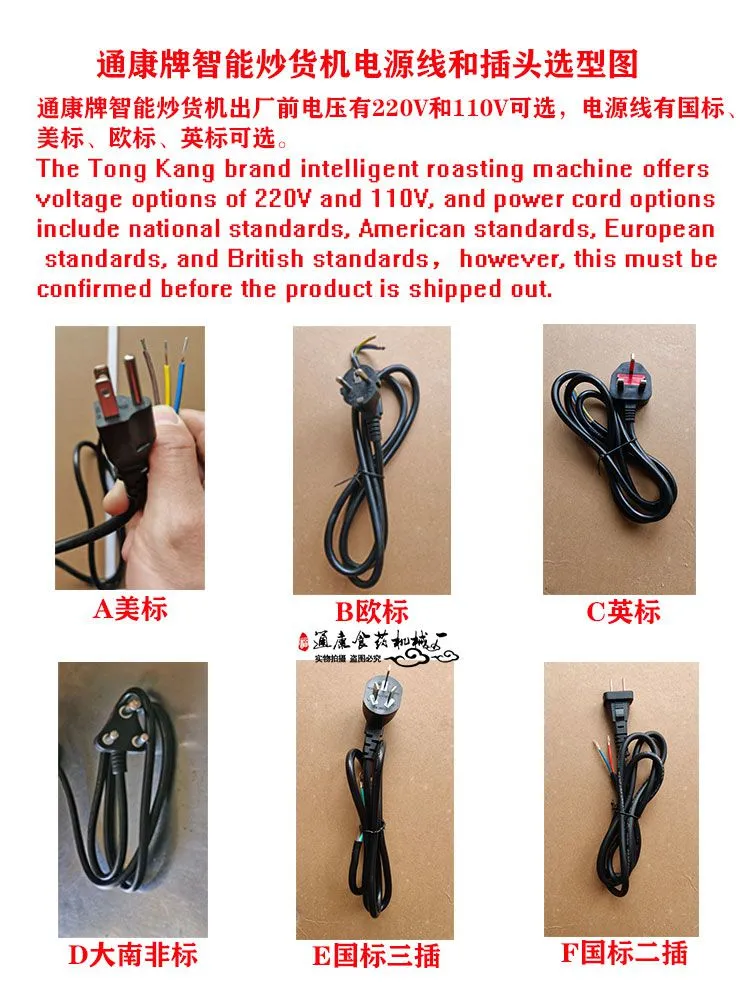

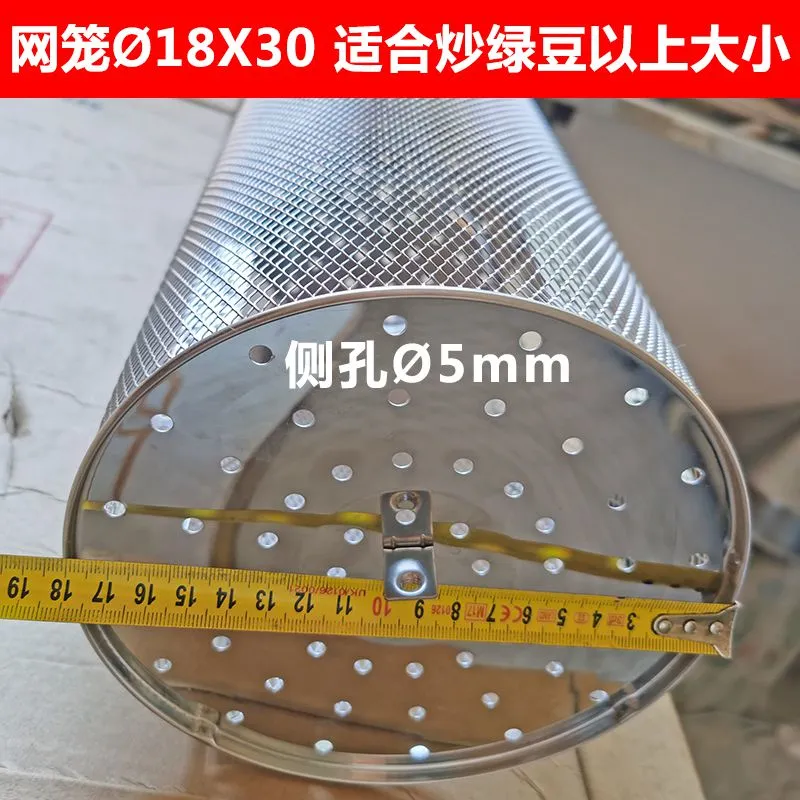

Specification parameters model No. : TKCHJ-10(A/B/C) workpieces size: 180X300MM POWER SUPPLY: 220V (12V/110V) heat source: gas, electricity, alcohol, coal, charcoal, firewood (separately) speed: 5-10r/Min Processing Capacity: 5 Jin (peanut) voltage: 220V POWER: 0-28W (non-electric)500-2200W (non-electric) shape size: 480X230X330mm packing size: 500x30x350mm weight: 8-10KG, the capacity is filled with 10 catties of peanuts, and the maximum weight of fried peanuts is 5 catties. In order to ensure the effect of stir-frying, general raw materials are put into about 1/4 of the volume for the best. Different specific gravity and clearance of the raw materials different amount of roasting. 2. Type A is Mesh Cage, type B is plate drum, type C is grill cage, type B can be used for rice, sesame and small particles.

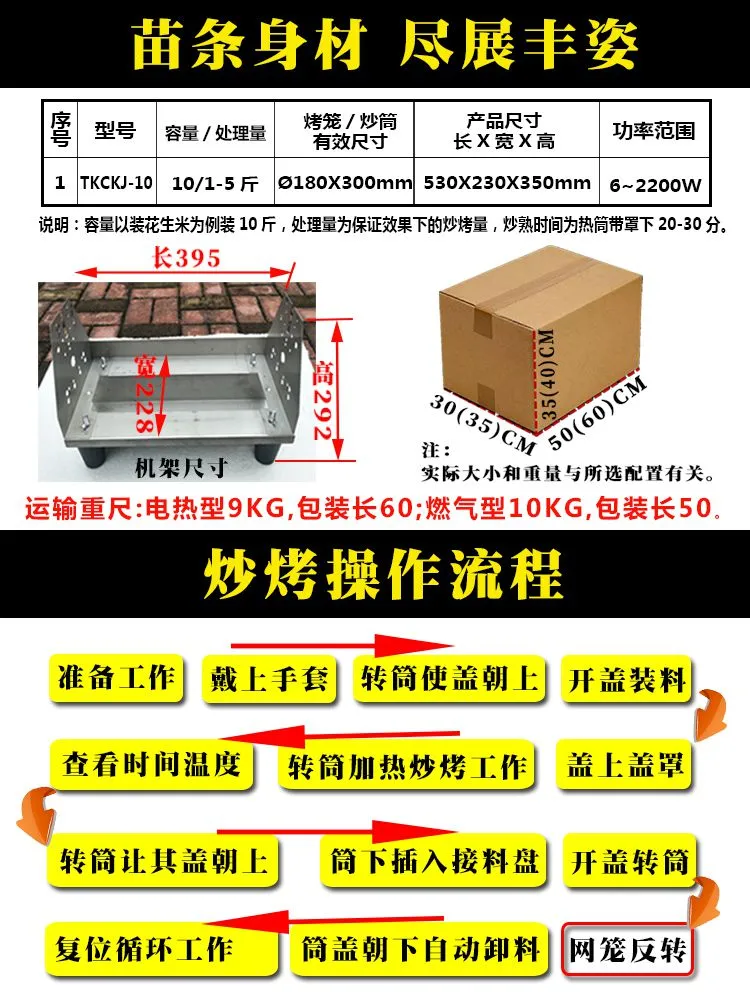

Instructions Turn the power on and then turn the heat source on. preheat the heat source at 80 degrees for 2 minutes and turn it off when the cylinder cover is facing up. 2. Open the cylinder cover, fill the cylinder with 1/4 of the material, close the cover, turn on the power and heat source in turn. Master the depth of baking or stir-frying according to your personal preference. 3. After cooking, put on gloves, stop rotating when the drum cover is on the top, place the receiving tray on the machine base under the drum, open the drum cover, and turn the drum again (there is an inverted switch to turn the drum) , when the drum cover is aligned with the bottom of the drum, the stir material automatically falls into the receiving plate, during the appropriate auxiliary feeding. When the discharge is finished, transfer the drum to the top of the drum cover, add the new raw material again, cover the LID and stir continuously. 4, set a reverse switch is the reverse transfer material transfer material transfer discharge, in the reverse transfer must stop between 2 seconds. 5. If the roasted product is coffee beans, it is recommended that the roasted coffee beans be poured into a net basket or a stand-by net drum and stirred for rapid cooling and removal of the silver peel. 6, time temperature reference table: peanuts, chestnuts for 250-300 degrees, 30-40 minutes, 20-30 minutes with a cover, the temperature dial directly above the scale temperature, not the actual temperature, is not the same as the thermometer inserted into the barrel temperature.
Safety tips The work of this machine is visual, do not wear gloves to operate, strictly prohibitchildren to operate, especially pay attention to the operation of anti-hot clamp. If you have moved, please check the parts are loose, use long to check the aging of the wire.

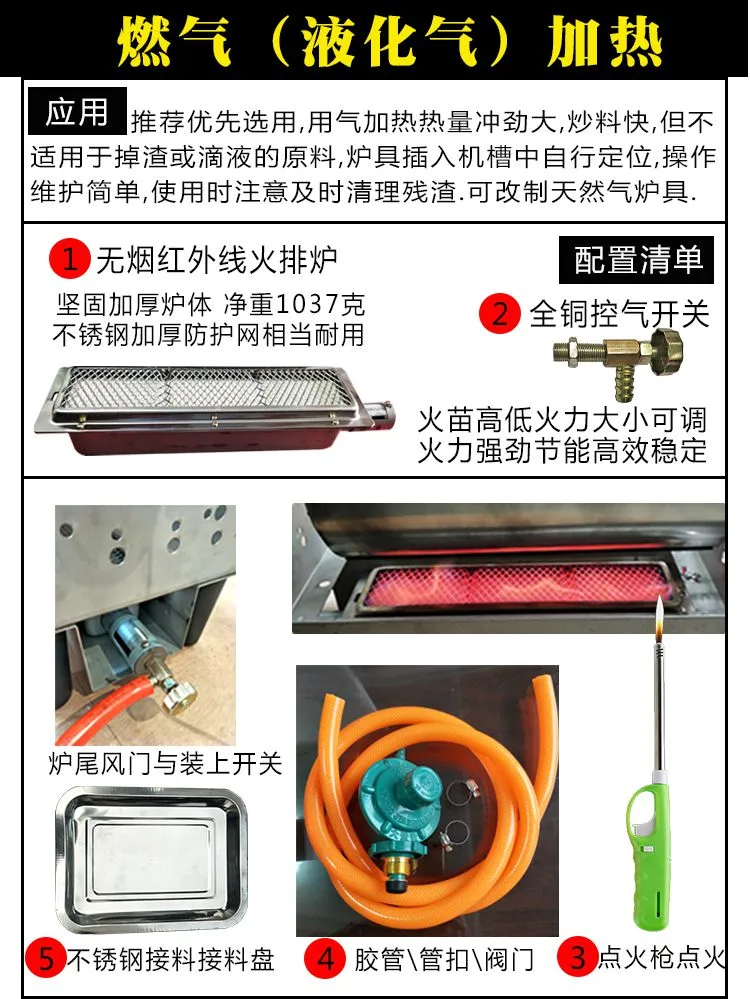

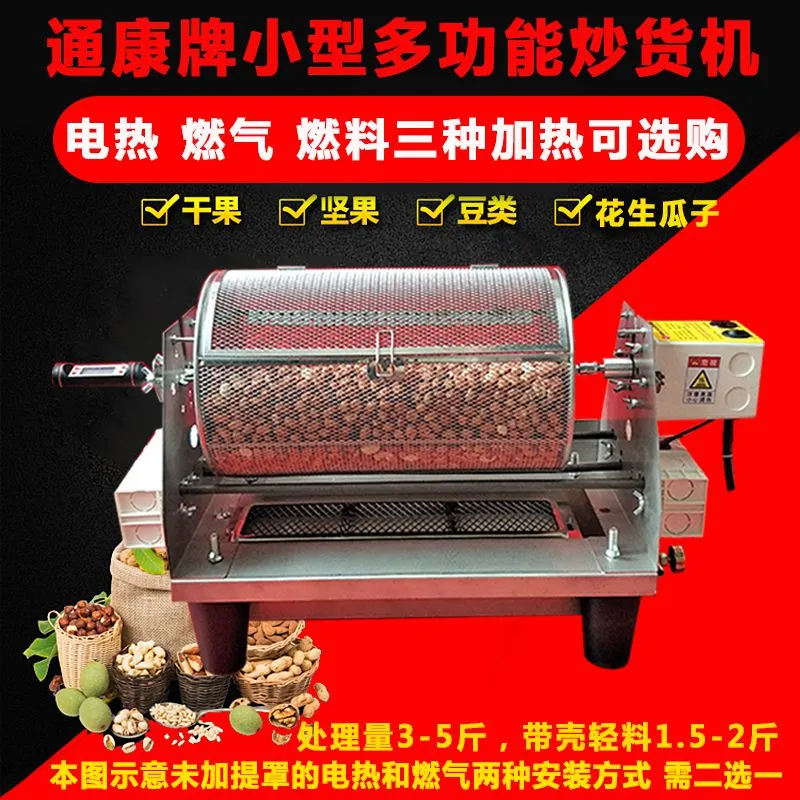

Points to note Electric heating pipe due to the first use, electrical components due to a protective layer of evaporation, there may be smoke for the normal phenomenon. The two ends of the electric heating pipe are the terminals, which can not be touched by bare hands, and the two ends of the wires can not touch themselves, otherwise there will be electric shock or short circuit. Heating Pipe Middle Section for heating section, no electricity but to prevent SCALD. The two ends of the connection can not touch the side plate anti-scald damage. 2. Gas Type, the fire grate can be moved to directly above the work piece heating, the tail of the furnace is equipped with gas control switch (inlet gas ventilation and size) and the air door switch (inlet oxygen ventilation and size) , the fire power to heat to the work piece is appropriate. Do not fry off the residue or dripping raw materials, timely cleaning furnace surface. Keep the torch away from the surface of the fire. 3, electric heating gas dual-use heating type, it is recommended to use one when the other is simply removed to save, use when the original way simple installation fixed. The fuel heating type simply takes the fuel tray away. 4, electric heating work of the machine in the fried baked work after a process is not recommended to immediately rush to the next process, the appropriate cooling is conducive to machine parts life. When the machine is finished, turn off the electricity and gas in time, clean up the residue in time, clean up the sundries falling into the heat source in time, in order to prevent burning. The machine can not be washed directly with water.
Maintenance and assembly instructions Put the frame on the horizontal surface, according to the original machine or photos to the parts with screws fixed and screwed can, the original gasket to be installed.
【 Brief introduction of Tongkang Mechanical & Electrical Company】 Tongkang mechatronics is a state-registered modern enterprise integrating scientific research, production, sales and technical services, our main products are roasting machine, roasted goods machine, oven, flour mill, pulping machine, steaming machine (steamed bread machine, steamed cake machine, steamed bread machine, steamed bread machine) , baking cake oven, steamed bread oven, sieving machine, flour machine, flour press machine, Xingfa box, soybean milk machine, juicer and other food and medicinal materials, processing machine for coarse cereals, rice and meat dishes, as well as hardware pay electricity, stainless steel products wholesale and retail, dedicated to the drying of materials, grinding, gourmet, screening, molding process practice, and strive to provide affordable high-grade products and intimate service, to help the world people
