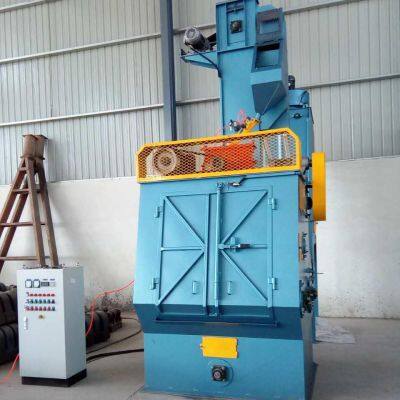

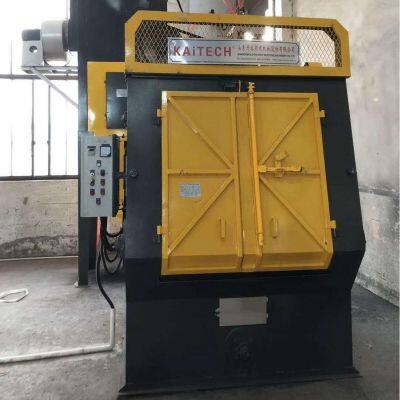

Help CenterHigh-Efficiency Dust-Removing Tumble Belt Shot Blasting Machine for Small & Medium Castings, Forgings and Heat-Treated Parts
Product Spotlights
Related Products
-
Tumble Belt Type Shot Blasting Machine for High-Efficiency Dust Removal of Small and Medium Castings Forgings Heat Treated PartsUS$ 6499MOQ: 1 Set -
22K Psi Hydro Jetting Diesel and Motor Equipment Water Blasting MachineUS$ 11000.00MOQ: 1 Set
-
High Quality Roller Conveyor Shot Blasting Machine With High Chrome Wear-Resistant Guard PlateNegotiableMOQ: 1 Square Meter
-
Mug Press Machine for Shots, Tumbler, MugsNegotiableMOQ: 100 Sets
-
Dry Ice Blasting Machine CleaningUS$ 600 - 2000MOQ: 5 Sets
Product Description
1. Products Features:
1) It is suitable for different production scale ,it could be stand-alone use and many units can also be used together
2) It could get good clean effect for complicated and small workpieces (small casting ,forging ,spare parts and aluminum parts and so on)
2. Production Application:
It is suitable for surface cleaning ,removing rust and strengthen of various medium ,small casting ,forging and heat treatment
3. Main Technical parameters
| Parameters | Unit | Q326 | Q3210 | QR3210 |
| Productivity | t/h | 0.6-1.2 | 1.5-2.5 | 1.5-2.5 |
| Loading weight | kg | 200 | 600 | 600 |
| The maximum weight of one piece | kg | 10 | 30 | 30 |
| Diameter of roller | mm | 650 | 1000 | 1000 |
| Avaliable capacity | m3 | 0.15 | 0.3 | 0.3 |
| Blasting capacity | kg/min | 100 | 250 | 250 |
| Dedusting air volume | m3/h | 2200 | 5000 | 5000 |
4.Working principle

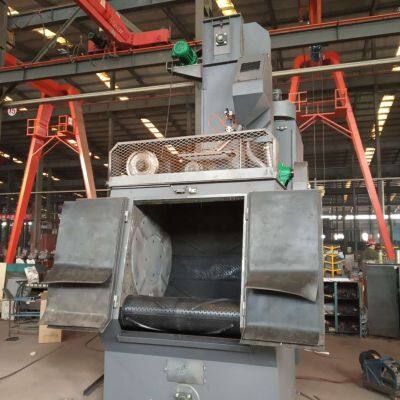

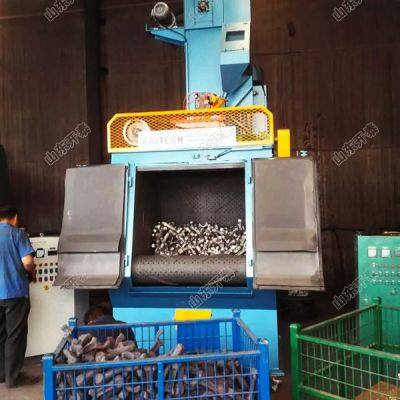

Open the dust collector,elevator in turn to prepare. Put workpiece in shot blast chamber and load on the rubber belt track. Then close the chamber door; open impeller head, shot gate; impeller head begin throwing steel shot and clearing oxide skin. Meanwhile, rubber belt keep on moving to make workpiece tumbling, in order to clean up uniformly.
Splashed steel shots fall into mesh in bottom though holes in belt, and then screw conveyor conveys steel shot to bottom of elevator. Steel shot are elevated to separator and cleansed, then steel shot fall into impeller again. Shot blasting time( according to workpiece) is controlled by time relay.After finishing shot blasting work, close impeller head and open the chamber gate, reversing belt rotation. Workpiece are unloaded
Packaging & Shipping
Shot Blasting Machine Packaging:
General Packaging: 1. Small spare parts put in plywood wooden cases
2.Other parts is our company standard or according to customer requirements
3. According to your company requirements
Shipping: Container transport
Our Services
Our company has specific perfect after-sale service network, and sets 16 sales branches,55 offices in our country. The offices are equipped with commercial cars and logistics vehicles. Parts of offices sets transit warehouses, and can provide timely delivery, after-sales technology for customers. Our company is focus on integration development of product sales and after-sale service.
Since our company manufactures the shot blasting machine and abrasive at the same time, every equipment before they leave the factory has been added material and does the full load machine commissioning for more than four hours. During the machine commissioning, customers can bring the workpiece to try blasting and put forward rectify and reform suggestions.
OUR SERVICE:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are largest manufacturer, specializing in producing all kinds of Shot Blasting Machine & Metal Abrasive in China, competitive with good quality.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
BUYING LEADS:
If you are interested in our machine,please kindly inform us the following items:
1,The name of your workpiece?( such as: iron casting parts, Aluminium auto parts etc.)
2,The purpose of the blasting?(rust removal or others?)
3,The size range of the workpiece?( max size and min size)
4,The weight of the workpiece? (max weight and min.weight)
5,The cleaning capacity per day/month?
6, Any other technical requirement?
Company Information
Largest and professional manufacturer of shot blasting machine in China.
Main market: South of America,North of America,Middle East,Australia,Asian,South of Asia
KAITAI has gained ISO14001:2004, ISO9001:2008 and CE certificates.
Shandong Kaitai Shot-blasting Machinery Share Co.,Ltd is a professional enterprise which integrates with technical research, development, production, installation, and debugging. Cooperated with machinery college of Jinan University, we have developed cleaning and intensification equipment of shot-blasting and shot-peening.
The company has first-class technology research-development center and well-developed quality management system, and we have passed ISO9001 international quality system certification. Our company is the National Blasting & Peening Standardization Technology Committee Unit. And the company takes part in and sets down the national standard Parabolic Shot Equipment General Technical Conditions All products apply CAD computer-aided design, the appearance applies three-dimensional software design, and key components of numerical simulation use finite element analysis.
Our main products are cleaning machine sand-peening equipment enviroment-protection and dust-removal equipment,and offer the ideal key equipments to casting, forging and heat treatment, steel structure, container, machinery, shipbuilding, aircraft, locomotive, the machine tool industry.
Shandong Kaitai ShotBlasting Machinery Co.,ltd is a professional enterprise on shot blasting machine and shot peening machine which located in Zouping, Shandong, China. The company occupies 100.000square meters. Our KAITECH brand shot blasting machine are exported more than 30 countries and regions. Our main market: Southeast Asia, Middle East, South America, Northern Europe,etc, In order to develop international market, we have bought two Dutch companies: Airblast, Sybrandy . One shop for all your surface and coating application needs! Our products: shot blasting machine, blast room, blast cabinet, steel shot, steel grit, stainless steel shot, blower, dust collector and casting.
Cooperation
1. EXHIBITIONS OVER THE WORLD:
Our KAITECH brand shot blasting machine have export more than 30 countries and regions. Our main market: Southeast Asia, Middle East, South America, Northern Europe,etc.
2. VISITORS TO THE COMPANY IN CHINA:
As a shot blasting machine and metal abrasive expert in China, KAITAI draws the attention of global buyers, and has offered high-quality product and attentive service for over 8000 clients worldwide.
Every month, a number of foreign customers pay an on-site visit to know more about our company and our metal surface cleaning equipment, and they are impressed by our production scale, manufacture flow, product quality and service quality.
We honestly invite you to our company to see our plants and production line. We can pick you up from Jinan International Airport or Train Stations in Jinan and Zibo.
FAQ
Q 1: Do you have after-sale service?
A : yes, we do.
Q 2: How long can your spare parts be used?
A: See detials bellow: ( Attention: this is the spare parrts for QY360 blasting wheel , for referennce only . If you need other types of parts detials, please contact us for details. )
Name |
Service life |
Material |
Remarks |
Blade |
600-800 hours |
CR20 precision casting |
One group include 8 pieces |
Control cage |
1200-1500 hours |
CR20 precision casting |
|
Distributor |
1200-1500 hours |
CR20 precision casting |
|
Top guard plate |
3000 hours |
CR20 sand casting |
|
End guard plate |
3000 hours |
CR20 sand casting |
One blasting wheel include 2 pieces |
Side guard plate |
2000 hours |
CR20 sand casting |
One blasting wheel include 2 pieces |
Impeller |
3000 hours |
40CR |
Q3: What’s the nearest airport around your company?
A: The Jinan International Airport is the nearest arround our company. If you want to come to visit out plants, we can pick you up there. BTW, the nearest railway station for fast train is Jinan West Station. We can also pick you up from the station.
Q4: What standards are you carrying out for your products?
A: We produce according to the ISO9001 and ISO14001 rules.
Q5: What’s your international market?
A: We Have exported to about 40 countries and regions all around the world, such as, the USA, France, Singapore, Australia, Middle East, Brazil, Peru and so on.
Q6: Do you sell steel shot or steel grit which can be uses in shot blasting machine?
A: We have four production lines for steel shot and steel grit production, one work shop for steel cut wire shots, and one workshop for stainless steel shot and Aluminium shot and so on.
Q7: Do you have the right to export?
A: Yes, we registered in the Customs and gained the right to export by ourselves.
Q8. How can I contaxt you directly?
A: Here bellow is our contact info.
Contact person: Heidi,Jiang
Shandong Kaitai Shot Blasting Machinery Share Co.,Ltd |
Shandong Kaitai Metal Abrasives Co., Ltd. |
Address: Qingyang, Zouping, Binzhou, Shandong, China Post code:256217
Tel: 86-531-88939891 | Fax: 86-531-88939198
Mobile: 86-15263002092 | Skype:zhenghua124
With over 8000 clients from nearly 40 countries and regions, we are the largest producer and supplier of shot blasting
machines and metal abrasives in China. Contact me if interested. We are looking forward to doing business and making friends with you.
