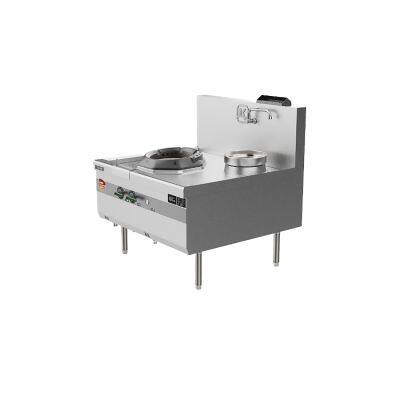

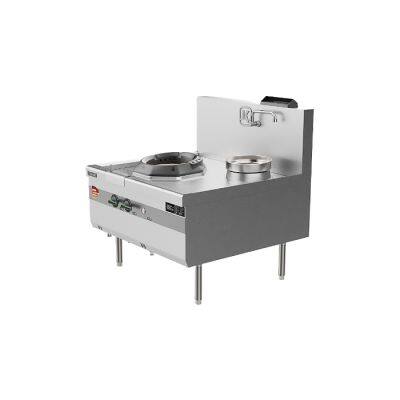

Help CenterGeneral F1 Natural Gas Single Cooking Single Warming Range
Related Products
-
General F1 Double Cooking Single Warming Natural Gas RangeNegotiableMOQ: 1 Piece -
General F1 Double Cooking Double Warming Natural Gas RangeNegotiableMOQ: 1 Piece
-
General F1 Safety-Compliant Wok & Warmer Set, SUS201 Stainless Steel, 2000Pa Rated PressureNegotiableMOQ: 1 Set
-
General F1 Style Two Wok and One Warmer - 1800x1150x800mm SUS201 Commercial Kitchen EquipmentNegotiableMOQ: 1 Set
-
General F1 Style One Wok and One Warmer With Safety, 220V Commercial Kitchen EquipmentNegotiableMOQ: 1 Set
Overall Dimensions1200×1150×800/450
Main Material201 Stainless Steel + Angle Iron Stove Frame
Main ApplicationCommercial Gas Range
ModelSZCT38‑DJF1
Rated Power250W
Rated Voltage220V
ConfigurationAngle iron stove frame (sea gray anti‑rust paint)Stove top: 201 stainless steel, 1.2 mm thicknessRear, front and side panels: 201 stainless steel, 1.0 mm thicknessHigh‑alumina integral refractory furnace chamberOctagonal countertop structureCast iron stove basin with flue passageStainless steel burner (inner diameter 99 mm, depth 70 mm)Single burner: 38 kWExternal pilot flame with steel pilot cover
BrandGeneral F1
OriginShandong
Heat Input38 kW per burner
Gas Inlet / Water Inlet / Drain OutletGas connection: 1"Water inlet: 1/2"Drain outlet: 1 1/4"
Gas TypeNatural Gas (Type 12T)
Rated PressureDynamic pressure at stove inlet: 2000 Pa
Frequency50 Hz
Product Features250W fan + premix chamber + cable‑operated air‑gas linkage damperDual pressure stabilizing valves with solenoid valve and flame failure protection controllerYudian F1 handle (medium size for small fire valve, large size for main gas valve)Small fire: integrated ball valve + needle fine‑tuning valve with lead sealMain gas: integrated ball valve + flow control valve with lead seal
Power Supply220V
3C Certificate No.2024012404674327
