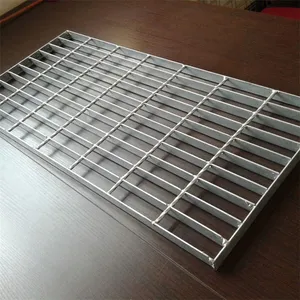

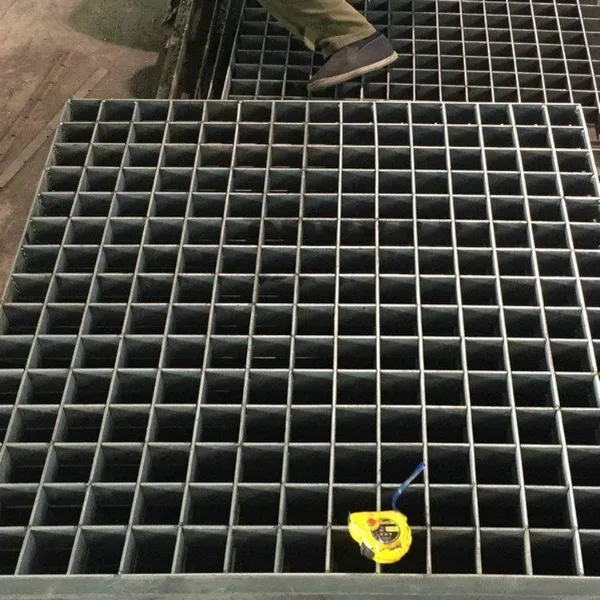

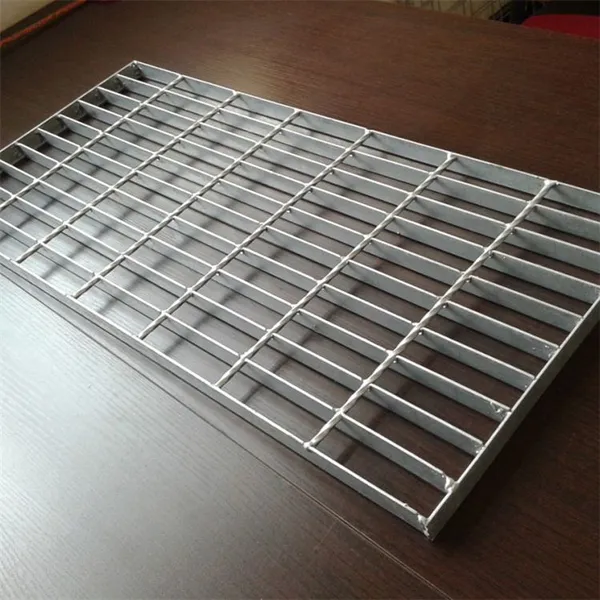

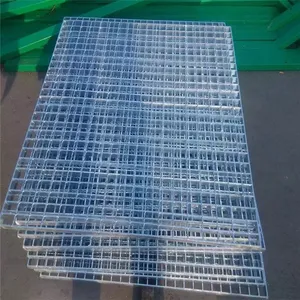

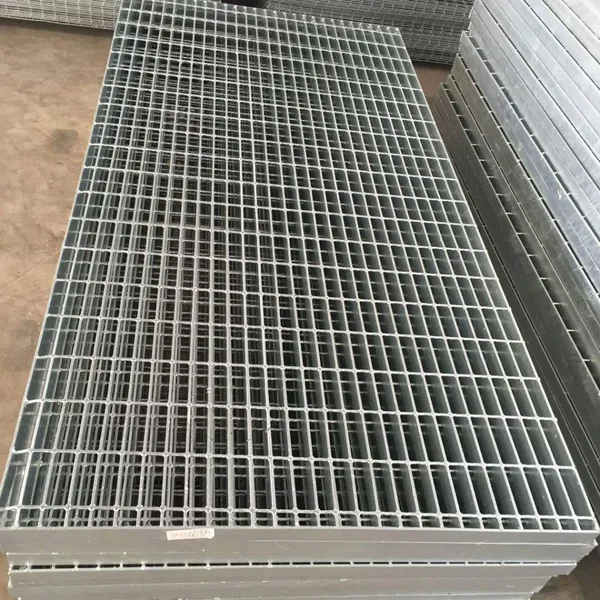

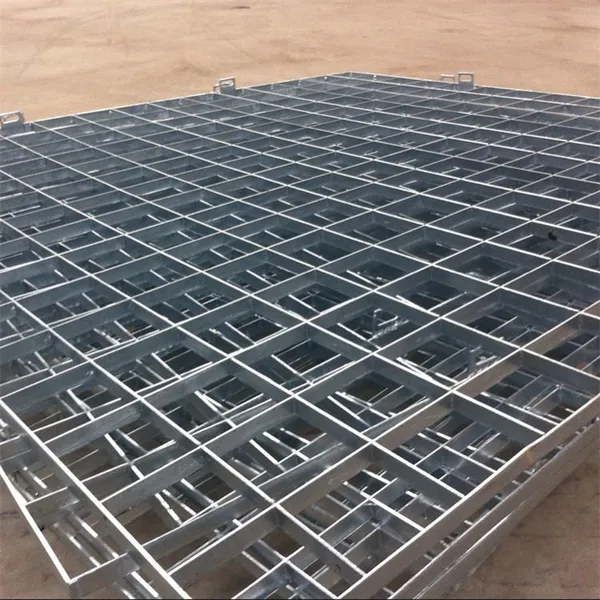

Help CenterSpecial-Shaped Interlocking Steel Grating for Retrofit and Renovation
Product Spotlights
Related Products
-
Hot Dip Galvanized Steel Grating High Strength Anti-Slip Serrated Metal Bar Grating for Industrial Platform Walkway Trench CoverNegotiableMOQ: 500 Square Meters -

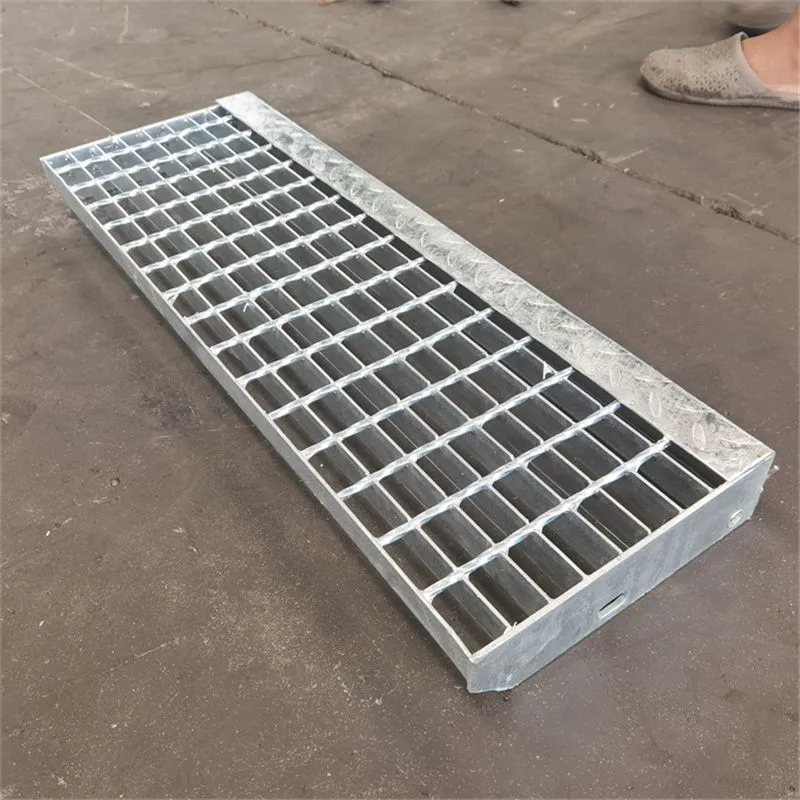

Steel Grating Stair Treads With Anti Slip Surface for Industrial SafetyNegotiableMOQ: 500 Square Meters
-
High Strength Steel Bar Grating Hot Dip Galvanized Anti-Slip Serrated Steel Grating for Platform Walkway and Drainage CoverNegotiableMOQ: 500 Square Meters
-
Industrial Steel Grating Hot Dip Galvanized for Walkways and PlatformsNegotiableMOQ: 500 Square Meters
-
Anti-Slip Serrated Steel Grating Hot Dip Galvanized Heavy Duty Steel Bar Grating for Industrial Walkway and Stair TreadsNegotiableMOQ: 500 Square Meters
As an ISO9001-certified manufacturer since 2015, Anping Wanglai Wire Mesh Products Co., Ltd. specializes in engineering Special-Shaped Interlocking Steel Grating solutions for complex retrofit scenarios. Our 5,000-10,000㎡ factory in Hebei produces grating systems that eliminate structural modifications during renovations, saving up to 40% installation time. With US$5M-$10M annual exports to 6 continents, we understand global compliance requirements for industrial flooring upgrades.
Core Technical Advantages:
- Zero-Weld Installation: Patented interlock mechanism allows tool-free assembly
- Complex Geometry Handling: CNC-pressed panels accommodate irregular footprints
- Load-Adaptive Design: Adjustable bearing bar spacing (30/40/60mm)
- Corrosion Defense: 80μm zinc coating (standard) or 316 stainless steel option
Performance Specifications:
| Parameter | Standard Range | Customization |
| Panel Dimensions | 1000x600mm | Up to 6000x1200mm |
| SWL (Static) | 3kN/m² | Up to 10kN/m² |
| Slip Resistance | Serrated surface (standard) | Grit-coated option |
The press-locked construction eliminates welding points that typically fail in corrosive environments. For chemical plants, we integrate anti-clog nose channels that prevent debris accumulation. During factory floor retrofits, our grating installs directly over existing concrete with adjustable pedestal supports (available upon request), maintaining operational continuity.
Trust Verification:
Our Tianjin-shipped products undergo 3-stage quality control before reaching your site. With 51-100 skilled workers and 8 years of OEM experience across North America, Europe and ASEAN markets, we guarantee:
- ±0.5mm dimensional tolerance on cutouts
- 72-hour salt spray test reports for coastal projects
- 15-year structural integrity warranty
FAQ:
Q1: Can this replace existing grating without structural reinforcement?
A: Yes, in 90% of retrofit cases. Our engineering team provides free load analysis.
Q2: What's the lead time for custom curved shapes?
A: Typically 18-25 days after drawing approval.
Q3: Is onsite measurement required?
A: Not necessarily. We accept point cloud data or template rubbings.
Q4: How does interlocking handle vibration?
A: Vibration-damping inserts (optional) prevent noise/movement in mechanical rooms.
Q5: Minimum order quantity?
A: 50m² for standard profiles; 100m² for custom shapes.
Q6: Compliance with international standards?
A: Manufactured per EN 1433 load classes and OSHA slip resistance.
