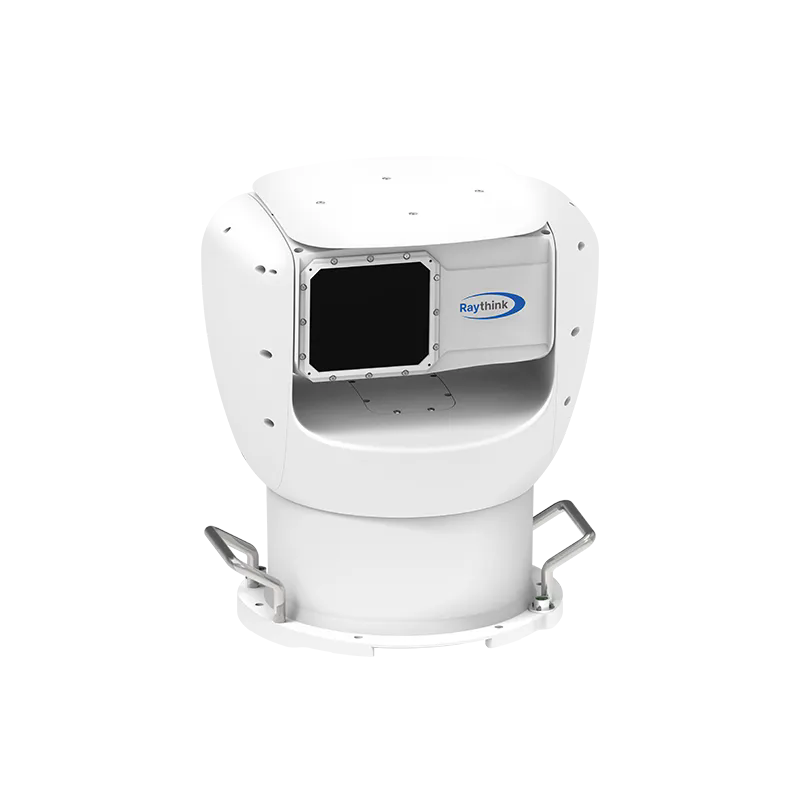

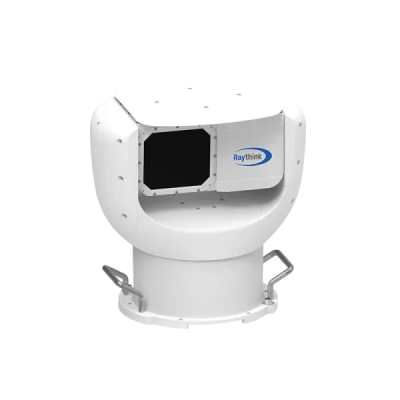

SilentW-U6 Series Infrared Panoramic Camera
-
SilentW-U6 is a solution for large area monitoring by using a 12μm 640×512 thermal detector and capturing 360° panoramic image. SilentW is able to detect multiple objects at same time and can be widely used in nature reserve area, oil/gas fields and mines to make a comprehensive security solution.
Feature
Industry-Leading Infrared Detector
Adopts the latest 12μm uncooled infrared detector or high-performance MWIR cooled detector, and advanced infrared image algorithms to ensure clear imaging at greater distances.
360° Panoramic Surveillance
Detects a full circle in approximately 2 seconds and delivers real-time panoramic video images, enabling comprehensive visual monitoring without blind spots.

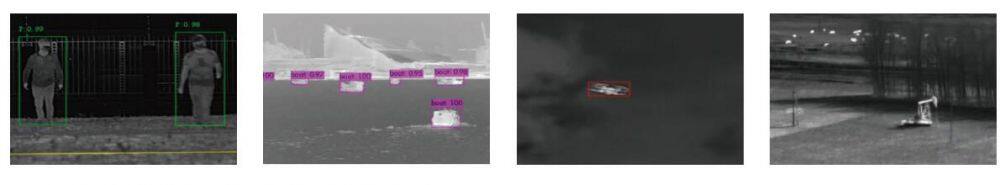

Multi-Target Detection
apable of simultaneously detecting&tracking up to 128 targets, detection range up to 8km.
Link With PTZ Camera
Easy calibration, link with dual-spectrum PTZ camera to track the target. Using zoom lens to view more details from long distance.
Intelligent Detection Algorithm
Deep learning AI algorithm to recognize human, vehicle, ship, and UAV targets.
Low Power Consumption
Low power cunsumption, can be powered by solar, reduce the needs of infrastructure.
Specification
| Thermal Module | |
|---|---|
| Detector TypeVOx, uncooled FPA detectorsSpectral Range8~14μmResolution640×512Pixel Pitch12μmFocal Length55mm/75mm | |
| PTZ | |
| Pan360° continuous，180°/s or 133°/sTilt-20°~+35°，motorizedScan modePanorama Scan | |
| Smart Function | |
| Fire DetectionSupportVCAMotion Target Detection/AI DetectionLinkage ActionLinkage of PTZ camera | |
| System Interface | |
| PowerDC 30V 5ANetwork1000M Ethernet port | |
| General | |
| Work Environment-40℃~+70℃ProtectionIP66Power Consumption≤30WDimenstion(mm)327×260×377Weight20kg | |

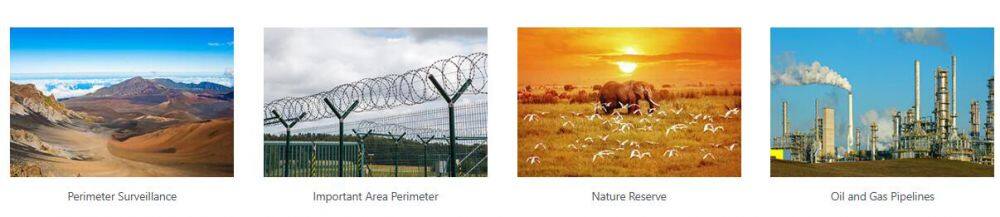

Application Scenarios
