Product Details

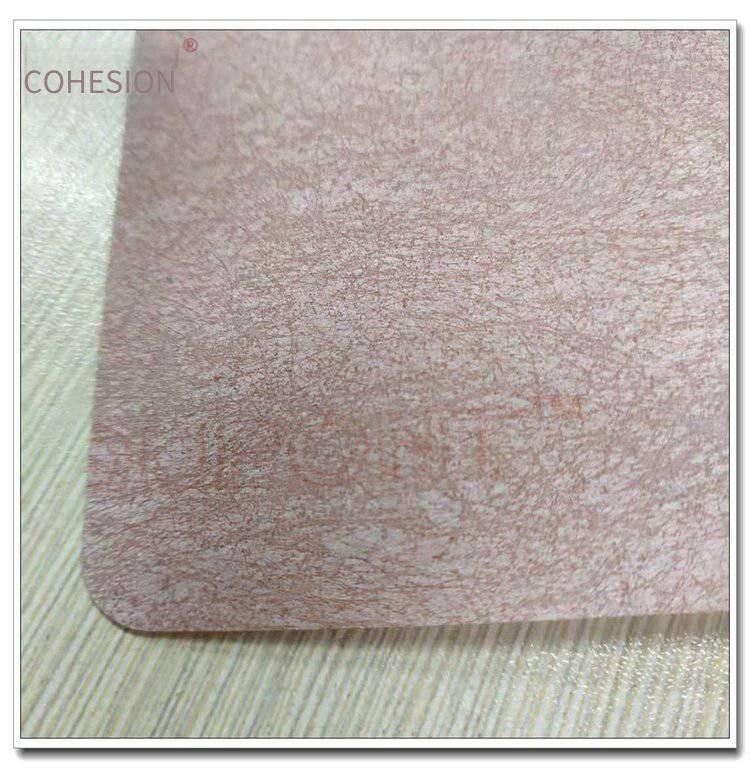

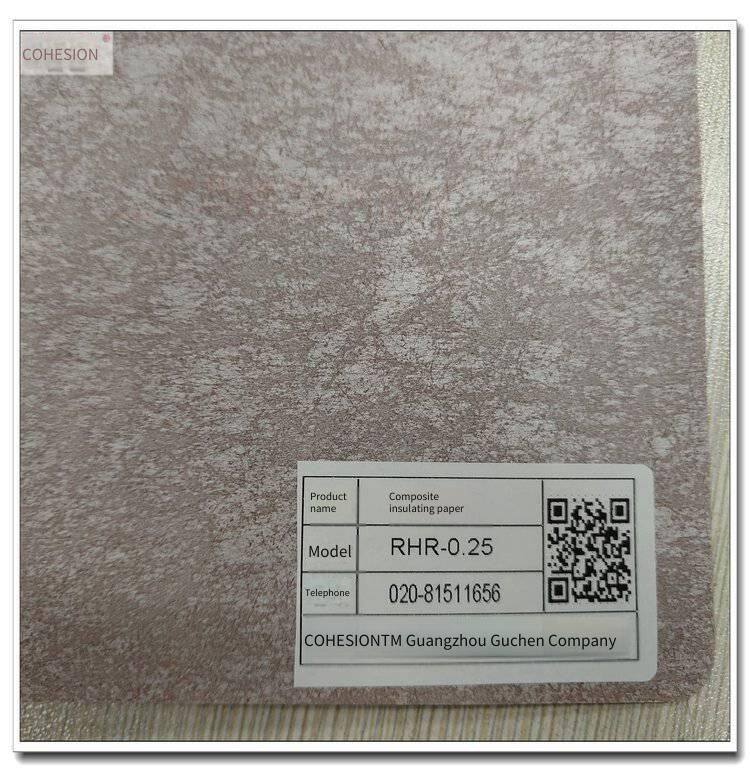

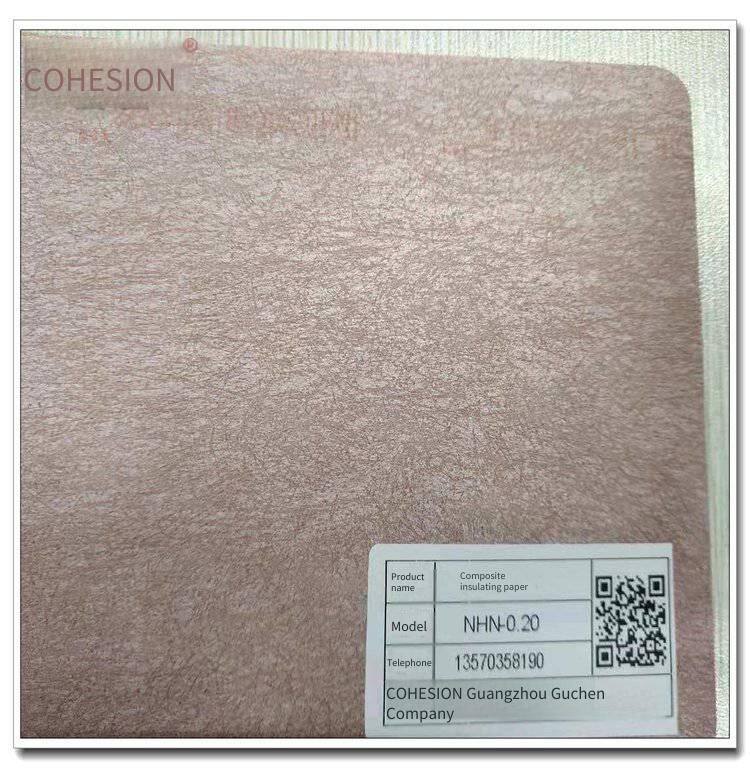

The NHN, RHR, and AHA series of composite insulating papers combine the advantages of the high-temperature resistance of paper and the high-voltage resistance and good mechanical properties of PI. Since it is a double-sided composite and both sides are protected by paper, it can be used in environments with high overall temperature resistance requirements. However, since PI shrinks at high temperatures, the product may deform. Therefore, this type of product is not suitable for use in high-end electrical equipment. However, the NHN and AHA composite papers combine the advantages of paper and PI, and the price combines the prices of paper and PI, improving the cost-performance ratio. So, they are widely used in small transformers, high-end motors, motors, and electronic and electrical equipment.
NMN and NHN are made by compounding genuine American DuPont Nomex paper raw materials and are UL certified.AMA is composed of a polyester film in the middle and Aramid paper on both sides, coated with H-grade adhesive. Aramid paper is an insulating paper similar to the performance of Nomex 464, developed and produced by domestic manufacturers. AMA is a soft composite material with a heat resistance rating above F grade. This product has passed the 200°C high-temperature test of the Guilin Electrical Equipment Scientific Research Institute in Guangxi. It has good mechanical and electrical properties, and the product surface is smooth. It is especially suitable for use in the automatic winding machines of low-voltage motors. AMA is widely used for inter-slot, slot cover, and phase insulation in low-voltage motors, and can also be used for inter-layer insulation in transformers and other electrical equipment.
Product Introduction

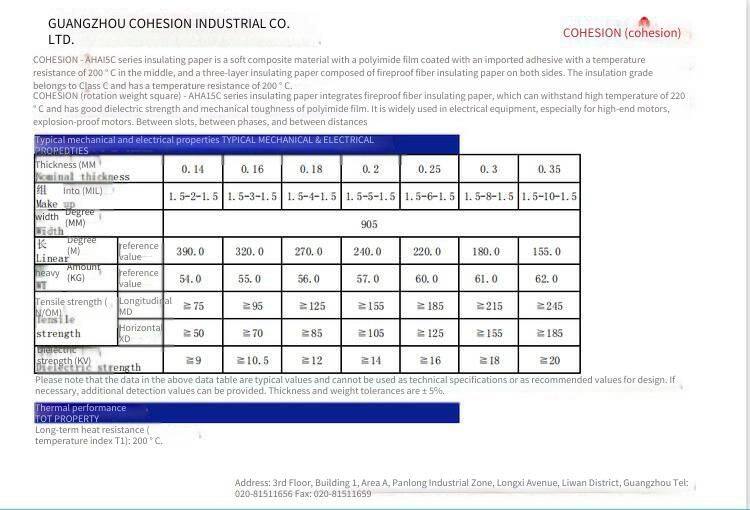

Composite materials are products with balanced electrical, physical, and thermal properties. The reliability of equipment operation is improved by enhancing the performance of insulating materials.1. For 180°C (H)-grade motors or generators, used as slot insulation, phase insulation, and slot insulation.2. For dry-type transformers, used for inter-layer insulation and grounding insulation.3. For spiral-wound tubes, 4-wire and wire harness wrapping.5. For circuit breaker panels.6. For busbar insulation and transformer insulation.7. For capacitor insulation layers.8. For current-carrying wires and devices.9. For DC coil insulation.Main characteristics:1. High toughness.2. Excellent dielectric properties.3. High thermal conductivity.4. Easy to insert.5. Certain hardness and resilience.6. UL insulation system certification, grade 200°C (N).7. CSA certification, temperature grades 180°C and 200°C.Product specifications:Thickness 0.1 - 0.76 (mm), color white, size 914 (mm).Packaging description: Boxed. Brand: 3M, grade H, features: high-temperature resistance, high-voltage resistance, heat resistance 220.

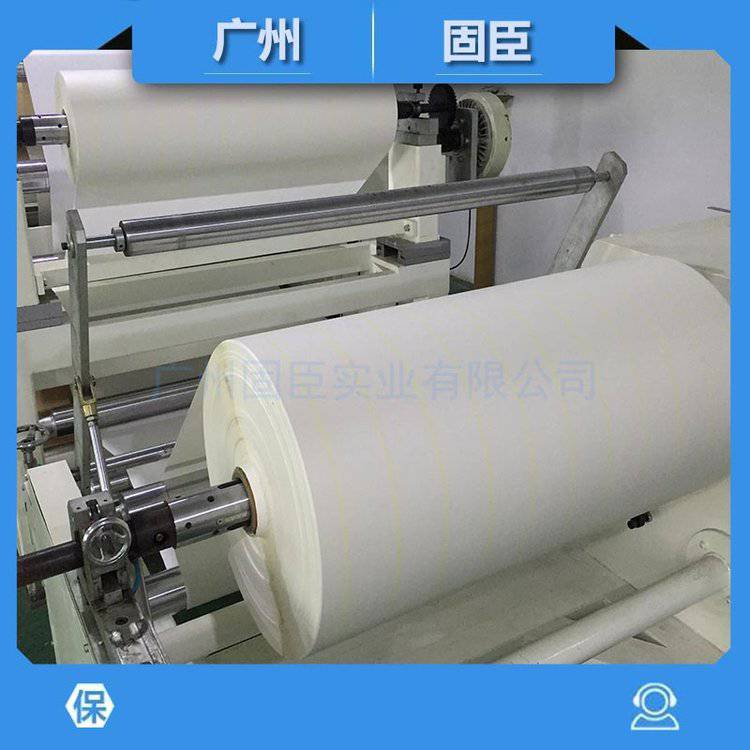

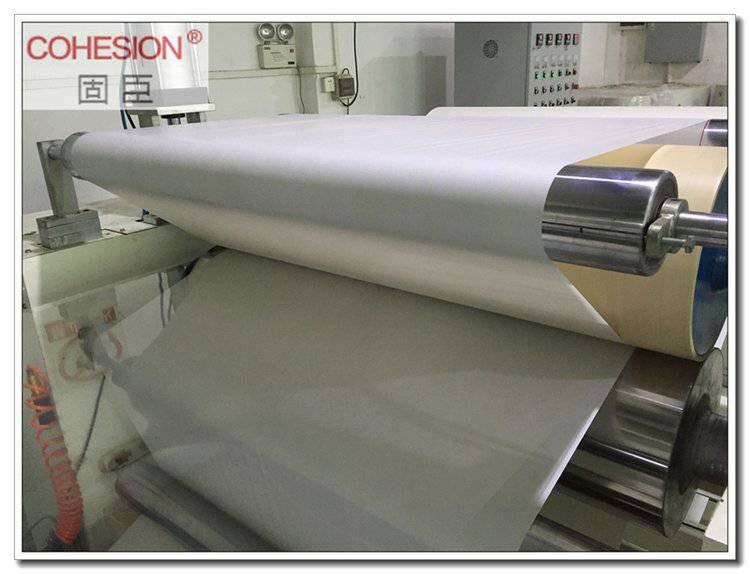

Product Processing

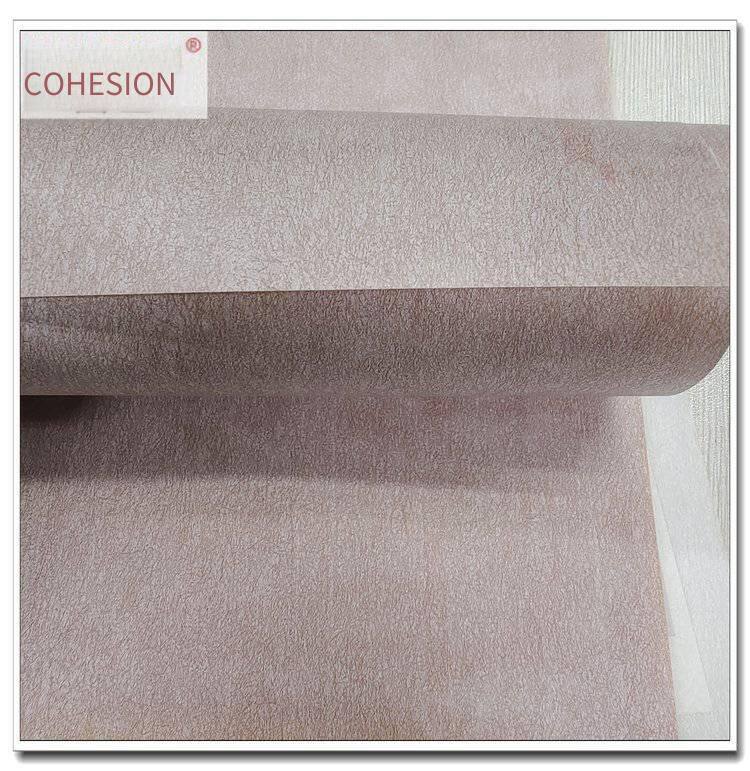

AHA is composed of a middle layer of polyimide film and Aramid paper on both sides, coated with H-class adhesive. Aramid paper is an insulating paper similar to the performance of Nomex464, developed and produced by domestic manufacturers. AHA is a soft composite material with a heat resistance rating of H-class (180 degrees), which has good mechanical properties, such as tensile strength and edge tear resistance, as well as good electrical strength. The product surface is smooth, which can ensure no obstacles when using an automatic coil winding machine for the production of low-voltage motors. AHA is mainly used for inter-slot, slot cover, and inter-phase insulation of high heat-resistant motors.

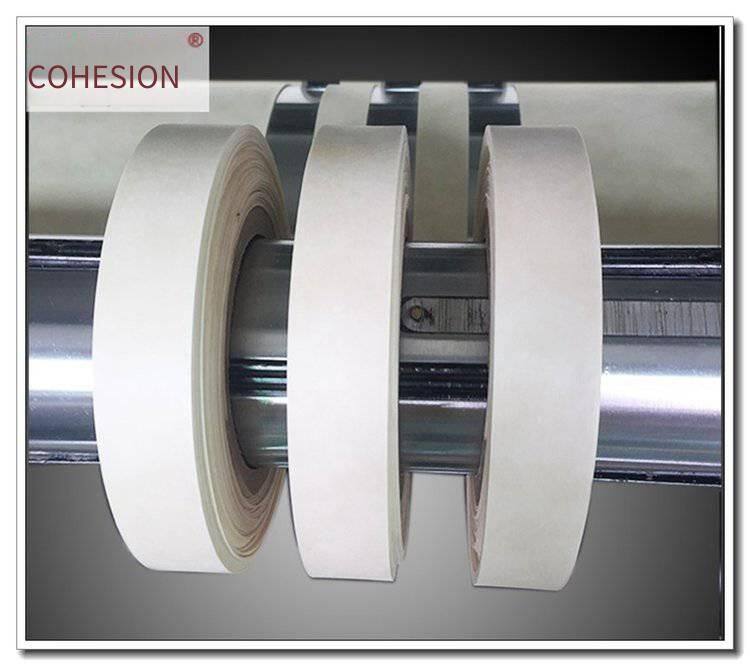

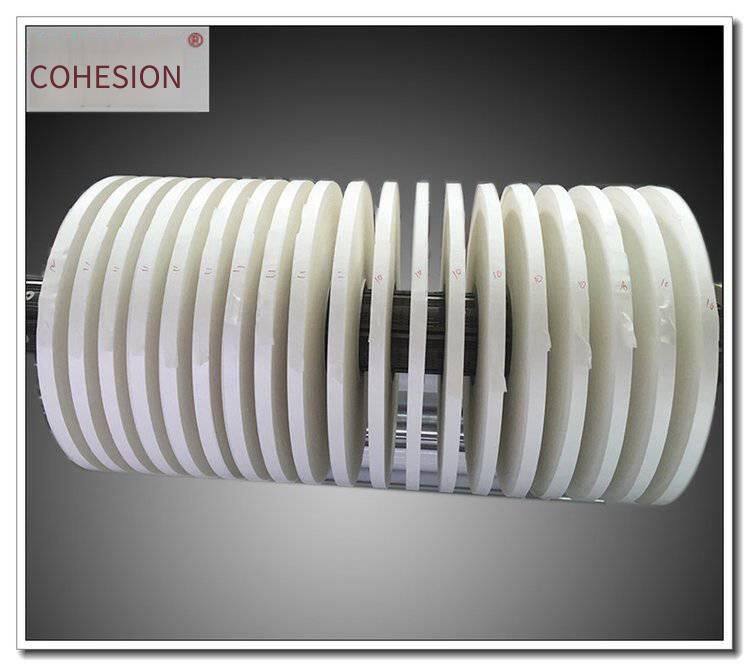

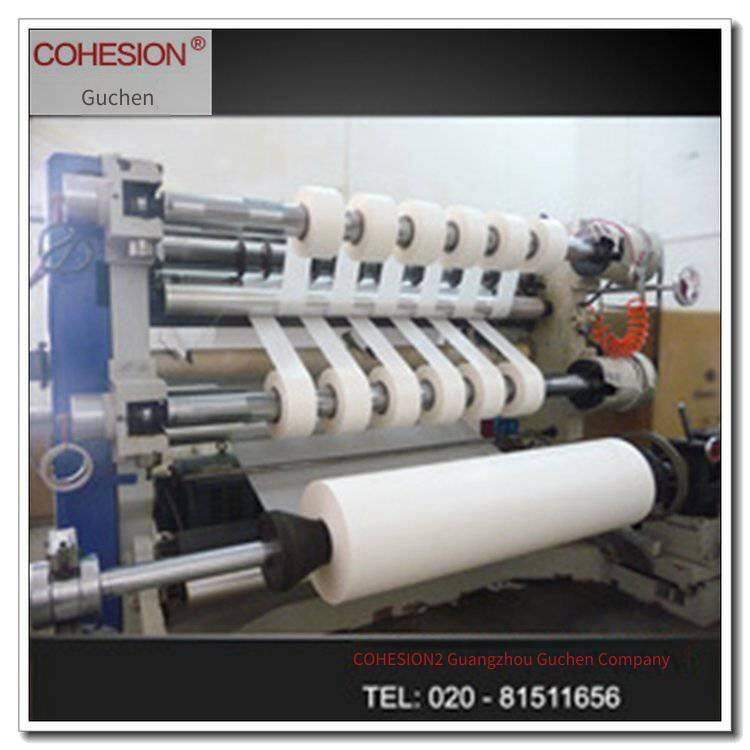

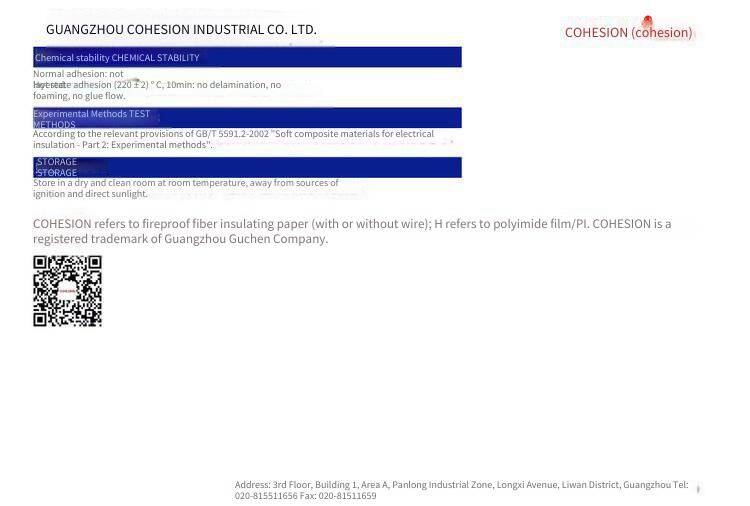

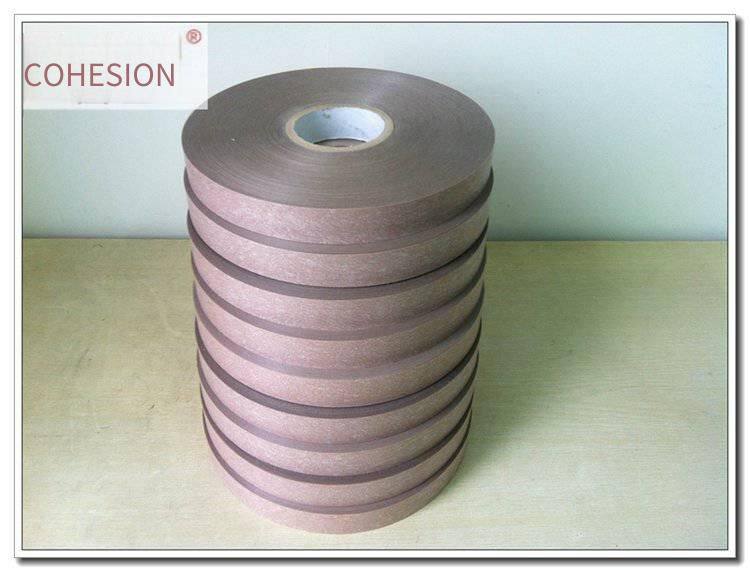

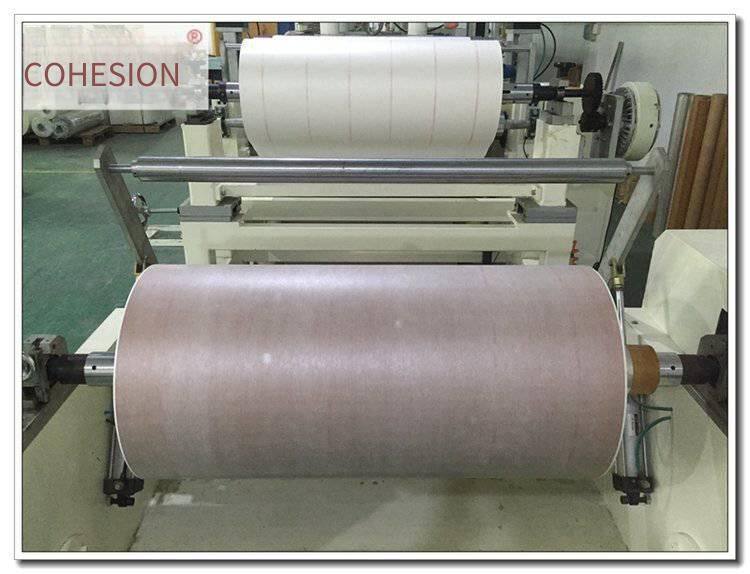

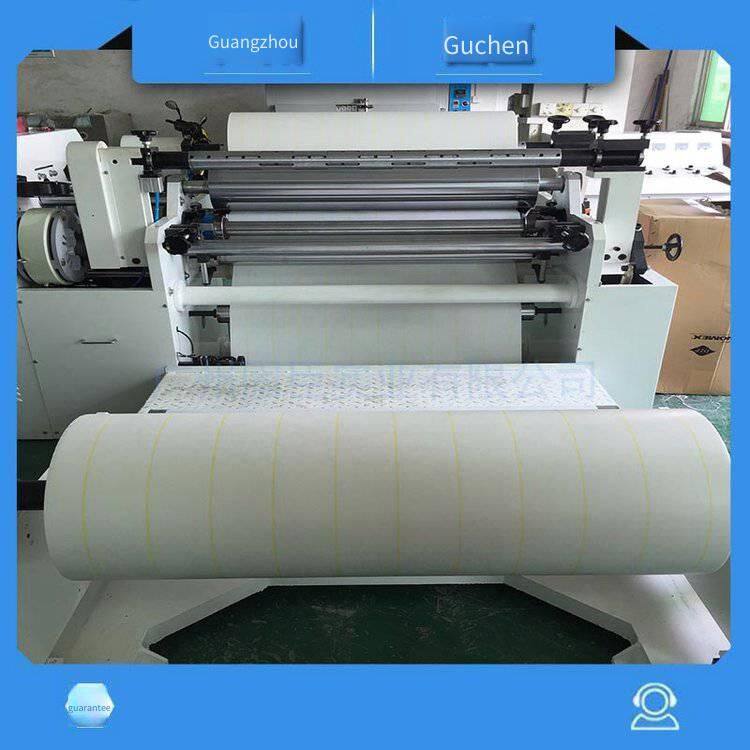

AMA/AHA should be stored under sealed and dry conditions. The products are mostly provided in rolls with a width of 1000mm. At the same time, Guangzhou Guchen Industry Co., Ltd. provides slicing (about 1000*1000mm or according to customer requirements) and coil processing (minimum width is 5mm).
Free Cutting
Product Application
Company Introduction
Guangzhou Guchen Industry Co., Ltd. is an enterprise focusing on insulating materials. The company covers trade, production, and processing services, mainly selling high-quality Class C, Class H, Class F, and Class B insulating materials. These products are widely used in the production and manufacturing of new energy batteries, traction motors, transformers, electrical equipment, motors, and electronic appliances. The company has cooperated with enterprises such as Apple, Huawei, CRRC, Siemens, Schneider, and many die-cutting manufacturers of electronic appliances, with an annual turnover of over 130 million yuan.
In terms of trade, it acts as an agent to sell Class C insulating materials of DuPont in the United States - NOMEX insulating paper and KAPON polyimide film. These products have all passed the US UL certification and the environmental protection certifications of RoSH and REACH in the European Union.

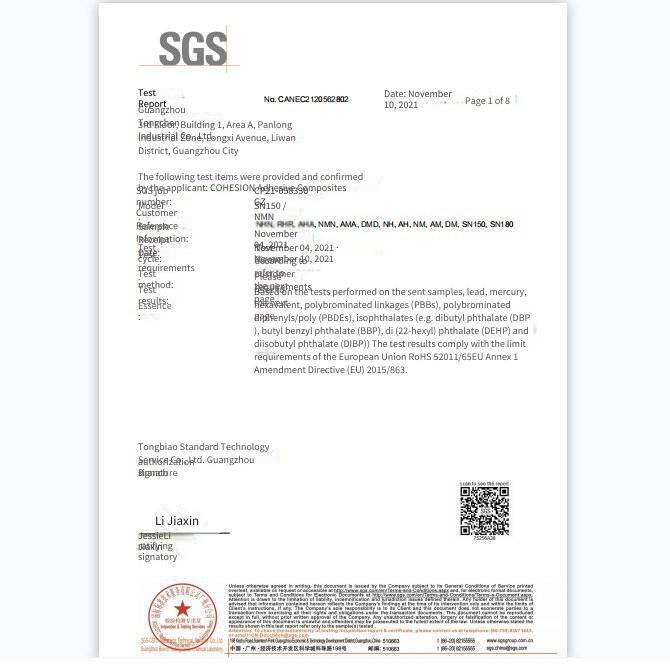

In terms of production, it has its own brand - COHESION, producing a full range of composite insulating papers of NHN, NMN, AMA, DMD, NH, NM, AM, and DM of Class H, Class F, and Class B. The products of the COHESION brand have all passed the environmental protection certifications of RoSH and REACH in the European Union, and the US UL certification is also in the process of being certified.
The company has always regarded quality and service as the foundation for survival and development. It can provide technical solutions for customers to produce products with low cost and high quality, thus contributing to improving the product performance of Chinese enterprises.
Company Business
Guangzhou Guchen Industry Co., Ltd. covers
1. Agent for American DuPont NOMEX insulating paper Class C (temperature resistance 220℃), models 410, 411, 464, 250, 256 materials.
2. Production of COHESION Class C (200℃), Class H (180℃), models NHN, AHA, NHN, AMA
Composite insulating paper Class F (155℃) - NMN, AMA, DMD
3. Sales of domestic PI film (golden film) Class C (temperature resistance 220℃)
4. Processing of insulating materials (die-cutting and punching). Insulating materials with a thickness within 0.60mm and a width within 580mm can be punched.

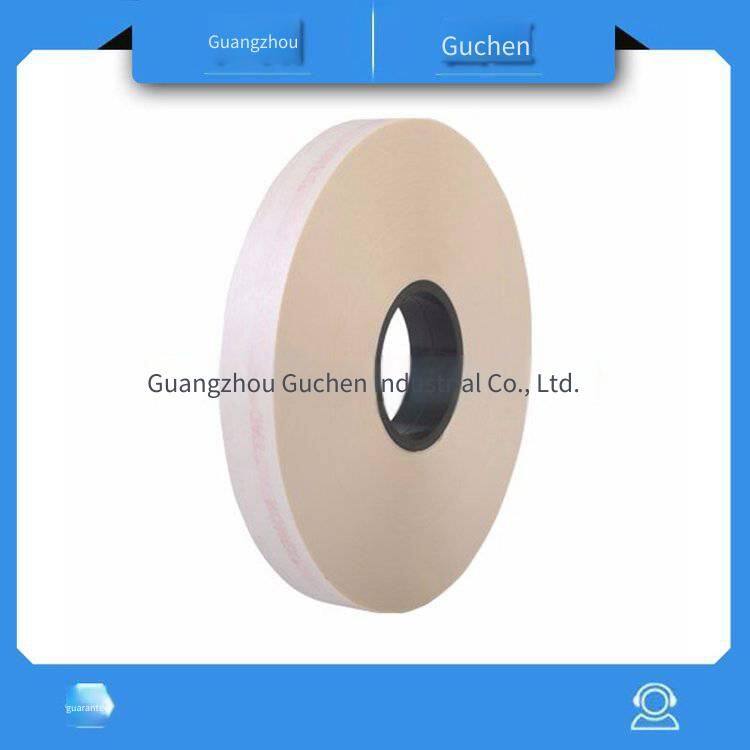

5. Flame-retardant tapes, DuPont Nomex high-temperature tapes, domestic flame-retardant and fireproof tapes, free cutting, Nomex paper tapes
Insulating materials, electronic die-cutting, electronic technology, electronic winding wires: transformer winding wires, plastic materials, precision plastics, plastic products, rubber products. For customers in the magnet wire factory, interlayer insulation: dry-type transformers, electrical insulating materials, trading category, insulating materials, electrical materials company
Motors, motors, electronics, electrical appliances, precision electronics, adhesive technology
