ANSI/ BS/DIN/JIS Globe Valve With Handle Operation Cast Iron Forged Steel Stainless Steel Durable Cut-off Steam Globe Valve
US$ 68.45
1 - 9 Piece
US$ 68.38
≥10 Piece
Key Specifications
Get Latest Price
Type:
Globe Valves
application:
General
Bonnet Material:
316 Stainless Steel, Carbon Steel, Cast Iron
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BSBS5152 Globe Valve With Handle Operation Cast Iron Forged Steel Stainless Steel Durable Cut-off Steam Globe ValveUS$ 198.50 - 205.34MOQ: 1 Piece -
Stainless Steel SS304 SS316L CF8 Pneumatic Actuator ANSI Class 150 Flanged Angle Seat Valve With Limit Switch and Air FilterUS$ 68.38 - 68.45MOQ: 1 Piece
-
Universal Manual Threaded Globe Valve Stainless Steel/Cast Iron/Sh Brass for Water Gas Shutoff Solenoid/Electric OEMUS$ 342.23MOQ: 1 Set
-
Marine JIS Cast Iron Straight Globe Valve JIS F7305 5K; Marine JIS Flanged Globe ValveUS$ 684.46MOQ: 1 Set
-
High-Pressure 1/2\" A105N Forged Carbon Steel Globe Valve 800#-4500# Shut Off Designed for Oil and Gas High TemperatureUS$ 684.46MOQ: 1 Set
application
General
Bonnet Material
316 Stainless Steel, Carbon Steel, Cast Iron
Disc Material
316 Stainless Steel, Carbon Steel, PTFE, Brass
port size
1/2"-12"/DN15-DN300
power
Manual
structure
Globe
model number
J41H- 300/600LB
brand name
CHX
place of origin
Hebei, China
Connection Size
DN15-DN300
customized support
OEM, ODM, OBM
media
Water,Oil,Gas
temperature of media
High Temperature, Low Temperature, Medium Temperature
warranty
1 years
Brand Name
CHX
Place of Origin
Place of Origin Hebei, China
Color
Blue, Red, Green, Black, Silver, Grey
Connection Type
Flange,Thread,Welding
Temperature of Media
High/Low/Medium/Normal Temperature
Drive Way
Worm Gear, Pneumatic, Manual, Hydraulic, Electric
Suitable media
Water,Steam,Oil
Pressure
JIS10-20K, ANSI Class 150-900, Pn1.0-32.0MPa
Body material
Stainless Steel/SS304/SS316/CF3/CF3m/CF8/CF8m

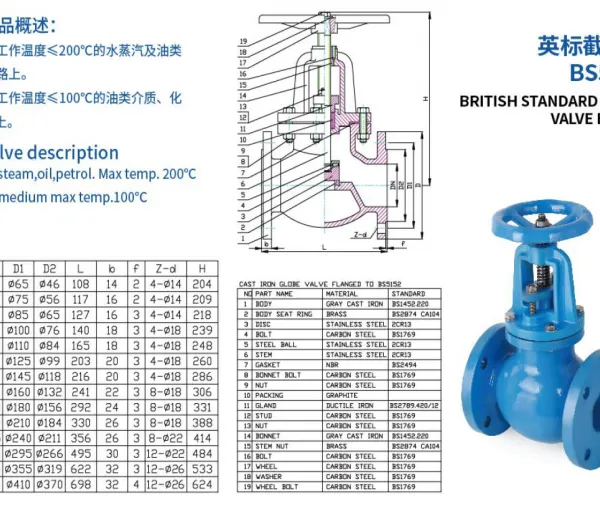

Specification
Body,Bonnet |
GRAY CAST IRON BS1452.220 |
|
BODY SEAT RING |
BRASS BS2874 CA104 |
|
DISC |
STAINLESS STEEL 2CR13 |
|
BOLT |
CARBON STEEL BS1769 |
|
STEEL BALL |
STAINLESS STEEL 2CR13 |
|
STEM |
STAINLESS STEEL 2CR13 |
|
GASKET |
GASKET NBR BS2494 |
|
BONNET BOLT |
BONNET BOLT CARBON STEEL BS1769 |
|
NUT |
CARBON STEEL BS1769 |
|
PACKING |
GRAPHITE |
|
GLAND |
DUCTILE IRON BS2789.420/1 |
|
BONNET |
GRAY CAST IRON BS1452.220 |
Product Description
Company Profile
Chengxin Valve Co.,Ltd. is a great factory specializing in manufacturing and selling valves and castings.It is located in Weizhuang industrial zone,which covers an area of more than 7000 square meters and a staff of over 400 people including various types of engineering,technical staff and senior management of more than 60 persons.The annual out put is over 20000 tons.
Both national and international standard products are produced.The national standard has 12 series,more than 3000
specifications.The products covers gate valve,globe valve,check valve,ball valve,butterfly valve,strainer,balancing valve,etc.The international standard include DIN,Russian standard,BS,ANSI,JIS.Many products have been exported to many countries such as Ireland,Peru,Russia,Pakistan,Korea,Vietnam,Indonesia and so on.
A complete quality control system is set for each working procedure from raw material to finish products.Totally 28 tests are run through to ensure stable quality.Currently the modern physical and chemical laboratories has been built.The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system,EAC and WRAS certificates.
Both national and international standard products are produced.The national standard has 12 series,more than 3000
specifications.The products covers gate valve,globe valve,check valve,ball valve,butterfly valve,strainer,balancing valve,etc.The international standard include DIN,Russian standard,BS,ANSI,JIS.Many products have been exported to many countries such as Ireland,Peru,Russia,Pakistan,Korea,Vietnam,Indonesia and so on.
A complete quality control system is set for each working procedure from raw material to finish products.Totally 28 tests are run through to ensure stable quality.Currently the modern physical and chemical laboratories has been built.The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system,EAC and WRAS certificates.
Packing & Delivery
Meet the customer's requirements of a variety of packaging methods, non fumigation packaging boxes, pallets, cartons, containers in a variety of ways.
FAQ
1.Q: Are you a manufacturer or trading company ?
A: We are a professional valve factory Located In Hebei, China.
2. Q: What's Execution Standard of products?
A:ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
3. Q: Is there any stock in your factory? And How long is your delivery time?
A: We stock valves with normal sizes. Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
4. Q: Can you provide the relevant documentation and certificate?
A: Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test
reports according to the customers need.
5. Q:Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
6.Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
7.Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. If you have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share
A: We are a professional valve factory Located In Hebei, China.
2. Q: What's Execution Standard of products?
A:ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
3. Q: Is there any stock in your factory? And How long is your delivery time?
A: We stock valves with normal sizes. Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
4. Q: Can you provide the relevant documentation and certificate?
A: Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test
reports according to the customers need.
5. Q:Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
6.Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
7.Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. If you have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share
