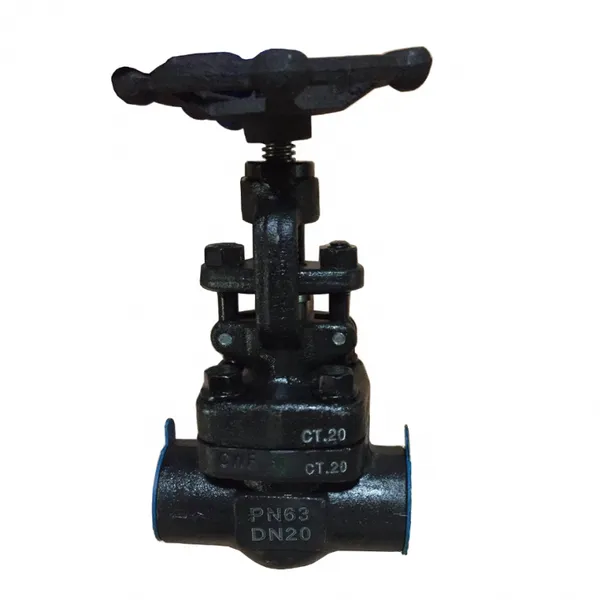

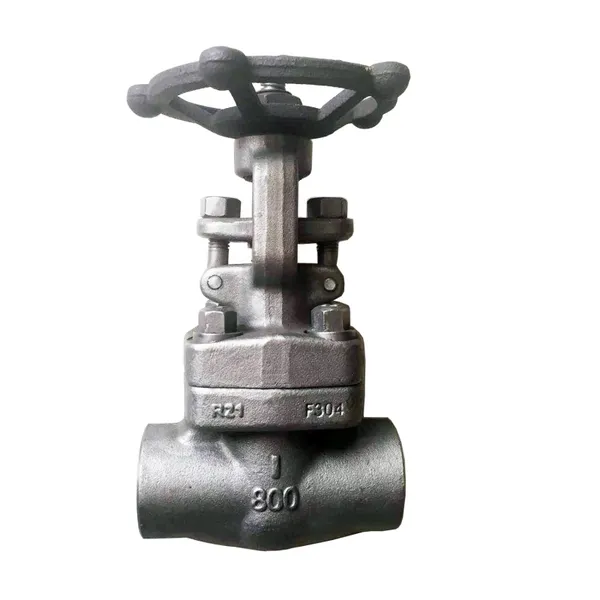

API Standard J61H/Y-25C 1/2'' Class 800LB Forged Steel Socket Welding Globe Valve
US$ 191.26
1 - 49 Unit
US$ 136.62
≥50 Unit
Key Specifications
Get Latest Price
Type:
Globe Valve
application:
General
Bonnet Material:
316 Stainless Steel, Carbon Steel, Cast Iron
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality ANSI API DN20 PN25 2500lb A105 Welded Forged Steel Hard or Soft Seal Globe ValveUS$ 120.84 - 325.48MOQ: 1 Unit -
Cast Steel Ductile Iron Flange Type WCB PN16 NBR/PTFE/EPDM Rubber Lined Soft Seal Diaphragm ValveUS$ 198.09MOQ: 1 Piece
-
Cast Iron/Ductile Iron WCB GG25/GGG50 DN40-DN300 PN16 Type Diaphragm Valve Valves Product TypeUS$ 198.09MOQ: 1 Piece
-
Cast Iron Cast Steel DN40 PN16 150LB WCB Manual Flange Type EPDM/NBR/PTFE Rubber Soft Seal Diaphragm ValveUS$ 198.09MOQ: 1 Piece
-
6'' PTFE Lined Cast Steel WCB Body Flange Corrosion Resistant Acid and Alkali Resistant Type Diaphragm ValveUS$ 198.09MOQ: 1 Piece
application
General
Bonnet Material
316 Stainless Steel, Carbon Steel, Cast Iron
Disc Material
316 Stainless Steel, Carbon Steel
port size
1/4"-3"
power
Manual
structure
GLOBE
model number
J61Y/H-16C/25/40/64/100
brand name
CHX
place of origin
Hebei, China
customized support
OEM, ODM, OBM
media
Water
temperature of media
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
warranty
1 year
Body material
A105,A182 F11/F22,A182 F304/304L,A182 F316/F316L
Pressure
JIS10-20K, ANSI Class 150-900, Pn1.0-32.0MPa
Seat
Forged Steel,SS
Color
Blue, Red, Green, Black, Silver, Grey
Connection type
Thread, Flange, Welding,Socket
Drive Way
Worm Gear, Pneumatic, Manual, Hydraulic, Electric
Suitable medium
Water,Steam,Oil
Usage
Industrial Usage
Certification
ISO,EAC,WRAS,CE
Specification
API 602 A105 Forged Steel Globe Valve main material of parts |
||
Body,Bonnet |
A105,A182 F11/F22,A182 F304/304L,A182 F316/F316L |
|
Stem |
2Cr13/SS304/SS316/Carbon Steel |
|
Disc |
A182 F6A,A182 F304/F304L,A182 F316/316L |
|
Seat |
A 276/420,A182 F304,A182 F304/304L,A182 F316/316L |
|
Bonnet Gasket |
Graphite |
|
Hand wheel |
Malleable Iron |
|
Packing |
Graphite |
|
API 602 A105 Forged Steel Globe Valve Standard |
||
Design Standard |
ASME/ANSI B16.34,API602 |
|
Face to Face |
ANSI B16.10 |
|
Flange Standard |
ANSI B1.20.1 |
|
Testing Standard |
API 598 |
|
Product Description
Company Profile
Chengxin Valve Co.,Ltd. is a great factory specializing in manufacturing and selling valves and castings. It is located in Weizhuang industrial zone,which covers an area of more than 7000 square meters and a staff of over 400 people including various types of engineering, technical staff and senior management of more than 60 pesons. The annual out put is over 20000 tons.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
Both national and international standard products are produced.The national standard has 12 series, more than 3000 specifications. The products covers gate valve, globe valve, check valve, ball valve, butterfly valve, strainer, balancing vlave, etc. The international standard include DIN, GOST(Russian standard), BS, ANSI, JIS. Many prodcuts have been exported to many countries such as Ireland, Peru, Russia, Pakistan, Korea, Vietnam, Indonesia and so on.
A complete quality control system is set for each working procedure from raw material to finish products. Totally 28 tests are run through to ensure stable quality. Currently the modern physical and chemical laboratories has been built.The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
Production Processes
Certifications
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
Packing & Delivery
Meet the customer's requirements of a variety of packaging methods, non fumigation packaging boxes, pallets, cartons, containers in a variety of ways.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional valve factory Located In Hebei, China.
Q: What's Execution Standard of products?
A: ISO/ANSI/AWWA/API/DIN/BS/JIS/EN/GOST/AS standard.
Q: How long is your delivery time?
A: Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, Welcome sample order to test and check the quality of products. The sample amount is less than $100, the product cost is free, and the customer needs to pay the express delivery fee. If the sample amount is higher than $100, and the sample cost and express delivery fee need to be negotiated by both parties.
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
Q: Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
Q: Can you provide the relevant documentation and certificate?
A:Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test reports according to the customers need.
Q: What is your terms of delivery?
A: We accept EXW/FOB/CIF etc.
Q. How to deal with after sales ?
A: warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. We will provide process guidance services, replacement parts, on-site guidance and maintenance services. (both parties shall negotiate the relevant expenses)
Q: Why choose us?
A: 1. 20 years of manufacturing and developing experience;
2 A Strong R & D team;
3 Service experience for thousands of customers at home and abroad;
4 Export to 30 countries including Southeast Asia, East Asia, Eastern Europe and Central Asia;
5 Three casting production lines with stable casting quality, high production efficiency and fast delivery time
Q: Do you have agent or representative abroad?Can we join you?
A:Yes,We have some agents abroad. You have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share.
A: We are a professional valve factory Located In Hebei, China.
Q: What's Execution Standard of products?
A: ISO/ANSI/AWWA/API/DIN/BS/JIS/EN/GOST/AS standard.
Q: How long is your delivery time?
A: Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, Welcome sample order to test and check the quality of products. The sample amount is less than $100, the product cost is free, and the customer needs to pay the express delivery fee. If the sample amount is higher than $100, and the sample cost and express delivery fee need to be negotiated by both parties.
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
Q: Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
Q: Can you provide the relevant documentation and certificate?
A:Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test reports according to the customers need.
Q: What is your terms of delivery?
A: We accept EXW/FOB/CIF etc.
Q. How to deal with after sales ?
A: warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. We will provide process guidance services, replacement parts, on-site guidance and maintenance services. (both parties shall negotiate the relevant expenses)
Q: Why choose us?
A: 1. 20 years of manufacturing and developing experience;
2 A Strong R & D team;
3 Service experience for thousands of customers at home and abroad;
4 Export to 30 countries including Southeast Asia, East Asia, Eastern Europe and Central Asia;
5 Three casting production lines with stable casting quality, high production efficiency and fast delivery time
Q: Do you have agent or representative abroad?Can we join you?
A:Yes,We have some agents abroad. You have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share.
