This Adjustable Height Workbench solves all of these problems. It is designed for people who need precision, comfort, and protection in their work.
The height adjusts easily so you can sit or stand throughout the day. The ESD-safe surface protects sensitive electronics from static damage. The built-in pegboard keeps tools organised and within reach. And the heavy-duty frame gives you the stability you need for detailed work.
Let us walk through why this bench is the right choice for laboratories, cleanrooms, and precision assembly.
Quick Overview: What You Get
Here is a simple breakdown of the main features:
| Feature | What It Means | Why It Matters |
|---|---|---|
| Adjustable Height | Work surface moves up and down | Switch between sitting and standing easily |
| ESD Safe Surface | Anti-static desktop protects electronics | No more fried components from static shock |
| Built-In Pegboard | Tool hanging panel on the back | Everything stays organised and visible |
| Heavy-Duty Frame | Steel construction rated for heavy loads | Stable platform for precision work |
| LED Light Ready | Mounting points for task lighting | See your work clearly |
| Custom Options | Sizes, colours, accessories available | Get exactly what your lab needs |
The Ergonomic Advantage
Why Height Adjustment Matters
Think about your typical workday. You might spend hours soldering circuit boards, assembling small components, or documenting results. If your work surface is too high or too low, your body pays the price. Neck pain. Shoulder fatigue. Lower back strain.
This workbench fixes that problem. With a simple mechanism, you can adjust the height of the entire work surface. The range is wide enough to accommodate most users, from shorter team members to taller workers.
Here is how it helps:
Sit comfortably for detailed soldering and assembly
Stand and stretch during longer tasks
Match the height to your specific chair or stool
Accommodate different workers on the same bench
Good ergonomics means fewer injuries, less fatigue, and better focus. Your team will thank you.
Easy to Adjust
You do not need tools or special training to change the height. The adjustment mechanism is simple and reliable. Just release, move to the desired height, and lock in place. The bench stays exactly where you put it, even with heavy equipment on top.
Protection for Sensitive Electronics
What is ESD and Why It Matters
ESD stands for electrostatic discharge. It is the scientific name for static shock. You know that little zap you get when you touch a doorknob in winter? Now imagine that zap hitting a microchip. The result is a dead component that you cannot fix.
In electronics assembly and laboratories, static is the enemy. That is why we offer this workbench with a genuine ESD-safe desktop.

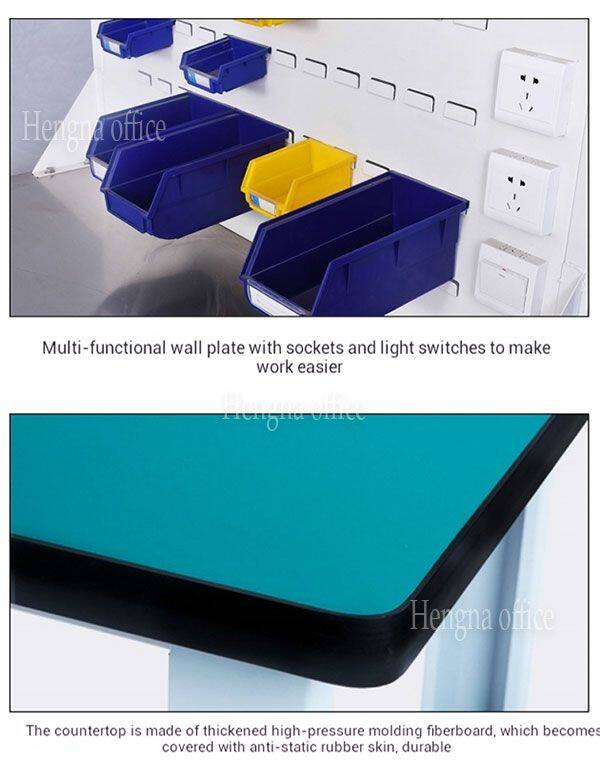

The ESD Surface
The desktop is made from 50 mm high-pressure fibreboard. On top is a 2 mm layer of anti-static vinyl. This special material does not generate static charges. Even more important, it safely drains away any static that does build up.
The surface is:
Impact resistant – stands up to tools and components
Wear resistant – lasts for years of daily use
Easy to clean – just wipe with approved cleaners
PVC edged – protects the desktop edges from chipping
All four sides are sealed with PVC edging. This keeps moisture out and prevents the desktop from delaminating over time.
Grounding Points
The bench includes built-in grounding points. You can easily connect your wrist strap or mat to the bench. This creates a complete ESD-protected workstation that meets industry standards.
Organisation That Works

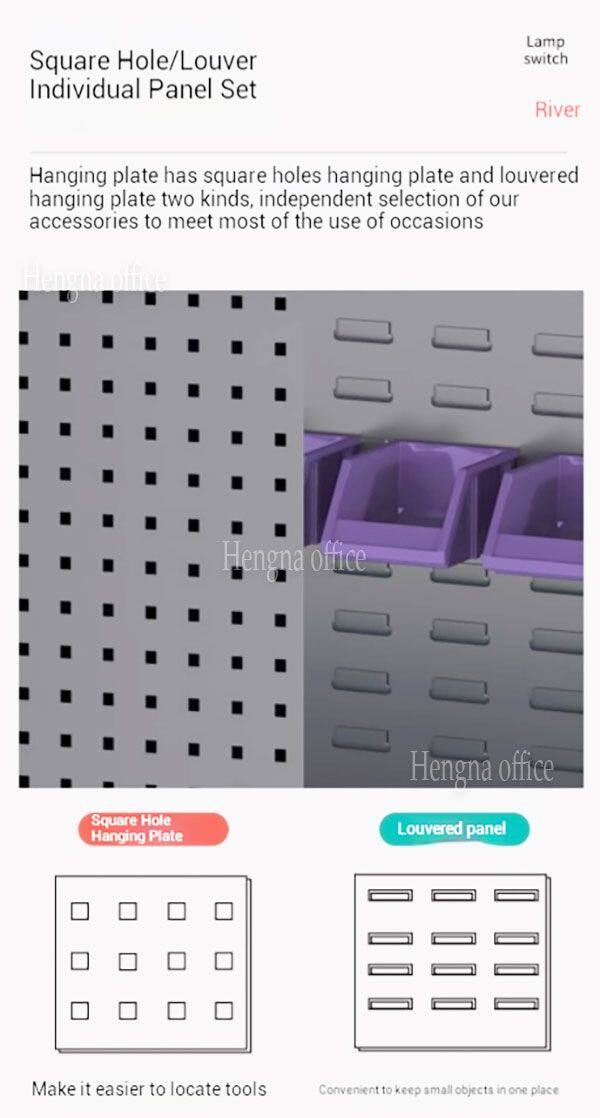

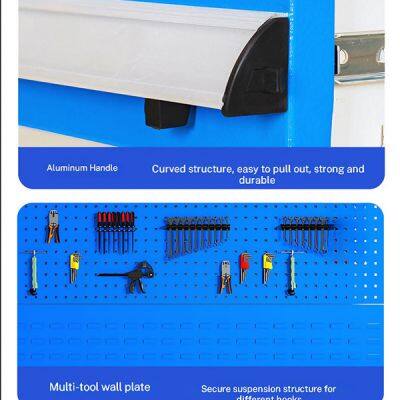

Built-In Pegboard
A cluttered work surface is a dangerous work surface. Tools get lost. Components get knocked onto the floor. Time gets wasted looking for the right screwdriver.
This workbench includes a built-in pegboard on the back panel. The pegboard features two types of holes:
Square holes: 10 mm sides, spaced 28 mm apart. Perfect for standard pegboard hooks and tool holders.
Louvered slots: 50 mm + 20 mm rectangles. Ideal for hanging parts bins and small containers.
With this system, you can:
Hang frequently used tools within arm's reach
Keep parts bins organised by size and type
Free up your work surface for actual work
Customise the layout as your needs change
Accessory Ready
The pegboard is just the start. This bench accepts our full range of accessories:
Shelves for monitors or test equipment
Power strips pre-wired and ready to use
Task lights that mount directly to the frame

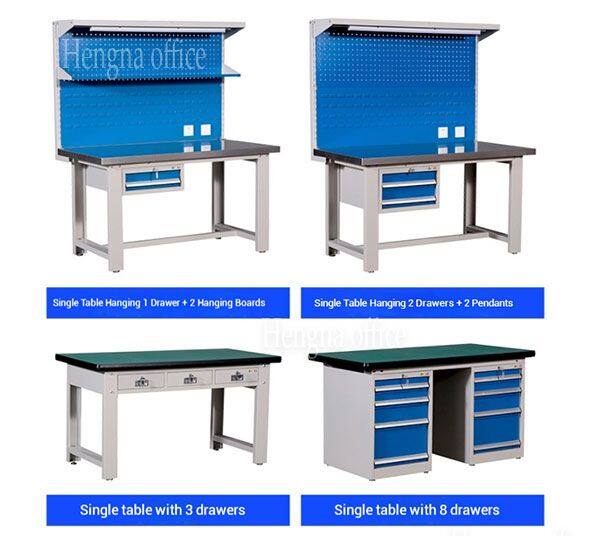

Drawer units that slide under the work surface
Side cabinets for additional storage
Because the system is modular, you can start with the basics and add more later.
Precision Engineering

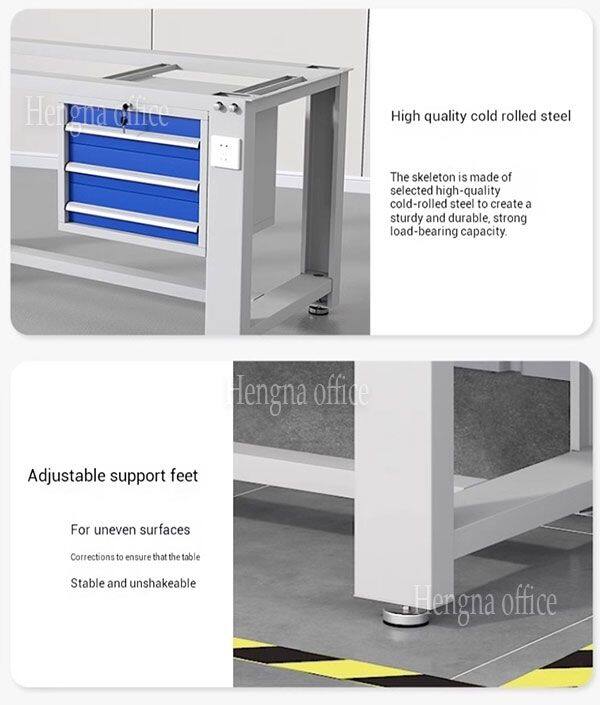

The Frame
The foundation of this workbench is a heavy-duty steel frame. It is formed using a one-piece bending process that eliminates weak points. The legs are thick steel tubing, powder coated for durability.
Even at maximum height, the bench feels solid. There is no wobble or shake, even when you are doing fine soldering work. This stability is essential for precision tasks.
Adjustable Feet
Laboratory floors are not always perfectly level. That is why the bench comes with adjustable feet. You can screw each foot up or down to level the bench perfectly. The adjustment range is 45 mm to 100 mm, enough to handle most uneven floors.
The feet also include soft pads that:
Absorb vibration from nearby equipment
Protect your floor from scratches
Prevent the bench from sliding

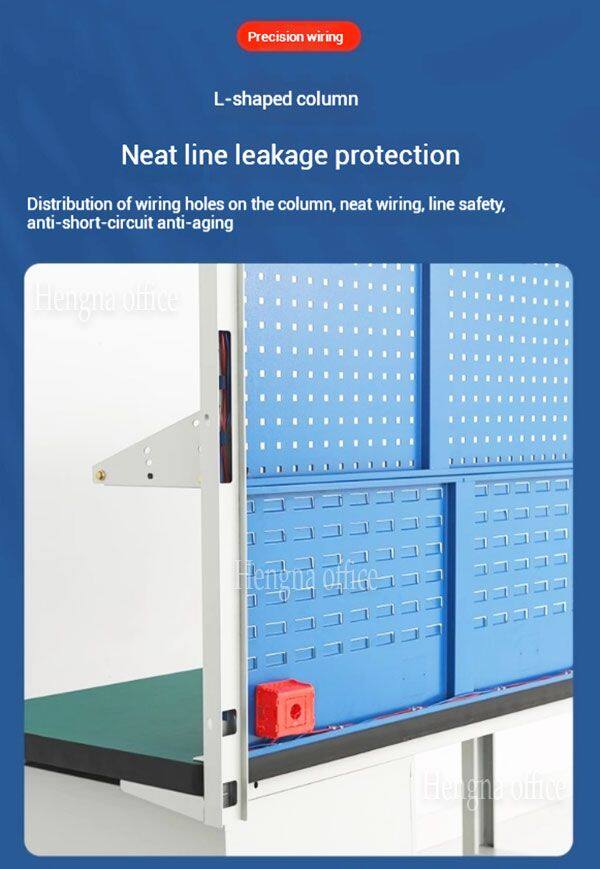

Cable Management
Modern labs have cables everywhere. Power cords. Test leads. USB cables. Without organisation, they become a tangled mess.
This bench features an L-shaped column with precision wiring holes. You route your cables through these holes, keeping them organised and out of the way. The design prevents:
Accidental unplugging
Cable damage and wear
Short circuits from pinched wires

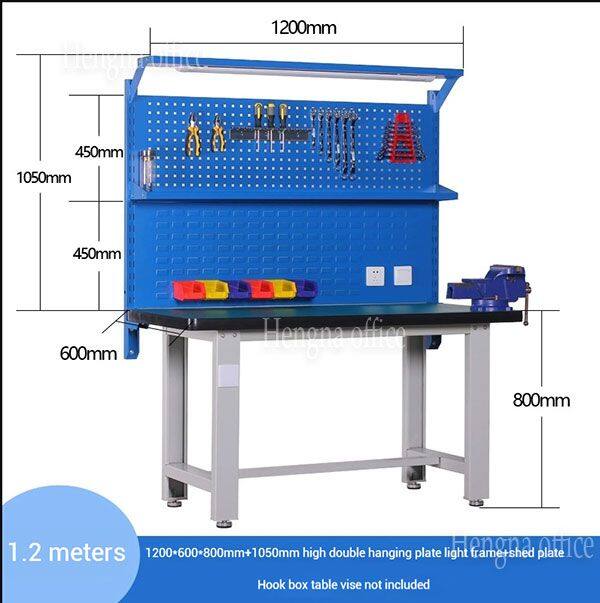

Technical Specifications
| Specification | Details |
|---|---|
| Frame Material | Heavy-duty powder-coated steel |
| Desktop Material | 50 mm fibreboard with 2 mm ESD vinyl, PVC edged |

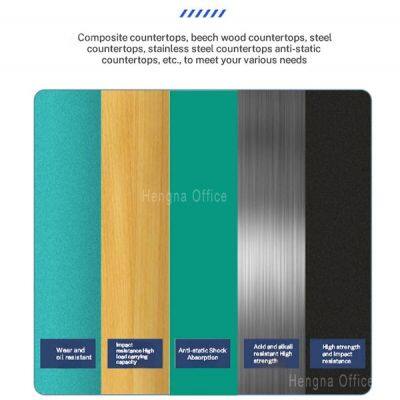

| Desktop Options | Also available in stainless steel, beech wood, composite |
| Height Adjustment Range | Approx. 400 mm to 600 mm (custom ranges available) |
| Adjustment Type | Manual crank or gas spring (depending on model) |
| Load Capacity | Up to 800 kg depending on height and configuration |
| Pegboard Type | Combination square hole (10 mm) and louvered (50+20 mm) |
| Foot Adjustment | 45 mm to 100 mm screw adjustment |
| Grounding | Built-in grounding points for ESD wrist straps |
| Cable Management | L-shaped column with wiring holes |
| Custom Options | Sizes, colours, accessories, branding available |
| Warranty | 5 years on frame, 2 years on components |
Applications: Where This Bench Excels
This adjustable height workbench is ideal for:
Electronics assembly – ESD protection for sensitive components
Laboratories – Comfortable height for microscope work
Quality control – Inspect products without strain
R&D departments – Flexible work surface for prototypes
Cleanrooms – Easy to clean, static-safe surfaces
Technical schools – Teach students on professional equipment
Customisation Options
Because we offer OEM and ODM services, you can customise these benches for your specific needs:
Size
Need a different width or depth? We can adjust the frame dimensions to fit your space. Common custom sizes include:
Narrow benches for tight spaces
Extra deep benches for large equipment
Corner units for L-shaped workstations
Colour
Choose from our standard colours or match your corporate branding. Popular options include:
Textured grey (standard)
Cleanroom white
Laboratory blue
Custom RAL colours
Accessories
Add the accessories your team needs:
Monitor arms
Adjustable stools
Task lighting packages
Tool rails and holders
Document holders
Branding
For larger orders, we can add your company logo to the bench frame or desktop.
Common Questions
1. How much weight can the bench hold at maximum height?
At full extension, the bench is rated for up to 800 kg depending on the configuration. For the highest stability with heavy loads, we recommend using the bench at lower heights. Contact us with your specific requirements and we will help you choose the right setup.
2. Is the ESD surface guaranteed to protect my electronics?
The ESD desktop is designed to meet industry standards for static dissipation. However, proper grounding is essential. You must connect the bench to a suitable earth ground and use wrist straps or mats as required by your procedures. The bench includes grounding points to make this easy.
3. Can I get this bench with electric height adjustment?
Yes, we offer models with electric motor adjustment. This is ideal for workstations where height changes frequently throughout the day. Electric adjustment is available on custom orders. Please inquire for details and pricing.
The Adjustable Height Workbench for Industrial Laboratory from HENGNA combines ergonomics, protection, and organisation in one complete package. With its height-adjustable design, genuine ESD-safe surface, and built-in pegboard, it gives you a workstation that adapts to your body and protects your work.
No more back pain from working at the wrong height. No more damaged components from static discharge. No more cluttered work surfaces that slow you down. Just a clean, comfortable, professional workspace that helps you do your best work.
Whether you need one bench for a specialised lab or fifty for a production line, we can deliver. Contact us today to discuss your requirements or to request a quote.
