steel strand cable crushing recycling machine ACSR separator machine
Brief introduction

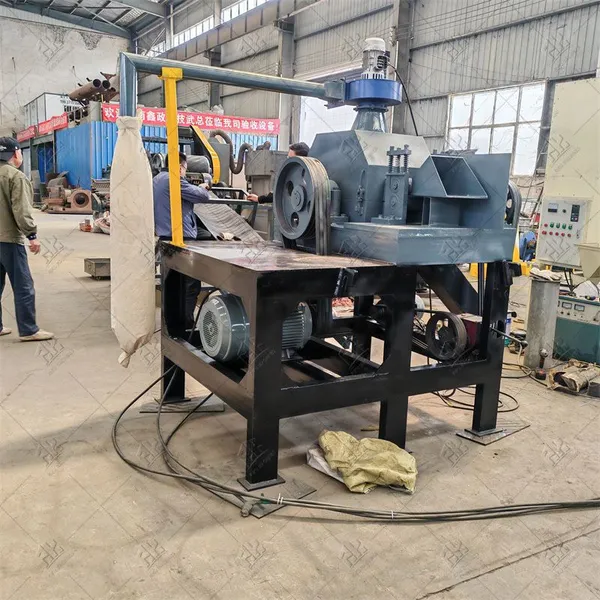

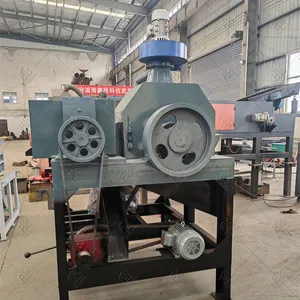

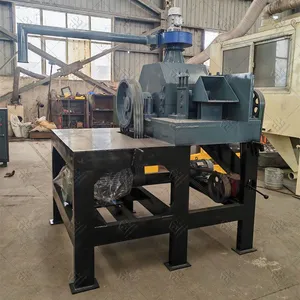

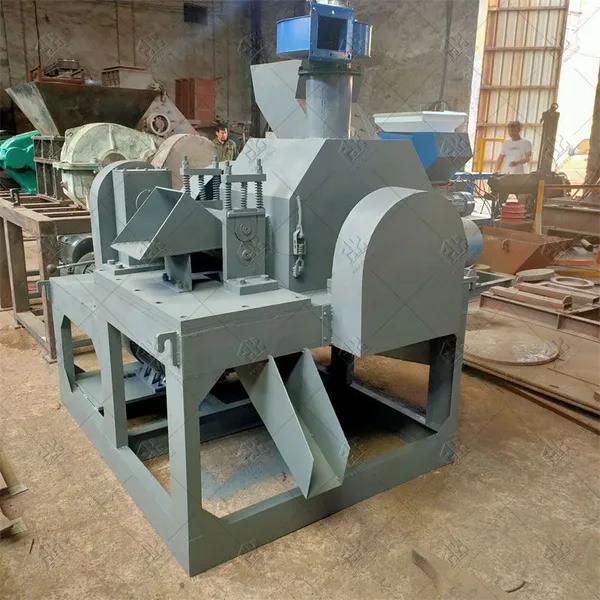

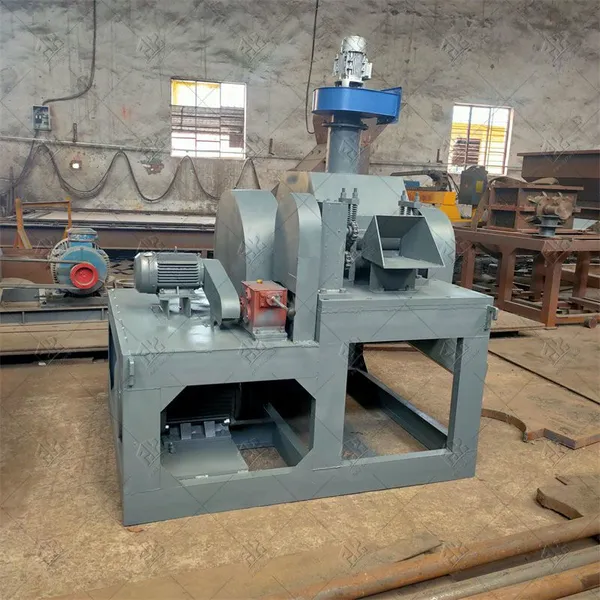

ACSR shredding and sorting machine is specialized equipment designed for recycling ACSR (Aluminum Conductor Steel Reinforced) cables. It efficiently separates aluminum strands from the steel core through shredding, crushing, magnetic separation.Meanwhile the machines Support multiple strands to feed together. Aluminum and steel wire can be separated quickly and efficiently with dust free.
2. Technical parameters
| s.n | item name | specification |
| 1 | Name | ACSR separator |
| 2 | power | 18.5+3+0.75kw |
| 3 | inlet | ≤φ200 |
| 4 | Capacity | 50m/min |
| 5 | dimension | 2000*1800*2000mm |
| 6 | weight | 2200kgs |
| 7 | length of cutting | 10mm.20mm.50mm |
| 8 | Sorting rate | 99% |
2.Customized machines as customer's raw material size | ||
3. Characters
Characters:1.High-efficiency separation: Utilizing an alternating cutting structure of moving and stationary blades, combined with a magnetic separation conveyor belt, it achieves automatic separation of the steel core and aluminum layer, with a separation rate exceeding 99%. 2.High automation: The entire process from feeding, cutting, conveying, magnetic separation to discharging is continuously automated, reducing manual intervention and lowering operating costs.
3.Customized : machine can be customized based on cable diameter.
4.Environmentally friendly: Equipped with a dust collection system, the entire recycling process is clean and pollution-free, meeting environmental protection requirements.
5.High durability: High-hardness cutting tools (such as H13 material) and reinforced tool head structure, wear-resistant and impact-resistant, suitable for long-term continuous operation.
