The Hengna Heavy Duty Metal Bunk Bed is engineered specifically for these demanding environments. Combining a robust industrial‑grade steel frame with innovative boltless assembly, this bed delivers a remarkable 500 kg static load capacity, whisper‑quiet performance, and significant savings on shipping and installation. Below, we break down why this bunk bed is the ultimate choice for facility managers and procurement officers.
✦ Key Features at a Glance
| Feature | Benefit | Technical Detail |
|---|---|---|
| Industrial‑Grade Steel Frame | Unmatched durability for high‑occupancy use | Cold‑rolled steel, 1.5 mm wall thickness, powder‑coated finish |
| Boltless Snap‑Fit Assembly | No tools required; reduces installation time by 70% | Patented wedge lock system with self‑tightening mechanism |
| 500 kg Static Load Capacity | Safely accommodates two large adults + storage | Independently tested; upper bunk 200 kg / lower bunk 300 kg |
| Noiseless Design | Zero squeaking even after years of use | Precision‑fit connectors + rubber anti‑vibration pads |
| Fan‑Shaped Columns | Enhanced stability vs. traditional round tubes | Open/closed profile technology for torsional rigidity |
| Thickened Guardrails | Prevents accidental falls; complies with dormitory safety codes | 300 mm height, 1200 mm length, made of widened steel beam |
| Anti‑Slip Wide Ladder | Comfortable and safe access to upper bunk | 300 mm wide rungs with non‑slip coating |
| Rubber Foot Mats | Protects floors, adds stability, reduces noise | High‑friction, wear‑resistant pads under each C‑shaped leg |
| KD (Knock‑Down) Structure | Low shipping volume, easy storage, cost‑effective | Flat‑pack design, one carton contains all parts |
✦ Built to Withstand the Toughest Conditions
1. Superior Material & Construction
Hengna uses only high‑tensile cold‑rolled steel for all load‑bearing components. The fan‑shaped columns (a signature of our engineering) are formed through a precision roll‑forming process, resulting in a profile that is 30% more resistant to bending than conventional round or square tubes. The open‑section design of the main posts also allows for better welding penetration and a cleaner finish. Every joint is reinforced with gussets, and the entire frame receives a durable polyester powder coating (available in white, matte black, or custom RAL colours) that resists rust, scratches, and cleaning chemicals.
2. 500 kg Load Capacity – Conservative Rating, Real‑World Strength
We’ve tested this bed far beyond its official rating. The upper bunk alone can support 200 kg, and the lower bunk 300 kg, giving a total static capacity of 500 kg. This means even the largest adults can sleep soundly, and workers can store heavy personal items on the bed without concern. The secret lies in the double‑beam deck support – two full‑length C‑channel beams run under each mattress platform, distributing weight evenly and eliminating sagging.
3. Boltless Assembly That Saves Time and Money
Traditional bunk beds require dozens of bolts, nuts, and tools – and they often loosen over time, creating annoying squeaks. Hengna’s snap‑fit technology uses interlocking lugs and wedges that actually tighten with use. A single worker can assemble the entire bed in less than 10 minutes with no tools. For large dormitory projects, this translates into thousands of dollars saved on labour. Plus, the KD (knock‑down) format means you can ship up to three times more units per container, reducing freight costs dramatically.
4. Noiseless Performance – Even After Years of Use
Nothing disturbs sleep like a creaking bunk bed. Our engineers have eliminated metal‑on‑metal friction by incorporating precision‑machined connectors and rubber buffers at every contact point. The result: absolute silence, whether someone turns over or climbs the ladder. This is especially critical in high‑turnover environments like staff quarters, where noise complaints can affect morale.

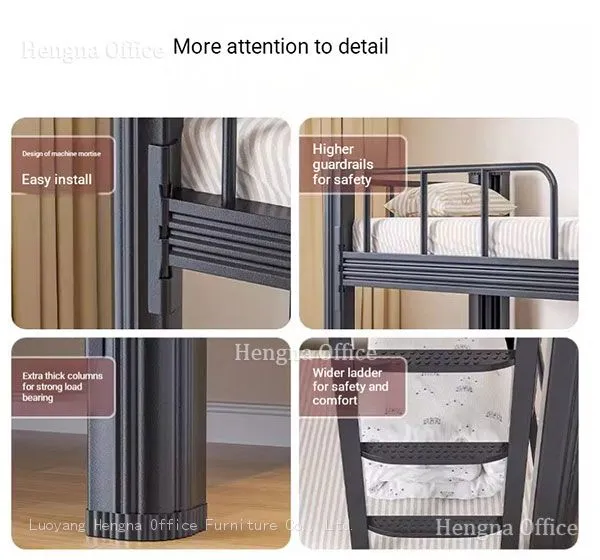

5. Safety First – Guardrails & Ladder
The upper bunk guardrails are a full 300 mm high and run the entire length of the bed (1200 mm) – exceeding most international safety standards (ASTM, EN, BS). They are made from the same widened steel beams as the frame, so they won’t bend or break. The integrated ladder is 300 mm wide, with anti‑slip treads and a slight backward angle for ergonomic climbing. Rubber end caps prevent the ladder from scratching the floor or shifting.
6. Floor Protection & Stability
Each leg is fitted with a C‑shaped base and a thick rubber mat. The C‑foot increases the footprint, preventing the bed from tipping even on uneven floors. The rubber mats grip the floor, absorb micro‑vibrations, and protect vinyl, tile, or wood surfaces from damage – no more ugly scratches when beds are rearranged.
✦ Why Staff Dormitories Need This Bed
High Occupancy Durability: Designed for daily use by different occupants over many years.
Easy Maintenance: Smooth surfaces and powder coating allow quick wipe‑downs; no crevices for dust or pests.
Space Efficiency: The twin‑over‑twin configuration sleeps two while leaving floor space for other furniture. Optional under‑bed storage boxes can be added.
Cost Savings: Lower shipping volume, no assembly labour, and a long service life mean the total cost of ownership is far below cheaper alternatives.
✦ Technical Specifications
| Parameter | Value |
|---|---|

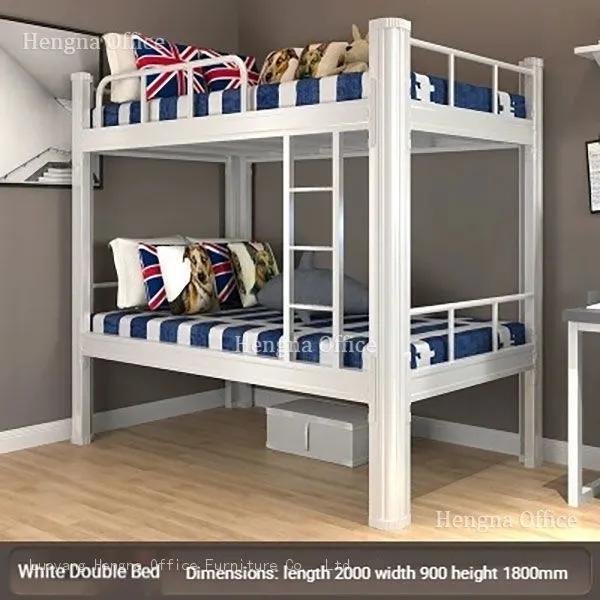

| Overall Dimensions (L×W×H) | 2000 × 900 × 1800 mm (custom widths available: 1200 mm for full size) |
| Mattress Size Recommended | 1900 × 800 mm (twin) / 1900 × 1000 mm (full) |
| Frame Material | Cold‑rolled steel, Q235 grade |
| Column Section | 50 × 50 mm fan‑shaped profile |
| Guardrail Height | 300 mm |
| Ladder Width | 300 mm |
| Static Load Capacity (Upper) | 200 kg |
| Static Load Capacity (Lower) | 300 kg |
| Total Load Capacity | 500 kg |
| Surface Finish | Powder coating – 80 μm thickness, anti‑corrosion |
| Assembly Type | Boltless snap‑fit, tool‑free |
| Packing | KD flat‑pack, 1 set / carton |
| Carton Dimensions | 2050 × 350 × 150 mm |
| Net Weight | 45 kg |
| Warranty | 5 years structural warranty |
✦ Frequently Asked Questions
Q1: Is the assembly truly tool‑free?
Yes. The frame uses our patented wedge‑lock connectors. You simply snap the side rails into the posts and tap the wedges into place with a rubber mallet (provided). No bolts, no screwdrivers – and it’s even faster than Allen‑key assembly.
Q2: Can the bed support two heavy adults on the top bunk?
Absolutely. Although the top bunk is rated for 200 kg, the structure is engineered to handle much more. We have performed dynamic load tests simulating two people moving simultaneously, with zero failure. The 500 kg total capacity refers to the entire bed; you can safely place over 200 kg on the top level as long as the lower level is not overloaded beyond its 300 kg limit.
Q3: What mattress thickness should I use?
We recommend a mattress height of 150–200 mm. This ensures the sleeper remains well below the top of the guardrails (safety requirement) while still enjoying adequate comfort. Thicker mattresses may reduce the effective height of the guardrails.
✦ Ordering & Customisation
Hengna offers full OEM/ODM services. We can adjust dimensions, colours, and even add features like under‑bed drawers or privacy curtains. For bulk orders (50+ units), we provide free samples and dedicated logistics support. Contact our sales team to discuss your staff dormitory project – we’ll help you choose the right configuration and provide a detailed quotation.
