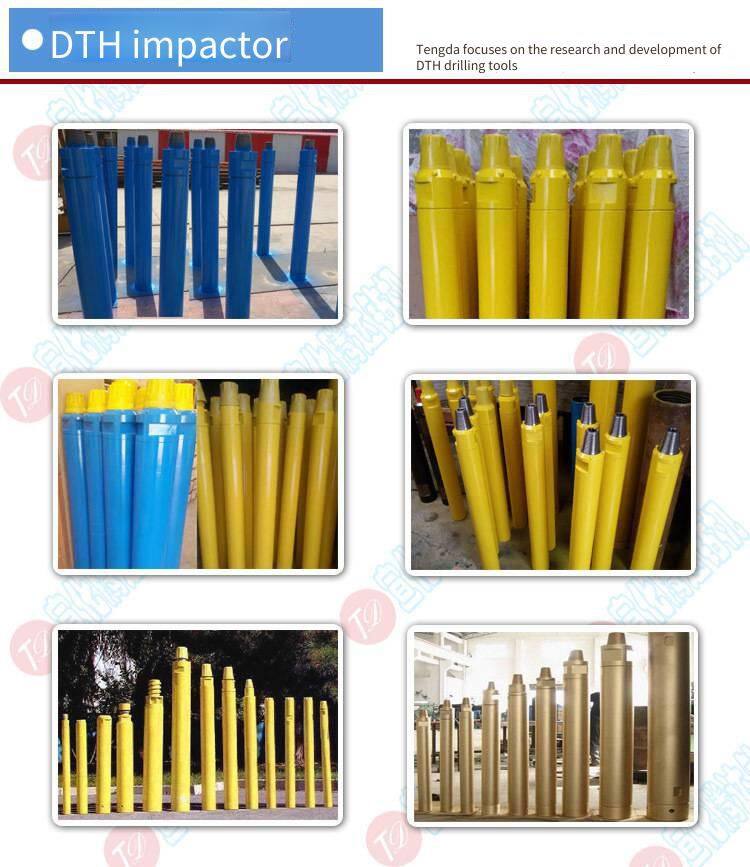

Medium and High Pressure Series Impactors (DHD Series)
Used for drilling mining blast holes with a diameter of (80 - 185mm)
Achieving high hole-drilling speed, the medium and high pressure down-the-hole impactors can convert high air pressure into high perforation speed. It can operate under an air pressure of 0.56 - 2.46Mpa. The service life of components is improved. The design principle of the medium and high pressure down-the-hole impactors of Zhangjiakou Xuanhua Tengda Drilling Machinery Co., Ltd. is to strive to extend the service life and reduce the maintenance workload. For example, the wear-resistant outer sleeve tube after hardening treatment can be reversed for use, thus extending the replacement period.
Long service time. Due to the use of fewer components, simple structure and wear-resistant components, the working time of the impactor can be extended.
Reduction in the cost per foot of drilling. The increase in perforation speed increases the footage per unit of fuel. Due to the simple structure of components and long service life, the maintenance cost is reduced.
Product Model |
DHD3.5 |
DHD340A |
DHD345K |
DHD350 |
DHD360 |
DHD360K |
DHD380 |
DHD380K |
Drilling diameter (mm) |
φ90-93 |
φ105-130 |
φ105-130 |
φ130-152 |
φ152-305 |
,φ152-305 |
φ203-350 |
φ203-350 |
Outer diameter (mm) |
φ81 |
φ92 |
φ98 |
φ114 |
φ136 |
φ142 |
φ181 |
φ180 |
Total length (mm) |
908 |
1052 |
994 |
1387 |
1450 |
1248 |
1551 |
1359 |
Weight (kg) |
21.8 |
38 |
40 |
69 |
126 |
130 |
277 |
270 |
Wind pressure (MPa) |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
0.8-2.1 |
Air consumption (m3/min) |
4.3-14.2 |
3.5-18 |
3.5-15 |
5.7-18 |
8.5-25 |
8.5-25 |
12-31 |
12-31 |
Impact energy (N﹒M) |
205 |
304 |
400 |
590 |
822 |
950 |
1560 |
1800 |
Impact frequency (times/min) |
950-1500 |
≥800 |
≥820 |
810-1470 |
820-1475 |
850-1600 |
860-1510 |
900-1800 |
Connection method with drill pipe |
External API 2-3/8” |
Internal API 2-3/8” |
External API 2-3/8” |
External API 3-1/2” |
External API 3-1/2” |
External API 3-1/2” |
External API 4-1/2” |
External API 4-1/2” |
Connection method with drill bit |
φ53-8 |
φ64-8 |
φ64-8 |
φ84-4 |
φ99.5-8 |
φ99.5-8 |
φ128-10 |
φ128-10 |
Compatible drill bit shank |
DHD3.5-90 /100 |
DHD340A- 105/115/ 130 |
DHD345K -105/115/ 130 |
DHD350-130 /140/152 |
DHD360-152/165/ 178/194/203/216/ 230/254/305 |
DHD360-152/165/ 178/194/203/216 230/254/305 |
DHD380-203 /216/230/254 310/350 |
DHD380K-203 /216/230/254 310/350 |
