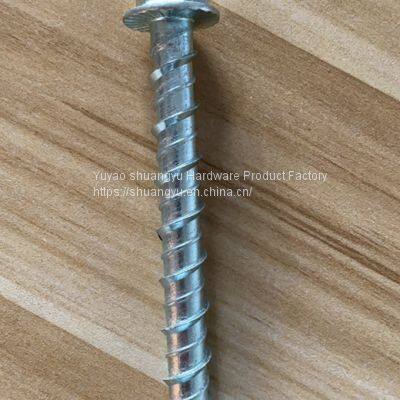

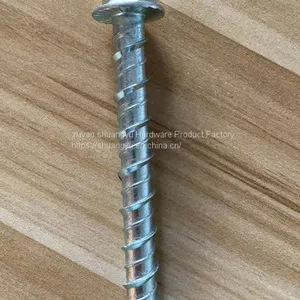

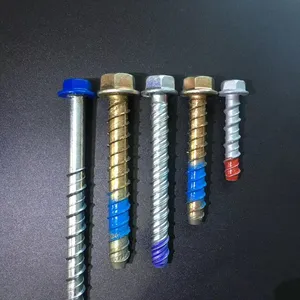

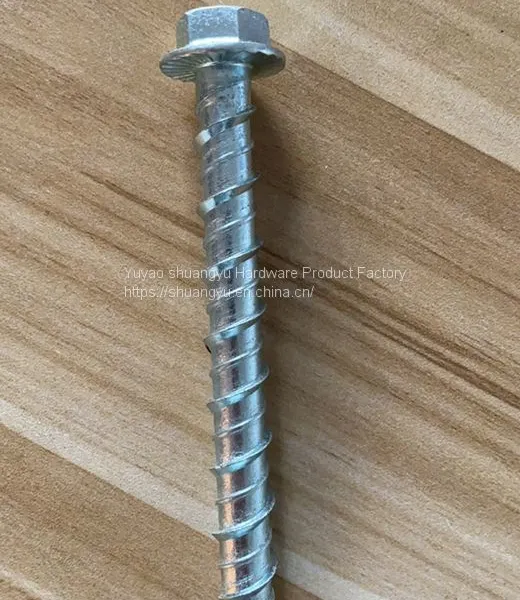

Key Features
Qualified for static, wind and seismic loading conditions
Thread design undercuts to efficiently transfer the load to the base material
Standard fractional sizes
Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
No special drill bit required - designed to install using standard-sized ANSI tolerance drill bits
Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
Removable - ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved
Reuse of the anchor will not achieve listed loads and is not recommended
Material
Carbon steel
Finish
Zinc plated
Not recommended for permanent exterior use or highly corrosive environments

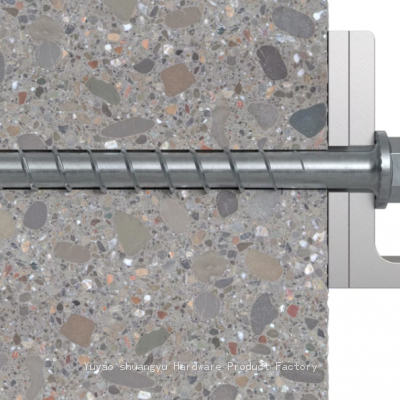

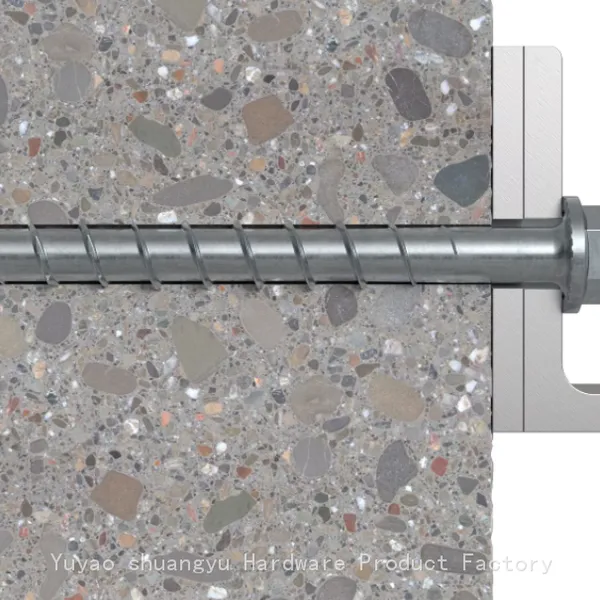

Installation
1.Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified embedment depth plus minimum hole depth overdrill to allow the thread tapping dust to settle, and blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively, drill the hole deep enough to accommodate embedment depth and the dust from drilling and tapping.
2.Insert the anchor through the fixture and into the hole.
3.Tighten the anchor into the base material until the hex-washer head contacts the fixture.
