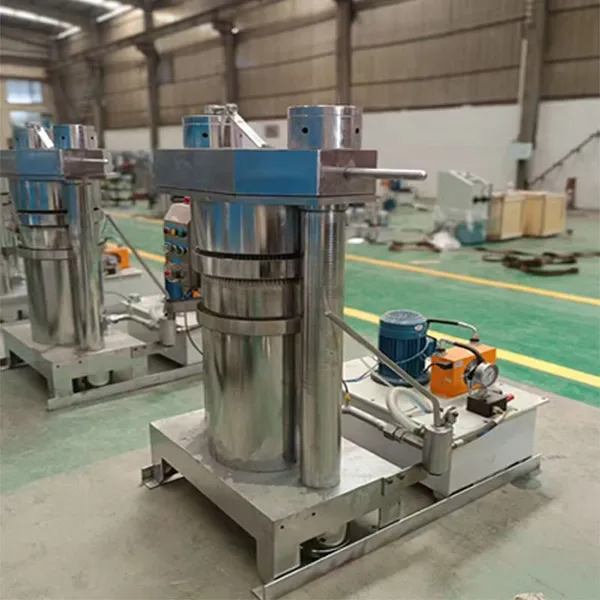

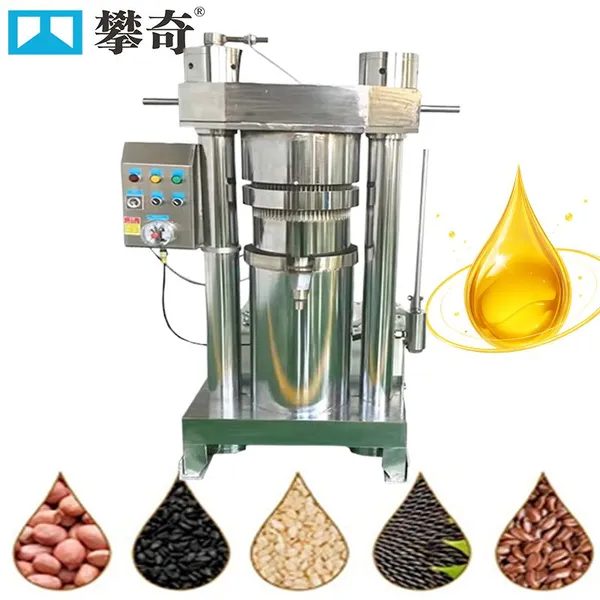

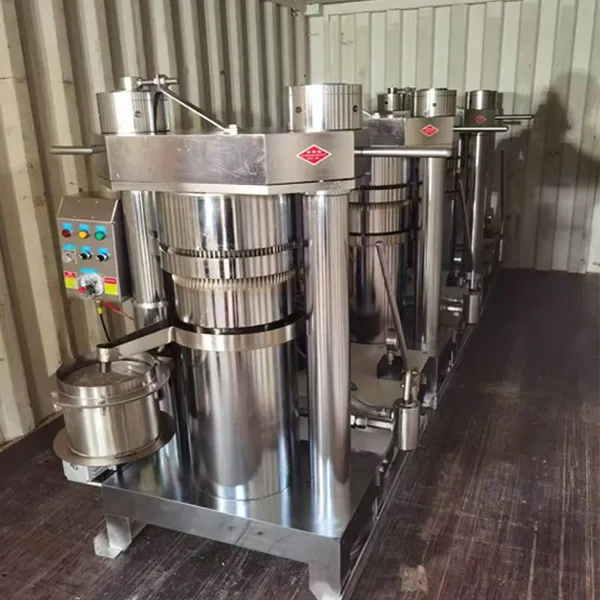

Help CenterAutomatic Hydraulic Walnut Oil Press Wholesale Walnut Oil Press Machine Commercial Walnut Oil Pressing Machine
Product Spotlights
Related Products
-
Multi-function Oil Pressers Oil Making Machine for Factory Industrial Groundnut Oil Extraction MachineUS$ 984 - 2984MOQ: 1 Set -
Commercial Cold Coconut Oil Making Machine Palm Oil Extractor Machine Sesame Seed Oil Press Machine for Small BusinessUS$ 984 - 2984MOQ: 1 Set
-
Professional Peanut Sesame Oil Making Machine Hydraulic Cold Oil Press Oil Refining Filter Pressing MachineUS$ 984 - 2984MOQ: 1 Set
-
Automatic Hydraulic Oil Press Machine 220V/380V for Cold/Hot Pressing ProcessingNegotiableMOQ: 1 Set
-
Factory-Direct Hydraulic Oil Press With Free Technical Support & Spare Parts SupplyNegotiableMOQ: 1 Set

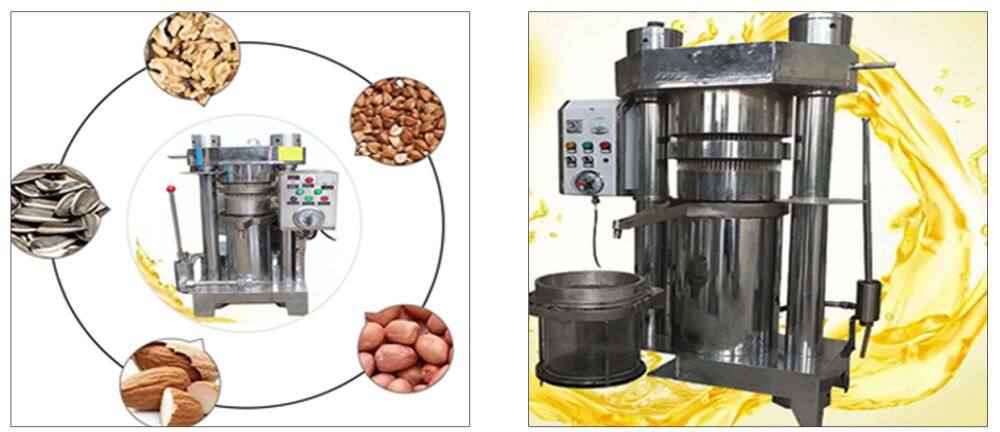

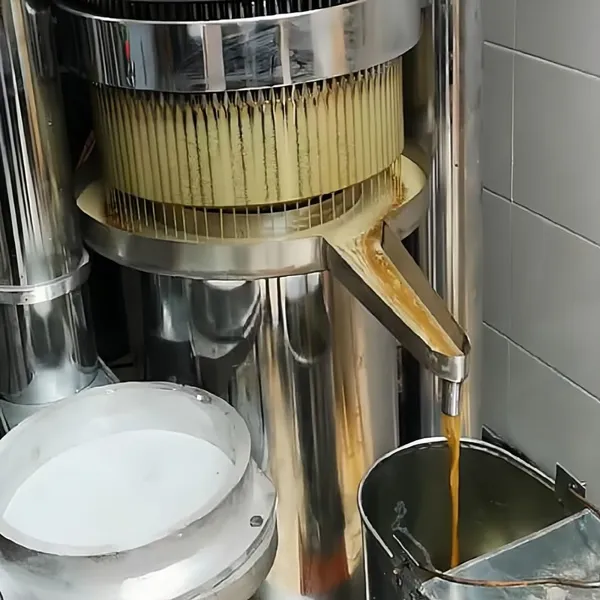

This machine generates high pressure through a hydraulic system. When the oil seed enters the pressing chamber, the hydraulic device pushes the piston to apply pressure, gradually increasing the internal pressure of the pressing chamber. Under this strong pressure, the cell structure of the oil seed is destroyed, and the oil is squeezed out of the cells
1.Wide applicability of raw materials: Suitable for various oil seeds (such as peanuts, rapeseed, sesame, tea seeds, etc.), with low residual oil rate after a single pressing.
2. High oil yield: Extremely high pressure maximizes the extraction of oil from the oil seed cells, especially for oil seeds with high oil content or those difficult to press, resulting in a significant advantage in oil yield.
3. The pressing process is static pressure application, minimizing frictional heat generation. This preserves the natural flavor, color, and nutrients of the oil.
4. Simple operation and convenient maintenance: The mechanical structure is relatively simple (mainly the cylinder, piston, and pressing chamber), the hydraulic system is mature and reliable, with fewer potential failure points, making daily maintenance and up keep easy.
| Model | Dimension | Motor | Hourly Output | weight |
| 6YY-150 | 700*800*780mm | 0.75kw | 12kg | 240kg |
| 6YY-180 | 800*900*1050mm | 1.5kw | 20kg | 550kg |
| 6YY-230 | 900*1000*1400mm | 1.5kw | 40kg | 950kg |
| 6YY-260 | 1050*1100*1550mm | 1.5kw | 60kg | 1200kg |
| 6YY-320 | 1120*1200*1650mm | 2.2kw |
70kg | 1700kg |
| 6YY-360 | 1200*1200*1680mm | 2.2kw | 90kg | 2000kg |
| 6YY-415 | 1250*1250*1700mm | 2.2kw | 120kg | 2200kg |
| 6YY-460 | 1500*1500*2150mm | 3kw | 180kg | 3000kg |

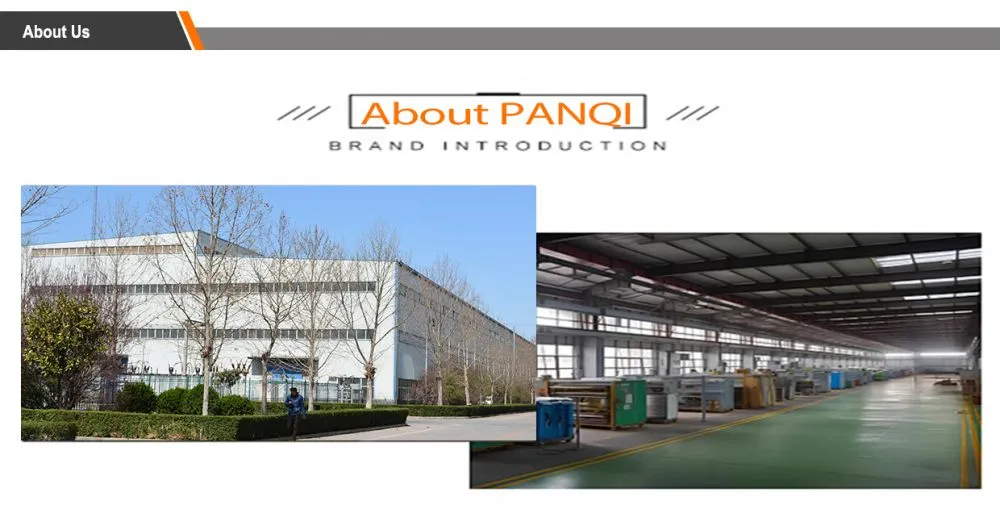

Henan Panqi Heavy Industry Technology Co., Ltd.
Henan Panqi Heavy Industry Technology Co., Ltd. is a national high-tech enterprise specializing in the research, development, manufacturing, and sales of high-end oil pressing machinery and oil refining technology. With over 12 years of experience in the oil processing industry, we adhere to the philosophy of "Craftsmanship in Manufacturing, Creating Value in Oil," and are committed to providing global customers with complete solutions from single machines to entire plants, and from crude oil to refined oil. Our products mainly cover various oil processing equipment from pressing to refining, including hydraulic oil presses, screw oil presses, drum roasters, oil filtration machinery, and refining equipment.
Q1.Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, located in Located at Miaowang Road, Xingyang, Zhengzhou,Henan, China. Warmly welcome to visit our company.
Q2: How is the quality of your machines?
A: Our products are manufactured strictly according to national and international standards, and each machine undergoes testing before leaving the factory.
Q3: What is your lead time?
A: In-stock items: 7-10 days; Mass production: 15-30 days.
Q4: What is the warranty period?
A: One year.
Q5:Does your company supply spare parts?
A:We provide spare parts at the lowest cost
lf you meet any other questions, please feel free to contact us.
Emai:159362jin@gmail.com Whatsup/Wechat:159362jin@gmail.com Phone:+86 17803829000
